Industrial Touch monitors have become significant devices for many applications, such as use as part of a human-machine interface (HMI), self-service kiosks, vending machines, etc.
Being a professional manufacturer of embedded computing platforms, Cincoze provides a complete product series that enables you to operate the machines with more reliability and efficiency.
Cincoze have recently release their latest Widescreen option for the CV-100/M1001 Series and they are now available from Assured Systems.
Industrial Design For Use In Your Industrial Operations

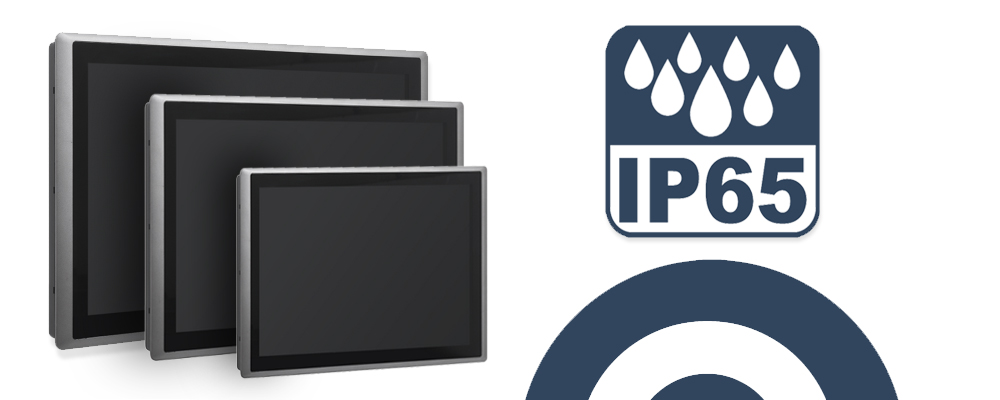

Designed with reliability and stability in mind, the monitors feature an IP65-rated aluminium die-casted front bezel and many industrial-grade protections. Durability and strength come from the high standard industrial-grade design, with 50,000 hours backlight life and available with 5-wire Resistive, Projective Capacitive touchscreen or Glass Only.
The latest Widescreen (16:9) releases in the CV-100/M1000 Series offers the choice of 15.6”, 21.5” and 24” sized displays.
CV-W115/M1001
The 15.6″ (16:9) touch monitor is available with resistive 5-wire / projected capacitive touch screen offers resolution up to 1366×768 (WXGA) and 400 nits brightness.
CV-W115/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with its aluminium die-cast front frame, it is rugged and reliable for an industrial environment.
With support to wide range power input from 9~48VDC, CV-W115/M1001 is designed as an ideal solution for industrial application.
CV-W121/M1001
The 21.5″ (16:9) touch monitor with resistive 5-wire touch screen, projected capacitive touch screen, or glass screen offers resolution up to 1920 x 1080 (Full HD) and 300 nits brightness.
CV-W121/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminium die-cast front frame, it is rugged and reliable for industrial environment.
CV-W124/M1001
The 24″ (16:9) touch monitor with resistive 5-wire touch screen, projected capacitive touch screen, or glass screen offers resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. As with the 15.6” and 21.5” versions, the CV-W124/M1001 features a flat surface and IP65 dust/waterproof front panel.
* Monitors displayed are for illustration purposes only and not to scale

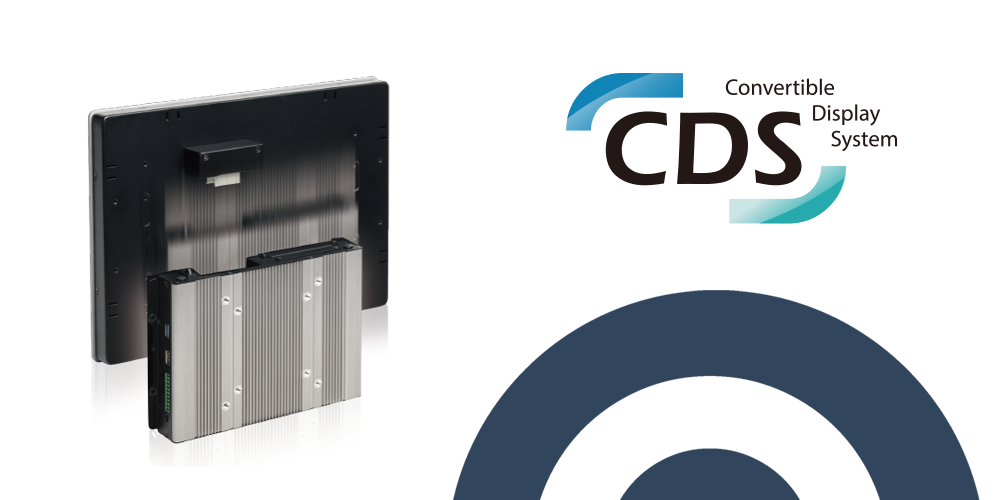

Like the CS-100 range of monitors, the CV-100 15.6”, 21.5” and 24” Industrial Monitors also support Cincoze’s Convertible Display System (CDS) which allows you to configure, upgrade and maintain your touch monitor easily.
All three support digital and analogue signal input via three types of display interface: VGA, DVI-D and Display-Port and the Touch screen can be connected with USB port and 1x COM port. They also have the OSD function for adjusting the viewing options of display.
