FR Winmate Industrial Panel PC and HMI
In the fast-changing world of industrial automation, Winmate stands out with its advanced Industrial Panel PCs (IPCs) and Human Machine Interfaces (HMIs). Built for the tough demands of modern industries, these durable solutions offer exceptional reliability and performance. This article explores the key features, benefits, and applications of Winmate’s IPCs and HMIs, showcasing their impact on industrial operations.

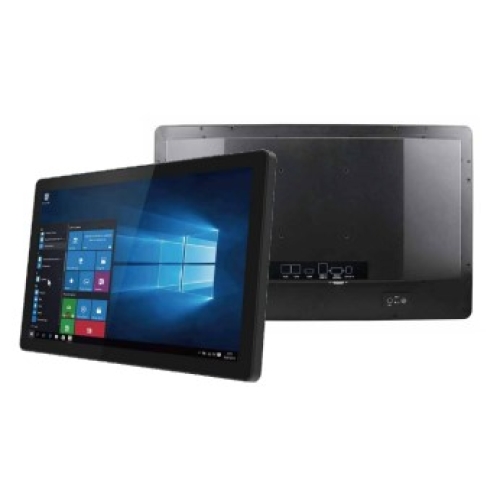

Winmate W22IP3S-GCA3
Winmate W22IP3S-GCA3 21.5″ Intel Pentium PCAP Touchscreen Panel PC w/ Front IP65
Winmate R19IB3S-SPM1-B
Winmate R19IB3S-SPM1-B 19″ Intel Celeron N2930 IP65 Stainless Steel Touch Panel PC
- Screen Size: 19" Display
- Brightness: 250nit (Standard)
- Resolution: 1280x104
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: 0°C to +45°C
- Power Input: 9 to 36 VDC
- IP Rating: Full IP65
- Certifications: CE/FCC

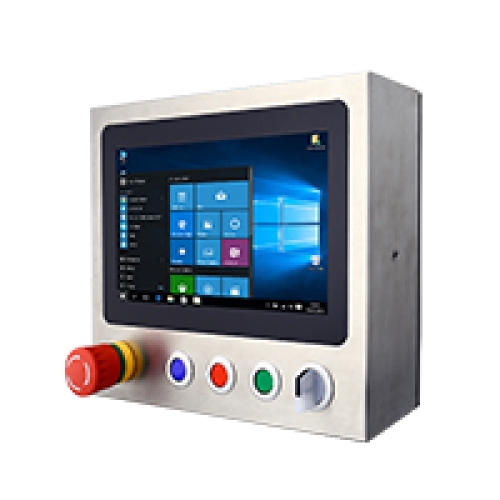

Winmate W10IB3S-SPH1-B
Winmate W10IB3S-SPH1-B 10.1″ Intel Celeron N2930 IP65 Stainless Steel Touch Panel PC
- Screen Size: 10.1" Display
- Brightness: 450nit (Standard)
- Resolution: 1024x600
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: 0°C to +45°C
- Power Input: 9 to 36 VDC
- IP Rating: Full IP65
- Certifications: CE/FCC
Winmate R15IB3S-SPC3-B
Winmate R15IB3S-SPC3-B 15″ Intel Celeron N2930 IP65 Stainless Steel Touch Panel PC
- Screen Size: 15" Display
- Brightness: 300nit (Standard)
- Resolution: 1024x768
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: 0°C to +45°C
- Power Input: 9 to 36 VDC
- IP Rating: Full IP65
- Certifications: CE/FCC
Winmate FM10Q
Winmate FM10Q 10.4″ Android Vehicle Mount Computer w/ Qualcomm Snapdragon CPU
- Screen Size: 10.4" Display
- Brightness: 400nit (Standard)
- Resolution: 1024x768
- CPU: RISC
- Memory: Up to 32GB
- Max Temp Range: -30°C to +50°C
- Power Input: 10 to 60 VDC
- IP Rating: Full IP65
- Certifications: MIL-STD
Winmate FM10
Winmate FM10 10.4″ Intel Atom E3845 Windows 10 Vehicle Mounted Computer
- Screen Size: 10.4" Display
- Brightness: 400nit (Standard)
- Resolution: 1024x768
- CPU: Intel Atom E3845
- Memory: Up to 8GB
- Max Temp Range: -30°C to +50°C
- Power Input: 10 to 60 VDC
- IP Rating: Full IP65
- Certifications: CE/FCC, MIL-STD, UL
Winmate W24IB3S-RKS1ML
Winmate W24IB3S-RKS1ML 24″ Intel N2930 Rack Mount Military Panel PC, 1920×1200
- Screen Size: 24" Display
- Brightness: 300nit (Standard)
- Resolution: 1920x1200
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: 0°C to +50°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC, MIL-STD
Winmate R15ID3S-MLC3HB
Winmate R15ID3S-MLC3HB 15″ Dual Core D2550 Military Panel PC, 1024×768
- Screen Size: 15" Display
- Brightness: 1000nit (High)
- Resolution: 1024x768
- CPU: Intel Atom D2550
- Memory: Up to 4GB
- Max Temp Range: -10°C to +55°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC, MIL-STD
Winmate R19IB3S-RKA3ML
Winmate R19IB3S-RKA3ML 19″ Intel N2930 Flush Rack Military Panel PC, 1280×1024
- Screen Size: 19" Display
- Brightness: 350nit (Standard)
- Resolution: 1280x1024
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC, MIL-STD
Winmate R10IB3S-MLT2
Winmate R10IB3S-MLT2 10.4″ Intel Celeron N2930 Military Panel PC, 1024×768
- Screen Size: 10.4" Display
- Brightness: 350nit (Standard)
- Resolution: 1024x768
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC
Winmate R17IB3S-RKA1ML
Winmate R17IB3S-RKA1ML 17″ Intel N2930 Military Panel PC, 1280×1024
- Screen Size: 17" Display
- Brightness: 350nit (Standard)
- Resolution: 1280x1024
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC, MIL-STD
Winmate W24IH3S-MLS1-89
Winmate W24IH3S-MLS1-89 24″ Intel Core i7-4650U Military Panel PC, 1920×1200
- Screen Size: 24" Display
- Brightness: 300nit (Standard)
- Resolution: 1920x1200
- CPU: Intel Core i7-4650U
- Memory: Up to 4GB
- Max Temp Range: 0°C to +50°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC, MIL-STD
Winmate R19IH3S-MLA3-89
Winmate R19IH3S-MLA3-89 19″ Intel Core i7-4650U MIL-STD Panel PC, 1280×1024
- Screen Size: 19" Display
- Brightness: 350nit (Standard)
- Resolution: 1280x1024
- CPU: Intel Core i7-4650U
- Memory: Up to 4GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: MIL-STD
Winmate R17IH3S-MLA1-89
Winmate R17IH3S-MLA1-89 17″ Intel Core i7-4650U Military Panel PC, 1280×1024
- Screen Size: 17" Display
- Brightness: 350nit (Standard)
- Resolution: 1280x1024
- CPU: Intel Core i7-4650U
- Memory: Up to 4GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: CE/FCC, MIL-STD
Winmate R08IB3S-MLU1
Winmate R08IB3S-MLU1 8.4″ Intel N2930 Military Panel PC, 800×600
- Screen Size: 8.4" Display
- Brightness: 600nit (Standard)
- Resolution: 800x600
- CPU: Intel Celeron N2930
- Memory: Up to 8GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: Full IP65
- Certifications: CE/FCC, MIL-STD
Winmate W24IK3S-RKS1ML
Winmate W24IK3S-RKS1ML 24″ Intel Core i5-7200U Military Panel PC, 1920×1200
- Screen Size: 24" Display
- Brightness: 300nit (Standard)
- Resolution: 1920x1200
- CPU: Intel Core i5-7200U
- Memory: Up to 16GB
- Max Temp Range: 0°C to +50°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: MIL-STD
Winmate R19IK3S-RKA3ML
Winmate R19IK3S-RKA3ML 19″ Intel Core i5-7200U Military Panel PC, 1280×1024
- Screen Size: 19" Display
- Brightness: 350nit (Standard)
- Resolution: 1280x1024
- CPU: Intel Core i5-7200U
- Memory: Up to 16GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: MIL-STD
Winmate R17IK3S-RKA1ML
Winmate R17IK3S-RKA1ML 17″ Intel Core i5-7200U Military Panel PC, 1280×1024
- Screen Size: 17" Display
- Brightness: 350nit (Standard)
- Resolution: 1280x1024
- CPU: Intel Core i5-7200U
- Memory: Up to 16GB
- Max Temp Range: -20°C to +60°C
- Power Input: 9 to 36 VDC
- IP Rating: N/A
- Certifications: MIL-STD
Need Help Choosing?
We have over 20 years experience in helping engineers, developers and project owners to choose the correct hardware for their projects.
