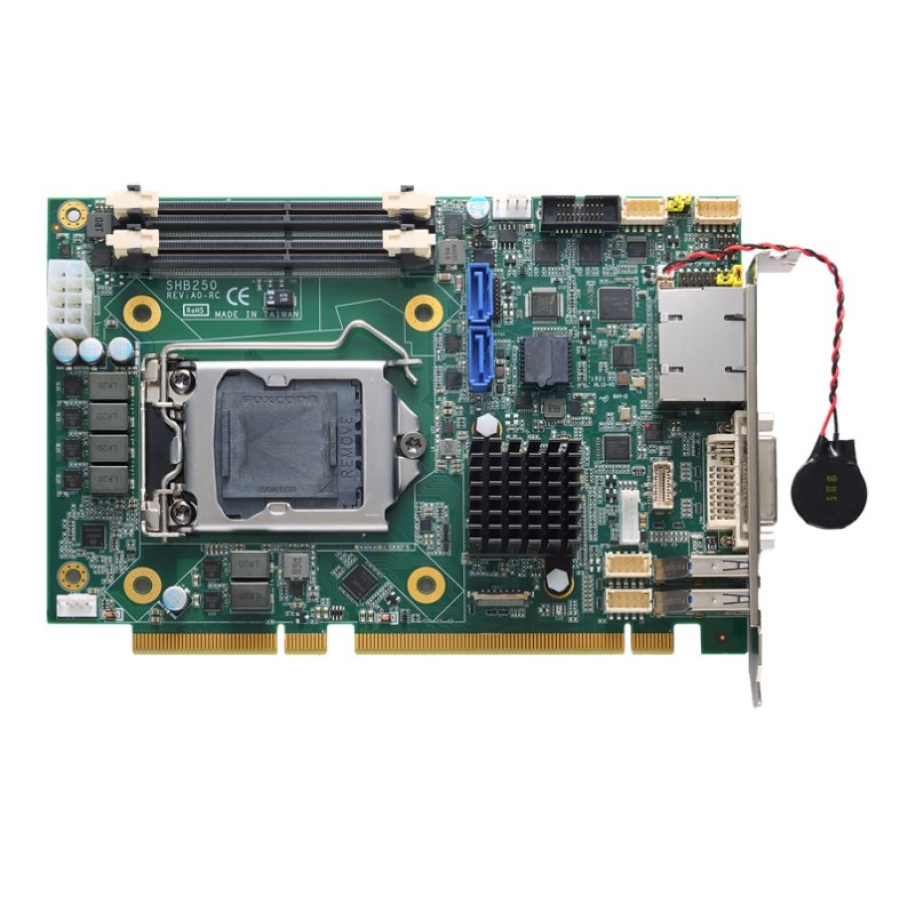

Axiomtek SHB250R 9th/8th Gen Intel Core, Xeon E, Pentium, Celeron Half CPU Card
SHB250R
- LGA1151 9th/8th gen Intel Core i7/i5/i3, Xeon E (C246), Pentium or Celeron processor
- Intel C246/Q370/H310 chipset
- 2 DDR4-2666/2400 SO-DIMM for up to 64GB of memory
- Supports M.2 slot
- Supports Intel AMT and vPro (C246/Q370)
- TPM 2.0 supported
Details
The Axiomtek SHB250R is an PICMG 1.3 Full-size CPU Card with LGA1151 9th/8th Gen Intel Core i7/i5/i3, Xeon E, Pentium or Celeron Processor alongside Intel C246/Q370/H310 chipset. It contains 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory and Supports M.2 Slot.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| CPU | LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor (8th up to 95W, 9th up to 35W) |
| Chipset | Intel® C246/Q370 (Intel® vPro supported), Intel® H310 |
| System Memory | 2 x 260-pin 2666/2400 with ECC un-buffered SO-DIMM, up to 64GB (C246)2 x 260-pin 2666/2400 un-buffered SO-DIMM, up to 64GB (Q370/H310) |
| BIOS | AMI |
| COM | 2 x RS-232/422/485, mode selection by SW |
| USB | 4 x USB 3.1 Gen1 (2 ports in I/O, 2 ports in interanal box header), 4 x USB 2.0 |
| Ethernet | 1 x 10/100/1000 Mbps(Intel® i219-LM; AMT), 1 x 10/100/1000 Mbps (Intel® i211-AT) |
| Display | 1 x DVI-I, 1 x DisplayPort (internal header) |
| Digital I/O | 8 channel programmable |
| Audio | MIC-in/Line-in/Line-out/Speaker-out |
| Storage | M.2 Key M 2242 (Q370/C246 support PCIe 3.0 x4 or SATA-3, H310 supports SATA-3) |
| Expansion | 1 x PCIe x16 Gen3, 1 x PCIe x4 or 4 x PCIe x1 Gen3 |
| Others | 1 x PS/2 keyboard & mouse internal connector, TPM 2.0 |
| Battery | Lithium 3V/220 mAH |
| Power Requirements | TBC |
| Watchdog Timer | 225 levels, 1 to 255 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 185 x 126 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |
| Memory Type | DDR4 |
|---|---|
| COM Ports | 2x RS-232/422/485 |
| LAN Ports | 2x 1GB |
| USB Ports | 4x USB 3.1, 4x USB 2.0 |
| Video Ports | 1x DVI, 1x DisplayPort |
| Storage | 1x M.2 SATA, 1x M.2 PCIe, 2x SATA |
| Operating Temperature | 0°C to 60°C |
