SHB150R

Axiomtek SHB150R 9th/8th Gen Intel Core, Xeon E, Pentium, Celeron Full CPU Card

SHB150R

  • LGA1151 9th/8th gen Intel Core i7/i5/i3, Xeon E (C246), Pentium or Celeron processor (up to 95W)
  • Intel C246/Q370/H310 chipset
  • 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory
  • Supports Intel AMT and vPro (C246/Q370)
  • TPM 2.0 supported (optional)
  • Supports M.2 Key M (C246/Q370)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

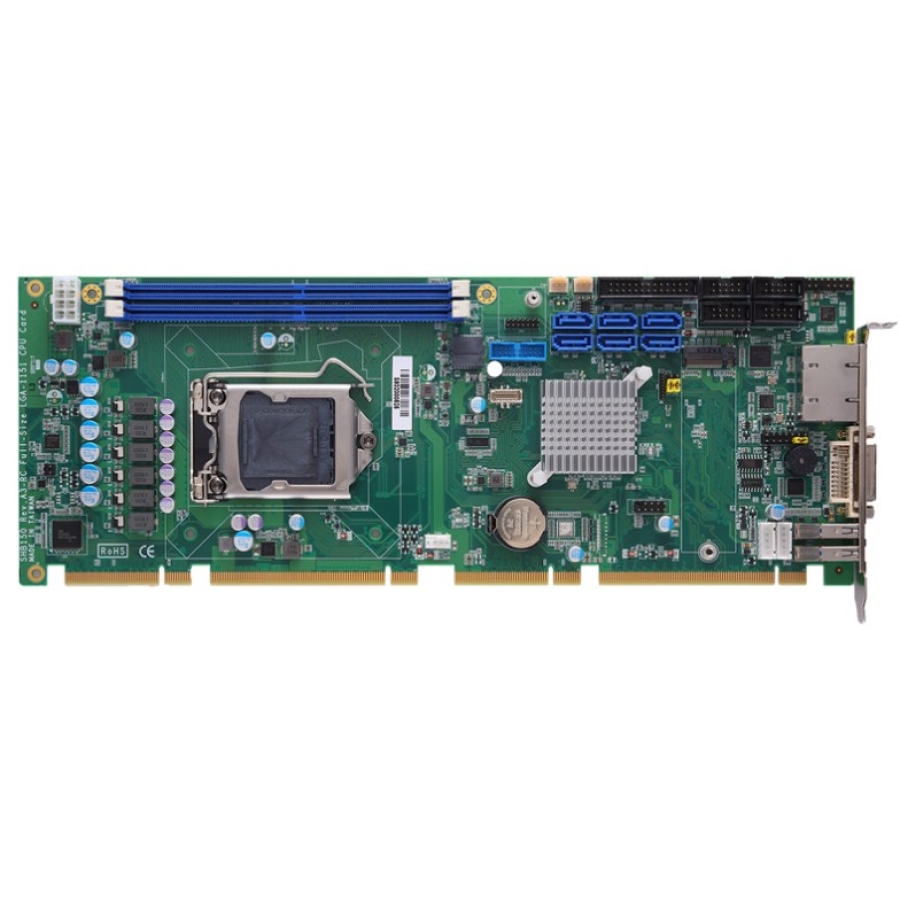

The Axiomtek SHB150R is an PICMG 1.3 Full-size CPU Card with LGA1151 9th/8th Gen Intel Core i7/i5/i3, Xeon E, Pentium or Celeron Processor alongside Intel C246/Q370/H310 chipset. It contains 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory and Supports M.2 Key M (C246/Q370).

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor (up to 95W)
Chipset Intel® C246/Q370 (Intel® vPro supported), Intel® H310
System Memory 2 x 288-pin DDR4-2666/2400 un-buffered ECC Long-DIMM, up to 64GB (C246)2 x 288-pin DDR4-2666/2400 un-buffered Long-DIMM, up to 64GB (Q370/H310)
BIOS AMI
COM 2 x RS-232, 2 x RS-232/422/485, mode selection by SW
USB Intel® C246/Q370: 2 x USB 3.1 Gen2, 4 x USB 3.1 Gen1 & 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers)Intel® H310: 4 x USB 3.1 Gen1 & & 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers)
Ethernet 1 x 10/100/1000 Mbps (Intel® i219-LM; AMT), 1 x 10/100/1000 Mbps (Intel® i211-AT)
Display AMI UEFI BIOS
Digital I/O N/A
Audio HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage M.2 Key M 2280, PCIe x4 signal (C246, Q370)C246/Q370: 6 x SATA-600, support RAID 0/1/5/10H310: 4 x SATA-600
Expansion 1 x PCIe x16 Gen3, 1 x PCIe x4 or 4 x PCIe x1 Gen3, 4 x 32-bit PCI bus masters
Others 1 x PS/2 keyboard internal connector, 1 x PS/2 mouse internal connector, TPM 2.0 module (optional), 1 x LPT, 1 x Smart CPU fan, 1 x Smart system fan
Battery Lithium 3V/220 mAH
Power Requirements TBC
Watchdog Timer 225 levels, 1 to 255 sec.
Hardware Monitoring Yes
Operating Temperature 0°C to +60°C (+32°F to +140°F)
Relative Humidity 10% to 95% relative humidity, non-condensing
Dimensions 338 x 126 mm
Board Thickness 1.6 mm
Certifications CE
Memory Type DDR4
COM Ports 2x RS-232, 2x RS-232/422/485
LAN Ports 2x 1GB
USB Ports 4x USB 3.1, 6x USB 2.0, 6x USB 3.1
Video Ports 1x DisplayPort, 1x DVI
Storage 1x M.2 PCIe, 4x SATA, 6x SATA
Operating Temperature 0°C to 60°C
