rBOX610

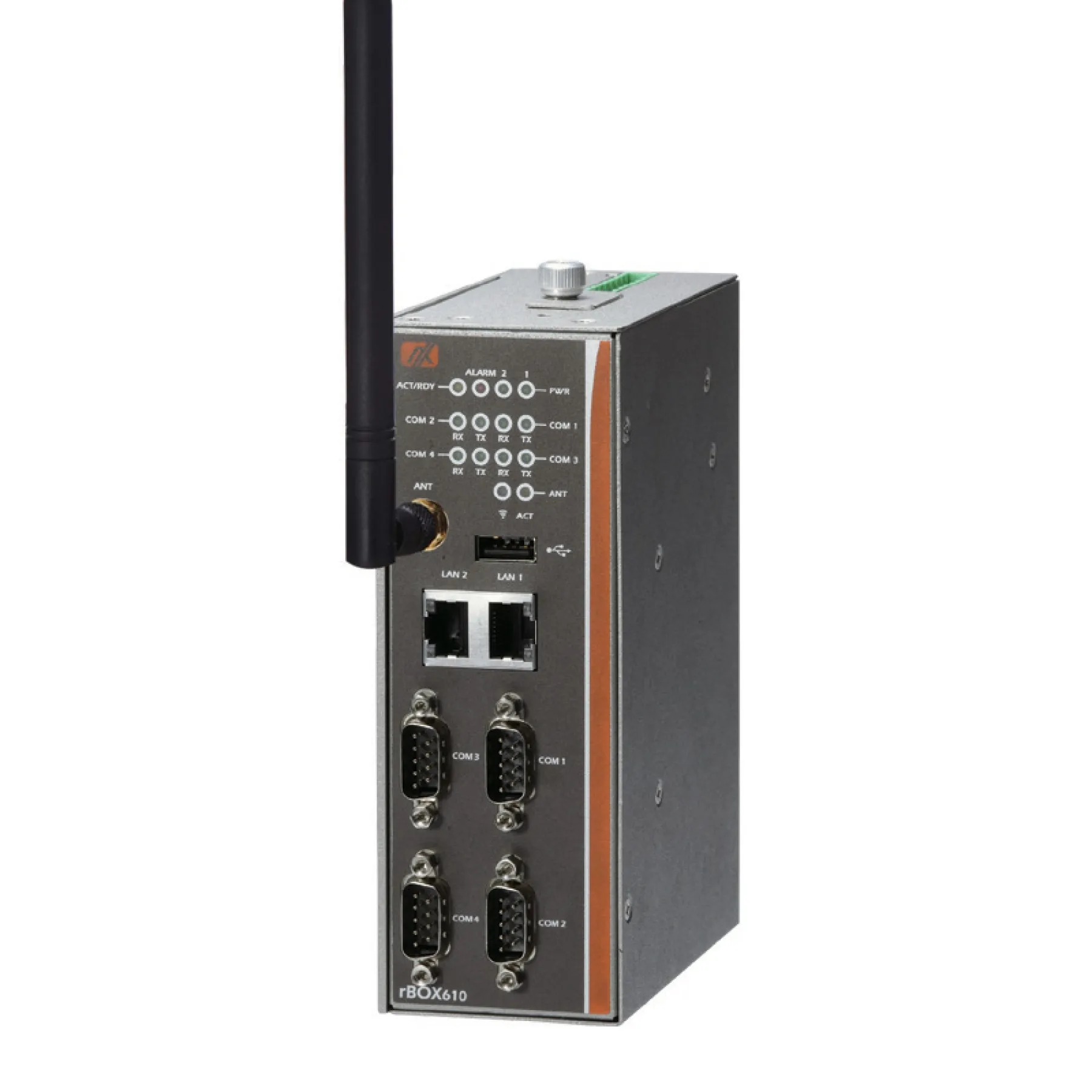

Axiomtek rBOX610 Robust Din-rail Fanless Embedded System.

End of Life

Fanless design
RISC-based module (iMX-287) processor
128MB DDR2 SDRAM onboard
4 GB eMMC onboard
Completed Industrial AP development software (Serial server,Modbus gateway, SNMP, Remote manager)
Wide range DC power input (12 – 48V) with terminal block
Ready-to-run embedded Linux operating system
Wide temperature operation of -40°C ~ +70°C

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: rBOX610

Categories: Din Rail PCs, Embedded Box PCs, End of Life Products, Fanless Embedded PCs, Fanless Industrial PCs

Range: Axiomtek

Details

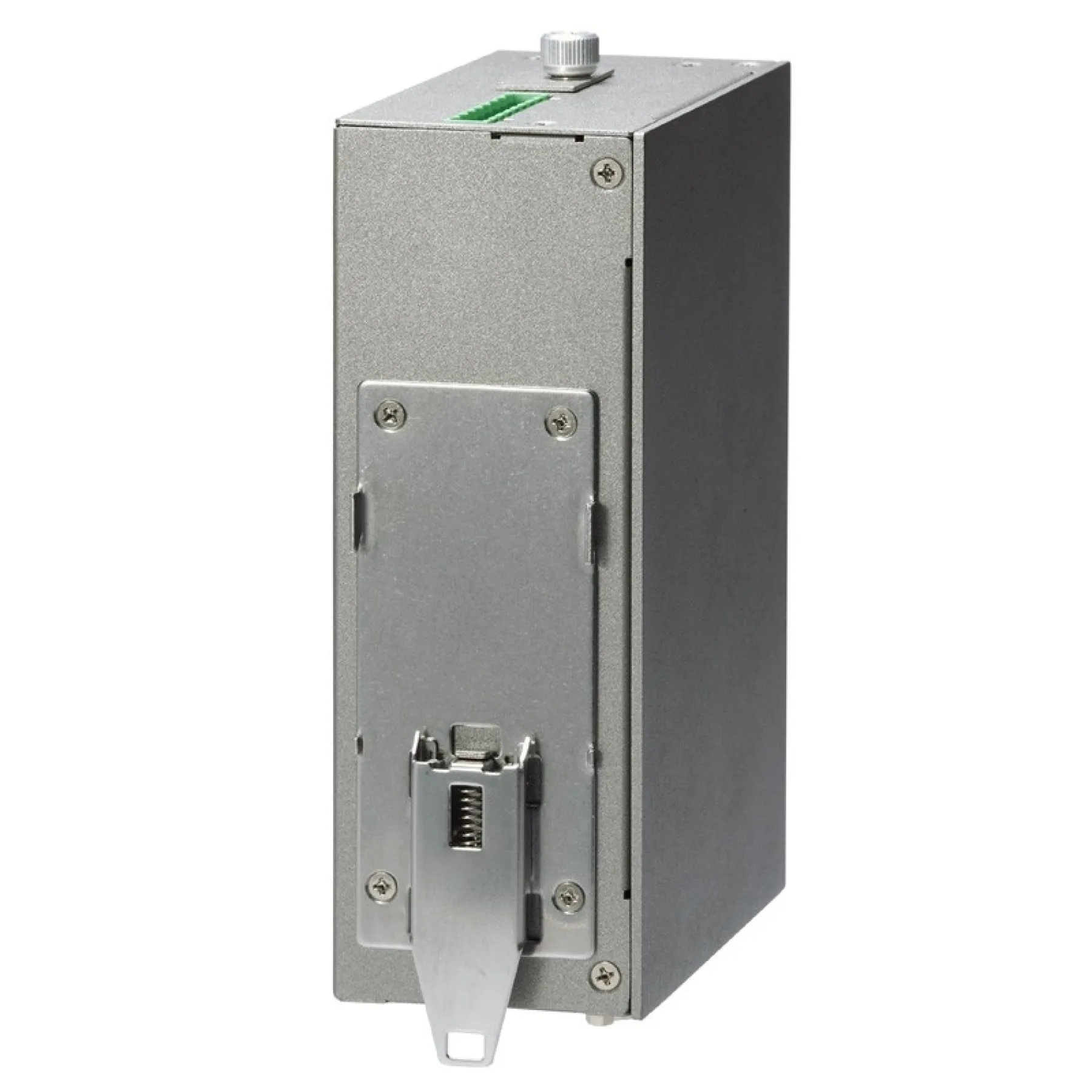

The Axiomtek rBOX610 din-rail fanless embedded system utilizes the low power RISC-based module (iMX-287) processor and is designed to withstand temperatures ranging from -40°C to +70°C for using in extreme operating environment and industrial automation applications. The rBOX610 box PC features 4 RS-232/422/485 serial ports, dual LANs, 4 digital input channels,4 digital output channels, 2 CAN bus and 1 eMMC onboard 4 GB & 1 x SDHC socket for storage expansion (easy to access) in a compact, IP40 protected, industrial-strength robust case. Two power paths input minimize the risk of data loss in the event of a single power failure. Its vertical din-rail form factor makes it easy to install the system in a small cabinet. Due to the RISC-based architecture, rBOX610 will not generate a lot of heat while being operated. The ready-to-run rBOX610 is specially designed for remote control/monitoring management applications like unmanned control room, industrial machine, automatic parking lot, traffic cabinet and more.

Ordering Info

rBOX610-FL: Robust Din-rail fanless embedded system with Q7-RISC Module (iMX-287), 4 COM, 2 CAN & DIO (-40°C ~ +70°C)

Downloads

Axiomtek rBox610 Datasheet (PDF)

0.37MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	i.MX287, ARM926EJ-S™ processor, 454MHz
Chipset	SoC Integrated
System Memory	1 x SDRAM DDR2 128 MB onboard
COM	4 x RS-232/422/485
USB	1 x USB 2.0
Ethernet	2 x isolated 10/100Mbps
PoE	N/A
CANbus	2 x CAN 2.0 B
Digital I/O	1 x isolated DIO (4-IN/4-OUT)
Analog Input	N/A
Display	N/A
Wireless	1 x Mini Card 1 x SIM socket
Storage	1 x eMMC 4 GB onboard (for boot disk) 1 x SDHC Card
Others	1 x Console Port Supports AXView monitoring software package
Power Supply	2 power paths with terminal block Power Input Range 12-48VDC Power Input Rating 12-48VDC, 0.68-0.19A
Watchdog Timer	WDT 1: one step is 1 sec, 255 levels
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	-40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity	5% ~ 95%
Vibration	5G @ 10-150Hz, amplitude 0.35ms
Dimensions (W x D x H)	55 x 155 x 110 mm (2.16″ x 6.10″ x 4.33″)
Weight (net/gross)	1 kg (2.21 lb)
Certifications	Heavy Industrial CE FCC Part 18 UL508, UL/Cul60950-1, IEC60068 compliance
EOS	Linux
Mounting	Din rail Wall mount

Processor Type	RISC, up to 1 Core
Cooling Type	Fanless
Serial Ports (COM)	4x RS-232/422/485
USB Ports	1x USB 2.0
Ethernet Ports (LAN)	2x 1G
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Digital I/O	8 DIO
Storage Type	1x eMMC
Input Voltage	12-48 VDC
Mounting Options	DIN-mount, Wall-mount
Operating Temperature	Extra-Wide OT: -40°C to 70°C
Market Certifications	CE/FCC
OS Support	Linux
