Q7M120-120-EVK

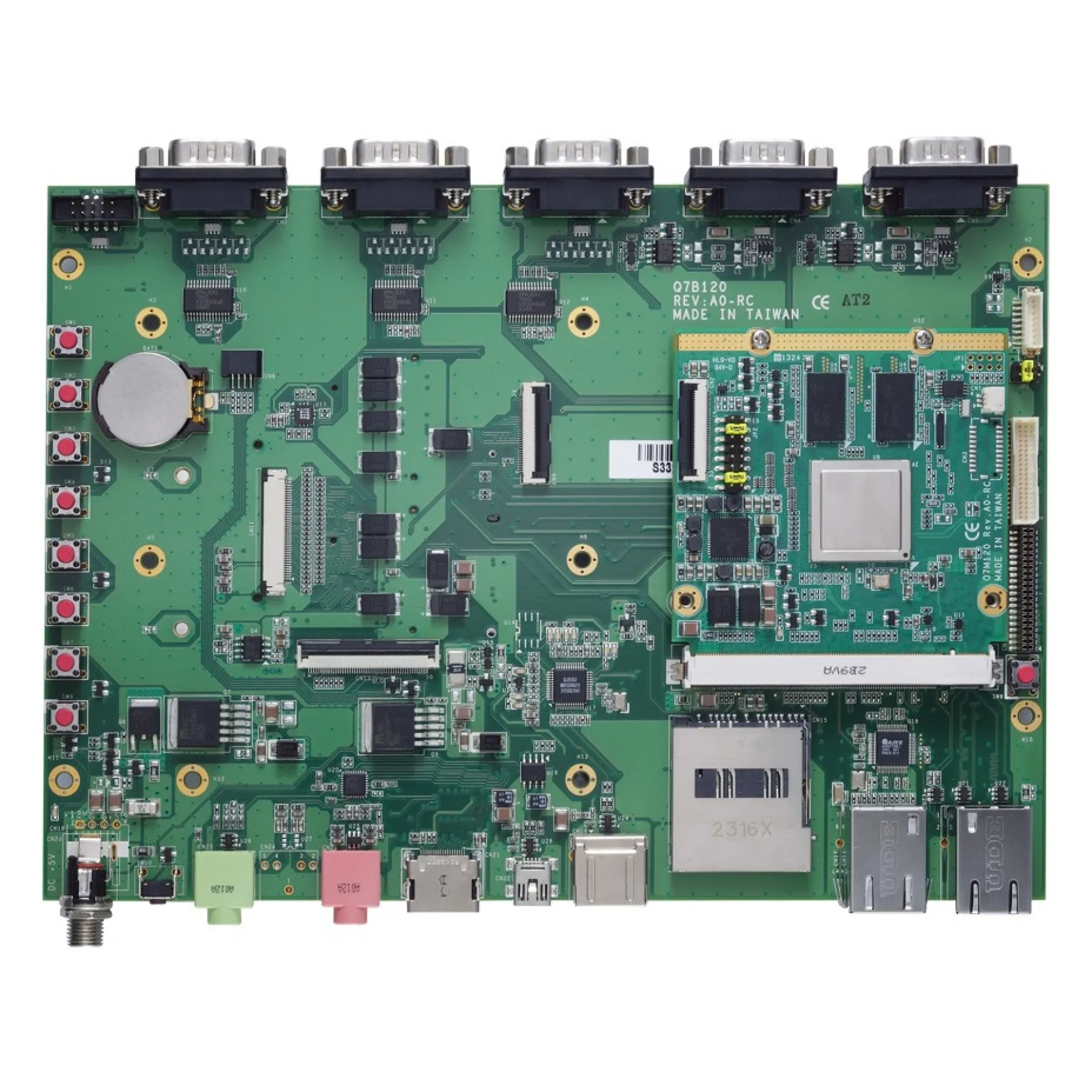

Axiomtek Q7M120-120-EVK Qseven v2.0 SoM Evaluation Kit with Quad/DualLite 800MHz

Q7M120-120-EVK

  • Ultra low power consumption Cortex™-A9
  • High flexibility Qseven v2.0 compliant design
  • 2 CAN 2.0B
  • 18/24-bit TTL LCD
  • LVDS/HDMI 1080P
  • 10/100/1000 Mbps Ethernet
  • Linux3.0.35/Android4.3
  • Audio

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Axiomtek Q7M120-120-EVK is a Qseven v2.0 SoM Evaluation Kit with Quad/DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio and CAN.

Ordering Info

Q7M120-120-EVK DualLite-I

Q7M120-120 (DualLite) evaluation kit board

Q7M120-120-EVK Quad-I

Q7M120-120 (Quad) evaluation kit board

P/N-5078Q120100E

Q7M120 heatspread (-40 ËšC ~70 ËšC)

P/N-5078Q120200E

Heatsink (-40 ËšC ~75 ËšC)

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU
  • On the module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • N/A
COM
  • 4 x COM with TX/RX/RTS/CTS (one with 3.3V TTL level)
  • 1 x Console port
USB
  • 1 x USB 2.0
  • 1 x OTG client
Ethernet
  • 1 x 10/100 Mbps
  • 1 x 10/100/1000 Mbps
Display
  • 1 x HDMI 1080P
  • 1 x Dual channel 24-bit LVDS
  • 1 x 18/24-bit TTL LCD
Audio
  • MIC-in/Headphone
GPIO
  • N/A
I2C
  • 3 x I2C Interface
CAN
  • 2 x CANBus 2.0B
SPI
  • SPI nor Flash
Storage
  • 1 x SD/MMC socket
  • 1 x SATA connector
Expansion
  • 2 x Full size PCI Express Mini Card (with SIM)
Others
  • 8 x button-detect circuit
Battery
  • Battery on the Baseboard is required
Power Input
  • +5V ± 5%, 5A
Watchdog Timer
  • N/A
Hardware Monitoring
  • N/A
Operating Temperature
  • N/A
Relative Humidity
  • 10% ~ 95%, non-condensing
Dimensions
  • 210 x 150 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Axiomtek: Warranty and Service Information

As an official partner for Axiomtek products, we provide a comprehensive 2 year warranty on all products supplied in the EMEA. Warranties can be extended if required, giving customers complete peace of mind about their purchase. Assured Systems have long-standing partnerships with industry leading manufacturers, delivering quality products that are backed by a professional after sales service.
