OPS300-310

Name: Axiomtek OPS300-310 Intel OPS System with Celeron N3350 Processor
SKU: OPS300-310

Axiomtek OPS300-310 Intel OPS System with Celeron N3350 Processor

OPS300-310

Intel Celeron N3350 2.4Ghz 4K OPS Digital Signage Player with TPM 2.0 Security, up to 8GB Memory, SIM Slot, PCIe and M.2 Expansion

Intel Celeron processor N3350, up to 2.4 GHz CPU
1 x full size PCIe Mini Card slot
OPS standard for easy installation
High graphics performance
Size: 200mm (W) x 119mm (D) x 30mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: OPS300-310

Categories: Axiomtek, Digital Signage Computers, Digital Signage Players, Intel OPS PCs

Range: Axiomtek

Details

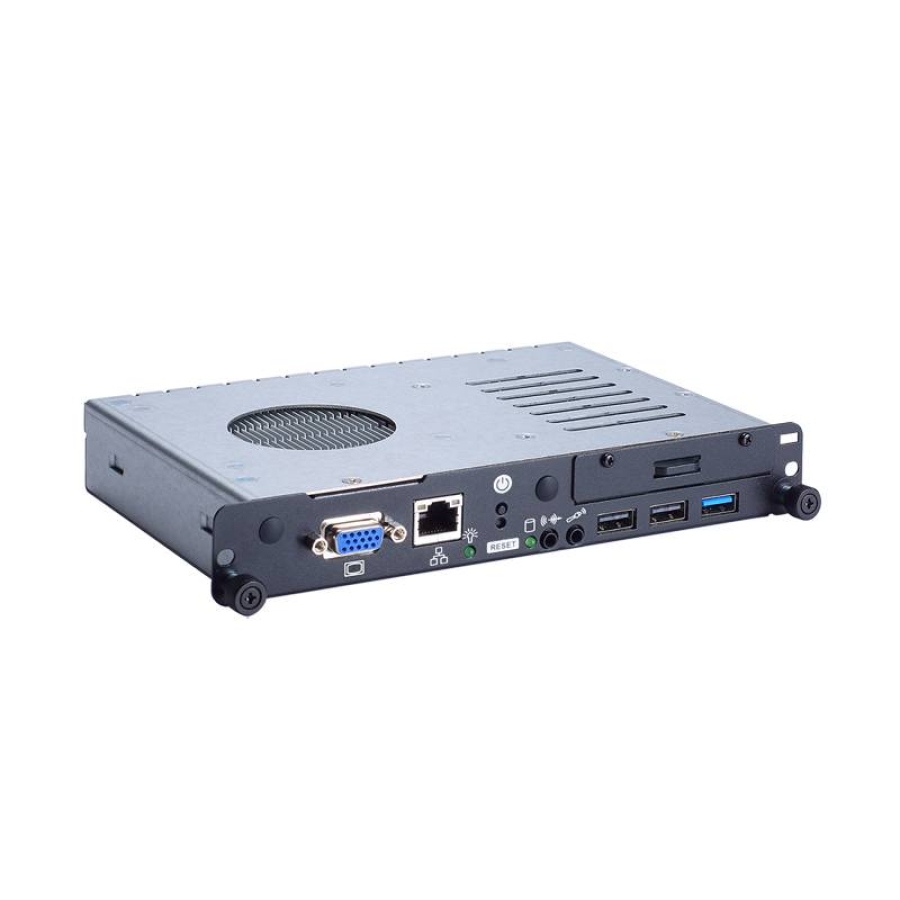

Axiomtek present the OPS300-310 Open Pluggable Specification digital signage player that can support triple independent displays. The OPS player is built around the Intel Celeron N3350 (Apollo Lake) processor (up to 2.4GHz), memory is up to 8GB and storage is through 1 x 2.5" SATA HDD tray and 1 x mSATA (option).

I/O on the OPS300-310 includes 2 x USB 2.0, 1 x USB 3.0, 1 x LAN, 1 x VGA, 1 x Audio in, 1 x Audio out plus the OPS connector. The OPS connector assimilates 1 x Display Port, 1 x HDMI, 2 x USB 2.0, 1 x USB 3.0, 1 x Audio and 1 x UART. This digital signage player also has 1 x SIM slot and the opportunity for expansion via 1 x full size PCIe Mini Card and 1 x M.2 E key card slot.

Ordering Info

OPS300-310

Intel OPS System with Celeron N3350 Processor

Downloads

Axiomtek OPS300-310 Datasheet (PDF)

0.28MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Intel® Celeron® processor N3350 up to 2.4 GHz (Apollo Lake)
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS	AMI
COM	N/A
USB	2 x USB 2.0, 1 x USB 3.0
Ethernet	1 x 10/100/1000 Mbps (RTL8111E)
Display	1 x VGA
Audio	1 x Audio (Line-out), 1 x Audio (Mic-in)
JAE Connector	1 x DisplayPort with 4K 60Hz supported, 1 x HDMI 2.0 with 4K 60Hz supported, 2 x USB 2.0, 1 x USB 3.0, 1 x Audio (Line-out), 1 x UART (TX/RX, COM1)
HRS Connector	N/A
Wi-Fi	802.11 b/g/n (optional)
Storage	1 x 2.5″ SATA HDD tray, 1 x mSATA (optional)
Expansion	1 x full-size PCIe Mini Card slot, 1 x M.2 2230 Key E for Wi-Fi Kit, 1 x SIM slot
Power Supply	1 x 12VDC power input by adapter option
Watchdog Timer	255 levels, 1 ~ 255 sec.
Operating Temperature	0°C ~ +45°C (+32°F ~ +113°F) (with airflow 0.7 m/s)
Dimensions (W x D x H)	200 x 119 x 30 mm (7.87″ x 4.68″ x 1.18″)
Weight (net/gross)	1 kg (2.21lb)/1.5 kg (3.31lb)
Certifications	CE
