MPC175-873

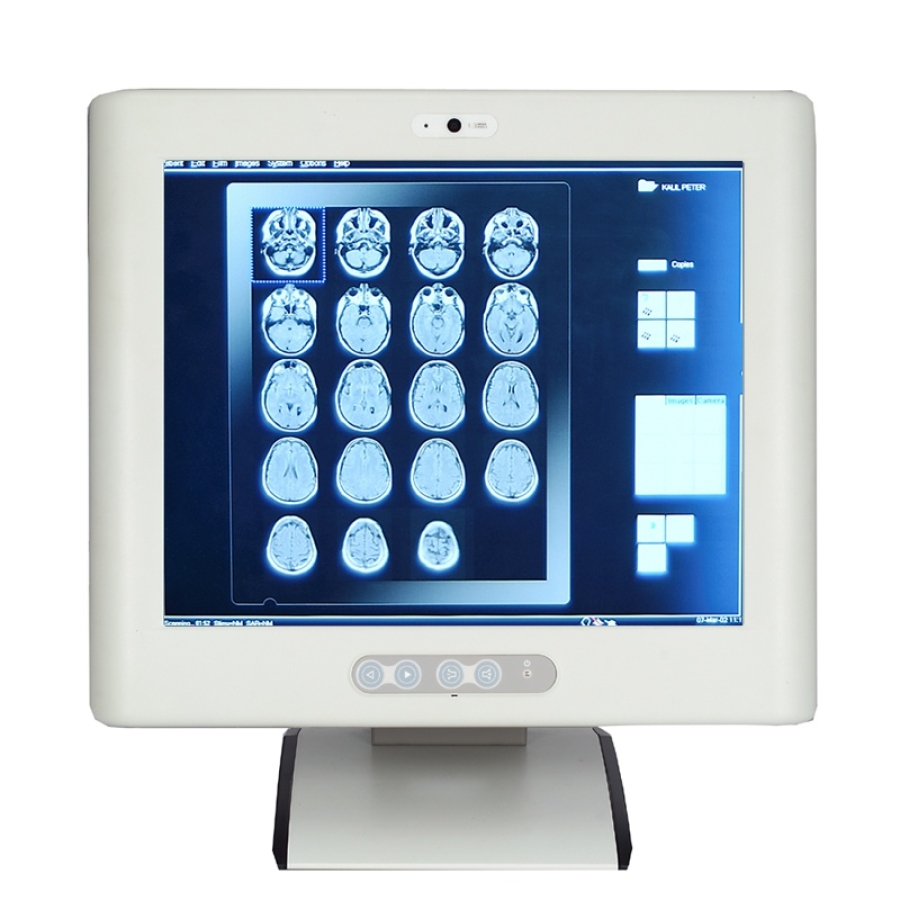

Axiomtek MPC175-873 17″ Fanless Medical Grade Panel PC

End of Life

17″ (350 nits) SXGA TFT LCD
Socket rPGA988B 3rd gen Intel® Core™ i7/i5/i3 (Ivy Bridge) & Celeron® processor
Intel® QM77 chipset
Isolated COM, USB and Ethernet ports
USB 3.0 supported
IP65 front bezel and IPX1 full enclosure water/dust proof design
Optional 1 x PCI or PCIe x4 expansion slot
Optional Bluetooth/Wi-Fi (802.11 a/b/g/n)
Built-in 5 mega pixels camera
Touch screen on/off key for clean usage
UL 60601-1/EN 60601-1, CE & FCC class B certified
Supports optional wall mount/VESA arm/desktop stand

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: MPC175-873

Categories: End of Life Products, Industrial Touchscreen Computers, IP65 Panel PCs, Wall Mount Panel PCs

Range: Axiomtek

Details

The MPC175-873 is a high-performance 17-inch, fanless medical panel PC for medical image processing and medical measuring instrument applications. The MPC175-873 is equipped with a 17-inch SXGA TFT LCD display with brightness of 350nits. Specifically designed for the medical environment, the panel PC has IPX1 compliant chassis and IP65/NEMA 4 rated spill- and dust-resistant front panel. Moreover, the touch panel PC is equipped with isolated COM/USB/LAN port to protect equipment from electrical surges and transient voltage spike. Powered by socket G2 3rd generation Intel® Core™ processor with DDR3 memory of up to 16 GB, the powerful MPC175-873 is an ideal choice as a point-of-patient-care EMR computer, enabling health care professionals to access patient records whenever and wherever needed.

Ordering Info

MPC175-873-NP-DRW : 17″ SXGA fanless medical panel pc with Intel® Core™ processor, 5-wire resistive touch screen, super multi drive, AC-DC 110W medical grade power adapter (screw type connector), EMI class B and EN 60601-1 certified

MPC175-873-NP W/O DRW : 17″ SXGA fanless medical panel pc with Intel® Core™ processor, 5-wire resistive touch screen, AC-DC 110W medical grade power adapter (screw type connector), EMI class B and EN 60601-1 certified

MPC175-873-UL-NP DRW : 17″ SXGA fanless medical panel pc with Intel® Core™ processor, 5-wire resistive touch screen, super multi drive, AC-DC 150W medical grade power adapter (screw type connector), EMI class B, UL 60601-1 and EN 60601-1 certified

MPC175-873-UL-NP W/O DRW : 17″ SXGA fanless medical panel pc with Intel® Core™ processor, 5-wire reisitive touch screen, AC-DC 150W medical grade power adapter (screw type connector), EMI class B, UL 60601-1 and EN 60601-1 certified

Downloads

... (PDF)

0.6MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Resistive
Ingress Protection	IP65
Brightness	350nit, Standard
Resolution	1280x1024, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 16GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, RS-232/422/485
USB Ports	2 Ports, 2 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Wi-Fi
Audio	Yes
Video Ports	1x DisplayPort
Storage Type	1, 1, 2, 2.5", mSATA
Expansion Type	1, 1, 2, 4, Any Expansion Type, Mini PCI Express, PCI, PCI Express
Input Voltage	24 VDC
Mounting Options	Desktop-stand, VESA-mount, Wall-mount
Operating Temperature	0°C to 40°C, Standard
Certifications	CE/FCC
OS Support	Windows 7, Windows 8, Windows 8.1, Windows XP
