GOT818A-TGL-WCD

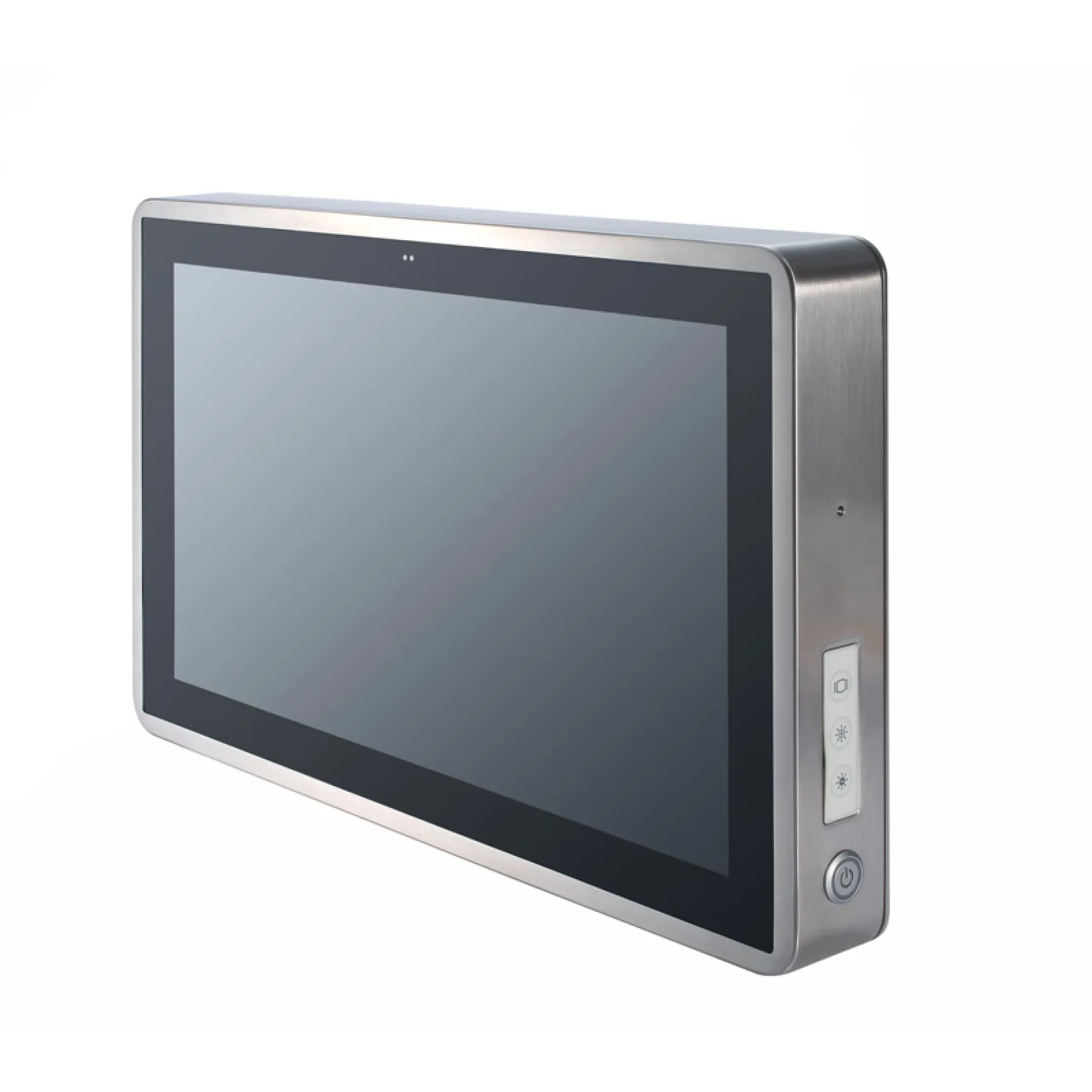

Name: Axiomtek GOT818A-TGL-WCD Intel Core/Celeron 18.5" IP66/ IP69K Stainless Steel Fanless PCT Panel Computer with PCAP
SKU: GOT818A-TGL-WCD

Axiomtek

Axiomtek GOT818A-TGL-WCD Intel Core/Celeron 18.5″ IP66/ IP69K Stainless Steel Fanless PCT Panel Computer with PCAP

GOT818A-TGL-WCD

18.5″ FHD TFT flat bezel LCD display
IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
Full stainless-steel enclosure with SUS 304
-20°C to +50°C wide operating temperature range
Fanless design with Intel Core i5-1145G7E processor
Wi-Fi kit for wireless network connectivity (optional)
12 to 24 VDC wide range power input
Supports VESA mount
M12-type connectors for harsh environments

Product Code: GOT818A-TGL-WCD

Categories: Axiomtek, Axiomteks Industrial Panel PCs, Fanless Industrial PCs, Industrial Computing, Industrial PCs

Range: Axiomtek

Details

The GOT818A-TGL-WCD is a fan-less and compact-size touch panel computer, equipped with a 18.5” FHD TFT LCD display and low power consumption Intel R Core Intel Core i5-1145G7E / Celeron 6305E processor. The GOT818A-TGL-WCD supports Linux, Windows 10/11 and Windows 10/11 IoT embedded OSs. The panel computer provides M.2 Key E slot of 22 x 30mm size for extension. Its excellent ID and friendly user interface make it a professional yet easy-to-use panel computer. The GOT818A-TGL-WCD is an ideal for space-limited applications in factory automation, machine maker operating systems, building automation, and more.

Downloads

Datasheet (GOT818A-TGL-WCD) (PDF)

1.52MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Celeron, up to 2 Cores, Intel Core, up to 4 Cores
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	2x RS-232/422/485
USB Ports	4x USB 2.0
Ethernet Ports (LAN)	1x 2.5G, 1 Ports
Touch Technology	Projected Capactive
Ingress Protection	IP66, IP69K
Stainless Steel	Yes
Brightness	350nit, Standard
Resolution	1920x1080, FHD
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	2 Ports, 2 Ports, RS-232/422/485
USB Ports	4 Ports, 4 Ports, USB 2.0
Ethernet Ports (LAN)	1 Port, 1 Port, 2.5G, Any LAN Type
Storage Type	1, 2.5"
Expansion Type	1x M.2, Any Expansion Type, M.2
Input Voltage	12 to 24 VDC
Mounting Options	VESA-mount
Operating Temperature	-20°C to 50°C, Wide
Certifications	CE/FCC
OS Support	Windows 10, Windows 11
