GOT5840T-845

Name: Axiomtek GOT5840T-845 8.4" SVGA TFT Fanless Touch Panel Computer
SKU: GOT5840T-845

Axiomtek

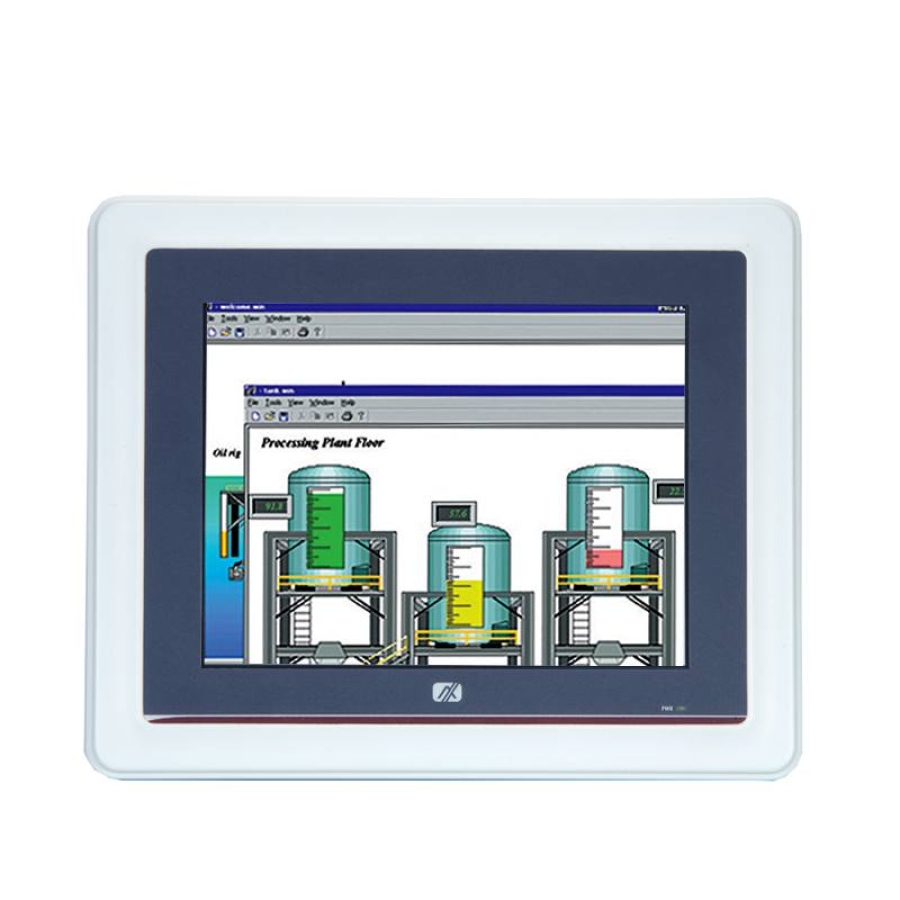

Axiomtek GOT5840T-845 8.4″ SVGA TFT Fanless Touch Panel Computer

GOT5840T-845

8.4″ SVGA TFT LCD display with LED backlight
Fanless cooling system with Intel® Celeron® processor
N3060 (up to 2.48 GHz)
Ultra slim and super light design
WLAN module and internal antenna
2 PCI Express Mini Card slots
2 GbE LAN, 2 USB and 2 COM
Supports optional panel mount/wall mount/VESA arm/desktop stand
Plastic and IP65-rated front bezel

Product Code: GOT5840T-845

Categories: Axiomtek

Range: Axiomtek

Details

The Axiomtek GOT5840T-845 is a budget-friendly 8.4-inch fanless touch panel PC with Intel® Celeron® processor N3060. This compact panel system adopts a SVGA color resolution 800 x 600 TFT LCD display with 350 nits brightness. Designed to meet various applications needs, it comes with rich I/O interfaces, and can withstand temperature ranges from 0°C to 50°C. Featuring a super slim and light housing with IP65-rated protection, the 8.4” GOT5840T-845 is suitable for use in shopping malls and supermarkets as a self-service kiosk, as a human machine interface in factory automation, healthcare facilities, and building automation applications.

Ordering Info

GOT5840T-845-J	AC-DC 60W power adapter (screw type connector) and EMI class A
GOT5840T-845-DC	9~36 VDC power input (terminal block connector)

Downloads

Axiomtek GOT5840T-845 Datasheet (PDF)

0.4MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

LCD Panel	8.4″ SVGA TFT LCD with LED backlight, 350 nits, 800 x 600
CPU	Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS	AMI
COM	1 x RS-232, 1 x RS-232/422/485 (default RS-232)
USB	2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x HDMI
Audio	1 x Audio (Line-out)
Storage	1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA, 1 x Full-size PCI Express Mini Card slot with SIM
Others	1 x Switch for power On/Off, 1 x AT/ATX mode selection switch
Touchscreen	Resistive type
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	AC version: 100 – 240VAC-DC, 60W power adapter or DC version: 9 – 36 VDC with over current protection fuse
Power Comsumption	25W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0° to +50°C (+32°F to +122°F) (with W.T. DRAM/HDD in airflow condition), 0° to +45°C (+32°F to +113°F) (with W.T. DRAM)
Relative Humidity	20% – 90% @ +40°C; non-condensing
Vibration	2G, 5 – 500Hz, random for mSATA
Dimensions (W x D x H)	250.7 x 45.8 x 204.7 mm (9.87″ x 1.80″ x 8.06″)
Weight (net/gross)	1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Certifications	CE, FCC, UL60950-1
EOS	WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting	Panel mount, Wall mount, VESA arm, Desktop stand
