NX213B

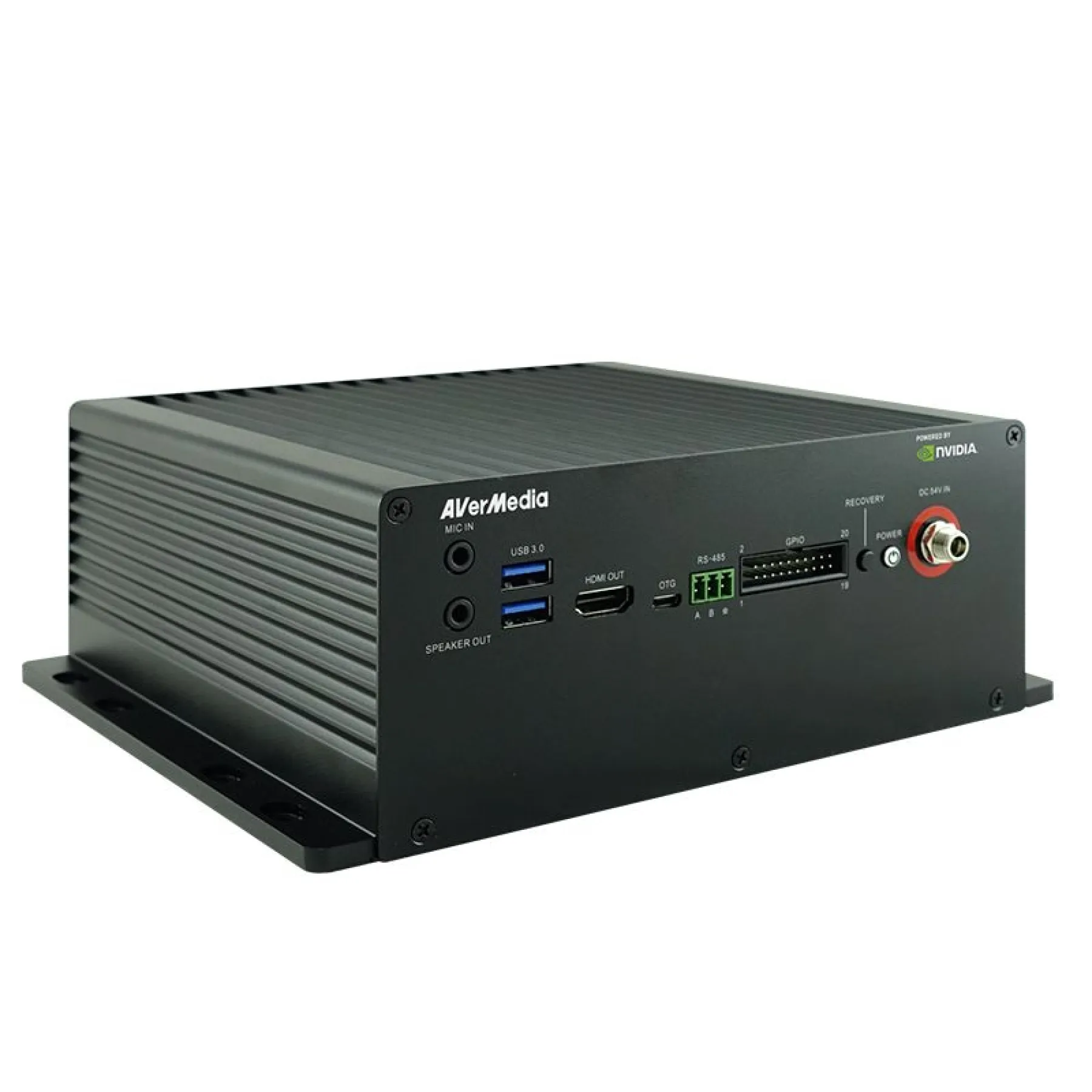

Name: AverMedia NX213B NVIDIA Jetson Xavier NX Standard Box PC w/ 8x 10/100 MbE RJ-45
SKU: NX213B

AverMedia NX213B NVIDIA Jetson Xavier NX Standard Box PC w/ 8x 10/100 MbE RJ-45

NX213B

NVIDIA Jetson Xavier NX Network Video Recorder for Intelligent Surveillance with 8 PoE HD IP Camera Ports (1080p @ 60fps), 4K HDMI Video Output and Passively Cooled Chassis

Fully support NVIDIA Jetson Xavier NX
8x 10/100 MbE with PoE
1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
20 pins with 1x UART, 2x I2C
1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery
1x mPCIe (Host Interface: USB 2.0)
Operating temperature: 0°C ~ 65°C (without HDD, with No-Air-Flow)
Compact fanless chassis with AVerCooler technology

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: NX213B

Categories: AVerMedia, Embedded Box PCs, Fanless Embedded PCs, Fanless Industrial PCs, GPU Computing, NVIDIA Jetson Systems, NVIDIA Jetson Xavier NX Systems, POE Computers, Rugged AI Computers

Range: AVerMedia

Details

AVerMedia’s AVerAI NX213B Box PC of NVIDIA Jetson Xavier NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system. This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.

Downloads

AVerMedia NX213B Datasheet (PDF)

0.89MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Type	Box PC with AVerCooler WavieFin passive cooling system
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Xavier™ NX module
Networking	1x GbE RJ-45 8x 10/100 MbE RJ-45 with PoE (Max for the first 4 ports is 15.4W and total power budget is 90W)
Display Output	1x HDMI 2.0a/b Type-A supports maximum resolution 3840×2160 at 60Hz
Temperature	Operating Temperature 0°C ~ 65°C Storage Temperature -40°C ~ 85°C Relative Humidity 40 °C @ 95%, Non-Condensing
USB	1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
Storage	16GB e.MMC v5.1
GPIO Expansion	1x 3.3V UART, 2x I2C, 5x GPIOs
Input Power	54V/2.78A
Buttons	Power and Recovery Button (each with a RGB tri-color LED)
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Chassis Dimension/ Weight	W:190mm x L:175mm x H:80mm (W:220 mm with mounting ears) Weight: 2.75 Kg
Certifications	CE, FCC

Processor Type	RISC, up to 6 Cores
GPU	Integrated GPU
Cooling Type	Fanless
Serial Ports (COM)	1x RS-485
USB Ports	1x USB 2.0, 2x USB 3.0
Ethernet Ports (LAN)	1x 1G, 8x 10/100
Power Over Ethernet (PoE)	PoE Ports
Video Ports	1x HDMI
Expansion Type	1x Mini PCI Express
Input Voltage	54 VDC
Mounting Options	Wall-mount
Operating Temperature	Standard OT: 0°C to 65°C, Standard
Market Certifications	CE/FCC
