NO111B

Name: AVerMedia NO111B NVIDIA Jetson Nano Standard Box PC w/ 1x GbE, 2x USB &amp; 1x HDMI
SKU: NO111B

AVerMedia NO111B NVIDIA Jetson Nano Standard Box PC w/ 1x GbE, 2x USB & 1x HDMI

NO111B

NVIDIA Jetson Nano Compact Box PC with 2 or 4 Lane MIPI CSI-2 Camera Inputs, 4Kp60 HDMI Output, 9 GPIO Expansion, 2 I2C, UART, 1 GbE, 3 USB, RTC Battery Monitoring

Equips NVIDIA Jetson Nano module (version B01)
1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
Internal 20-pin expansion header
1x micro-SD card slot
Operating temperature: 0°C ~ 60°C
Dimension: W: 91.4mm x L: 76.6mm x H: 70mm

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: NO111B

Categories: AVerMedia, Embedded Box PCs, GPU Computing, NVIDIA Jetson Nano Systems, NVIDIA Jetson Systems

Range: AVerMedia

Details

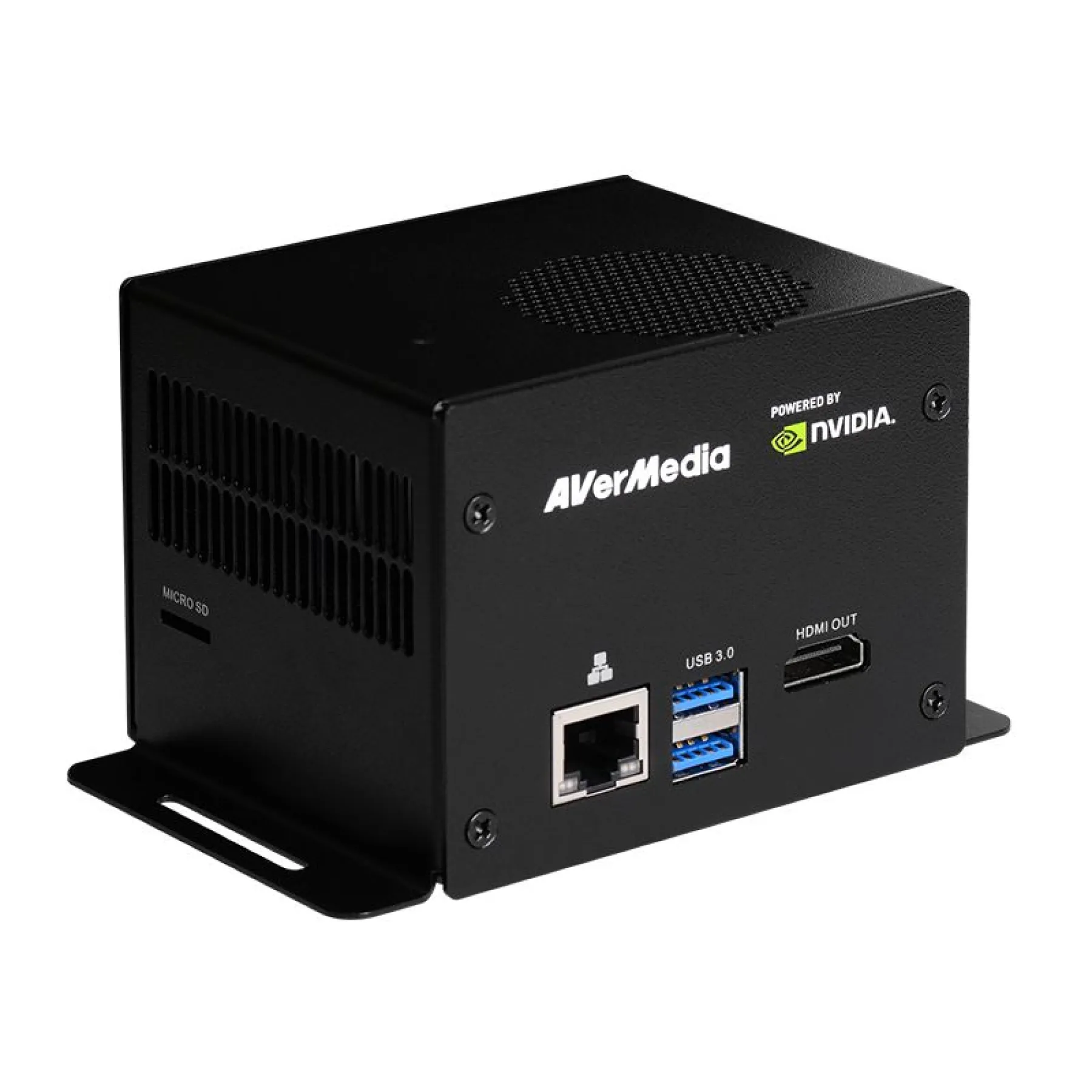

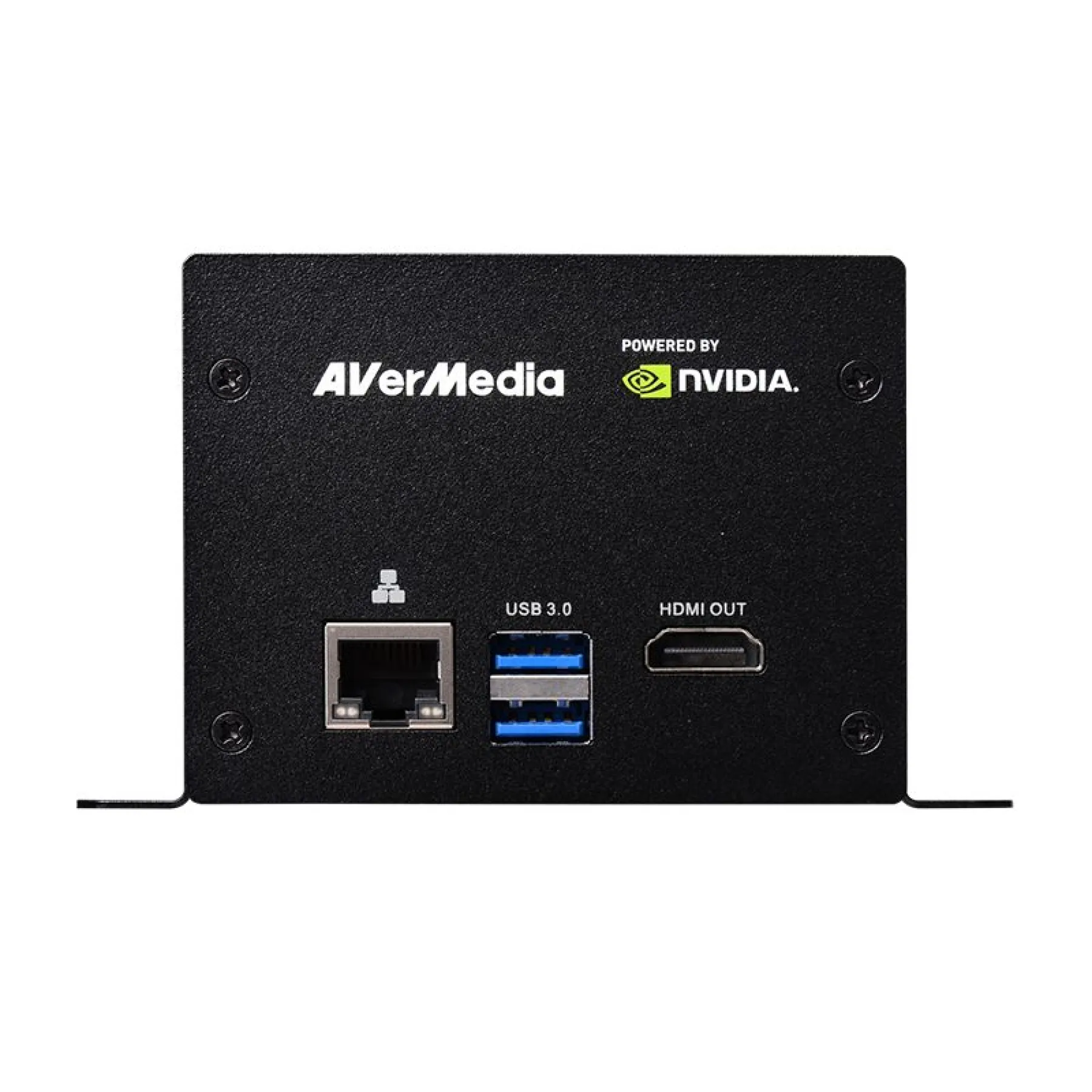

AVerMedia AVerAI Box PC NO111B equips NVIDIA Jetson Nano module (version B01) and is designed for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 60°C. It features the very compact dimensions of 91.4mm (W) x 76.6mm (L) x 70mm (H). AVerAI NO111B can provide the access to a list of rich I/O functions, which includes 1x 4Kp60 HDMI video output, 2x USB 3.0, 1x GbE RJ-45, 1x internal 20-pin expansion header, and 1x Micro-B USB 2.0 for recovery. With the compact dimensions, the design for reliable field installation, and the rich I/O functions, NO111B is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, and Smart City.

Downloads

AVerMedia NO111B Datasheet (PDF)

0.66MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Type	Box PC
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Nano™ module (version B01)
Networking	1x GbE RJ-45
Display Output	3840 x 2160 at 60Hz
Temperature	Operating temperature 0°C~60°C, Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
USB	1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A
Storage	1x micro-SD card slot
Internal Expansion Header	20 pins: 2 x I2C, 1x UART, 9x GPIOs
Input Power	12V/5A 9V~19V is recommended.
Power Cord	US/JP/EU/UK/TW
Fan Module	Heat sink with fan

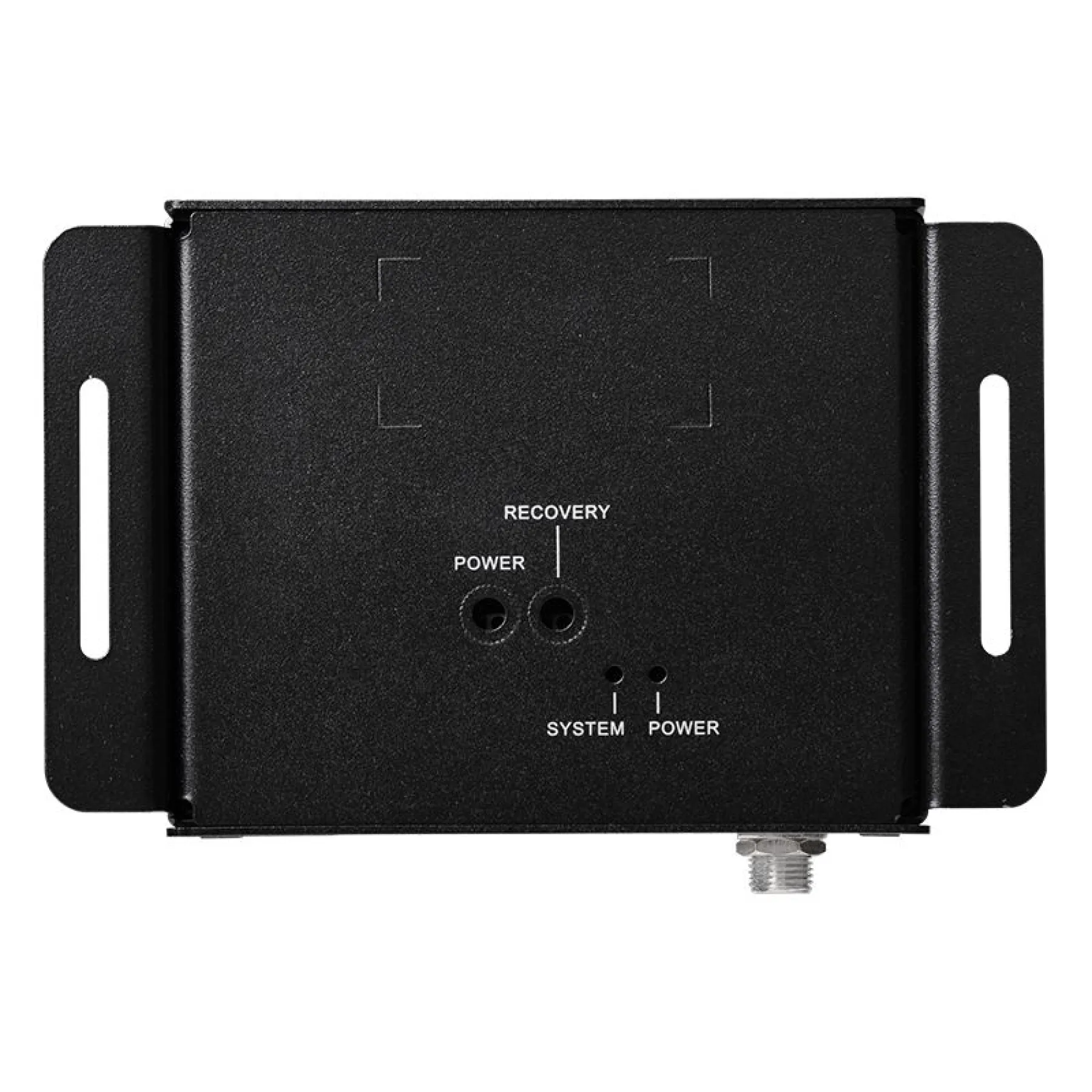

Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Box PC Dimension/ Weight	W: 91.4mm x L: 76.6mm x H: 70mm (3.60” x 3.02” x 2.76”) Weight: 495g
Certifications	CE, FCC

Processor Type	RISC, up to 4 Cores
GPU	Integrated GPU
USB Ports	1x USB 2.0, 2x USB 3.0
Ethernet Ports (LAN)	1x 1G
Storage Type	1x MicroSD
Input Voltage	12 VDC
Operating Temperature	Standard OT: 0°C to 60°C, Standard
Market Certifications	CE/FCC
