EX713-AA00-0000

Name: AVerMedia EX713-AA00-0000 6.7" Mini ITX, NVIDIA Jetson TX2 Carrier Board
SKU: EX713-AA00-0000

AVerMedia

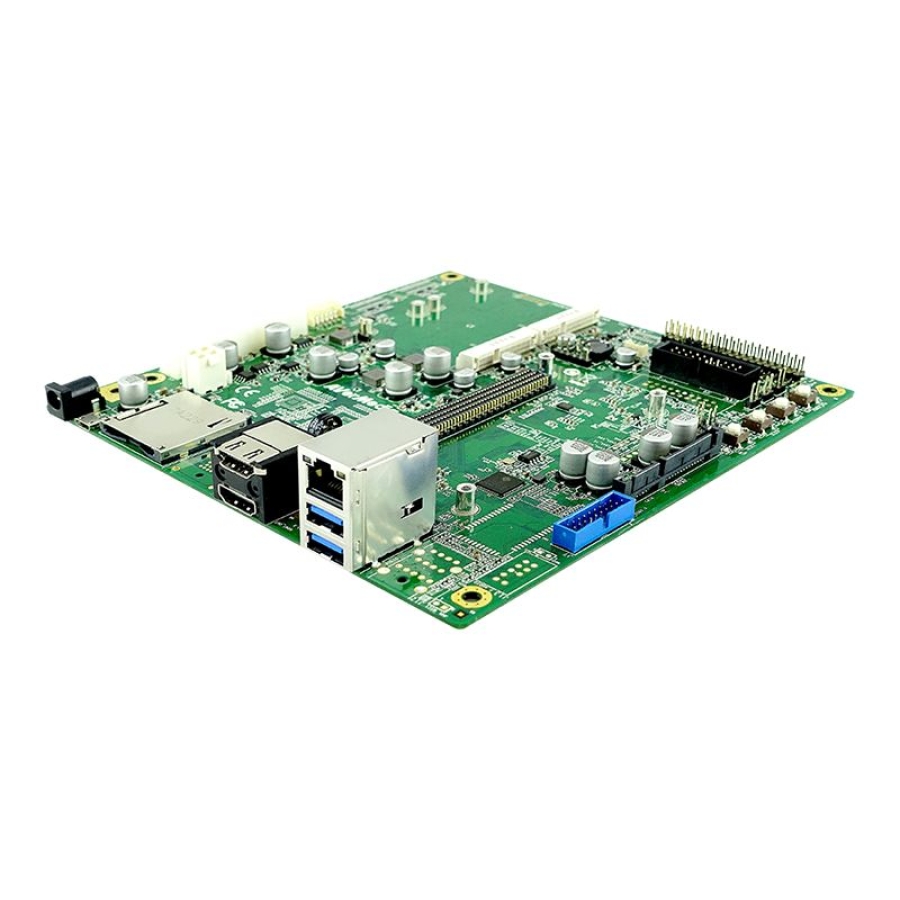

AVerMedia EX713-AA00-0000 6.7″ Mini ITX, NVIDIA Jetson TX2 Carrier Board

EX713-AA00-0000

Support NVIDIA Jetson TX2 module
PCB dimension: Mini-ITX, 170 mm x 170 mm (6.7” x 6.7”)
1x full-height mPCIe slot
1x HDMI-out
Battery power for uninterrupted power system
Support AVerMedia’s mPCIe capture cards for HDMI/VGA/SDI/Composite signal

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: EX713-AA00-0000

Categories: AVerMedia, Industrial Motherboards, Mini-ITX Motherboards, NVIDIA Jetson Carrier Boards, NVIDIA Jetson Embedded Carrier Boards, NVIDIA Jetson TX2 Carrier Boards

Range: AVerMedia

Details

AVerMedia’s EX713-AA00-0000 Carrier for NVIDIA Jetson TX2 module is designed for using in Intelligent Video Analysis. This product provides dual ports of mPCIe Gen2 x1 to support AVerMedia’s Mini-PCIe capture cards, such as C353 for 1080p60 HDMI/VGA input, CM313B for 1080p60 3G-SDI input, and C351 for 4-channels SD composite inputs. The mPCIe slot also supports mPCIe Ethernet and EtherCAT cards for industrial motion control applications. The AVerMedia’s EX713-AA00-0000 design includes 1x HDMI-out, 2x external USB 3.0, 2x internal USB 3.0, 1x Gigabit Ethernet RJ-45, 1x USB OTG, 1x SD card slot, 1x SATA, 1x mPCIe, and 40 pins of GPIO expansion with 1x 3.3V UART, 1x I2C, and 7x GPIOs. This carrier follows Mini-ITX dimension (170mm x 170mm, 6.7” x 6.7”) to support Mini-ITX chassis and 1U server chassis. It is one of the best Application Ready Platform by supporting NVIDIA Jetson TX2 for you to run the edge computing algorithm and start developing your potential market.

Downloads

AVerMedia EX713-AA00-0000 Datasheet (PDF)

0.53MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Type	Carrier Board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson™ TX2 module
Networking	1x GbE (RJ-45)
Display Output	1x HDMI type A, maximum resolution: 4096 x 2160 at 60Hz(TX2 only supports 1x HDMI-out)
Temperature	Operating temperature 0°C ~ 70°CStorage temperature -40°C ~ 85°CRelative humidity 40 °C @ 95%, Non-Condensing
USB	2x external USB3.0 Type A (USB3.2 Gen1x 1)2x internal USB3.0 (USB3.2 Gen1x 1)
Storage	1x SATA 3Gb/s and SATA Power, 1x SD card
GPIO Expansion	40 pins: 1x 3.3V UART, 1x I2C, and 7x GPIOs
User Expansion	1x full-height mPCIe
Input Power	12V/5A
Buttons	Power, Reset, Recovery, and Sleep buttons
PCB/Electronics Mechanical Info	Mini-ITX , 170mm x 170mm (6.7“ x 6.7“)Weight: 200.8g
Certifications	CE, FCC

AI Engine	NVIDIA Jetson TX2
Memory Capacity	N/A
Memory Type	N/A
COM Ports	N/A
LAN Ports	1x 1GB
USB Ports	4x USB 3.0
Video Ports	1x HDMI
Storage	1x SATA
Operating Temperature	0°C to 70°C
