EN715-BBC2/BBC3

Name: AVerMedia EN715-BBC2/BBC3 NVIDIA Jetson Carrier Board w/ 2 or 4 Lane MIPI CSI-2
SKU: EN715-BBC2/BBC3

AVerMedia

AVerMedia EN715-BBC2/BBC3 NVIDIA Jetson Carrier Board w/ 2 or 4 Lane MIPI CSI-2

EN715-BBC2/BBC3

Fully support NVIDIA Jetson Nano(version B01)/Xavier NX module
1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
2x 2 Lane MIPI CSI-2
1x 4 Lane MIPI CSI-2 ( for EN715-BBC3 only)
20-pin GPIO expansion
1x micro-SD card slot
Operating temperature: 0°C ~ 70°C
Dimension: W:87mm x L:70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: EN715-BBC2/BBC3

Categories: AVerMedia, External Video Capture Solutions, Industrial Motherboards, NVIDIA Jetson Carrier Boards, NVIDIA Jetson Embedded Carrier Boards, NVIDIA Jetson Nano Carrier Boards, NVIDIA Jetson Xavier NX Carrier Boards, Video Capture Cards and Encoders

Range: AVerMedia

Details

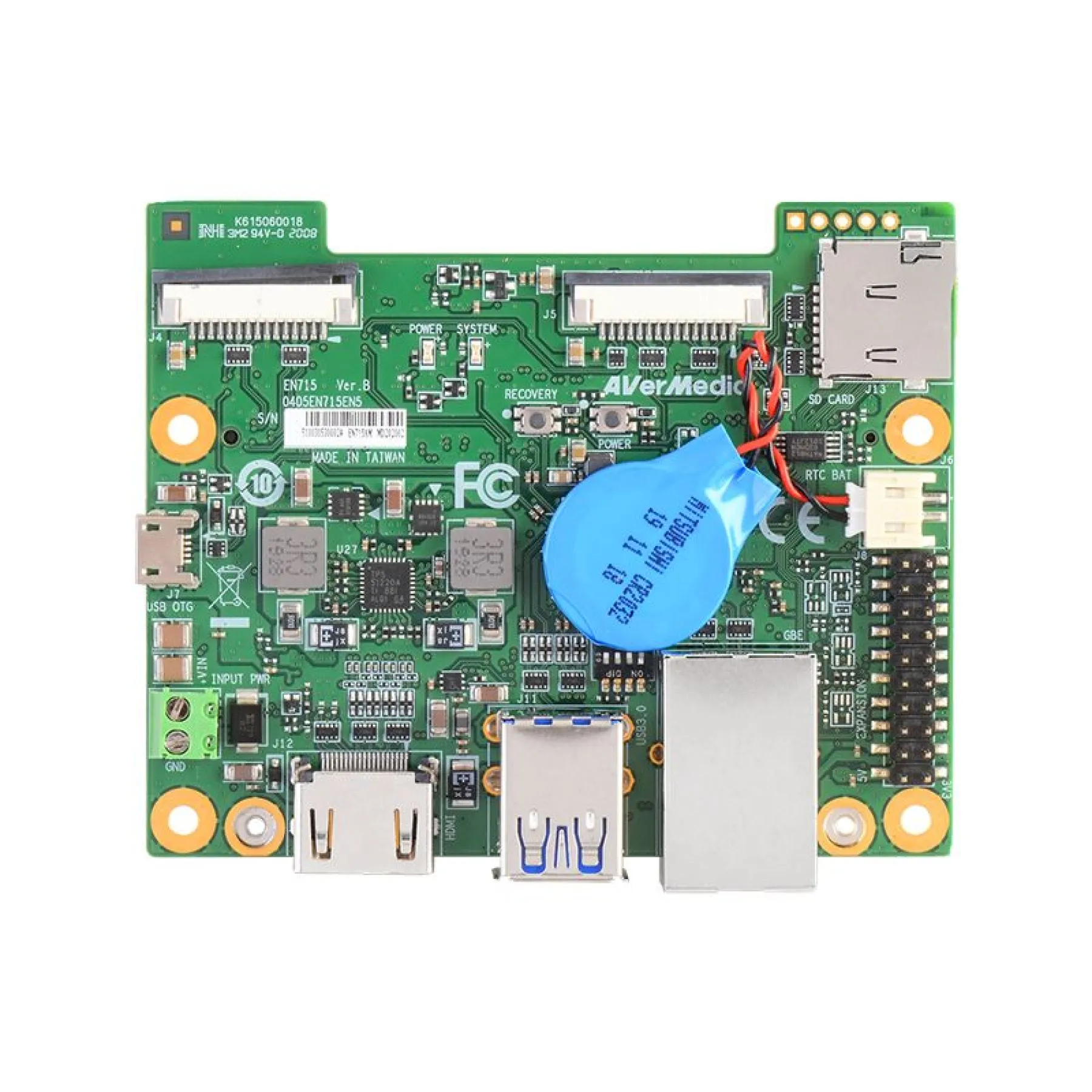

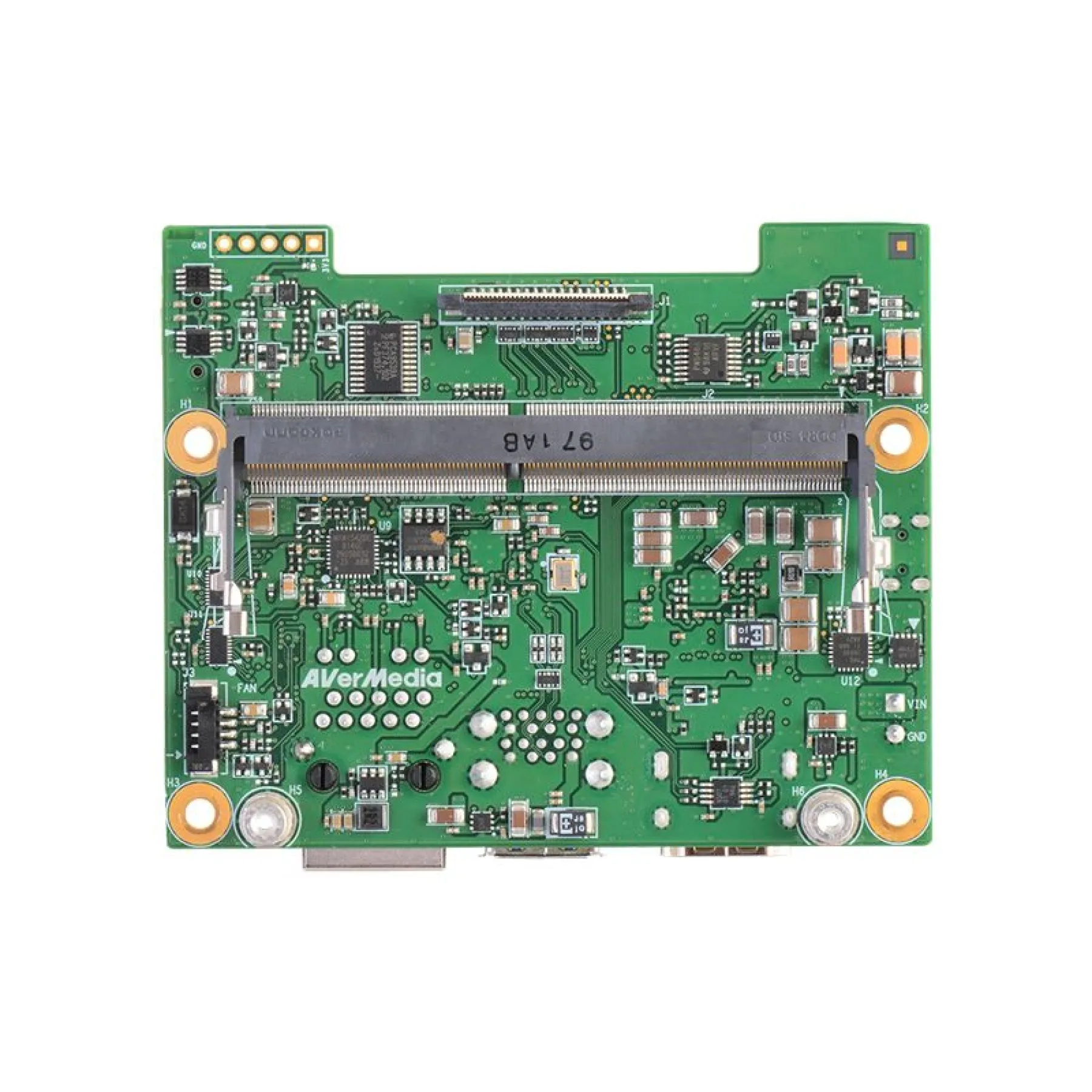

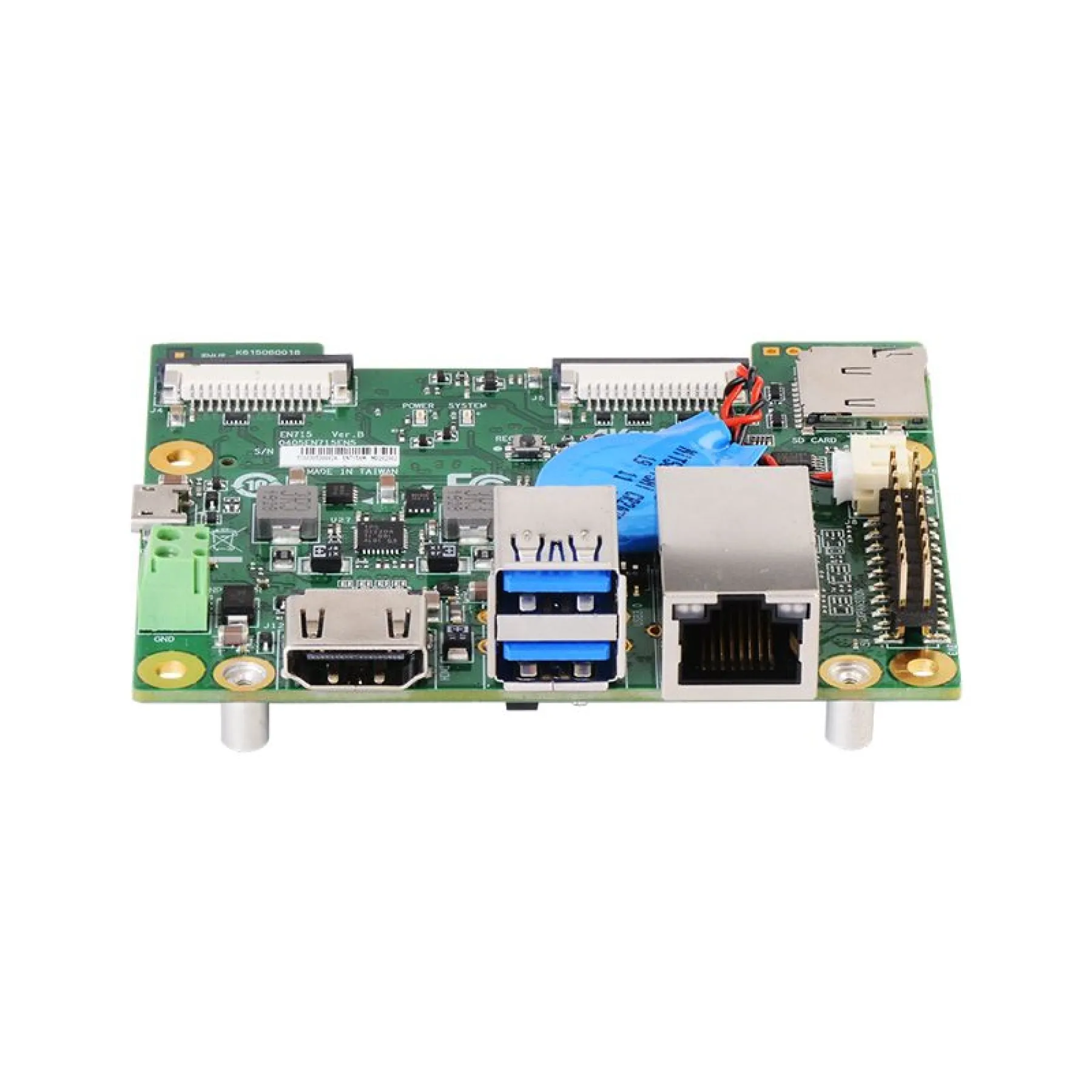

AVerMedia AVerAI carrier board EN715 is designed for NVIDIA® Jetson Nano (Version B01)/ Xavier NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation. AVerAI EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery. It also comes with a single-mold PCB terminal block module for the easy power connection. With the compact dimensions, design for reliable field installation, and the rich I/O functions, EN715 is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

Downloads

AVerMedia EN715-BBC2/BBC3 Datasheet (PDF)

0.93MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Model	EN715-BBC2	EN715-BBC3
Type	Carrier Board
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module
Networking	1x GbE RJ-45
Display Output	3840 x 2160 at 60Hz
Temperature	Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	● 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Nano™ Developer Kit)	● 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Nano™ Developer Kit) ● 1x 4 lane MIPI CSI-2, 36 pin FPC 1mm Pitch Connector
USB	1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A
Storage	1x micro-SD card slot
GPIO Expansion	20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power	3.5mm Screw Terminal; 9V~19V is recommended.
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
Carrier Board Dimension/ Weight	W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”) Weight: 70g
Certifications	CE, FCC, KC

AI Engine	NVIDIA Jetson Nano, NVIDIA Jetson Xavier NX
Memory Capacity	N/A
Memory Type	N/A
COM Ports	N/A
LAN Ports	1x 1GB
USB Ports	1x USB 2.0, 2x USB 3.0
Video Ports	1x HDMI
Storage	1x Micro SD
Operating Temperature	0°C to 70°C
