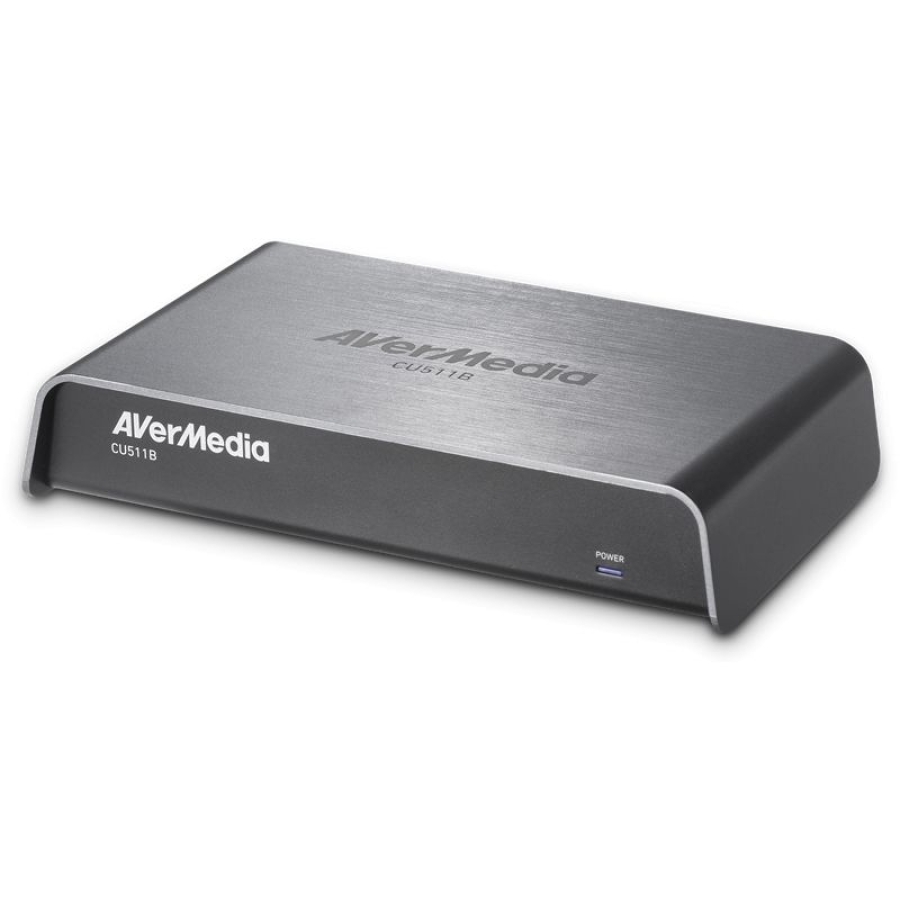

AVerMedia CU511B Portable USB Video Capture Solution for Analog& Digital Editing
End of Life
- Rich I/O support (HDMI / DVI / VGA / Composite / S-Video / 3G-SDI)
- High definition lossless video capturing up to 1920 x 1200 60fps with reduced blanking mode
- Supports popular video editing software
- Real-time capturing
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
Versatility and reliability, all from AVerMedia’s CU511B configurable USB video capture solution, designed to capture video from any analog or digital source in resolutions up to 1920×1200, regardless of video content. The CU511B supports simultaneous capture of stereo or single channel digital HDMI audio. CU511B is the perfect capture solution for those who require full control during capturing, recording and previewing process. The included Capture Studio bundle allows for extensive flexibility to set image scaling, audio resampling and color space conversion for use in professional video capture settings. Additionally, the included AVerMedia Resolution Tool offers a reliable solution to meet any industrial requirement in need of pixel rate and output positioning function.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Interface | USB 3.0 |
| Input | HDMI (1.3/ HDCP 1.3), DVI, VGA, Composite / S-Video, SDI, Audio (L/R) |
| Output | N/A |
| Input Video Resolution | HDMI (1.3/ HDCP 1.3), DVI |
| (Note: Signal is considered progressive unless otherwise stated.) | VGA, Any resolution under:a. video width ≦ 1,920b. video height ≦ 1,200c. pixel clock < 162MHzComposite / S-Video720×480@60i (NTSC), 720×576@50i (PAL)SD-SDI:720×480@(60i), 720×576@(50i)HD-SDI:1280×720@(50/60), 1920×1080@(50i/60i/24p/25p/30p)3G-SDI:1920×1080@(50p/60p) |
| Capture Video format | 640×480, 720×480, 720×576, 800×600, 1024×768, 1280×720, 1280×768, 1280×800, 1280×1024, 1360×768, 1440×900, 1680×1050, 1920×1080, 1920×1200 |
| (*Captured format is converted to progressive scan) | **There are two options for frame rate(1) The same as input source.(2) Fixd frame rate, range 5~60. |
| HW Scaler | Yes |
| Pixel Format | YUY2 (4:2:2) |
| Color Adjustment | Brightness, Contrast, Hue , Saturation |
| Audio Sampling | Audio L/R: 48KHz, 16bitHDMI: 32KHz/44.1KHz/48KHz, 16bitSDI: 48KHz, 16bits |
| Multi-Card Support | No |
| Multi-Channel Support | No |
| Crossbar Necessary | Yes |
| Audio Capture Filter Support | Yes |
| HW / SW Encode Support | SW |
| Dimensions (L x W x H) | 218 x 132 x 43mm |
| Supported OS | Windows 7/8.1/10 (32/64 bits)* |
