SPC-1509

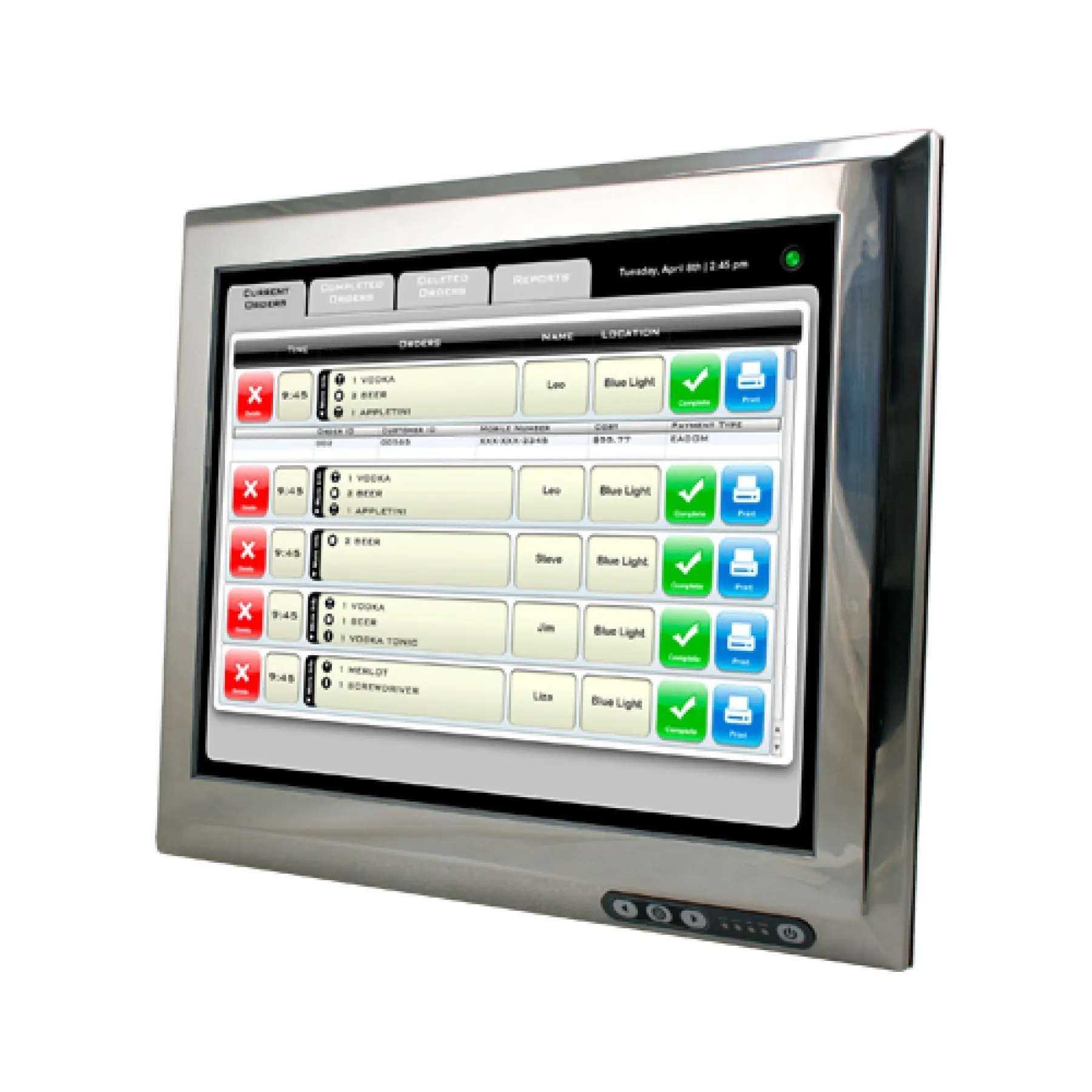

Avalue SPC-1509 15″ Intel Atom E3845 Stainless Steel Touch Panel PC with Full IP-65

SPC-1509

  • Fanless Onboard Intel Atom Quad-Core E3845 1.91GHz with Integrated Chipset
  • One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1333 SDRAM
  • 1 LAN, 3 USB, 1 COM
  • Dual Intel I210IT Gigabit LAN
  • Wide Voltage +12V ~ +26V Input, ErP Power
  • Backlight Controlled by PWM
  • Full System IP65
  • Timer-Power-On
-
+

Details

The SPC-1509 is a 15" Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65 powered by SoC E3845 Processor.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Resistive
Ingress Protection IP65
Stainless Steel Yes
Brightness 500nit, Standard
Resolution 1024x768, Special/Other
GPU Integrated GPU
Memory Capacity Up to 8GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, RS-232
USB Ports 3 Ports, 3 Ports, USB 2.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x HDMI
Storage Type 1, 1, 2, 2.5", CompactFlash
Expansion Type 2, 2, Any Expansion Type, Mini PCI Express
Input Voltage 12-26 VDC, ATX Powered, Yes
Mounting Options VESA-mount
Operating Temperature 0°C to 40°C, Standard
Certifications CE/FCC
OS Support Linux, Windows 7, Windows 8

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Orders placed by EMEA customers will be delivered by DHL from Assured Systems UK.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Accepted payment options for EMEA customers include VISA, Mastercard or bank transfer in GBP.

Avalue: Warranty and Service Information

Founded in 2011, Assured Systems is an official EMEA and USA Partner of Avalue. For all Avalue products supplied in the EMEA (including the UK) and US regions, we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
