SID-21WR1

Name: Avalue SID-21WR1 21.5" Rockchip RK3288 Semi Industrial Panel PC
SKU: SID-21WR1

Avalue

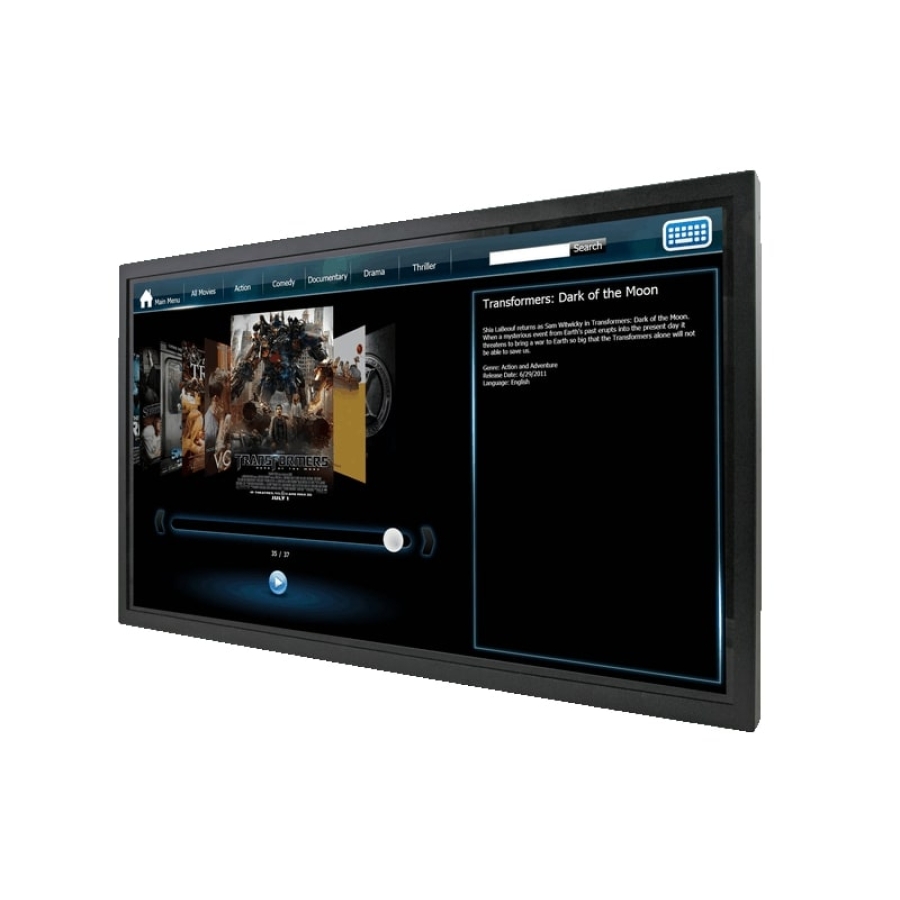

Avalue SID-21WR1 21.5″ Rockchip RK3288 Semi Industrial Panel PC

SID-21WR1

21.5” TFT-LCD, Full HD, 1920 x 1080
Projective Capacitive Multi-Touch
IP65 Front Panel
RockChip RK3288 Cortex-A17 Quad Core 1.6GHz
2GB DDR3L on board
16GB eMMC on board
1 x 802.11 b/g/n Wireless LAN and Bluetooth 4.0
1 x 10/100/1000 Ethernet

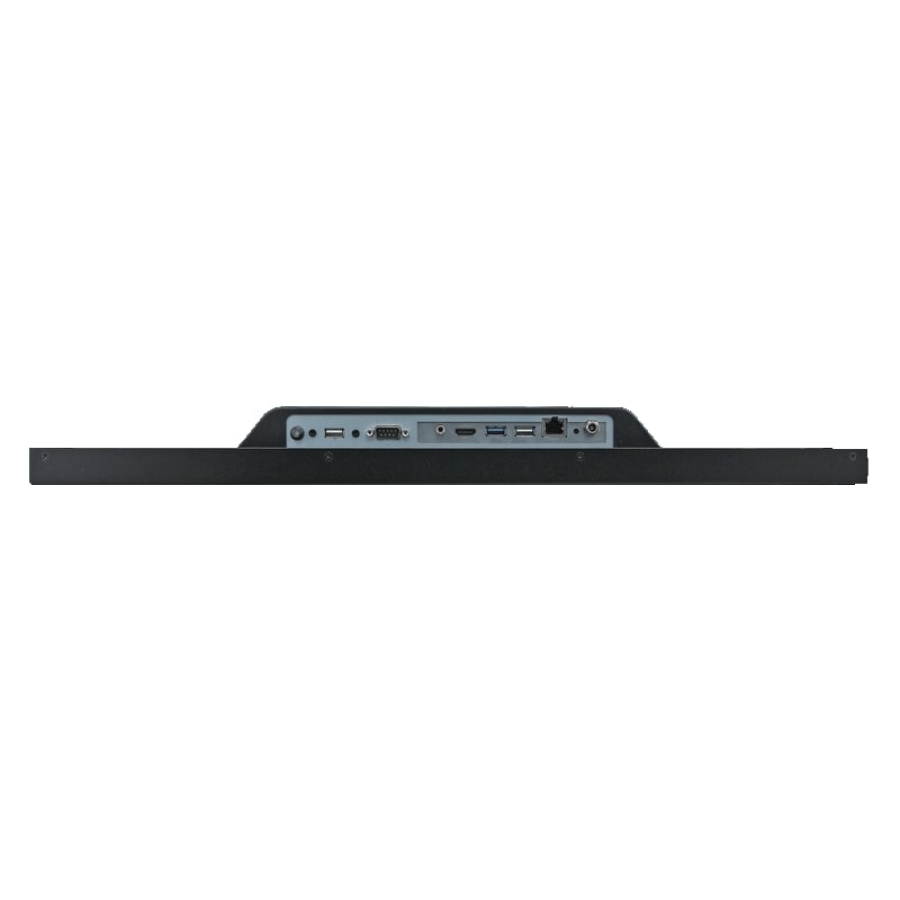

2 x USB Type A, 1 x HDMI output, 1 x Head phone jack
Wide range DC 12~24V DC input

Product Code: SID-21WR1

Categories: Avalue, Industrial Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel PCs, RISC Based HMIs

Range: Avalue

Details

The Avalue SID-21WR1 is a 21.5″ Semi Industrial Panel PC. This Panel PC supports RockChip RK3288 Cortex-A17 Processor.

Downloads

Datasheet (SID-21WR1) (PDF)

0.13MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	250nit, Standard
Resolution	1920x1080, FHD
Memory Capacity	Up to 2GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, RS-232
USB Ports	2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN)	1x 1G
Wireless	Wi-Fi
Audio	Yes
Video Ports	1x HDMI
Storage Type	1, eMMC
Input Voltage	12-24 VDC
Operating Temperature	0°C to 40°C, Standard
Certifications	CE/FCC
OS Support	Android, Linux
