SID-21W04

Name: Avalue SID-21W04 21.5" Intel Celeron J3455 Semi Industrial Panel PC
SKU: SID-21W04

Avalue

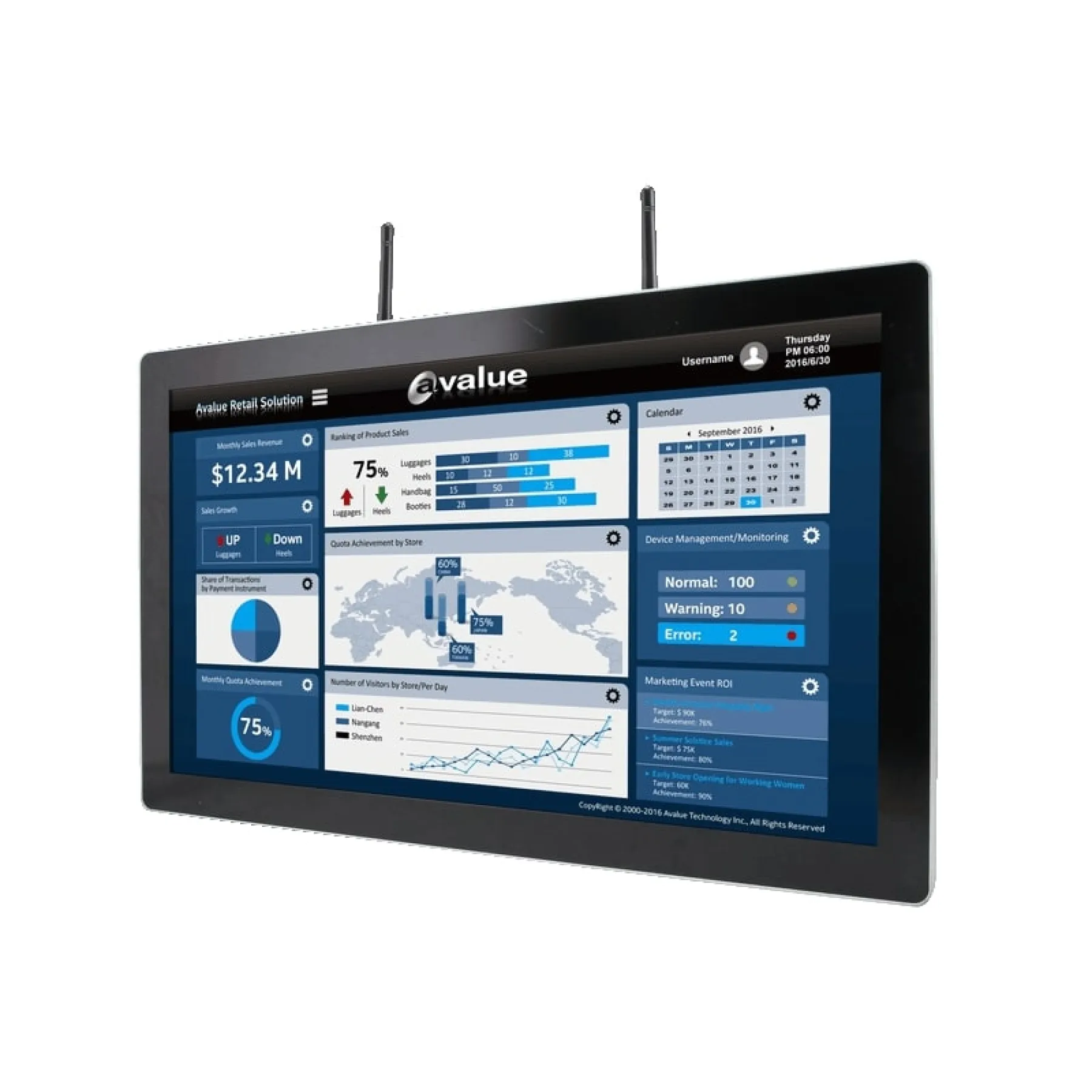

Avalue SID-21W04 21.5″ Intel Celeron J3455 Semi Industrial Panel PC

SID-21W04

Intel Celeron Processor J3455
4GB RAM
32GB eMMC
Projective Capacitive Touch
10/100/1000 Ethernet
M.2 B-Key(3042) connector socket for SSD or LTE Module
802.11 a/b/g/n/ac Wireless LAN / BT 5.0
Optional OOB Module & CoreSnapshot function
Windows 10 / Ubuntu 20.04 supported
DC 12~24V Input

Product Code: SID-21W04

Categories: Avalue, Industrial Panel PCs, Industrial Touchscreen Computers, Panel PCs

Range: Avalue

Details

The Avalue SID-21W04 is a 21.5″ Semi Industrial Panel PC. This Panel PC supports Intel Celeron J3455 Processor.

Downloads

Datasheet (SID-21W04) (PDF)

0.16MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive
Brightness	250nit, Standard
Resolution	1920x1080, FHD
GPU	Integrated GPU
Memory Capacity	Up to 4GB
Serial Ports (COM)	1 Port, 1 Port, 2 Ports, RS-232, RS-485
USB Ports	2 Ports, 2 Ports, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Wi-Fi
Audio	Yes
Video Ports	1x HDMI, 1 Port, 2 Ports, LVDS
Storage Type	1, eMMC
Input Voltage	12-24 VDC
Operating Temperature	0°C to 40°C, Standard
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
