LPC-1232

Name: Avalue LPC-1232 12.1" 6th Gen Intel Core i5-6300U Fanless Rugged Touch Panel PC
SKU: LPC-1232

Avalue

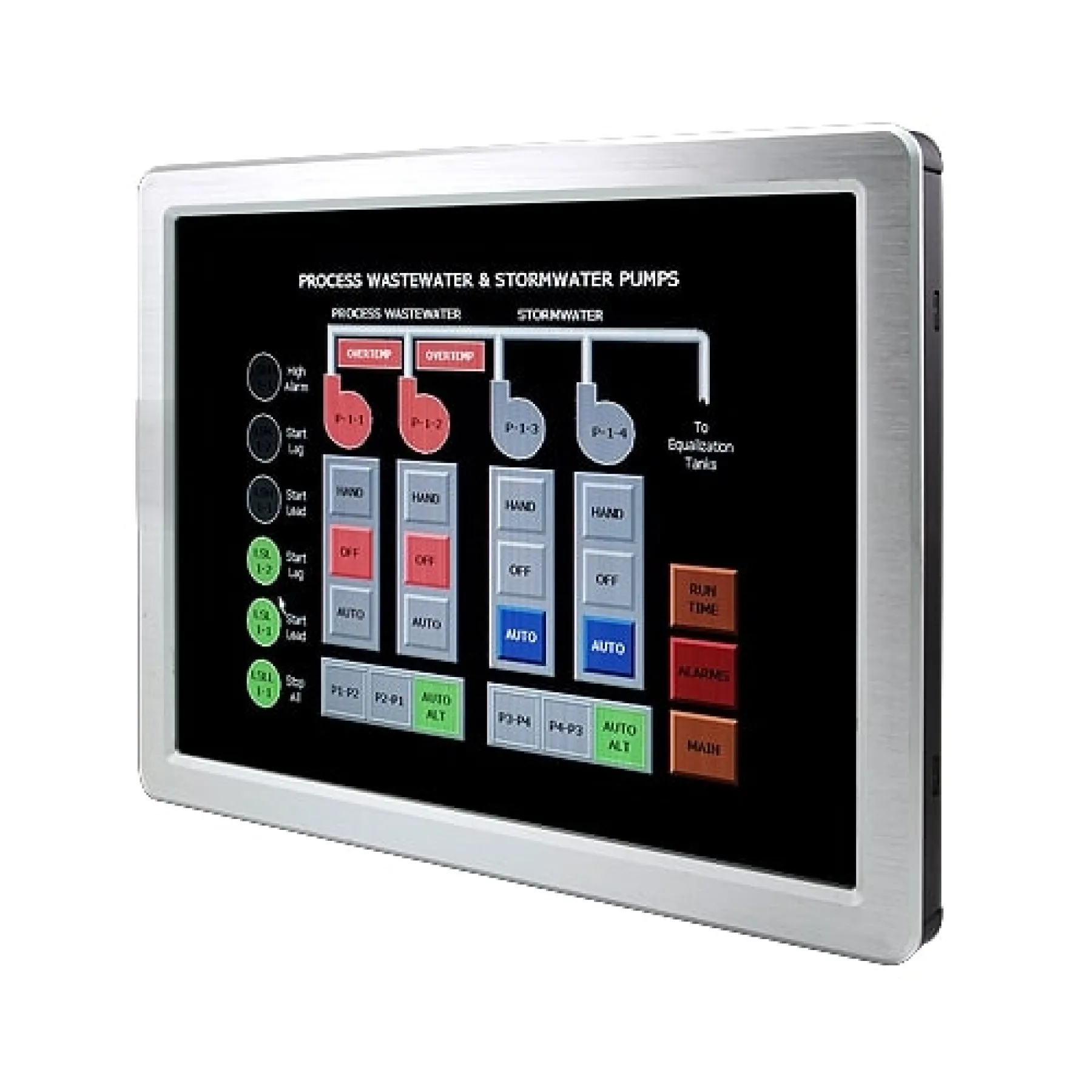

Avalue LPC-1232 12.1″ 6th Gen Intel Core i5-6300U Fanless Rugged Touch Panel PC

LPC-1232

6th Gen Intel Core SoC ULT Processor i5-6300U processor
Two 260-pin DDR4 SODIMM (non ECC) support up to 32GB (non ECC only)
4 USB, 2 COM, HDMI, Line out
2 x Intel Gigabit Ethernet
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
TPM 2.0 & TPM 1.2 (Optional)

Product Code: LPC-1232

Categories: Avalue, Industrial Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs, Panel PCs

Range: Avalue

Details

The Avalue LPC-1232 is a 12.1″ Fanless Rugged Touch Panel PC. This Panel PC supports 6th Gen Intel Core i5-6300U Processor.

Downloads

Datasheet (LPC-1232) (PDF)

0.12MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Resistive
Ingress Protection	IP65
Brightness	600nit, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Serial Ports (COM)	2 Ports, 2 Ports, RS-232/422/485
USB Ports	4 Ports, 4 Ports, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x HDMI
Storage Type	1, 1, 2, 2.5", mSATA
Expansion Type	2, 2, Any Expansion Type, Mini PCI Express
Input Voltage	12-26 VDC
Mounting Options	Panel-mount, VESA-mount
Operating Temperature	-10°C to 50°C, Wide
Certifications	CE/FCC
OS Support	Linux, Windows 7, Windows 8
