HPS-ERSUTA

Avalue HPS-ERSUTA Single 4th/5th Generation Intel Xeon Scalable Tower Chassis Workstation with Intel C741 Chipset

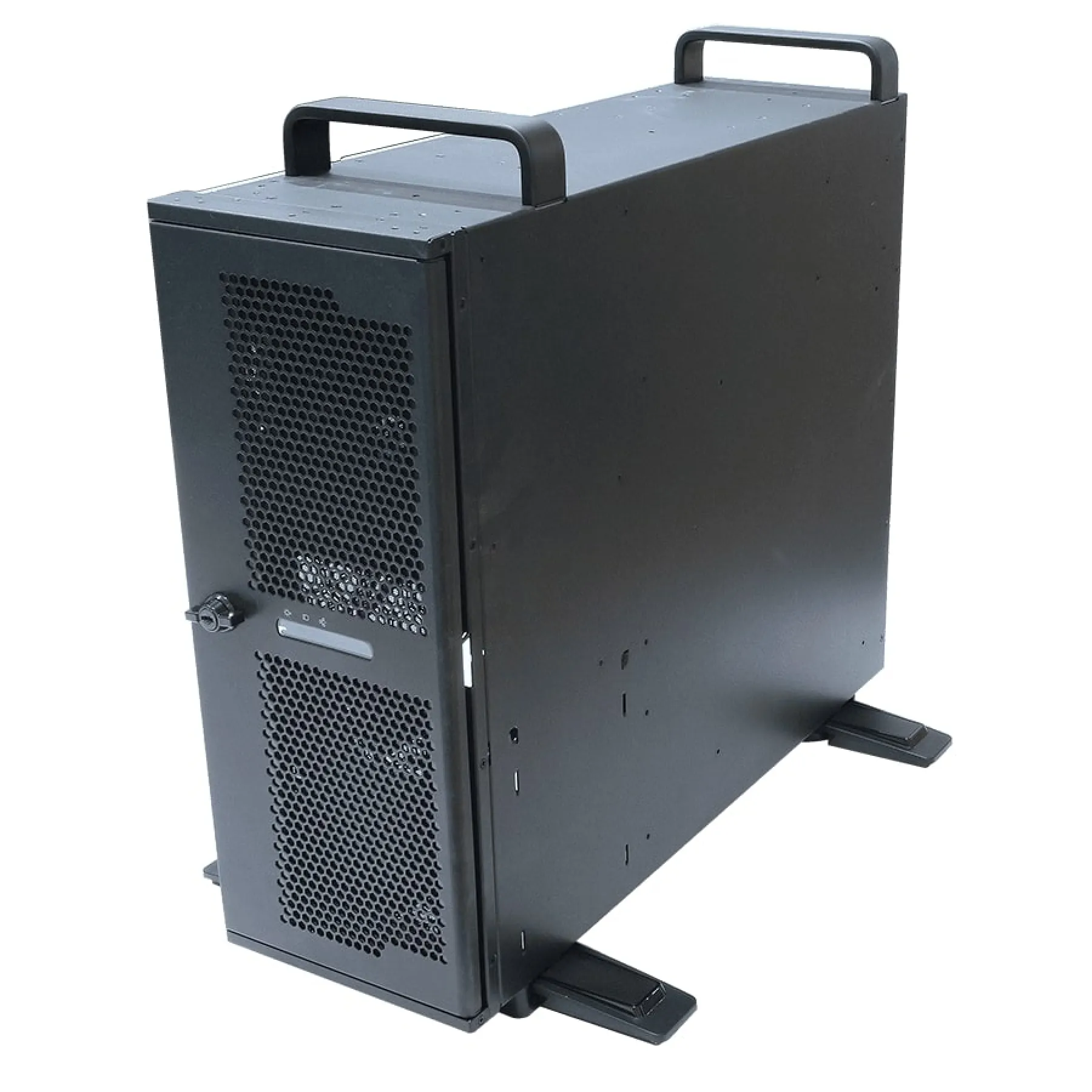

Tower Chassis
340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand
1 x 1300W PS2 ATX PSU
3 x Front accessible 2.5″ storage bays
Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
Intel C741 Chipset
6 x DDR5 5600 MHz RDIMM up to 1.5TB
IPMI 2.0 with AST 2600 BMC controller onboard
1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

Product Code: HPS-ERSUTA

Details

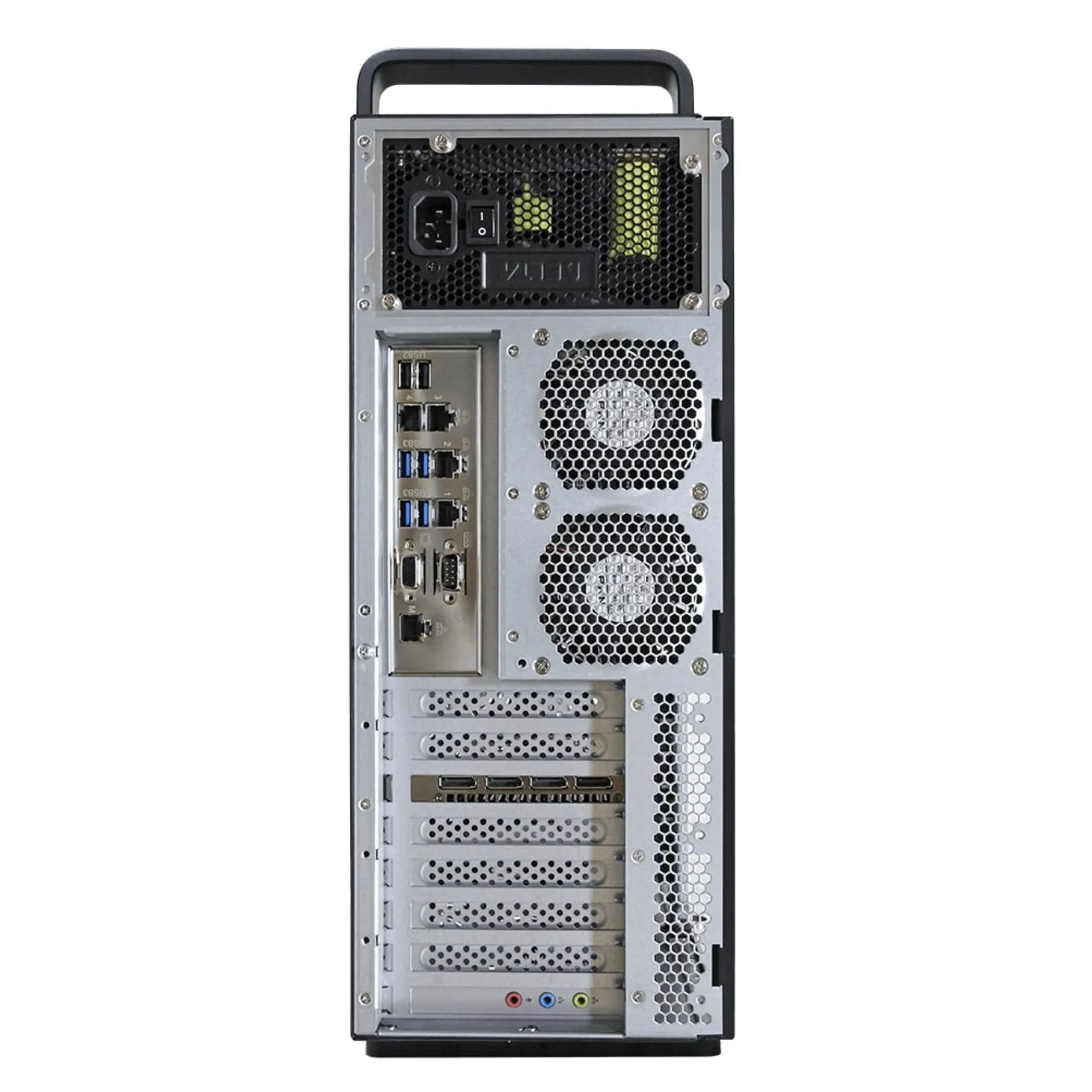

The AvalueHPS-ERSUTA is a Tower Chassis Workstation powered by Single 4th/5th Generation Intel Xeon Scalable Processor. This products operating temperature is 0 ~ 35°C and stores within -40 ~ 70°C. Its memory capacity is 6 x DDR5 5600 MHz RDIMM up to 1.5TB and includes 2 x Front USB Ports, 6 x Rear USB Ports, 1 x COM Port, 1 x VGA Port and 5 x RJ45 Ports.

Downloads

Datasheet (HPS-ERSUTA) (PDF)

1.17MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

GPU	Integrated GPU
Memory Capacity	Up to 1.5TB
Serial Ports (COM)	1x RS232
USB Ports	2x USB 2.0, 6x USB 3.2
Ethernet Ports (LAN)	1x 2.5G, 1x 1G, 3, 5
Video Ports	1x VGA
Storage Type	1x M.2, 3x 2.5"
Expansion Type	7
Input Voltage	1300W
Operating Temperature	0°C to 35°C, Standard
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 11
