HPS-246U4A

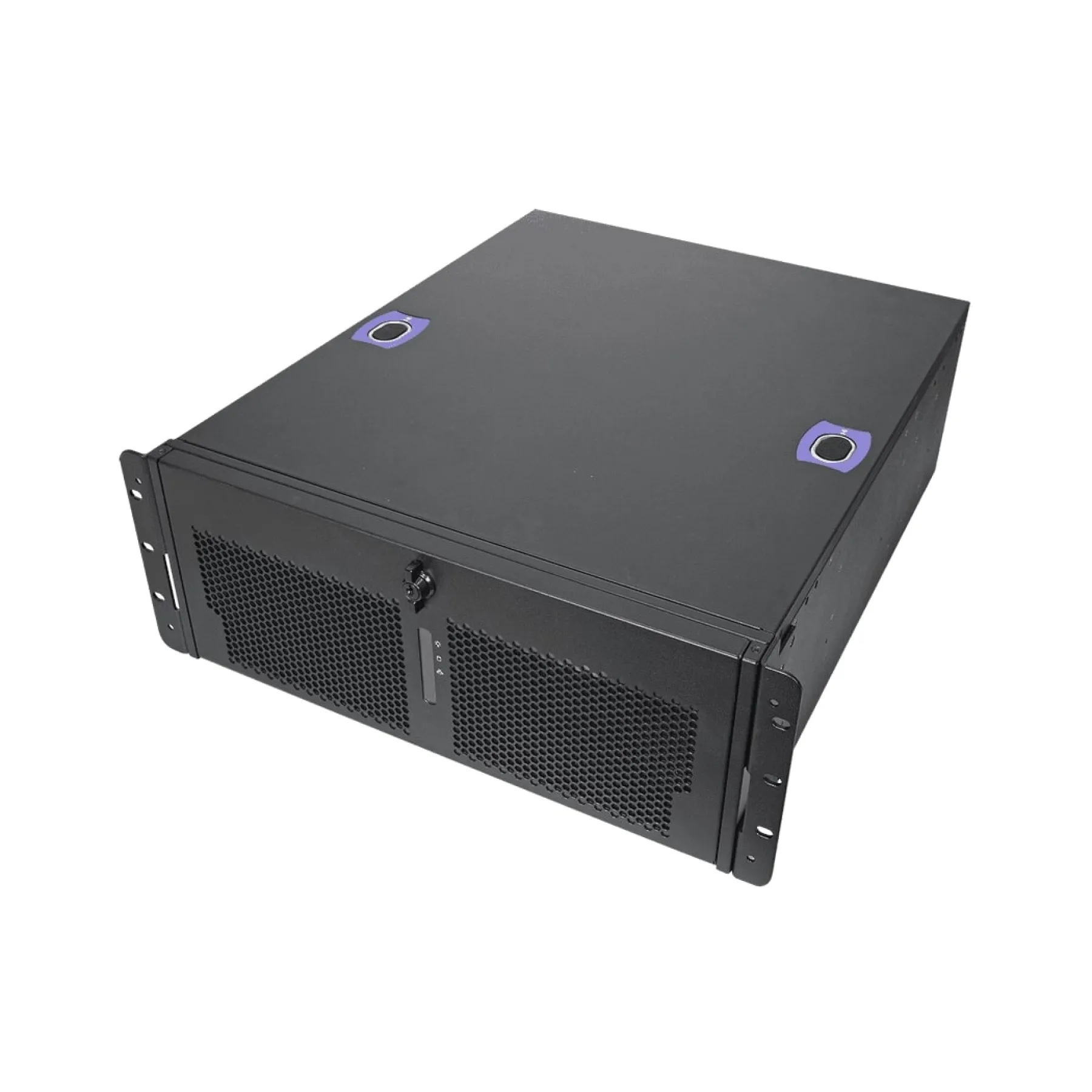

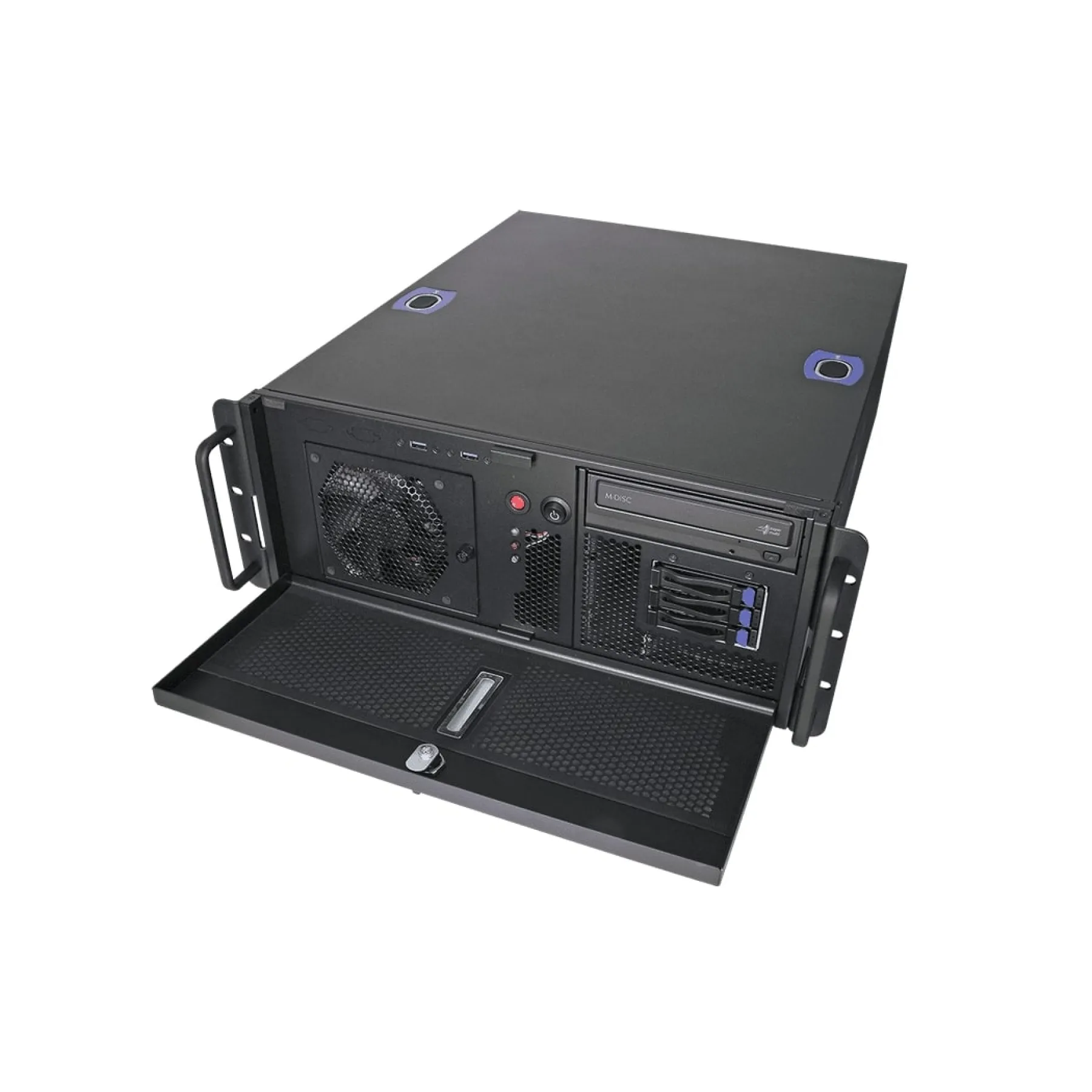

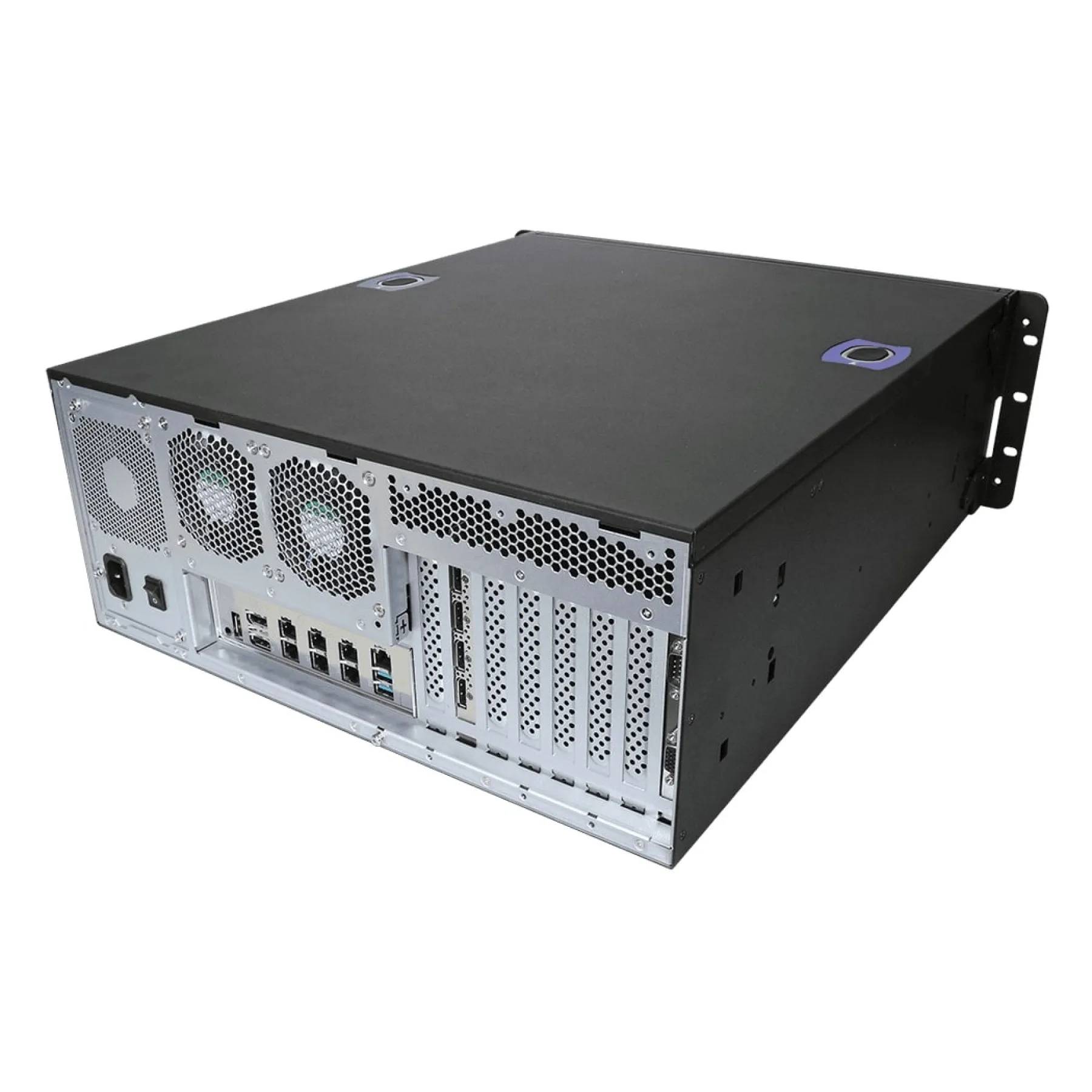

Avalue HPS-246U4A 8th/9th Generation Core Pentium/Celeron/ Xeon 19″ 4U Chassis Workstation with Intel C246 Chipset

19″ 4U Chassis
430mm(W) x 174.8mm(H) x 528mm(D)
1 x 500W PS2 ATX PSU
3 x Front accessible 2.5″ storage bays
Intel LGA1151 Socket supports 8th/9th Gen. Core i7/i5/i3/Pentium/Celeron/Xeon E processors
Intel C246 Chipset
4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)
IPMI 2.0 with AST 2500 BMC controller onboard
7 x Intel I210AT 1GbE controllers

Product Code: HPS-246U4A

Details

The Avalue HPS-246U4A is a 19" 4U Chassis Workstation powered by 8/9th Generation Intel Core i7/i5/i3/Pentium/Celeron/Xeon E Processor. This products operating temperature is 0 ~ 45°C and stores within -40 ~ 70°C. Its memory capacity is 4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB and includes 2 x Front USB Ports, 2 x Rear USB Ports, 1 x COM Port, 1 x VGA Port, 3 x Display Ports and 7 x RJ45 Ports.

Downloads

Datasheet (HPS-246U4A) (PDF)

0.14MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

GPU	Integrated GPU
Memory Capacity	Up to 128GB
Serial Ports (COM)	1x RS232
USB Ports	4x USB 3.2
Ethernet Ports (LAN)	7x 1G, 7
Video Ports	1x VGA, 3 Port
Storage Type	3x 2.5"
Expansion Type	1x PCI, 4, 5
Input Voltage	500W
Operating Temperature	Standard OT: 0°C to 45°C, Standard
Market Certifications	CE/FCC
OS Support	Windows 10, Windows 11
