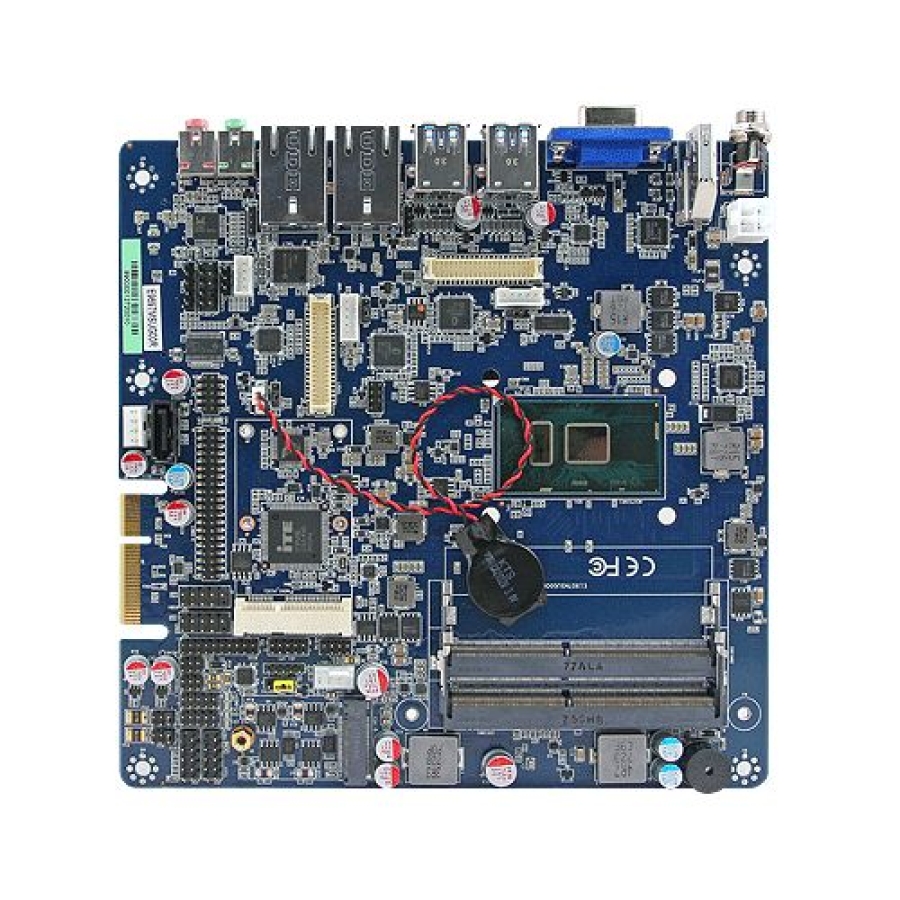

Avalue EMX-SKLGP 6/7th Gen Intel Core SoC i7/i5/i3 & Celeron Thin Mini ITX Board
EMX-SKLGP
- 2 x 260-pin DDR4 SO-DIMM Socket, Supports Up to 32GB
- 1 x VGA, 1 x HDMI, 2 x Dual-channel LVDS
- 1 x Intel® i211AT & 1 x Intel i219LM Gigabit Ethernet
- 4 x USB 3.0, 4 x USB 2.0, 2 x RS-232/422/485. 4 x RS-232, 16-bit GPIO
- 1 x M.2 Key A, 1 x Mini-PCIe
- 1 x PCIe*4 Gold Finger (1 x SMBUS, 1 x USB2.0, 1 x PCIe*4 or 4 x PCIe*1)
- Onboard Infineon SLB9665 TPM 2.0
- DC in +12~24V
Details
The Avalue EMX-SKLGP is an industrial thin mini-ITX motherboard powered by 6/7th Gen Intel Core SoC i7/i5/i3 & Celeron processors. It contains 2 x 260-pin DDR4 SO-DIMM Socket, Supports Up to 32GB. The rich I/O contains 4 x USB 3.0, 4 x USB 2.0, 2 x RS-232/422/485 and 4 x RS-232 ports.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Processor | 6th Gen Intel® Core™ i7-6600U, 2-Core, 2.6GHz processor6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor6th Gen Intel® Core™ i3-6100U, 2-Core, 2.3GHz processor6th Gen Intel® Core™ 3955U, 2-Core, 2.0GHz processor |
| System Memory | 2 x 260-pin DDR4 2133 MHz SO-DIMM supports up to 32GB |
| I/O Chip | EC iTE IT8528E |
| BIOS | AMI 128Mbit SPI BIOS |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring System Temperature and Voltage with Auto Throttling Control |
| Expansion | 1 x Mini PCI-e, 1 x M.2 Key A 2230 |
| USB | 4 x USB 2.0, 4 x USB 3.0 |
| SATA | 1 x SATA Power, 1 x SATA III |
| COM Port | 4 x RS232, 2 x RS232/422/485 |
| DIO | 1 x 16-bit GPIO |
| Chipset | Intel® 6th Gen U series SoC integrated Graphics |
| Resolution | HDMI: 1.4b: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 HzVGA: 2048 x 1536 @ 50Hz |
| LVDS | 2CH 18/24bits LVDS 1920 x 10801 x Dual channel 18/24-bits LVDS1 (Chrontel CH7511B eDP to LVDS1) 1 x Dual channel 18/24-bits LVDS2 (Chrontel CH7511B DP to LVDS2) (Chrontel. CH7511B eDP to LVDS Converter) Co-lay eDP 1.3: 4096×2160 BOM optional |
| Multiple Display | 1 x VGA, 1 x HDMI, 2 x Dual-channel LVDS |
| Chipset | Realtek ALC892 supports 2-CH |
| Audio Interface | Mic-in, Line-out |
| Audio Amplifier | 2 x Stereo Class-D 6W Audio Amplifier |
| Chipset | 1 x Intel® I219LM Gigabit Ethernet PHY 1 x Intel® I211AT PCI-e Gigabit Ethernet |
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ45 |
| Input Power Connector | 12~24V |
| Power Requirement | +12V~24V |
| Power Type | AT/ATX mode switchable through jumper |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) |
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 0 ~ 90% Relative Humidity, Non-condensing |
| Dimension (L x W) | 6.69” x 6.69” (170mm x 170mm) |
| Weight | 0.88lbs (0.4Kgs) |
| Form-Factor | Mini-ITX |
| Ordering Information | EMX-SKLGP-3955-A1REMX-SKLGP-6100-A1REMX-SKLGP-6300-A1REMX-SKLGP-6600-A1RIntel® 6th/7th Gen. Core™ SoC i7/i5/i3 & Celeron®BGA Processor Thin Mini ITX Motherboard |
| Power Mode | AT/ATX mode switchable through jumper |
| Processor Type | Intel Celeron: Up to 2 Cores, Intel Core: Up to 2 Cores |
|---|---|
| Memory Type | DDR4 |
| COM Ports | 2x RS-232/422/485, 4x RS-232 |
| LAN Ports | 2x 1GB |
| USB Ports | 4x USB 3.0, 4x USB 2.0 |
| Video Ports | 1x VGA, 1x HDMI, 2x LVDS |
| Storage | 2x SATA |
| Operating Temperature | 0°C to 60°C |
