EMX-Q170P

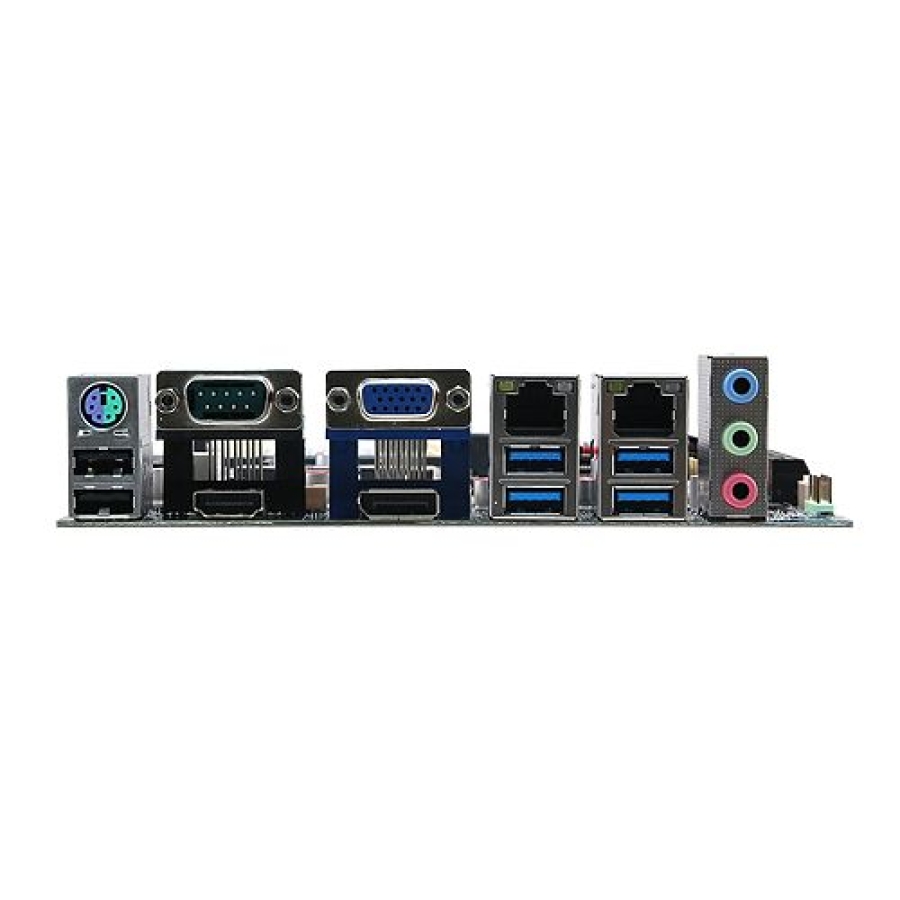

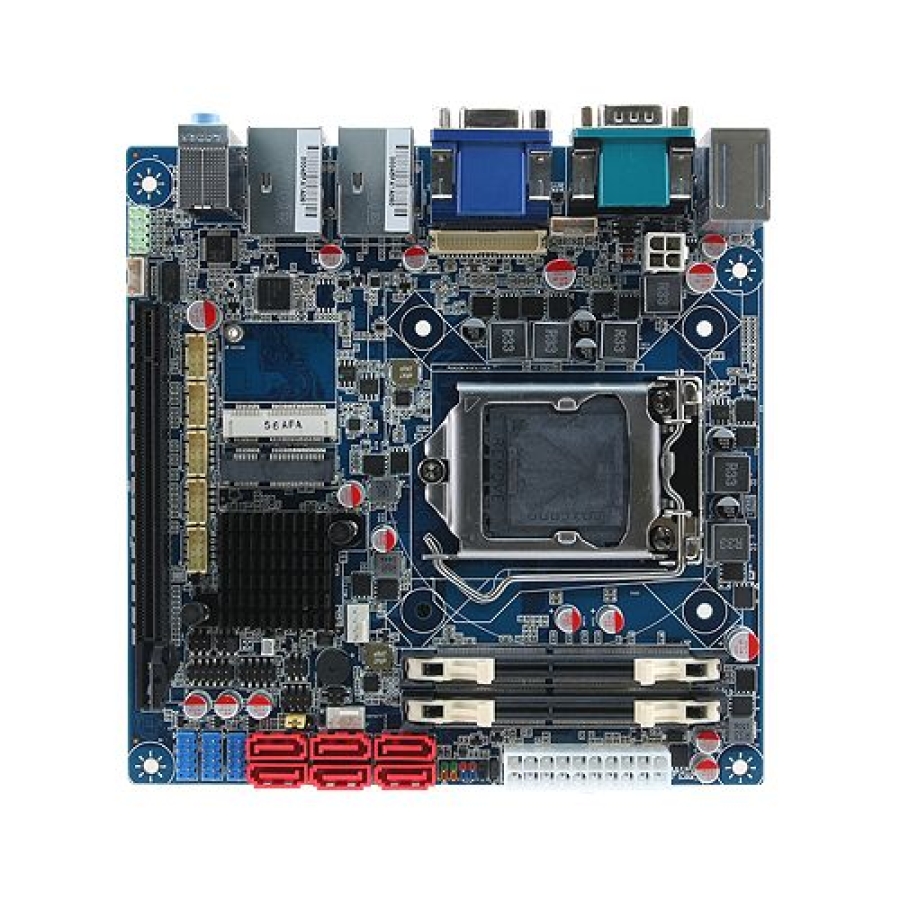

Avalue EMX-Q170P Intel 6th Gen. Core Mini ITX MotherBoard

EMX-Q170P

  • Intel® 6th Generation Core™ Processor (Max. TDP at 95W)
  • Intel® Q170 Chipset
  • 2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB
  • 1 x Intel® I219LM Gigabit Ethernet PHY
  • 1 x Intel® I211AT PCI-e Gigabit Ethernet
  • Realtek ALC892 HD Audio Codec
  • VGA, HDMI, DP, Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
  • 5 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS
  • 1 x PCI-e x 16
  • 1 x Full Size Mini-PCI-e with mSATA Support (SATA III)
  • 1 x Half Size Mini PCI-e
  • 4 x USB 3.0, 8 x USB 2.0
  • 1 x PS/2 Keyboard or Mouse with Dual deck USB 2.0
  • 5 x RS232, 1 x RS232/422/485
  • Line-in, Mic-in, Line-out
  • 8-bits GPIO
  • Support RAID 0, 1, 5, 10
  • Onboard Infineon SLB9665 support TPM 2.0
  • AT/ATX Power

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Avalue EMX-Q170P Intel 6th Generation Core Processor (Max. TDP at 95W)Intel Q170 Chipset2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB1 x Intel I219LM Gigabit Ethernet PHY1 x Intel I211AT PCI-e Gigabit EthernetRealtek ALC892 HD Audio CodecVGA, HDMI, DP, Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)5 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS1 x PCI-e x 161 x Full Size Mini-PCI-e with mSATA Support (SATA III)1 x Half Size Mini PCI-e4 x USB 3.0, 8 x USB 2.01 x PS/2 Keyboard or Mouse with Dual deck USB 2.05 x RS232, 1 x RS232/422/485Line-in, Mic-in, Line-out8-bits GPIOSupport RAID 0, 1, 5, 10Onboard Infineon SLB9665 support TPM 2.0AT/ATX Power.

Ordering Info

EMX-Q170P-A1R Intel® 6th Generation CoreTM i7/ i5/ i3 Processor Mini ITX Motherboard with Intel® Q170 Chipset

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Processor Intel® LGA1151 Socket Supports 6th Generation Core™ i7/ i5/ i3 & Pentium®/Celeron® Processors (Max. TDP at 95W)
System Chipset Intel® Q170 Chipset
System Memory 2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB
I/O Chip Nuvoton® NCT6106D
BIOS AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor CPU temperature monitoring, Voltages monitoring, CPU fan speed control
TPM Onboard Infineon SLB9665 support TPM 2.0
Board Mini ITX
Expansion 1 x PCI-e x 161 x Full Size Mini PCI-e Supports mSATA (by auto switch IC) 1 x Half Size Mini PCI-e
USB 8 x USB 2.0, 4 x USB 3.0
SATA 5 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS selection
COM Port 5 x RS232, 1 x RS232/422/485
DIO 1 x 8-bit GPIO
MIO 1 x PS/2 Keyboard or 1 x PS/2 Mouse
Other Onboard Infineon SLB9665 support TPM 2.0
Chipset Intel® 6th Generation CPU integrated
Resolution VGA: 2048 x 1536 @ 50HzHDMI: 4096 x 2160 @ 24HzDP: 4096 x 2304 @ 60Hz
LVDS Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
Multiple Display Triple Display
Chipset Realtek ALC892 HD Audio Decoding Controller
Audio Interface Mic-in, Line-out, Line-in
Audio Amplifier 6W Amplifier
Chipset 1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I211AT PCI-e Gigabit Ethernet
LAN Port 2 x RJ-45
Power Requirement +12V/+5V/5VSB/+3.3V/-12V
ACPI Single power ATX Support S0, S3, S4, S5
Power Type AT/ATX
Operating Temp 0~60°C (32~140°F)
Storage Temp -40~ 75°C
Operating Humidity 0%~90% relative humidity, non-condensing
Dimension (L x W) 6.69″ x 6.69″ (170mm x 170mm)
Weight 0.40 kg
Memory Type DDR4
COM Ports 1x RS-232/422/485, 5x RS-232
LAN Ports 2x 1GB
USB Ports 4x USB 3.0, 8x USB 2.0
Video Ports 1x HDMI, 1x DisplayPort, 1x VGA, 1x LVDS
Storage 1x SATA, 1x mSATA, 5x SATA
Operating Temperature 0°C to 60°C
