FR EMX-BYT3
Avalue EMX-BYT3 Intel Celeron J1900 Thin Mini ITX Motherboard supports up to 8GB
End of Life
- Onboard Intel Celeron J1900 Processor (2M Cache, Up to 2.42 GHz)
- 2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB
- VGA, HDMI, Dual channel 18/24-bits LVDS
- 2 x Intel i211AT Gigabit Ethernet
- Realtek ALC662 Audio Codec
- 1 x Full size Mini PCI-e soclet supported mSATA only (SATAII and mSATA switchable through jumper), 1 x Full size Mini PCI-e support WiFi or communication module or 1 x PCI-e x 1 slot switchable by switch IC
- 2 x SATA II, 2 x SATA Power, 2 x USB 2.0, 4 x USB 3.0
- 6 x RS232, 2 x RS232/422/485, 16-bit GPIO
- Mic-in, Line-out, 1 S/PIDF, Optional Infineon SLB9665 TPM 2.0
- Onboard eMMC (Optional 32GB)
- DC in +12~24V
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details

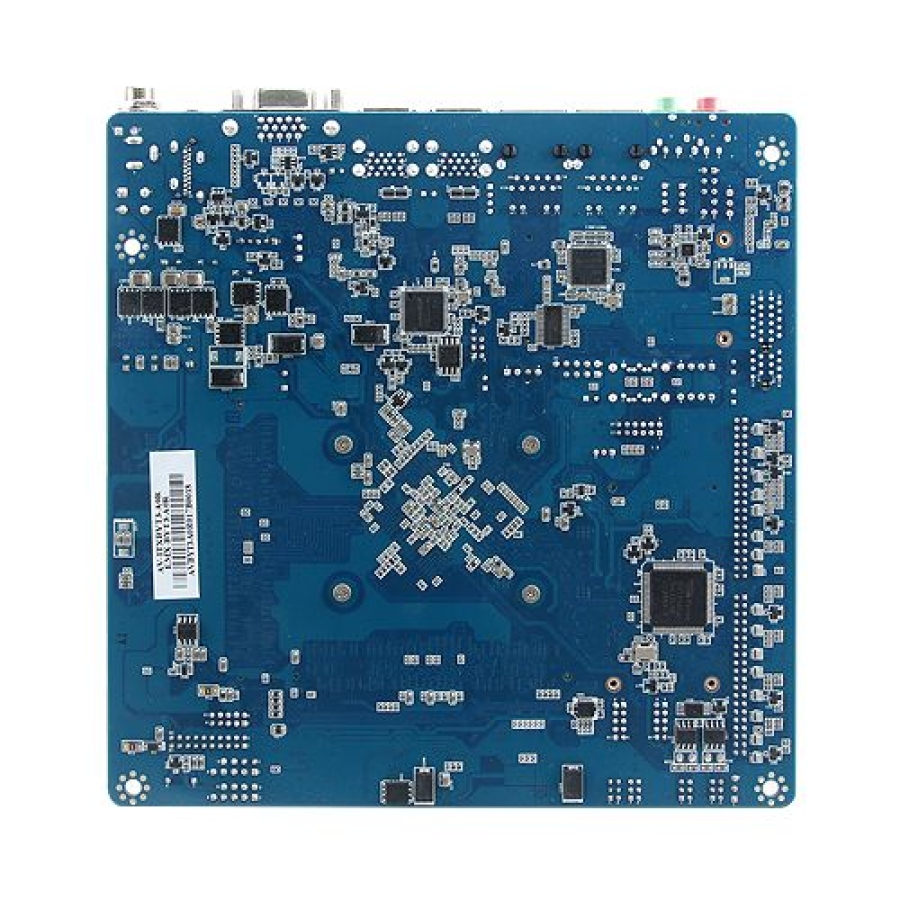

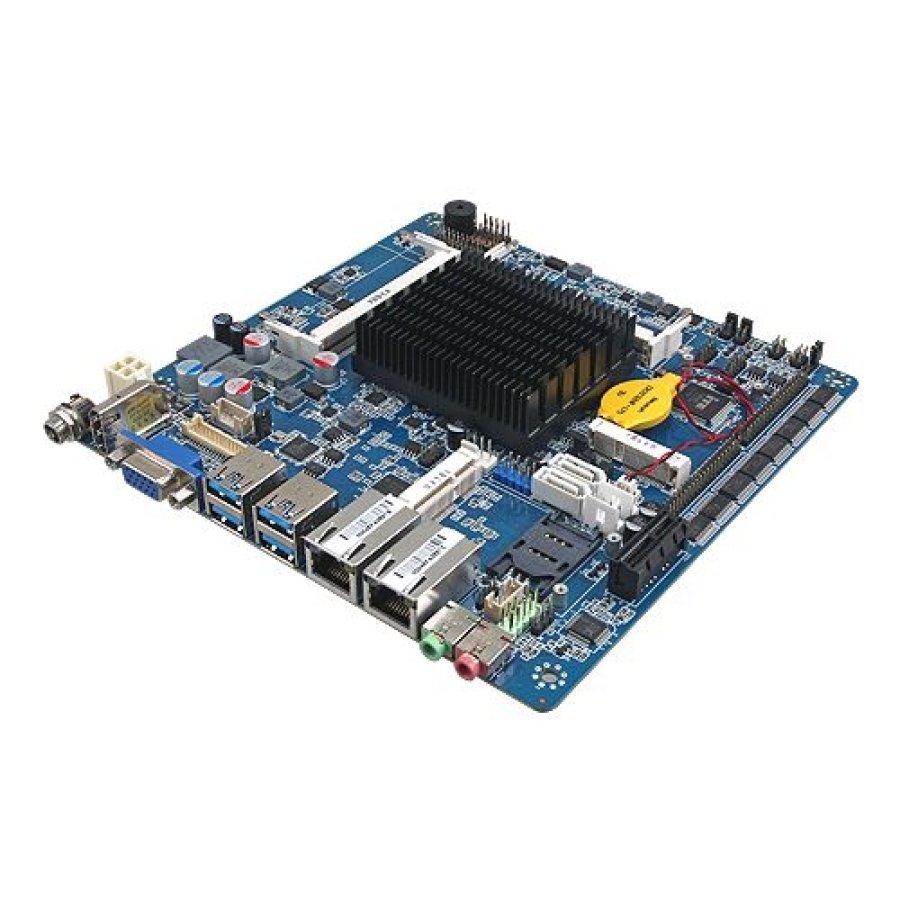

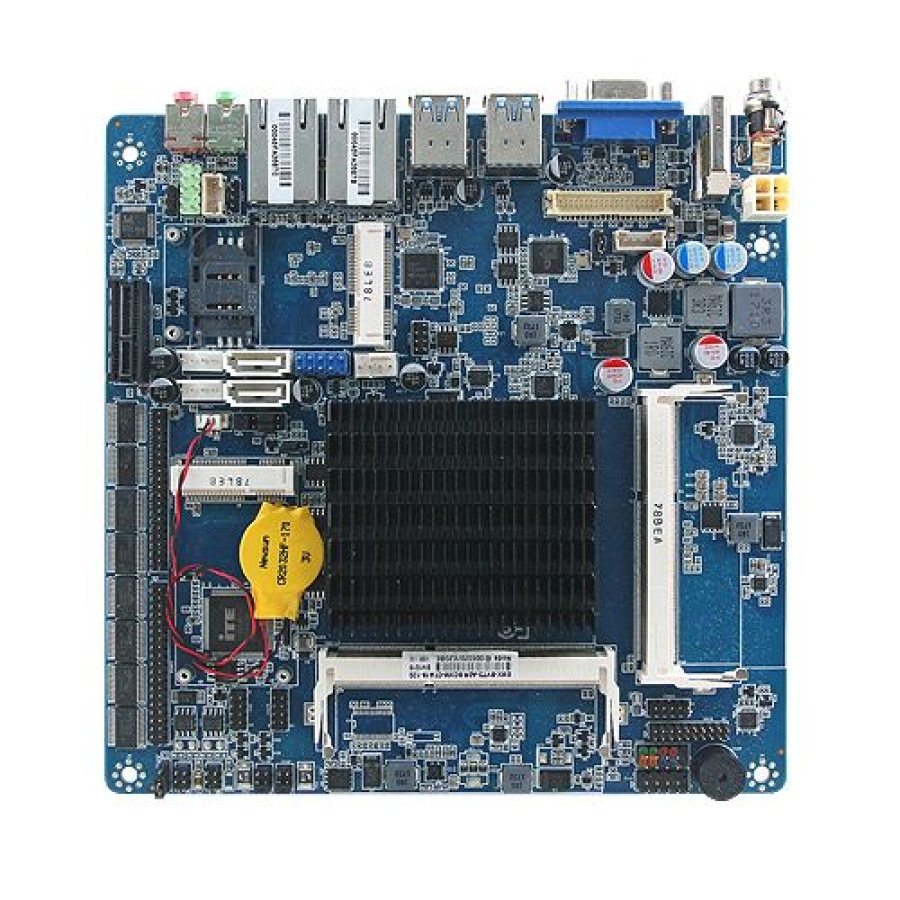

The Avalue EMX-BYT3 is an industrial thin mini-ITX motherboard powered by Intel Celeron J1900 processor. It contains 2 x 204-pin DDR3L 1333 MHz SO-DIMM supporting up to 8GB. The rich I/O includes 2 x USB 2.0, 4 x USB 3.0, 6 x RS232, 2 x RS232/422/485 and 2 x RJ45 ports.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Processor | Intel® Celeron® J1900 Processor (2M Cache, Up to 2.42 GHz) |
| System Memory | 2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB |
| I/O Chip | EC iTE IT8528E |
| BIOS | AMI 64/128Mbit SPI BIOS |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring System Temperature and Voltage with Auto Throttling Control |
| Expansion | 1 x Mini PCI-e Supports mSATA (Switch Through Jumper)1 x Mini PCI-e1 x SIM card slot |
| USB | 2 x USB 2.0, 4 x USB 3.0 |
| SATA | 2 x SATA Power, 2 x SATA II |
| COM Port | 6 x RS232, 2 x RS232/422/485 |
| DIO | 1 x 16-bit GPIO |
| Other | 1 x S/PDIF |
| Chipset | Intel® Atom™/ Celeron® SoC integrated Graphics |
| Resolution | VGA: 2560 x 1600 @ 60HzHDMI: 1920 x 1200 @ 60HzLVDS: 1920 x 1080 @ 60Hz |
| LVDS | Dual channel 18/24-bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter |
| Multiple Display | Dual Display |
| Chipset | Realtek ALC662 supports 2-CH |
| Audio Interface | Mic-in, Line-out |
| Audio Amplifier | 2 x Stereo Class-D 3W Audio Amplifier |
| Chipset | 2 x Intel I211AT Gigabit Ethernet |
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ45 |
| Power Requirement | DC in +12~24V |
| Power Type | AT/ATX |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) |
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 0 ~ 90% Relative Humidity, Non-condensing |
| Dimension (L x W) | 6.69” x 6.69” (170mm x 170mm) |
| Weight | 0.88lbs (0.4Kgs) |
| Ordering Information | EMX-BYT3-A2RIntel® Atom™ Celeron® J1900(D1) Processor Mini ITX Motherboard |
