EMX-BYT2

Name: Avalue EMX-BYT2 Intel Celeron J1900 Thin Mini ITX Motherboard supports up to 8GB
SKU: EMX-BYT2

Avalue

Avalue EMX-BYT2 Intel Celeron J1900 Thin Mini ITX Motherboard supports up to 8GB

EMX-BYT2

Intel Celeron J1900 Processor (2M Cache, Up to 2.42 GHz)
2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB
VGA, HDMI, Dual channel 18/24-bits LVDS
2 x Intel® i211AT Gigabit Ethernet
Realtek ALC662 Audio Codec
1 x Mini PCI-e Supported mSATA, 1 x Mini PCI-e, 1 x PCI-e
2 x SATA II, 2 x SATA Power, 2 x USB 2.0, 4 x USB 3.0
5 x RS232, 1 x RS232/422/485, 8-bit GPIO
Mic-in, Line-out, 1 S/PIDF, Optional Infineon SLB9665 TPM 2.0
Onboard eMMC (Optional 32GB)
DC in +12V

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: EMX-BYT2

Categories: Avalue, Industrial Motherboards, Mini-ITX Motherboards

Range: Avalue

Details

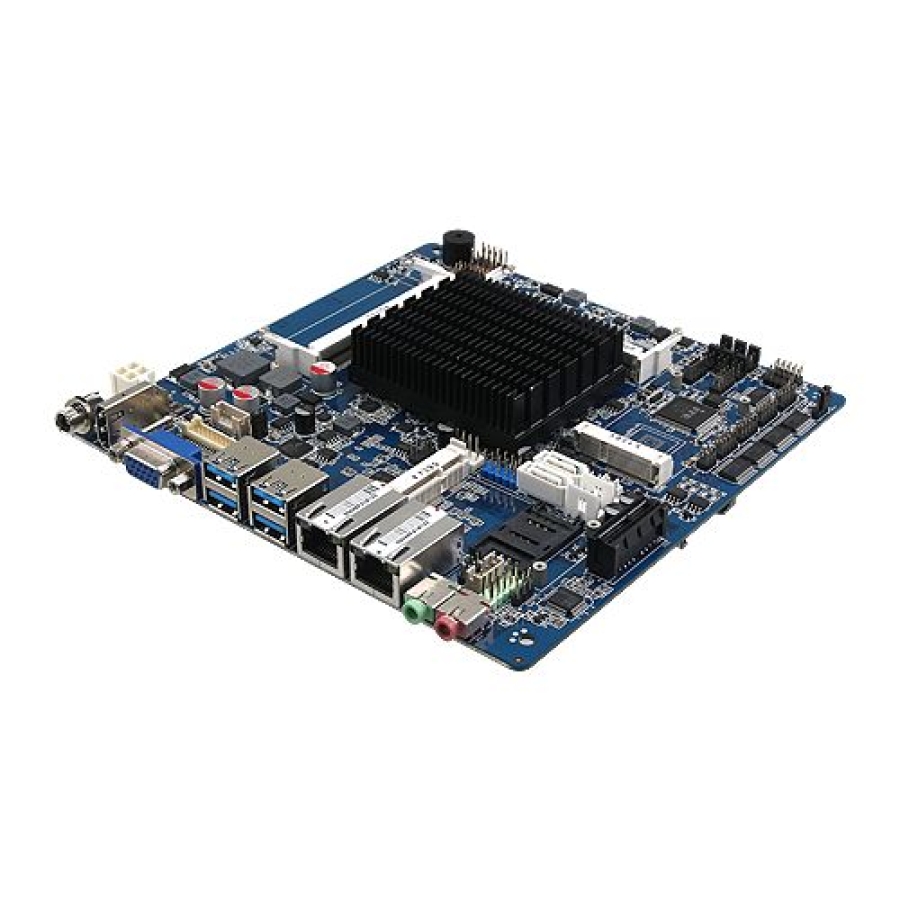

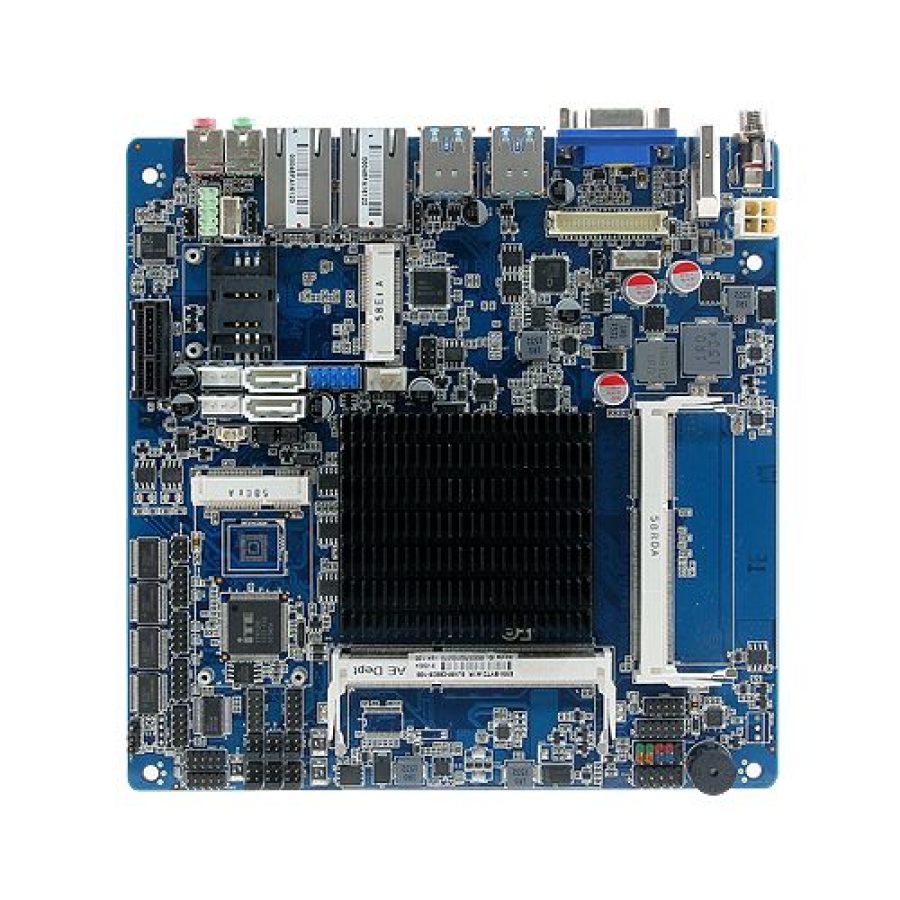

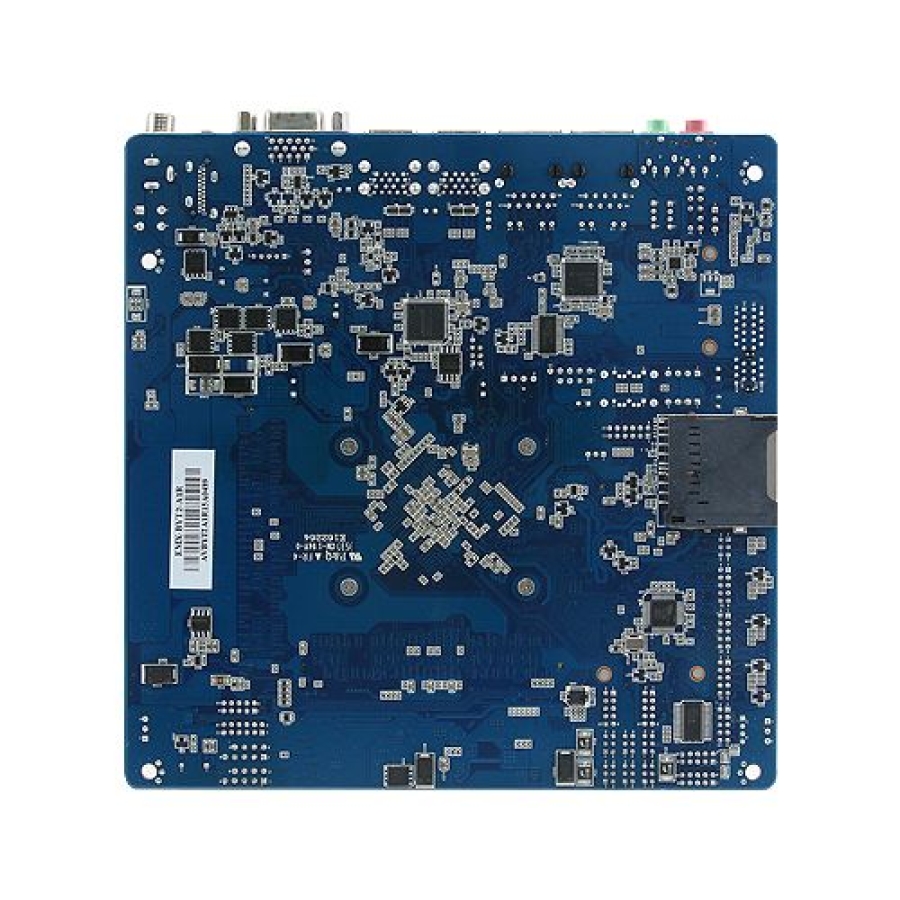

The Avalue EMX-BYT2 is an industrial thin mini ITX motherboard powered by Intel Celeron J1900 processor. It contains 2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB. The rich I/O contains 2 x USB 2.0, 4 x USB 3.0, 5 x RS232, 1 x RS232/422/485 and 2 x RJ45.

Downloads

Avalue EMX-BYT2 Datasheet (PDF)

0.17MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor	Intel® Celeron® J1900 Processor (2M Cache, Up to 2.42 GHz)
System Memory	2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB
I/O Chip	EC iTE IT8528E
BIOS	AMI 64Mbit SPI BIOS
Watchdog Timer	H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control
Expansion	1 x PCI-e, 1 x Mini PCI-e Supports mSATA (Switch Through Jumper), 1 x Mini PCI-e, 1 x SD card slot supports SD/ SDHC Card, 1 x SIM card slot
USB	2 x USB 2.0, 4 x USB 3.0
SATA	2 x SATA Power, 2 x SATA II
COM Port	5 x RS232, 1 x RS232/422/485
DIO	1 x 8-bit GPIO
Other	1 x S/PDIF
Chipset	Intel® Celeron® SoC integrated Graphics
Resolution	VGA: 2560 x 1600 @ 60HzHDMI: 1920 x 1200 @ 60HzLVDS 1920 x 1080 @ 60Hz
LVDS	Dual channel 18/24-bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter
Multiple Display	Dual Display
Chipset	Realtek ALC662 supports 2-CH
Audio Interface	Mic-in, Line-out
Audio Amplifier	2 x Stereo Class-D 3W Audio Amplifier
Chipset	2 x Intel I211AT Gigabit Ethernet
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	2 x RJ45
Power Requirement	+12V
Power Type	AT/ATX
Operating Temperature	0 ~ 60°C (32 ~ 140°F)
Storage Temperature	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	0 ~ 90% Relative Humidity, Non-condensing
Dimension (L x W)	6.69” x 6.69” (170mm x 170mm)
Weight	0.88lbs (0.4Kgs)
Ordering Information	EMX-BYT2-A2RIntel® Atom™ Celeron® J1900(D1) Processor Mini ITX Motherboard

Processor Type	Intel Celeron: Up to 4 Cores
Memory Type	DDR3L
COM Ports	1x RS-232/422/485, 5x RS-232
LAN Ports	2x 1GB
USB Ports	2x USB 2.0, 4x USB 3.0
Video Ports	1x LVDS, 1x VGA, 1x HDMI
Storage	4x SATA
Operating Temperature	0°C to 60°C
