EMX-BSWP

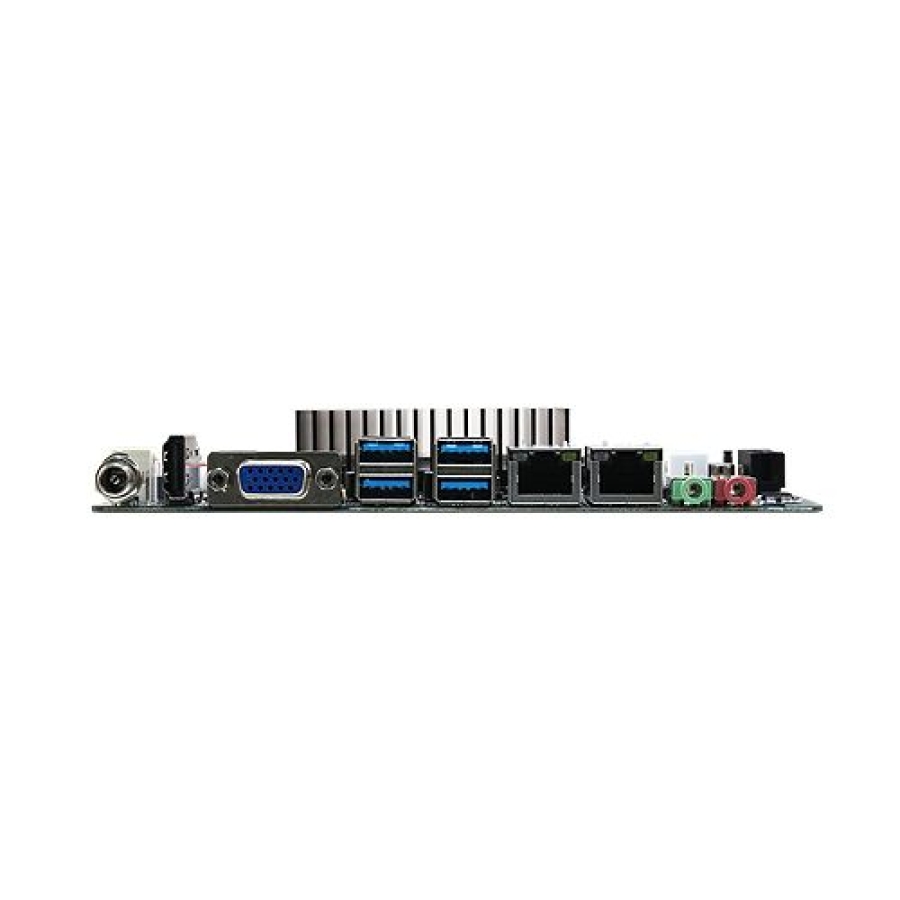

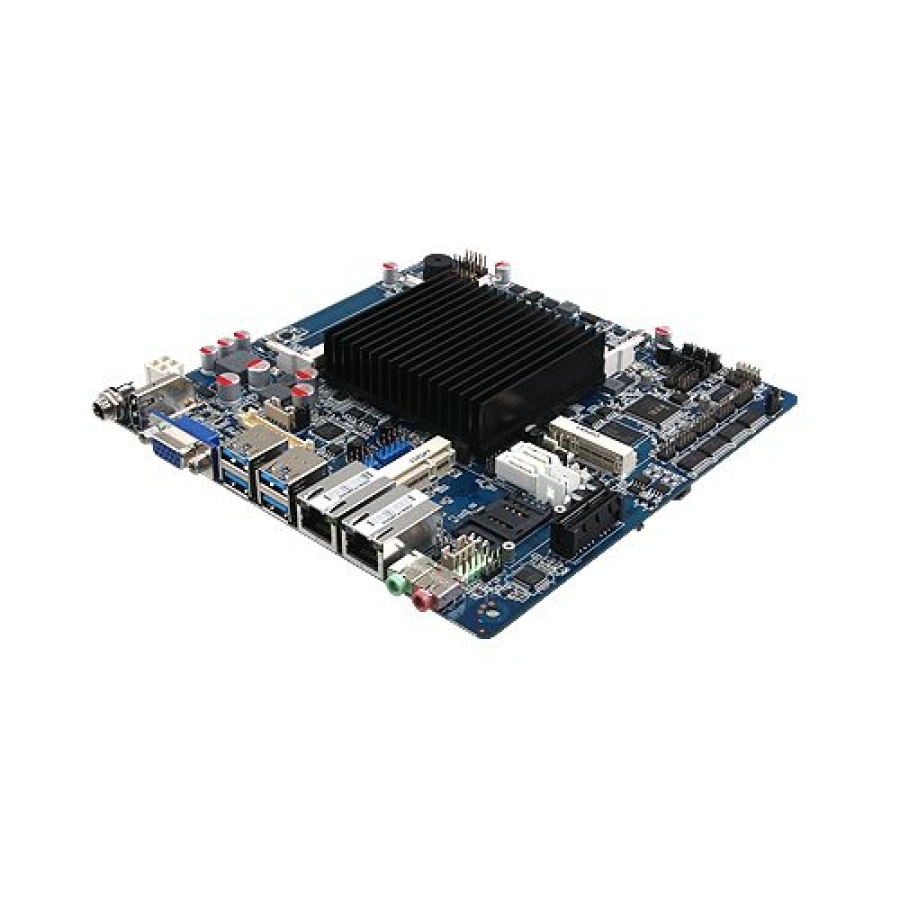

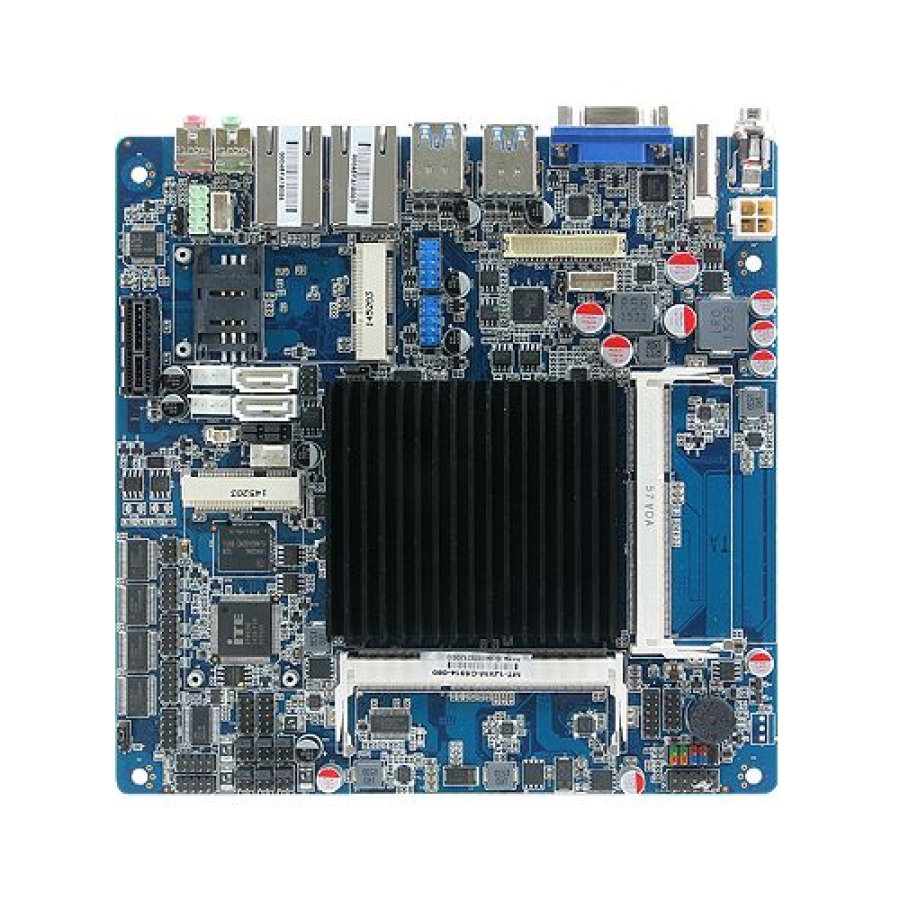

Avalue EMX-BSWP Intel Celeron N3160 Processor Thin Mini ITX Motherboard

End of Life

Intel Celeron N3160 Processor (2M Cache, up to 2.24 GHz)
2 x 204-pin DDR3L 1600 MHz SO-DIMM supports up to 8GB
VGA, HDMI, Dual channel 18/24-bits LVDS
2 x Intel i211AT Gigabit Ethernet
Realtek ALC662 Audio Codec
Realtek ALC105 Stereo Class-D 3W x 2 Audio Amplifier
1 x Mini PCI-e Supported mSATA, 1 Mini PCI-e, 1 x PCI-e
2 x SATA III, 2 x SATA Power, 4 x USB 2.0, 4 x USB 3.0
5 x RS232, 1 x RS232/422/485, 8-bit GPIO
Mic-in, Line-out, 1 S/PIDF, SD card slot, Optional Infineon SLB9665 TPM 2.0
Onboard eMMC (Optional 32GB)
DC in +12V

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: EMX-BSWP

Categories: End of Life Products

Range: Avalue

Details

The Avalue EMX-BSWP is an industrial thin mini-ITX motherboard powered by Intel Celeron N3160 processor. It contains 2 x 204-pin DDR3L 1600 MHz SO-DIMM supports up to 8GB. The rich I/O contains 4 x USB 2.0, 4 x USB 3.0, 5 x RS232, 1 x RS232/422/485 and 2 x RJ45 ports.

Downloads

Avalue EMX-BSWP Datasheet (PDF)

0.17MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor	Intel® Celeron® N3160 Processor (2M Cache, up to 2.24 GHz)
System Memory	2 x 204-pin DDR3L 1600 MHz SO-DIMM supports up to 8GB
I/O Chip	EC iTE IT8528E
BIOS	AMI 64Mbit SPI BIOS
Watchdog Timer	H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control
Expansion	1 x PCI-e, 1 x Mini PCI-e Supports mSATA (Switch Through Jumper), 1 x Mini PCI-e, 1 x SD card slot Supports SD/ SDHC Card, 1 x SIM card slot
USB	4 x USB 2.0, 4 x USB 3.0
SATA	2 x SATA Power, 2 x SATA III
COM Port	5 x RS232, 1 x RS232/422/485
DIO	1 x 8-bit GPIO
Other	1 x S/PDIF
Chipset	Intel® Celeron® SoC integrated Graphics
Resolution	VGA: 2048 x 1536 @ 60HzHDMI: 3840 x 2160 @ 30HzLVDS: 1920 x 1080 @ 60Hz
LVDS	2CH 18/24bits LVDS 1920 x 1080Chrontel. CH7511B eDP to LVDS Converter
Multiple Display	HDMI + LVDS +VGA
Chipset	Realtek ALC662 supports 2-CH
Audio Interface	Mic-in, Line-out
Audio Amplifier	2 x Stereo Class-D 3W Audio Amplifier
Chipset	2 x Intel I211AT Gigabit Ethernet
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	2 x RJ45
Power Requirement	+12V
Power Type	AT/ATX
Operating Temperature	0 ~ 60°C (32 ~ 140°F)
Storage Temperature	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	0 ~ 90% Relative Humidity, Non-condensing
Dimension (L x W)	6.69” x 6.69” (170mm x 170mm)
Weight	0.88lbs (0.4Kgs)
Ordering Information	EMX-BSWP-A1RIntel® Celeron® N3160 Processor Thin Mini ITX Motherboard
