ECM-QM87

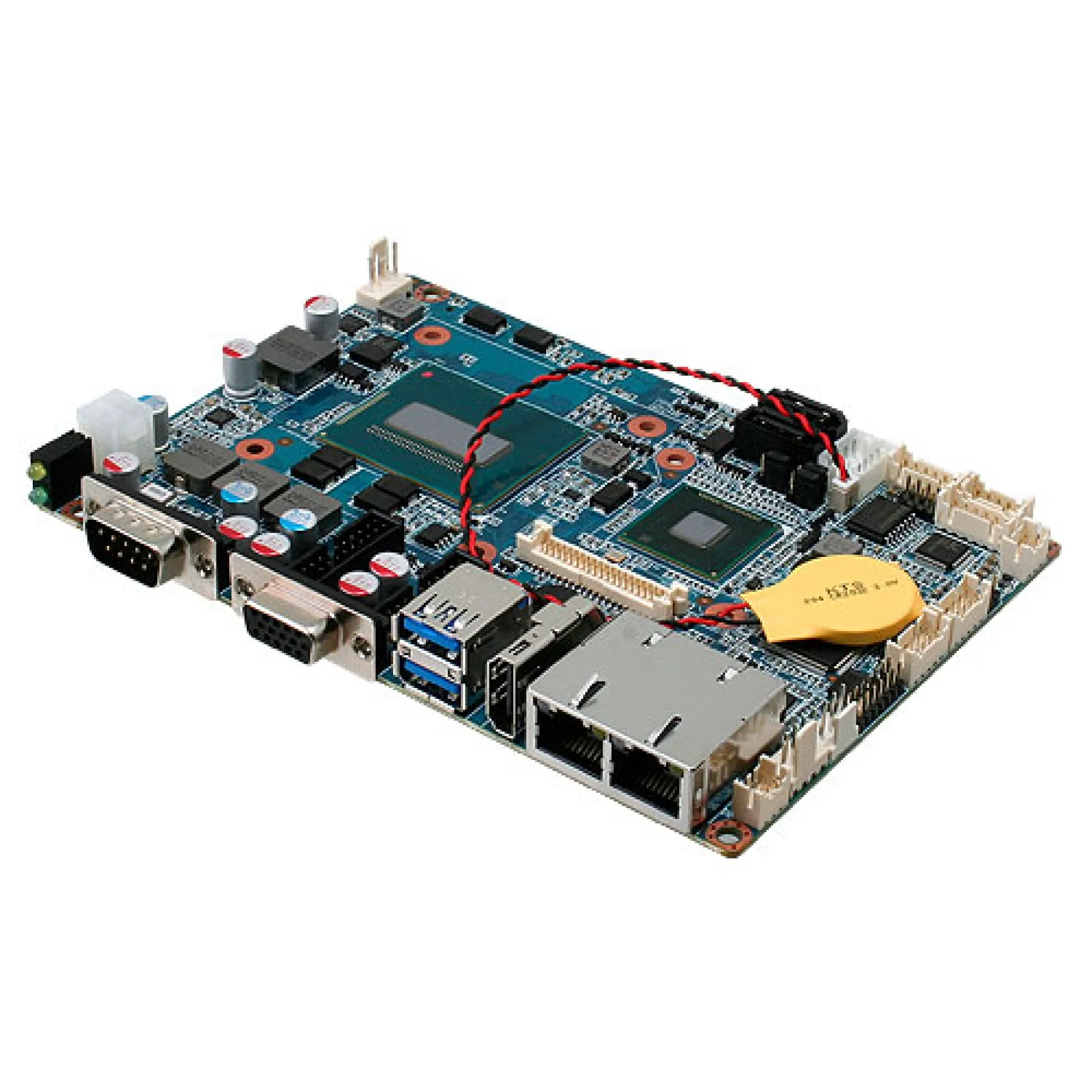

Avalue ECM-QM87 3.5″ 4th Gen Intel Core i7/i5/i3 BGA Single Board Computer

End of Life

Onboard 4th Gen Intel Core i7/i5/i3 BGA Processor
One 204-pin DDR3L SODIMM Up to 8GB DDR3 1333/ 1600 SDRAM
Dual-channel 18/ 24-bit LVDS, HDMI, VGA
Triple Display
2 SATA III, 1 Mini PCIe Card (Support mSATA)
6 USB 3.0, 2 USB 2.0, 2 COM, 8-bit DIO
iAMT 9.0

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: ECM-QM87

Categories: End of Life Products

Range: Avalue

Details

The Avalue ECM-QM87 3.5” single board Micro Module available with 4th generation Intel Core processors, Intel QM87 Express chipset architecture featuring high performance, power efficiency, security, reliability and remote management capabilities.

Ordering Info

ECM-QM87-4700-A1R	3.5″W/i7 4700EQ/QM87/6USB3.0/2COM/A1
ECM-QM87-4400-A1R	3.5″ W/i5 4400E/QM87/6USB3.0/2COM/A1
ECM-QM87-4102-A1R	3.5″ W/i3 4102E/QM87/6USB3.0/2COM/A1

Downloads

Avalue ECM-QM87R Datasheet (PDF)

0.14MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor	4th Gen Intel Core i7-4700EQ 4-Core 3.4GHz processor, 4th Gen Intel Core i5-4400E, 2-Core, 2.7GHz processor, 4th Gen Intel Core i3-4102E, 2-Core, 1.6GHz processor
System Chipset	Intel QM87 Express Chipset
System Memory	1 x 204-Pin DDR3L 1333MHz SO-DIMMup to 8 GB, or 1 x 204-Pin DDR3 1600MHz SO-DIMMup to 8 GB
I/O Chip	EC ITE IT8518E
BIOS	AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer	H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control
Expansion	1 x Mini PCIe Supports mSATA
Storage	1 x mSATA, Supported from Mini PCIe
USB	2 x USB 2.0, 6 x USB 3.0
SATA	2 x SATA III
COM Port	1 x RS-232/422/485, 1 x RS-232
DIO	1 x 8bit GPIO
MIO	1 x LPC
Chipset	Intel QM87 Chipset Integrated, Supports triple display
Resolution	VGA:Max. resolution 1920×1200 60Hz, HDMI:Max. resolution 3840×2160 24Hz, LVDS:Max. resolution 1920×1080 60Hz, VGA + LVDS + HDMI, Dual-channel 18/ 24-bit LVDS
Chipset	Realtek ALC892, supports 5.1-CH
Audio Interface	Mic-In, Line-In and Line-Out
Chipset	1 x Intel I210AT, 1 xIntel I217LM
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	2 x RJ-45
Power Requirement	+12V
ACPI	Single Power ATX Support S0, S3, S4, S5. ACPI 3.0 Compliant
Power Type	AT/ATX
Operating Temp	0°C ~ 60°C (32°F ~ 140°F)
Storage Temp	-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Dimension (L x W)	5.7″ x 4″ (146mm x 101mm)
Weight	0.44lbs (0.2kg)
Certification Information	CE, FCC Class B
OS Information	Win 8, Win 7, Linux
