FR ECM-A50M

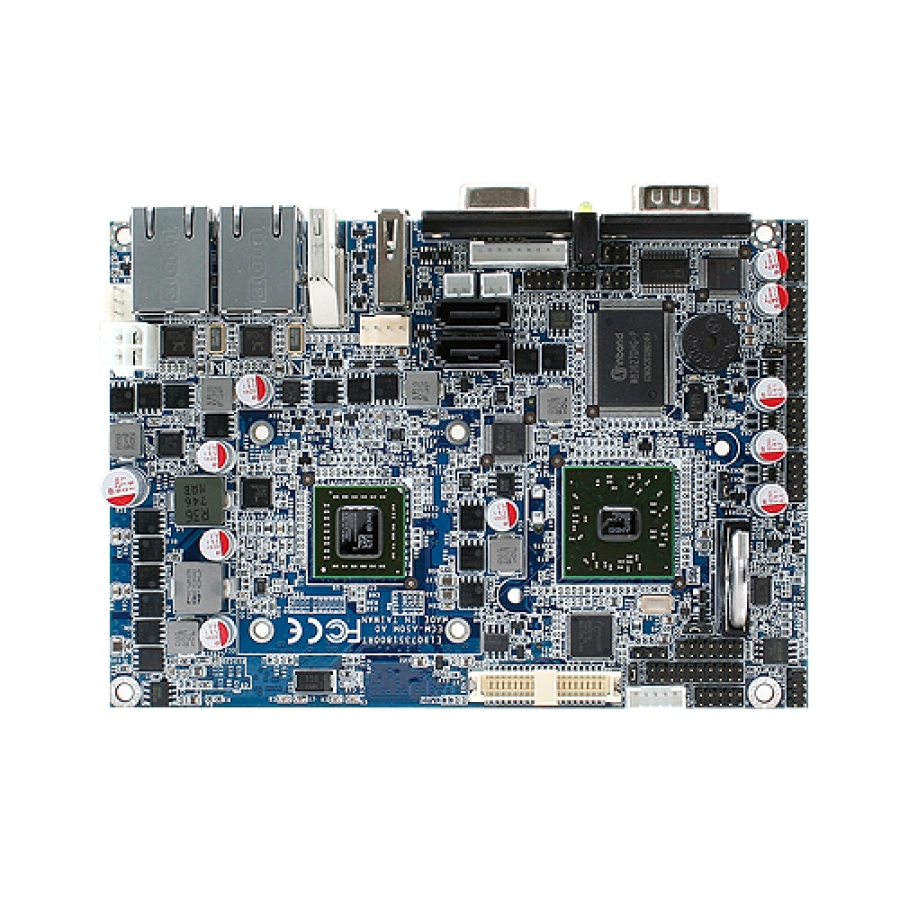

Avalue ECM-A50M 3.5″ AMD G-Series T56N BGA Single Board computer
End of Life
- Onboard AMD G-series T56N BGA Processor
- One 204-pin DDR3 SODIMM Socket Supports Up to 4GB DDR3 1066 SDRAM
- Dual View, 2-CH LVDS, CRT, HDMI
- 5.1-CH Audio, Dual Gigabit Ethernet
- 1 x CF, 2 x SATA, 2 x COM, 7 x USB, 16-bit GPIO
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The Avalue ECM-A50M 3.5-inch signal board computer based on the new AMD eOntario T40E CPU and A50M Chipset with low power consumption and high performance. The AMD Embedded G-Series platform is a low power CPU and advanced GPU integrated into a single embedded Accelerated Processing Unit (APU) that builds a new foundation for high performance multi-media content delivery in a small form factor and a power efficient platform for a broad variety of embedded designs.
Ordering Info
| ECM-A50M-56N-B1R | 3.5″ W/A50M/T56N/HDMI/2COM/B1 |
| ECM-A50M-40E-B1R | 3.5″ W/A50M/T40E/HDMI/2COM/B1 |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Processor | AMD G-Series T56N 1-Core 615MHz processor |
| System Chipset | AMD A50M Chipset |
| System Memory | 1 x 204-Pin DDR3 1066MHz SO-DIMMup to 4 GB |
| I/O Chip | Winbond W83627DHG-PT |
| BIOS | AMI 32Mbit SPI BIOS |
| Watchdog Timer | H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring System Temperature and Voltage with Auto Throttling Control |
| Expansion | 1 x Mini PCIe Supports mSATA |
| Storage | 1 x CompactFlash Type I/II Socket |
| Built-in Touch controller(optional) | Chipset:PenMount 6000 Touch Screen Interface:With 9-pin 2.0mm Box Header (Can be Selected to Support 4/5/8-wire Touch Screen) |
| USB | 7 x USB 2.0 |
| SATA | 2 x SATA II |
| COM Port | 1 x RS-232/422/485, 1 x RS-232 |
| DIO | 1 x 16bit GPIO |
| MIO | 1 x LPC, 1 x SPI, 1 x PS2/ KB & MS |
| Chipset | AMD Fusion Accelerated Processors Supports dual display |
| Resolution | VGA:Max. resolution 2560×1600 75Hz LVDS:Max. resolution 2048×1536 75Hz For T56N, VGA: 2560 x 1600 75Hz, LVDS:2048 x 1536 75Hz CRT ＋ LVDS, HDMI ＋ LVDS, CRT ＋ HDMI Dual-channel 18/24-bit LVDS (Transfer Through DDI). |
| Chipset | Realtek ALC892 supports 5.1-CH |
| Audio Interface | Mic-In, Line-In and Line-Out |
| Chipset | 2 x Realtek 8111E |
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| Power Requirement | +12V |
| ACPI | Single Power ATX Support S0, S1, S3, S4, S5 ACPI 3.0 Compliant |
| Power Type | AT/ATX |
| Operating Temp | 0°C ~ 60°C (32°F ~ 140°F) |
| Storage Temp | -40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Dimension (L x W) | 5.7″ x 4″ (146mm x 101mm) |
| Weight | 0.44lbs （0.2kg） |
| Certification Information | CE FCC Class A |
| OS Information | Win 7 Win XP Linux |
