Name: Avalue EBM-SKLU 5.25" 6th Gen Intel Core SoC i7/i5/i3 Single Board Computer
SKU: EBM-SKLU

Avalue

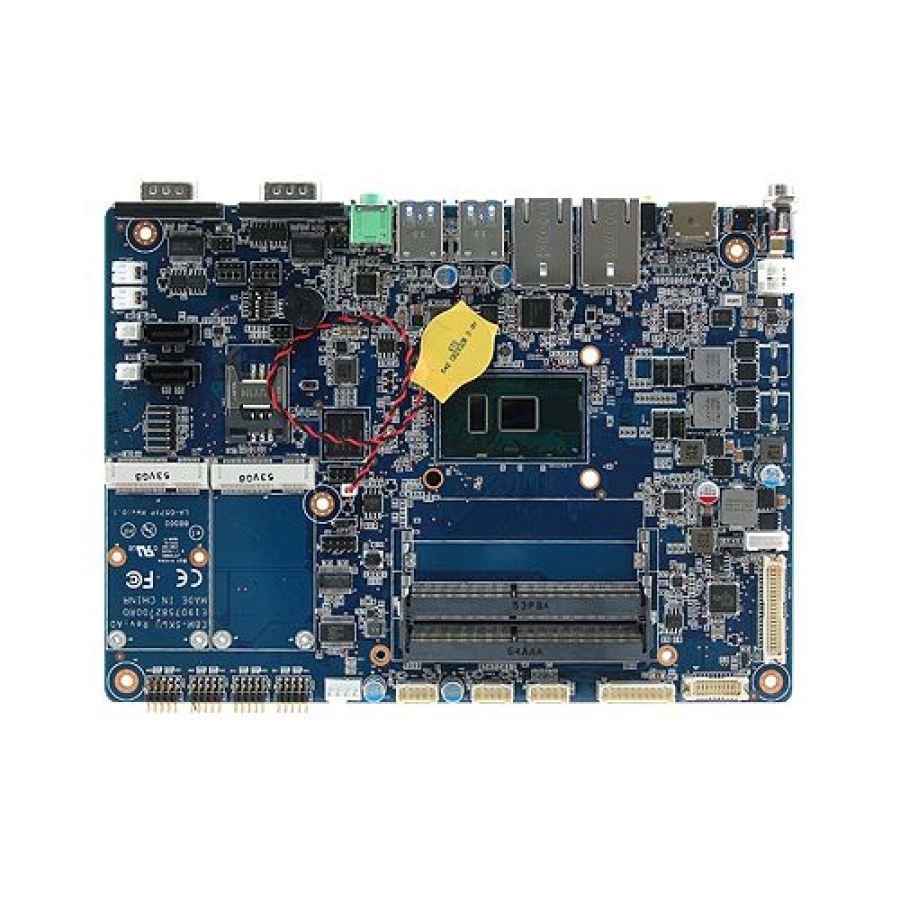

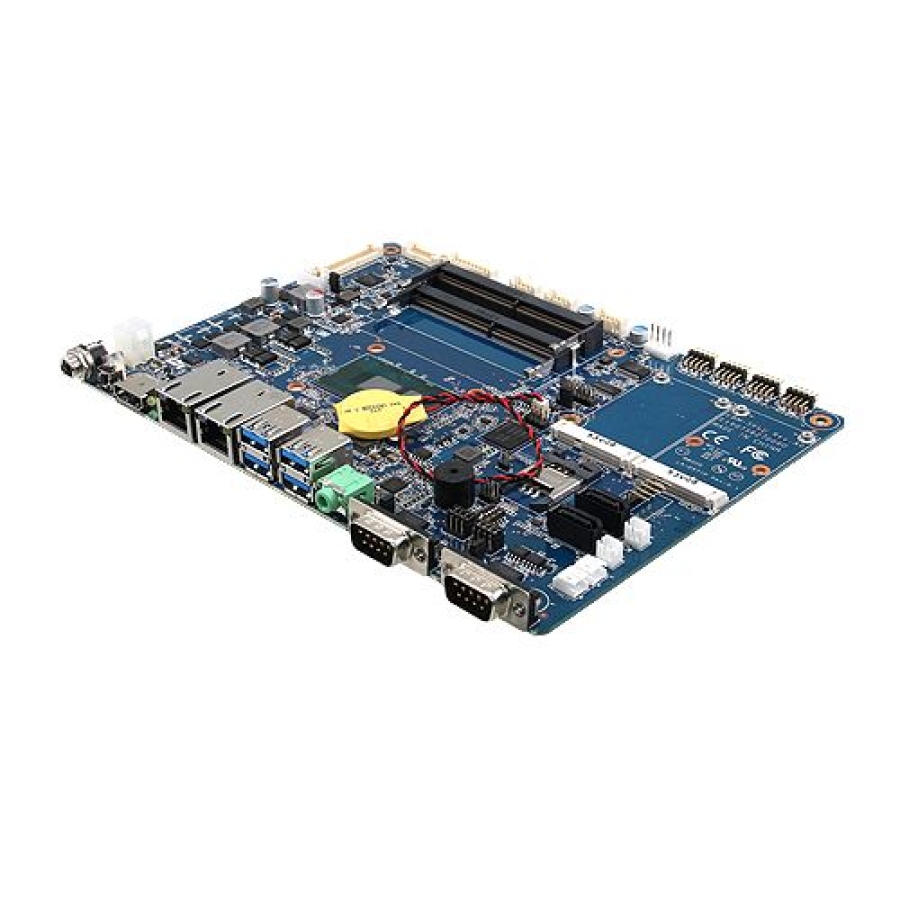

Avalue EBM-SKLU 5.25″ 6th Gen Intel Core SoC i7/i5/i3 Single Board Computer

EBM-SKLU

Onboard 6thGen Intel Core SoC i7/i5/i3 BGA Processor
2 x 260pin DDR4 SO-DIMM up to 16G per DIMM,total 32GB (non ECC only)
Dual display (LVDS & HDMI)
1 SATA III, 2 Mini PCIe, 4 USB 3.0, 4 USB 2.0, 16-bit GPIO
+12 ~ 26V Wide Power Range
TPM 2.0 & TPM 1.2 (Both optional)

Product Code: EBM-SKLU

Categories: 5.25" SBCs (203 x 246mm), Avalue, Industrial Single Board Computers

Range: Avalue

Details

The Avalue EBM-SKLU is a 5.25" industrial single board computer powered by Intel Core SoC i7/i5/i3 processor. This single board computer contains rich I/O including 8 x USB, 6 x COM and 2 x LAN ports.

Downloads

Avalue EBM-SKLU Datasheet (PDF)

0.16MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor	6th Gen Intel Core i7-6600U, 2-Core, 2.6GHz processor6th Gen Intel Core i5-6300U, 2-Core, 2.4GHz processor6th Gen Intel Core i3-6100U, 2-Core, 2.3GHz processor
System Memory	2 x 260-Pin DDR4 2133MHz SO-DIMM up to 32 GBUp to 2 DIMMs & 16GB per DIMM, total 32GB
I/O Chip	EC ITE IT8528E
BIOS	AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor	Monitoring CPU & System Temperature and Voltage
Expansion	1 x Mini PCIe Supports SIM Card, 1 x Mini PCIe Supports mSATA
Storage	1 x mSATA, Supported from Mini PCIe
Built-in Touch controller (optional)	EETI ETP-CP-MER4485XRU, 1 x 5-pin 2.0mm Pin Header
USB	4 x USB 3.0, 4 x USB 2.0
SATA	1 x SATA III
COM Port	2 x RS-232/422/485, 4 x RS-232 (Optional)
DIO	1 x 16bit GPIO
MIO	1 x LPC, 1 x SPI
Other	1 x SIM Card Slot
Chipset	Intel Skylake U SoC integrated Graphics, Supports dual display
Resolution	HDMI: Max. resolution 4096×2160 @ 24HzLVDS: Max. resolution 1920×1080 @ 60HzHDMI + LVDS1 x eDP via CH7511 Supports 24-bit Dual Channel LVDS 2×20 pin Hirose Connector for (Optional BOM for 1 x internal eDP or default 1 x CH7511B LVDS for 2 x 24-bit. )
Chipset	Realtek ALC233 supports 2.1-CH
Audio Interface	Line-Out and Amp.
Chipset	1 x Intel I210AT, 1 x Intel I219LM
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	2 x RJ-45
Power Requirement	+12V ~ +26V
Power Type	AT/ATX
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature	-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (L x W)	8″ x 5.75″ (203mm x 146mm)
Weight	0.55lb (0.25kg)
Certification Information	CE, FCC Class B
OS Information	Win 10, Win 8.1, Win 7, Linux
Ordering Information	EBM-SKLU-6300-A1R, 5.25″ EBM-SKLU/i5-6300U/1SATA/2LAN/2COM/TC/A1

Processor Type	Intel Core: Up to 2 Cores
Memory Type	DDR4
COM Ports	2x RS-232/422/485, 4x RS-232
LAN Ports	2x 1GB
USB Ports	4x USB 2.0, 4x USB 3.0
Video Ports	1x HDMI, 1x eDP, 1x LVDS
Storage	1x SATA
Operating Temperature	0°C to 60°C
