EAX-Q170KP

Name: Avalue EAX-Q170KP 6th/7th Gen Intel Core ATX Motherboard w/ Intel Q170 Chipset
SKU: EAX-Q170KP

Avalue

Avalue EAX-Q170KP 6th/7th Gen Intel Core ATX Motherboard w/ Intel Q170 Chipset

EAX-Q170KP

Intel 6/7thGeneration Core Processor (Max. TDP at 95W)
Intel Q170 Chipset
4 x 288-pin DDR4 2133MHz DIMM socket, supports up to 64GB
VGA, HDMI, DP
5 x SATA III, 1 x SATA III or 1 x mSATA III by auto switch IC
1 x M.2 (2230) A-Key, support WiFi module
1 x PCI-e x 16, 1 x PCI-e x 4, 1 x PCI-e x 1, 1 x Mini PCI-e, 4 x PCI
6 x USB3.0, 6 x USB2.0, 5 x RS232, 1 x RS232/422/485
Support RAID 0, 1, 5, 10
Onboard Infineon SLB9665 support TPM 2.0
ATX/AT Power

Product Code: EAX-Q170KP

Categories: ATX Motherboards, Avalue

Range: Avalue

Details

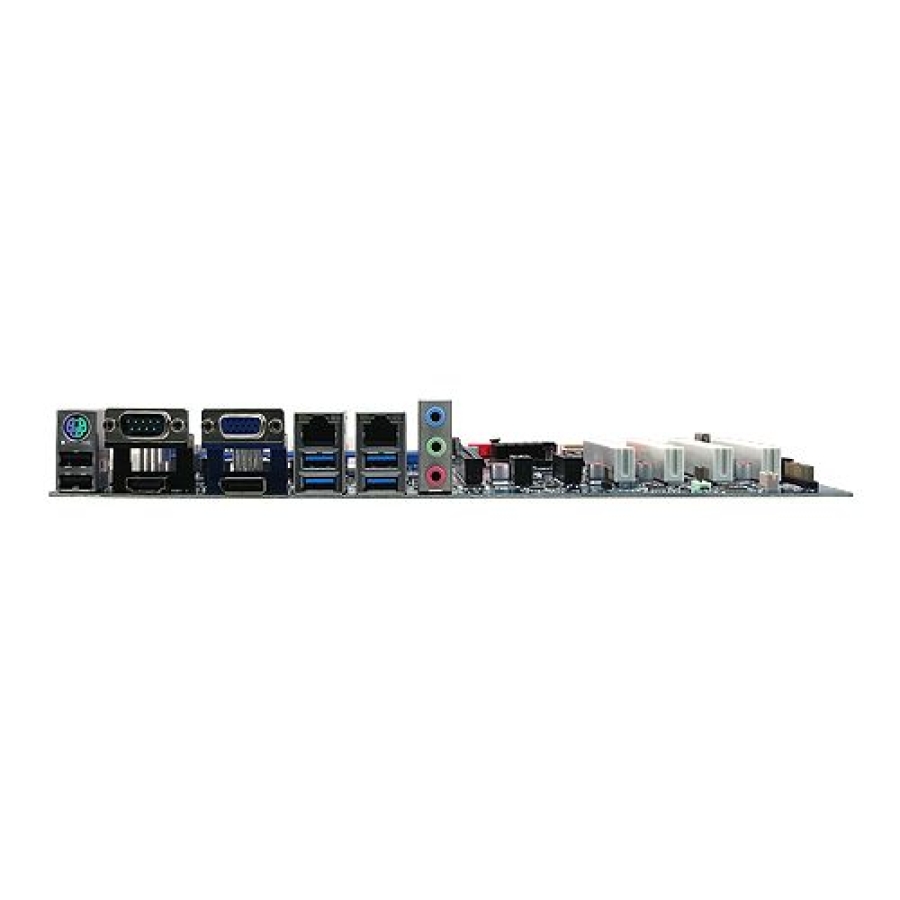

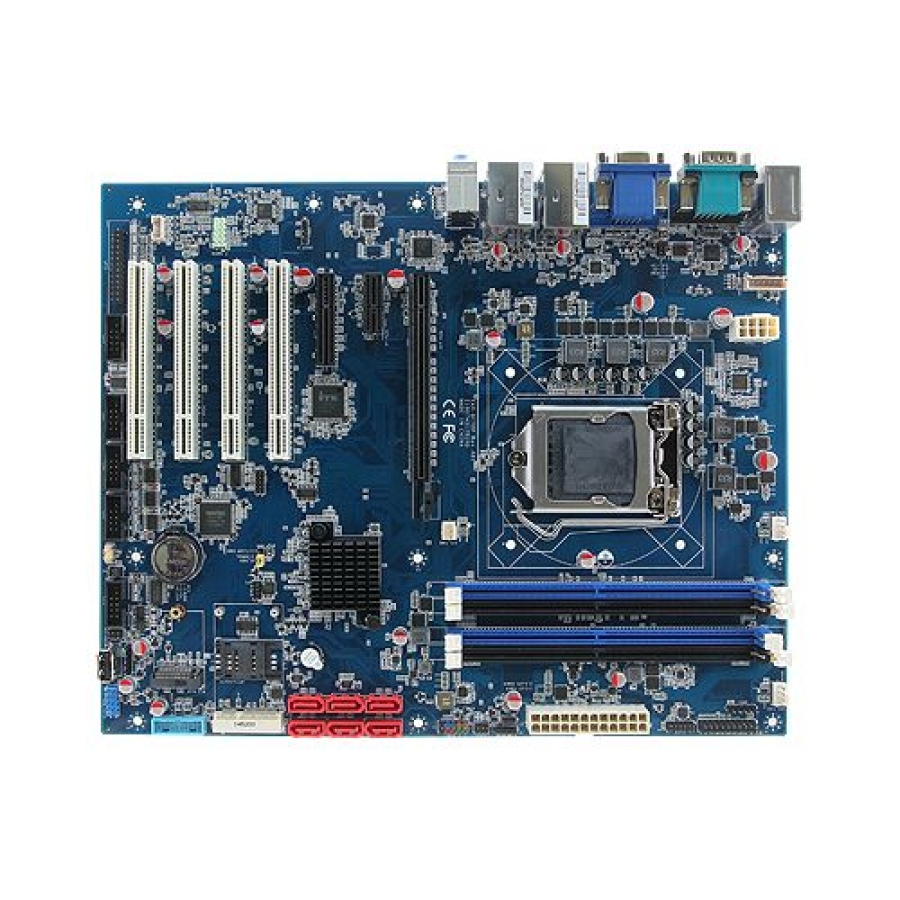

The Avalue EAX-Q170KP is an industrial ATX motherboard powered by 6th/7th Gen Intel Core processor with Intel Q170 chipset. It contains 4 x 288-pin DDR4 2133MHz DIMM socket, supports up to 64GB. The rich I/O includes 6 x USB3.0, 6 x USB2.0, 5 x RS232 and 1 x RS232/422/485 ports.

Downloads

Avalue EAX-Q170KP Datasheet (PDF)

0.17MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor	Intel® LGA1151 Socket Supports 6/7th Generation Core™ i7/ i5/ i3 & Pentium®/Celeron® Processors (Max. TDP at 95W)
System Chipset	Intel® Q170 Chipset
System Memory	4 x 288-pin DDR4 2133MHz DIMM supports up to 64GB
I/O Chip	Nuvoton® NCT6106D
BIOS	AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor	CPU temperature monitoring, Voltages monitoring, CPU fan speed control
TPM	Onboard Infineon SLB9665 supports TPM 2.0
Board	ATX Board
Expansion	4 x PCI, 1 x PCI-e x 16, 1 x PCI-e x 4, 1 x PCI-e x 1, 1 x M.2 (2230) A-Key, supports WiFi module, 1 x SIM card slot, 1 x Full/Half Size Mini-PCIe Supports mSATA (Auto switch IC)
USB	4 x USB 3.0, 2 x USB 2.0
SATA	5 x SATA III, 1 x SATA III & 1 x mSATA III switch by auto switch IC
COM Port	5 x RS232, 1 x RS232/422/485
DIO	1 x 8-bit GPIO
MIO	1 x PS/2 Keyboard or 1 x PS/2 Mouse
Chipset	Intel® 7th Generation CPU integrated
Resolution	VGA: 2048 x 1536 @ 50 HzHDMI: 4096 x 2160 @ 24 HzDP: 4096 x 2304 @ 60Hz
Multiple Display	Triple Display
Chipset	Realtek ALC892 supports 5.1-CH
Audio Interface	Line-in, Mic-in, Line-out
Audio Amplifier	2 x 6W Amplifier
Chipset	1 x Intel® I219LM Gigabit Ethernet PHY1 x Intel® I211AT PCI-e Gigabit Ethernet
LAN Port	2 x RJ-45
Power Requirement	+12V/+5V/5VSB/+3.3V/-12V
ACPI	Single power ATX Support S0, S3, S4, S5
Power Type	AT/ATX
Operating Temperature	0~60°C (32~140°F)
Storage Temperature	-40 ~ 75°C
Operating Humidity	0%~90% relative humidity, non-condensing
Dimension (L x W)	12″ x 9.6″ (304.8mm x 243.84mm)
Weight	1.32lbs (0.6 kg)
Ordering Information	EAX-Q170KP-A1RIntel® LGA1151 Socket Supports 7th Generation Core™ i7/ i5/ i3 Processors ATX Motherboard with Intel® Q170 Chipset

Memory Type	DDR4
COM Ports	1x RS-232/422/485, 5x RS-232
LAN Ports	2x 1GB
USB Ports	2x USB 2.0, 4x USB 3.0
Video Ports	1x DisplayPort, 1x VGA, 1x HDMI
Storage	1x mSATA, 6x SATA
Operating Temperature	0°C to 60°C
