FR BL600-DR
DFI BL600-DR ATX Intel Q35 Core 2 Quad/Duo with 1 PCIe[x16] & 5 PCI
End of Life

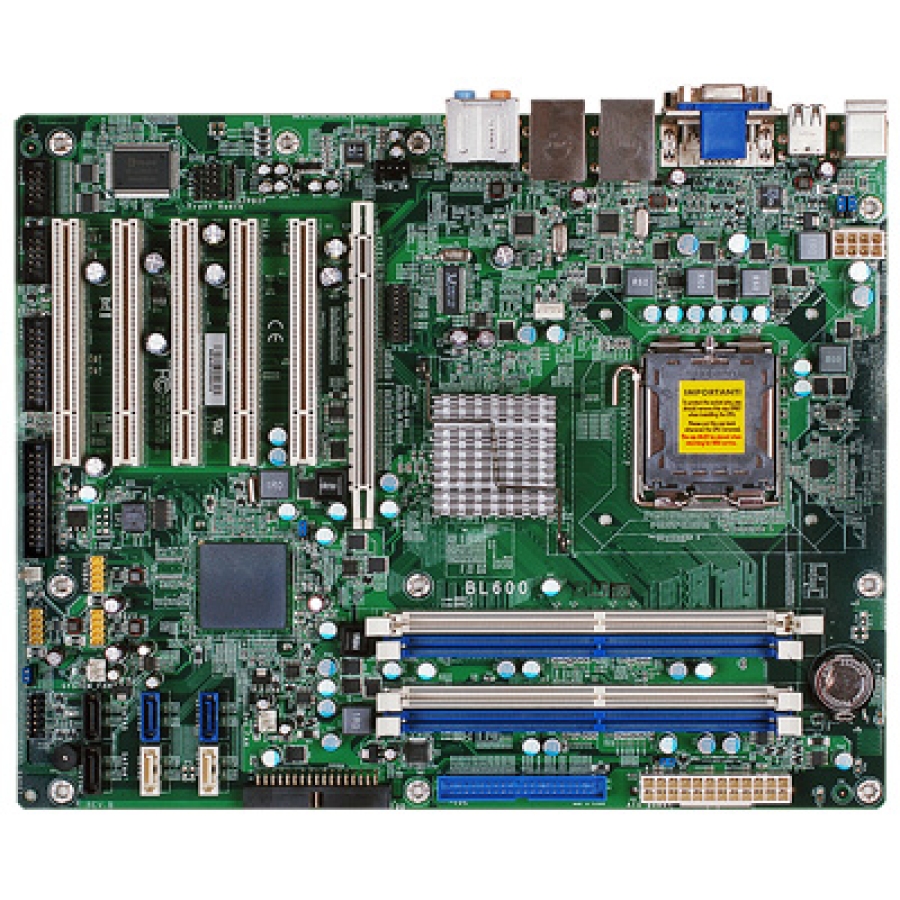

The EL600-DR from DFI is a long life cycle ATX motherboard designed for use in industrial applications. The board is based around Intel's Q35 chipset and LGA 775 socket for use with Intel Core 2 Quad, Core 2 Duo and Pentium class processors. The board is packed with features including support for 8GB of DDR3 memory, Intel GMA 3100 graphics with DVI-I & VGA, 8-channel HD Audio, 6 x SATA ports, 1 x PCIe[x16], & 5 x PCI expansion slots. Connectivity is provided by 12 x USB, 2 x Gigabit LAN, 2 x COM and 8-bit Digital I/O.
- Brand: DFI
- Intel Core 2 Quad and Core 2 Duo CPU options
- 12 x USB
- 5 x PCI expansion slots
- Size: 305mm (W) x 244mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The EL600-DR from DFI is a long life cycle ATX motherboard designed for use in industrial applications. The board is based around Intel's Q35 chipset and LGA 775 socket for use with Intel Quad, Core 2 Duo and Pentium class processors. The board is packed with features including support for 8GB of DDR3 memory, Intel GMA 3100 graphics with DVI-I & VGA, 8-channel HD Audio, 6 x SATA ports, 1 x PCIe[x16], & 5 x PCI expansion slots. Connectivity is provided by 12 x USB, 2 x Gigabit LAN, 2 x COM and 8-bit Digital I/O.
Ordering Info
- BL600-DR: ATX Intel Q35 Core 2 Quad/Duo with 1 PCIe[x16] & 5 PCI
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- CPU: LGA 775 socket for Intel Core 2 Quad and Core 2 Duo processors
- Chipset: Intel Q35+ICH9
- Memory: 4 x 240-pin DDR DIMMs up to 8GB
- Graphics: Intel GMA 3100 Graphics supporting DVI-I and VGA
- Audio: Realtek ALC885 8-channel High Definition Audio
- Serial: 2 x RS-232
- USB: 12 ports
- Ethernet: 2 x 10/100/1000
- Digital I/O: 8 channels
- Storage: 6 x SATA, 2 x IDE
- Expansion: 1 x PCIe[x16] & 5 x PCI Slots
- Operating Temperature: 0-60 degrees centigrade
- Compliance: CE, FCC
