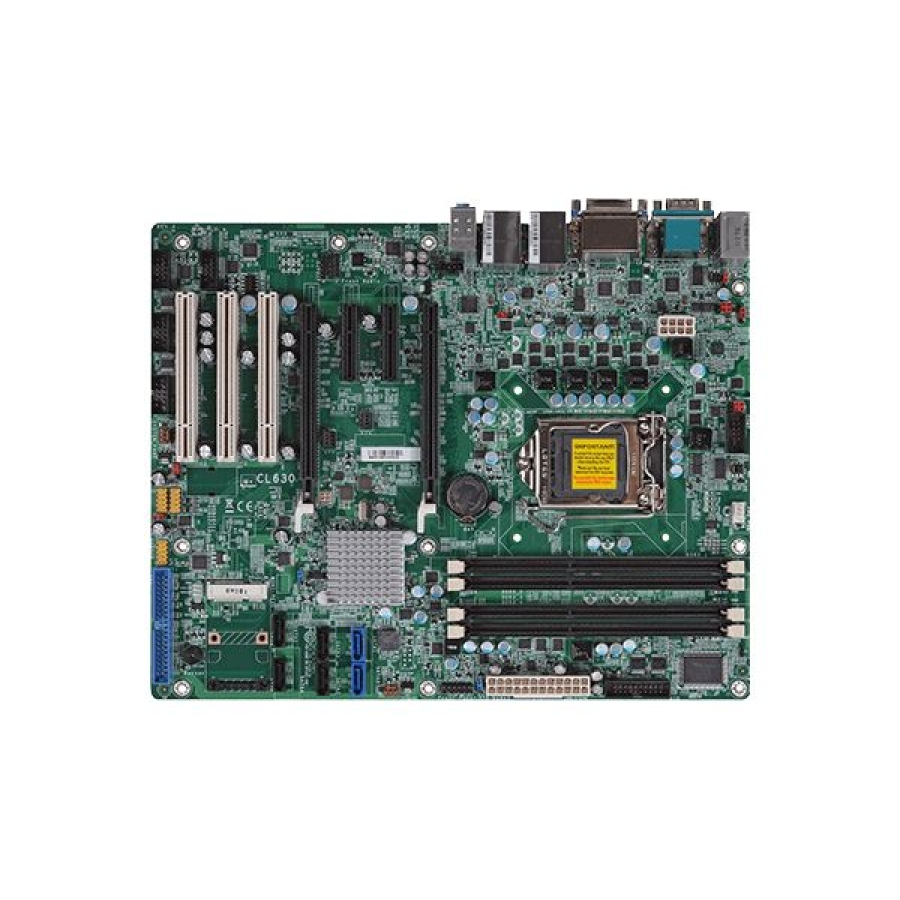

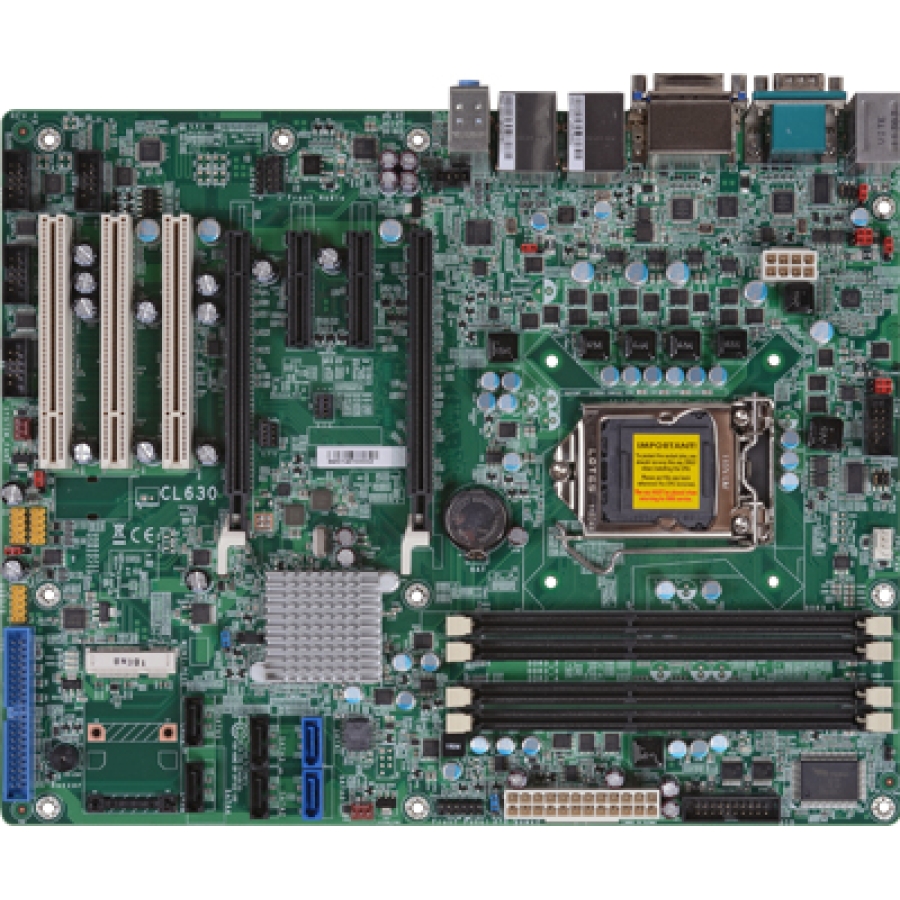

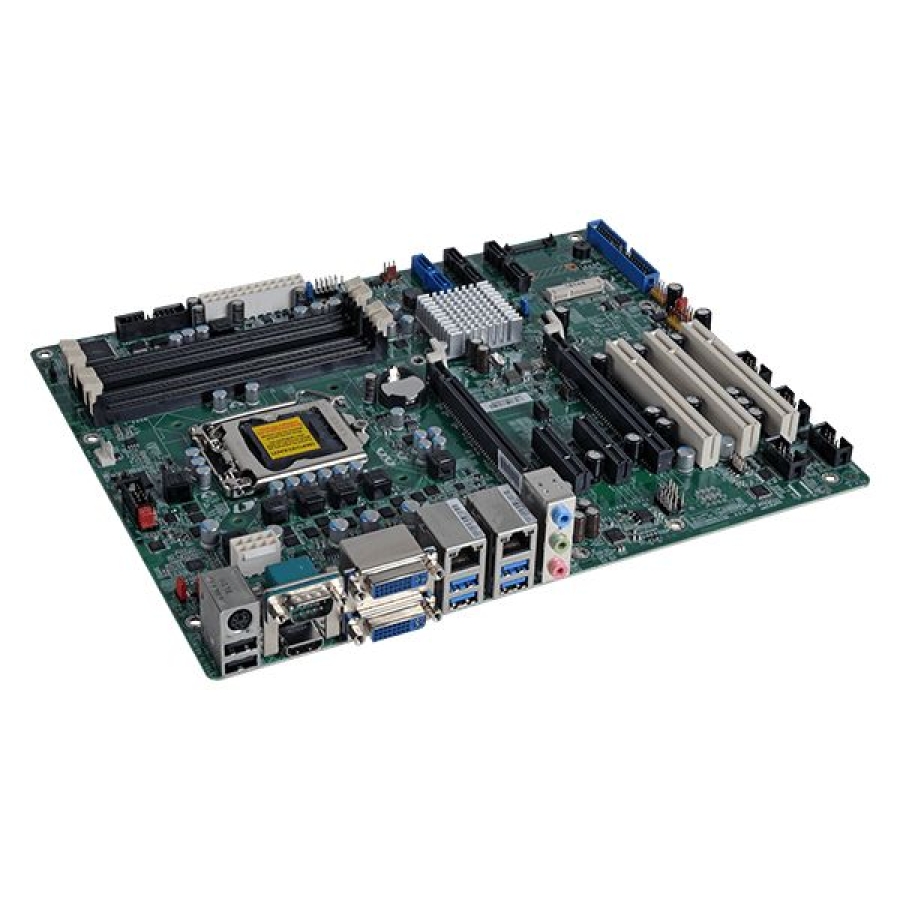

DFI CL630-CRM ATX Intel C216 Xeon with 2 PCIe[x16], 2 PCIe[x4], 3 PCI Slots
End of Life
The CL630-CRM from DFI is a long life cycle ATX motherboard designed for use in industrial server applications. The board is based around Intel's high performance C216 Express chipset and LGA 1155 socket for use with Intel's 2nd and 3rd generation i3, i5, i7 and XEON processors. The board is packed with features including support for 32GB of DDR3 memory, HD Graphics 4000P with 2 x DVI-I & HDMI outputs, HD Audio, 6 x SATA ports with integrated RAID, 2 x PCIe [x16], 2 x PCIe [x4], 3 x PCI expansion slots. Connectivity is provided by 12 x USB (USB2.0 & USB3.0), 2 x Gigabit LAN, 6 x COM and 8-bit Digital I/O.
- Brand: DFI
- Intel Core i7/i5/i3 XEON CPU options
- 12 x USB
- 6 x COM and 8-bit Digital I/O
- Size: 305mm (W) x 244mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The CL630-CRM from DFI is a long life cycle ATX motherboard designed for use in industrial server applications. The board is based around Intel's high performance C216 Express chipset and LGA 1155 socket for use with Intel's 2nd and 3rd generation i3, i5, i7 and XEON processors. The board is packed with features including support for 32GB of DDR3 memory, HD Graphics 4000P with 2 x DVI-I & HDMI outputs, HD Audio, 6 x SATA ports with integrated RAID, 2 x PCIe [x16], 2 x PCIe [x4], 3 x PCI expansion slots. Connectivity is provided by 12 x USB (USB2.0 & USB3.0), 2 x Gigabit LAN, 6 x COM and 8-bit Digital I/O.
Ordering Info
- CL630-CRM: ATX Intel C216 Xeon with 2 PCIe[x16], 2 PCIe[x4], 3 PCI Slots
- Note: Assured Systems can build and test any mainboard with CPU, memory, storage, OS or even build into a chassis.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- CPU: LGA 1155 socket for Intel Core i3, i5, i7, XEON
- Chipset: Intel C216 Express
- Memory: 4 x 240-pin DDR3 DIMMs up to 32GB
- Graphics: Intel HD Graphics 4000P supporting 2 x DVI-I and 1 x HDMI
- Audio: Realtek ALC886 5.1 High Definition Audio
- Serial: 4 x RS-232, 2 x RS-232/422/485
- USB: 12 ports (4 x USB3.0 & 8 x USB2.0)
- Ethernet: 2 x 10/100/1000
- Digital I/O: 8 channels
- Storage: 6 x SATA with integrated RAID, IDE
- Expansion: 2 x PCI Express [x16], 2 x PCI Express [x4], 3 x PCI, 1 x Mini PCIe
- Operating Temperature: 0-60 degrees centigrade
- Compliance: CE, FCC Class B
