rBOX510-6COM (ATEX&C1D2)

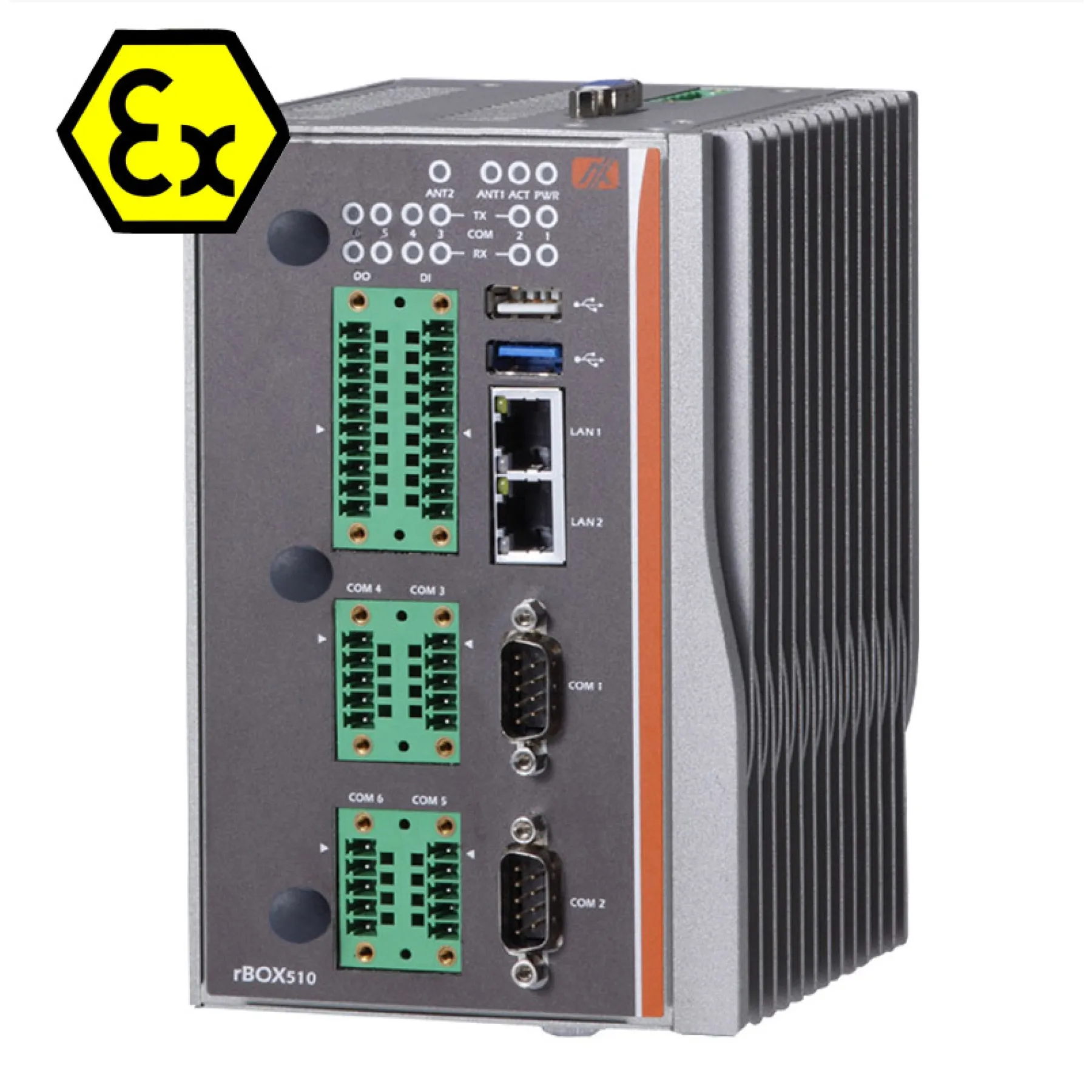

Axiomtek rBOX510-6COM ATEX DIN-Mount Intel Atom E3827 Fanless Computer System

End of Life

The rBOX501-6COM(ATEX) is an ATEX Certified DIN-Mount Intel Atom E3827 Fanless Computer System designed for use in explosive environments such as oil, gas and petrochemical plants.

  • Brand: Axiomtek
  • Intel Atom processor E3827 1.75GHz
  • Wide operating temperature -40C ~ +70C
  • 4 x isolated COM
  • ATEX Class 1 / Div 2 certified
  • Size: 101mm (W) x 110mm (D) x 135mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The rBOX501-6COM(ATEX/C1D2) is an ATEX & Class 1 Division 2 Certified DIN-Mount embedded computer designed for use in explosive environments such as oil, gas and petrochemical plants. Based around the Intel Atom E3827 processor, the system is extremely low power and can operate over an extended temperature range of -40°C ~ +70°C. The rBOX501-6COM(ATEX/C1D2) is extremely well equipped, offering 6 x serial ports (4 x isolated), 2 x isolated Ethernet ports, 2 x USB, 1 x VGA and 1 x isolated DIO (8-in/8-out). The system has a wide power input of between 12-48VDC and a wide operating temperature of between -40°C ~ +70°C.

Ordering Info

  • rBOX501-6COM(ATEX/C1D2): ATEX Certified DIN-Mount Intel Atom E3827 Fanless Computer System

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • CPU: Intel Atom processor E3827 1.75GHz
  • GPU: On-board with 1 x VGA
  • Memory: 4GB SO-DIMM DDR3L on-board
  • Audio: Line-out
  • USB: 1 x USB2.0 & 1 x USB3.0
  • Serial Ports: 6 x RS-232/422/485 (4 isolated)
  • Ethernet: 2 x isolated ports
  • Digital I/O: 1 x isolated DIO (8-IN/8-OUT)
  • Storage: 1 x CompactFlash; 1 x 2.5″ SSD
  • Expansion: 3 x full size Mini PCIe for 3G/GPRS/Wi-Fi
  • Operating Temperature: 40°C ~ +70°C (-40°F ~ +158°F)
  • Power: Power Input Range 12-48V DC
  • Compliance: ATEX Anti-Explosive Certification; Class 1 Division 2, Heavy Industrial CE, FCC Part 18, UL/cUL60950-1, IEC60068, EN50121-4 compliance
Processor Type Intel Atom, up to 2 Cores
Memory Capacity Up to 4GB
Cooling Type Fanless
Serial Ports (COM) 6x RS-232/422/485
USB Ports 1x USB 3.0, 1x USB 2.0
Ethernet Ports (LAN) 2x 1G
Wireless Cellular, Wi-Fi
Storage Type 1x 2.5", 1x mSATA
Input Voltage 12-48 VDC
Mounting Options DIN-mount, Wall-mount
Operating Temperature Extra-Wide OT: -40°C to 70°C
Market Certifications CE/FCC
OS Support Linux
