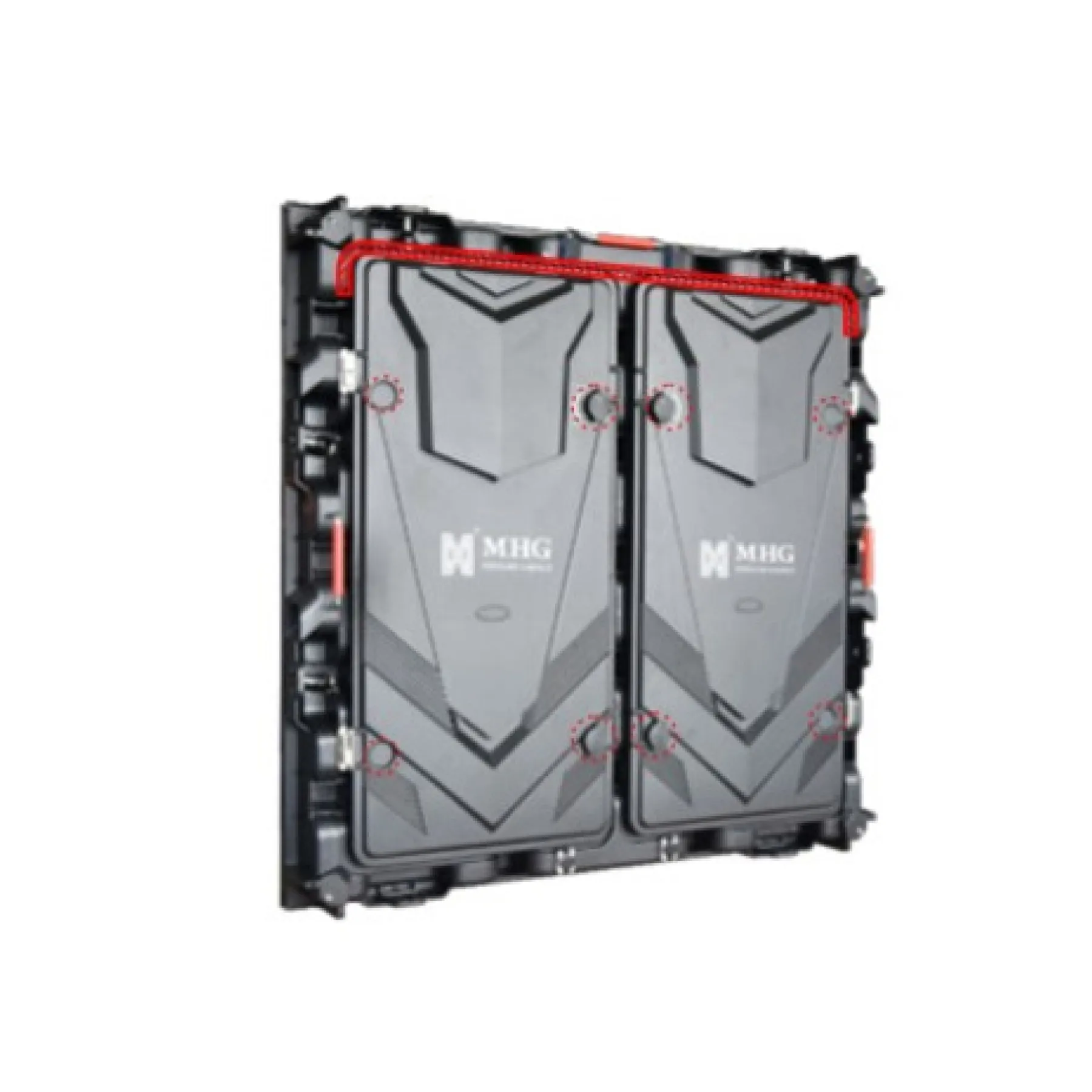

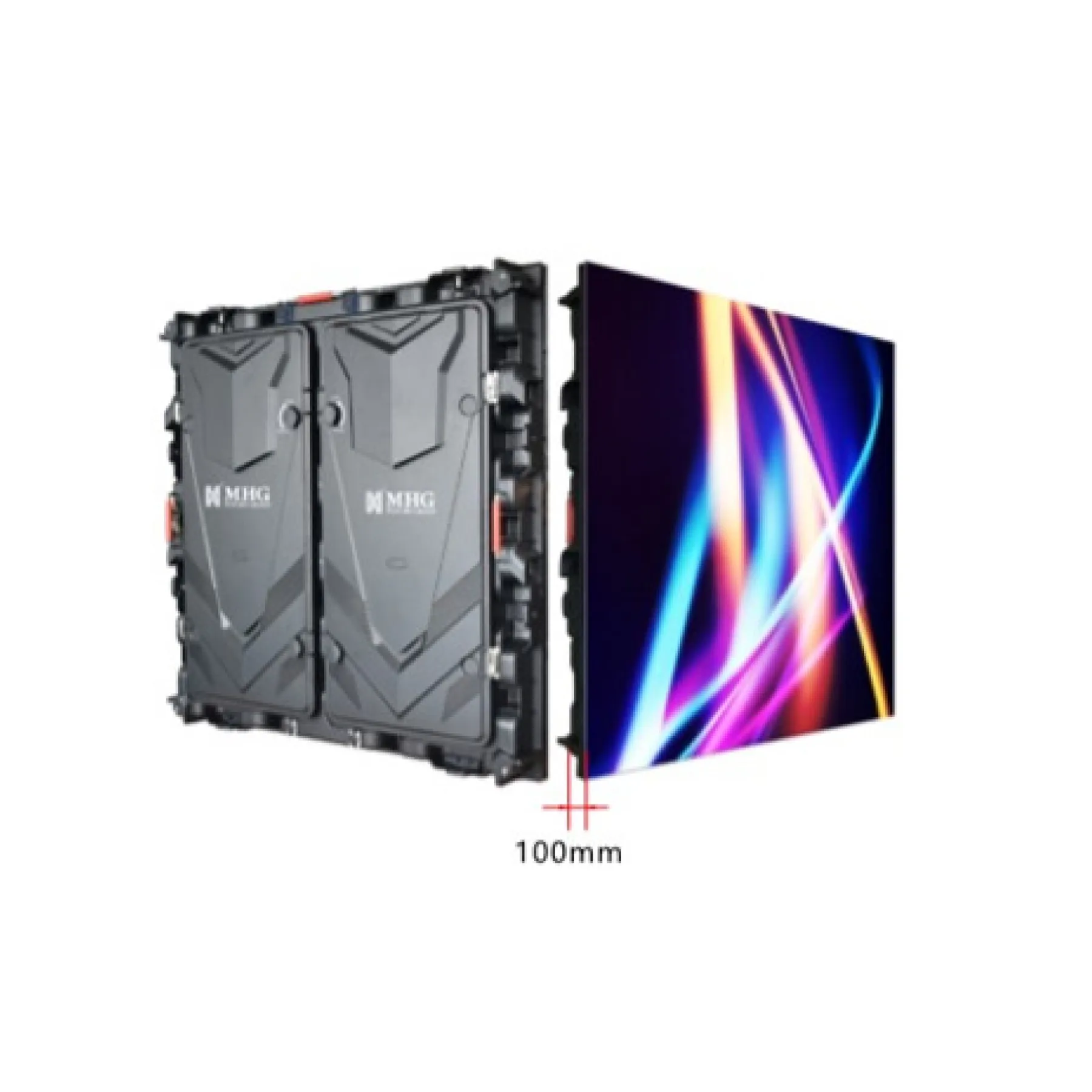

Assured Systems F-800 960x960mm, 8mm Pixel Pitch IP65 Outdoor LED Cabinet
F-800
- Indoor LED Cabinet
- 8mm Pixel Pitch
- 320x160mm Module Size
- 960x960mm Cabinet Size
- 28kg Cabinet Weight
- 5000nit Brightness
- IP65 Rated
Details
The F-800 Wall tile has a 8mm pixel pitch with a 960 x 960mm cabinet size offering edge-to-edge display. A customized curve connection is optional and supports creating a 7.5 degree curved LED wall. Alongside being IP65 rated, these 8mm dot pitch LED displays provide a 5000 nit (cd/m2) brightness for a sunlight readable display and offer a wide 140/130 viewing angle which provides great image clarity in outdoor environments. An optional LCD display can be fitted to the cabinets which indicated signal input, power supply, humidity and operating temperature. These tiles have a 28kg gross weight. Assured Systems has an LED installation team which can add further value to your LED signage project.
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Pixel Pitch | P8 |
| Physical Density (Pixels/m2) | 15625 |
| LED Type | SMD 3535 |
| Module Size(mm) | 320×160 |
| Scanning | 5 |
| Viewing Angle (°) | H:140/V:130 |
| Cabinet Size(mm) | 960×960 |
| Gross Weight (Kg) | 28 |
| Cabinet Material | Die Casting Magnesium Alloy |
| Input Power Consumption (W/m2) | 1270 |
| Max Power Consumption (W/m2) | 840 |
| Average Power Consumption (W/m2) | 280 |
| Brightness (nits) | ≥ 5000 |
| Contrast | 4000:1 |
| Grey Scale | 16bit |
| Refreshment (Hz) | 1920Hz-3840Hz |
| Frame Frequency(Hz) | 60Hz |
| Working Temperature | -20°C – +45°C |
| Working Environment | Outdoor |
| Protect Grade | IP65 |
| Humidity | 10% – 90% RH |
| Maintenance Method | Back Maintenance |
