STX-1001J

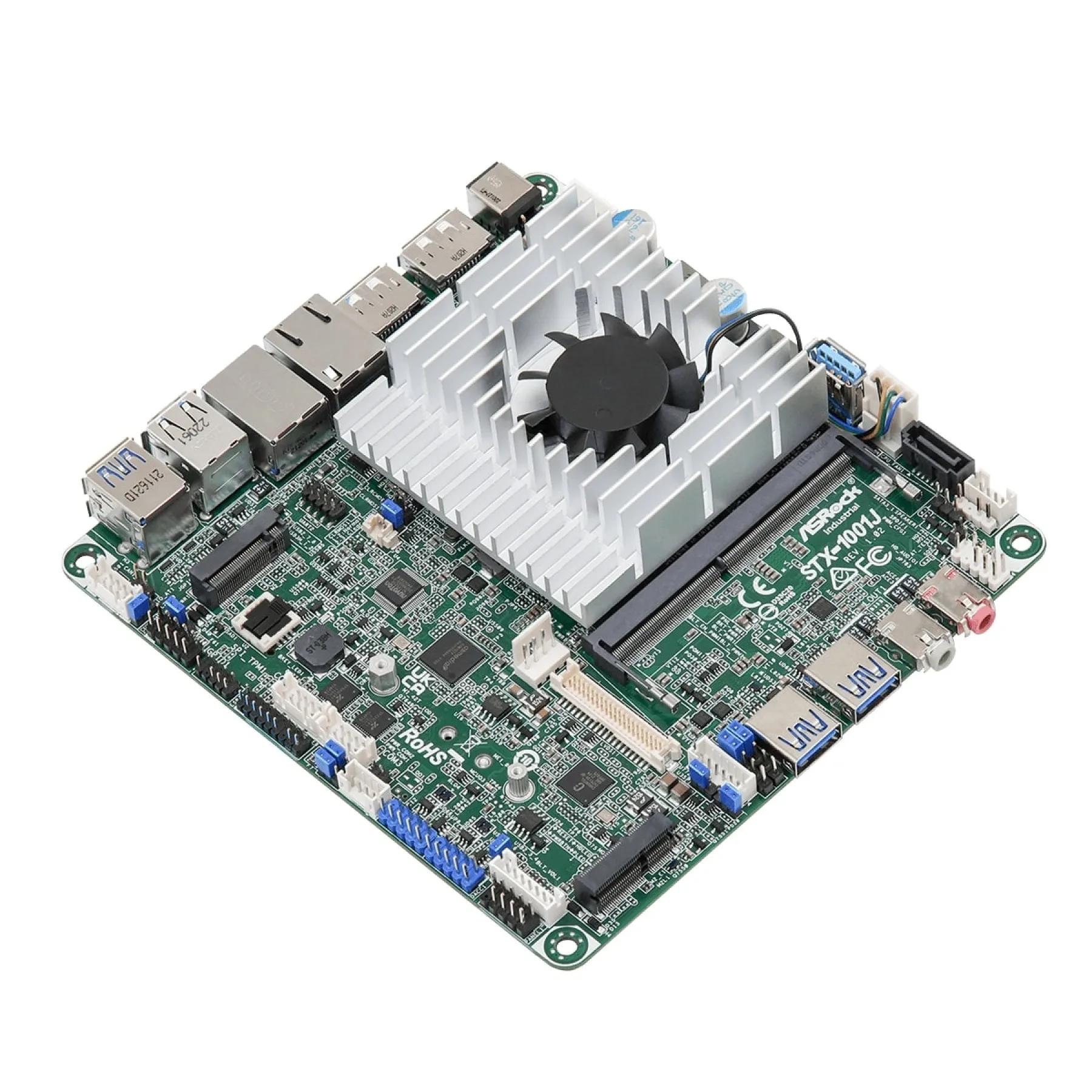

ASRock Industrial STX-1001J Intel Celeron J6412 Micro-STX Motherboard

STX-1001J

  • Intel Elkhart Lake SoC Processor J6412
  • 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
  • 1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 2 x COM, 1 x SATA3
  • 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
  • Supports triple display, 2 x DP1.2, 1 x LVDS or eDP
  • TPM Header
  • 12~28V DC-In

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial STX-1001J is an Industrial Mini-STX Motherboard powered by Intel Celeron J6412 processor. The STX-1001J provides up to 32GB memory, alongside rich I/O including 7x USB, 2x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron: Up to 4 Cores
Memory Type DDR4
COM Ports 2x RS-232/422/485
LAN Ports 1x 1GB, 1x 2.5GB
USB Ports 5x USB 3.2, 6x USB 2.0
Video Ports 1x LVDS, 1x eDP, 2x DisplayPort
Storage 1x M.2 PCIe, 1x SATA
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
