STX-1000

ASRock Industrial STX-1000 Intel Pentium/Celeron Micro-STX Motherboard

STX-1000

  • Intel Gemini Lake SoC Processor
  • 1 x 260-pin SO-DIMM up to 8 GB DDR4 2400 MHz
  • 4 x USB 3.1 Gen1, 5 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x COM, 2 x SATA3
  • 1 x Intel Gigabit LAN,1 x Realtek Gigabit LAN
  • Supports triple display, 2 x DP, 1 x eDP or LVDS
  • TPM Header
  • 9~24V DC-In

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

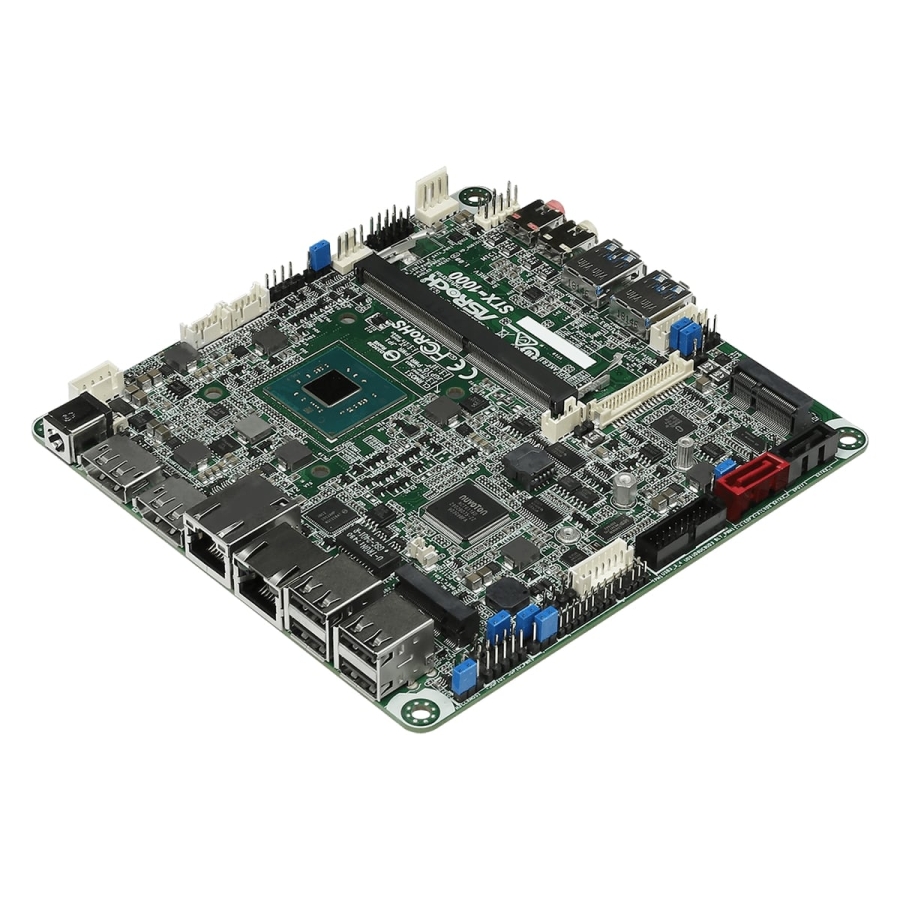

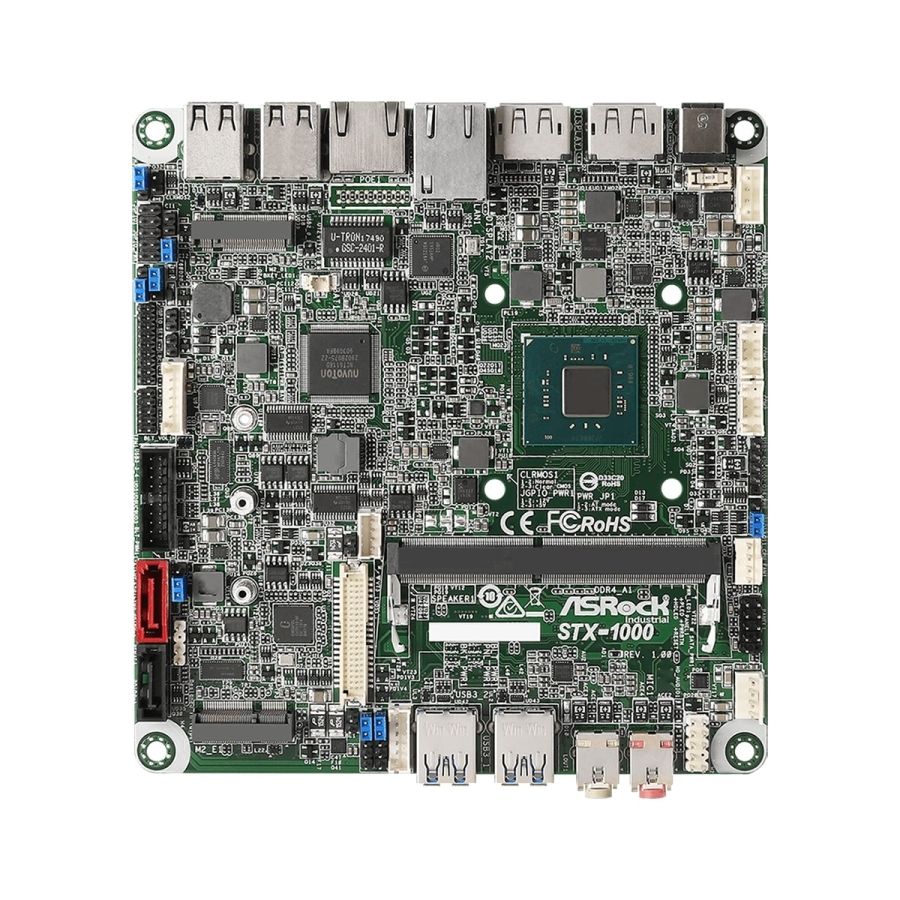

The ASRock Industrial STX-1000 is an Industrial Mini-STX Motherboard. The STX-1000 provides up to 8GB memory, alongside rich I/O including 9x USB, 2x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Memory Type DDR4
COM Ports 1x RS-232, 1x RS-232/422/485
LAN Ports 2x 1GB
USB Ports 4x USB 3.1, 5x USB 2.0
Video Ports 1x eDP, 1x LVDS, 2x DisplayPort
Storage 2x SATA
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
