SBC-331V

ASRock Industrial SBC-331V 7th Gen Intel Core i3-6100U 3.5″ Single Board Computer

SBC-331V

  • Intel 7th/ 6th Gen (Kabylake-S/Skylake-S) Core Processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
  • 4 x USB 3.1 Gen2, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA/mini-PCIe,
  • 4 x COM, 2 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports triple display, 2 x DP 1.2, 1 x LVDS
  • TPM Header
  • Support Intel RAID 0/1
  • 12~36V DC-In

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

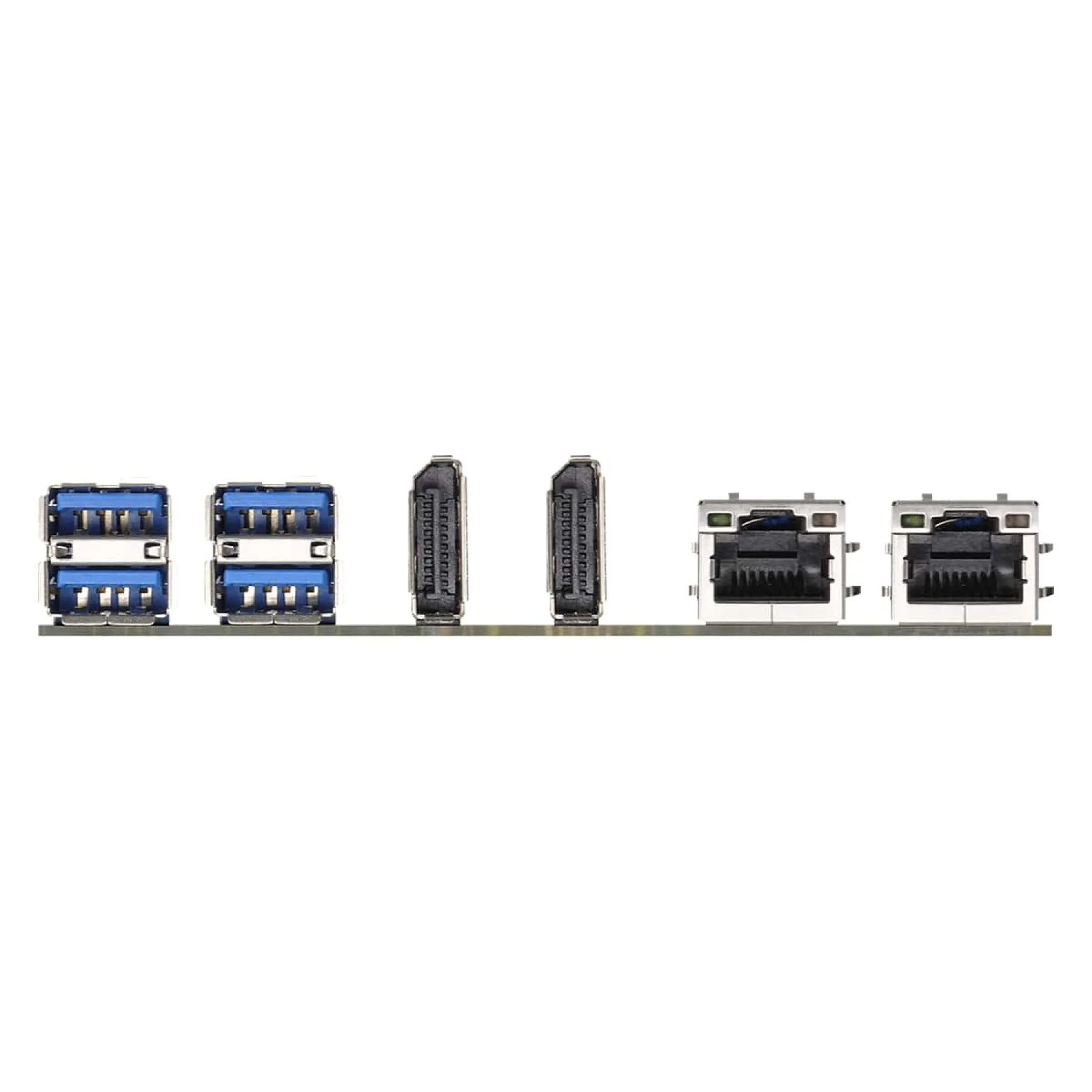

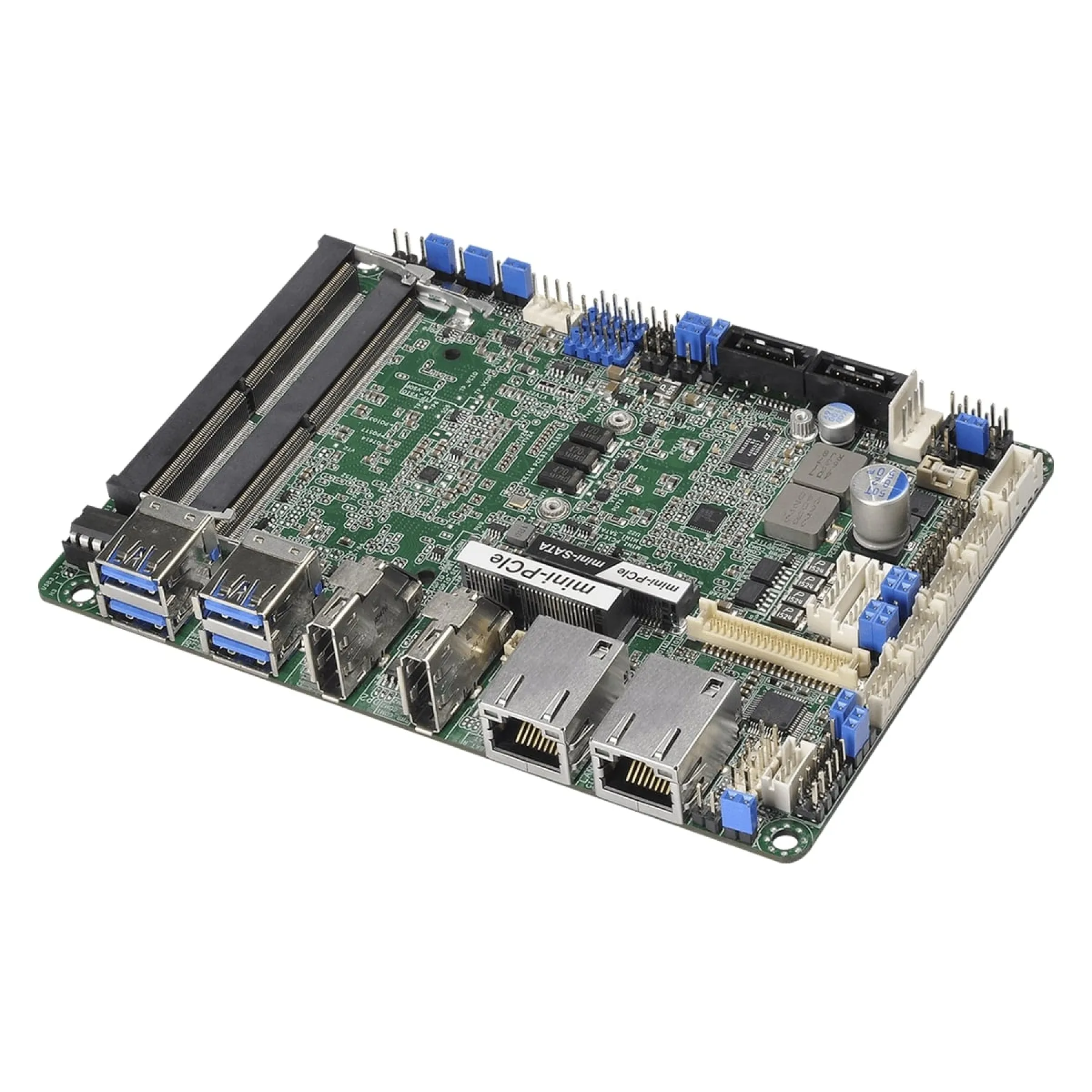

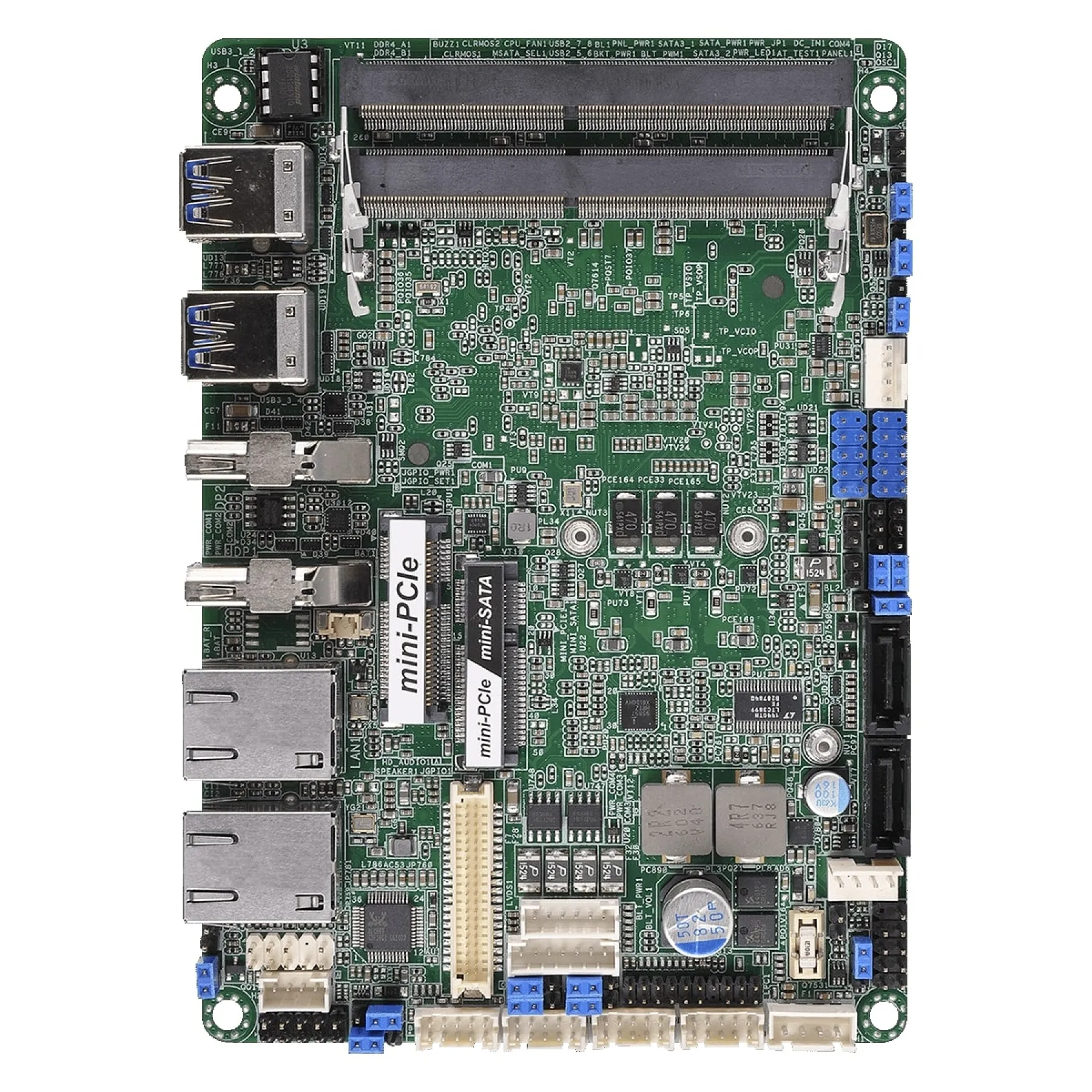

The ASRock Industrial SBC-331V is a 3.5″ Single Board Computer powered by 7th Gen Intel Core i3-6100U. This 3.5″ SBC contains rich I/O including: 8 x USB, 2 x LAN and 4 x COM Ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Core: Up to 2 Cores
Memory Type DDR4
COM Ports 1x RS-232/422/485, 3x RS-232
LAN Ports 2x 1GB
USB Ports 4x USB 2.0, 4x USB 3.0
Storage 1x mSATA, 2x SATA
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
