SBC-210L

ASRock Industrial SBC-210L Intel Celeron N2807 3.5″ Single Board Computer

End of Life

Intel Baytrail / Baytrail-I SoC Processor N2807
Supports Single Channel DDR3L SO-DIMM 1333, up to 8GB
4 x COM

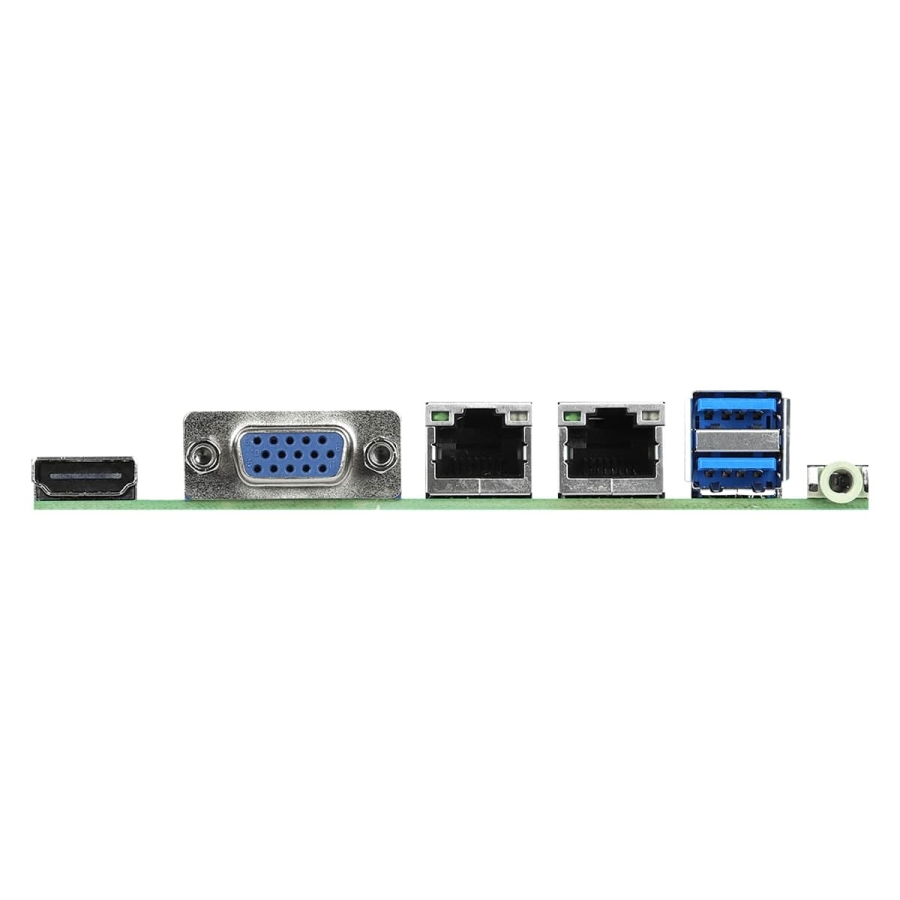

1 x HDMI, 1 x D-Sub, 1 x LVDS
2 x USB 3.0, 6 x USB 2.0, 2 x SATA2
1 x mini-PCIe, 1 x mSATA (shared)
2 x Realtek Lan
1 x TPM Header
9~36 V DC-in (4-pin DC-in PWR Con)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: SBC-210L

Categories: Boards & Modules, End of Life Products, Industrial Motherboards, Industrial Single Board Computers, Intel SBCs

Range: ASRock Industrial

Details

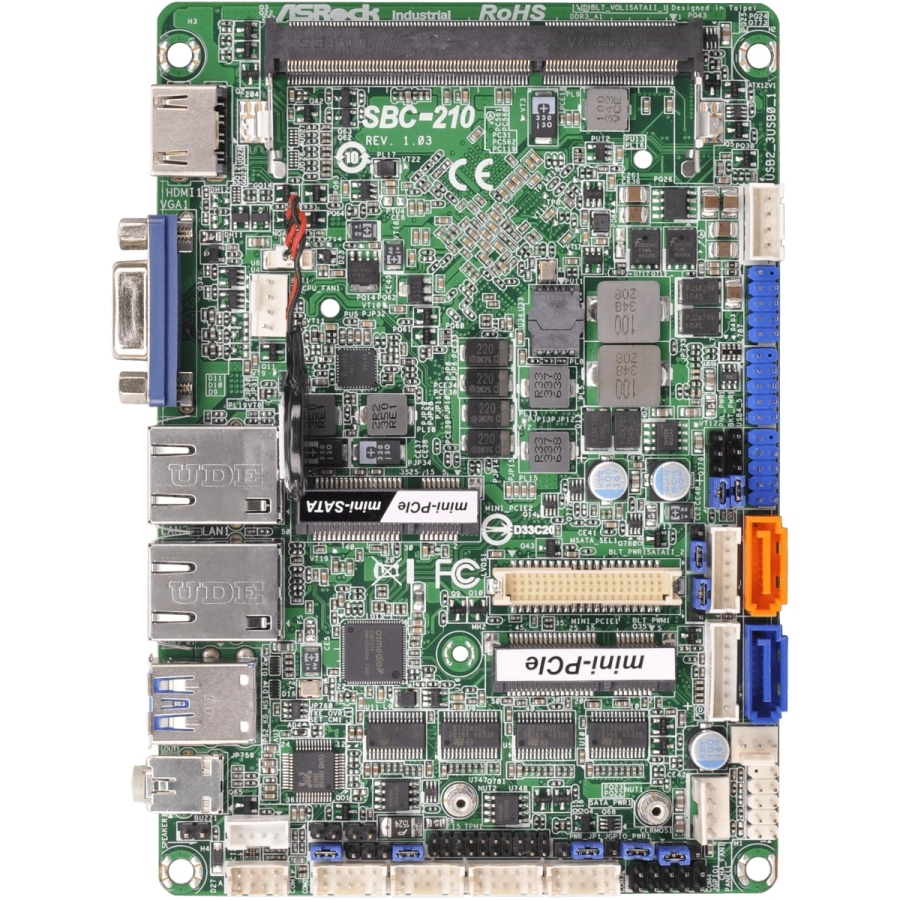

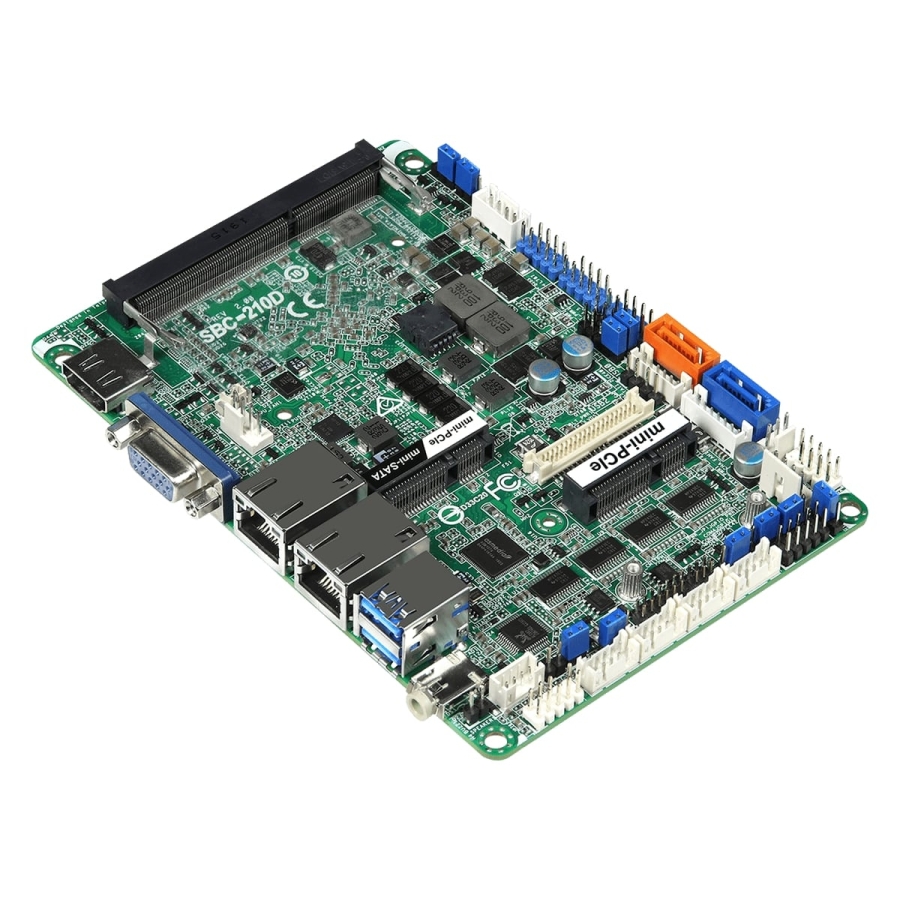

The ASRock Industrial SBC-210L is a 3.5″ Single Board Computer powered byIntel Celeron N2807. This 3.5″ SBC contains rich I/O including: 8 x USB, 2 x LAN and 4 x COM Ports.

Downloads

Datasheet (SBC-210L) (PDF)

0.29MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Celeron: Up to 2 Cores
Memory Type	DDR3L
COM Ports	1x RS-232/422/485, 3x RS-232
LAN Ports	2x 1GB
USB Ports	2x USB 3.0, 6x USB 2.0
Storage	2x SATA
Operating Temperature	0°C to 60°C
