NUC-1315U/D4

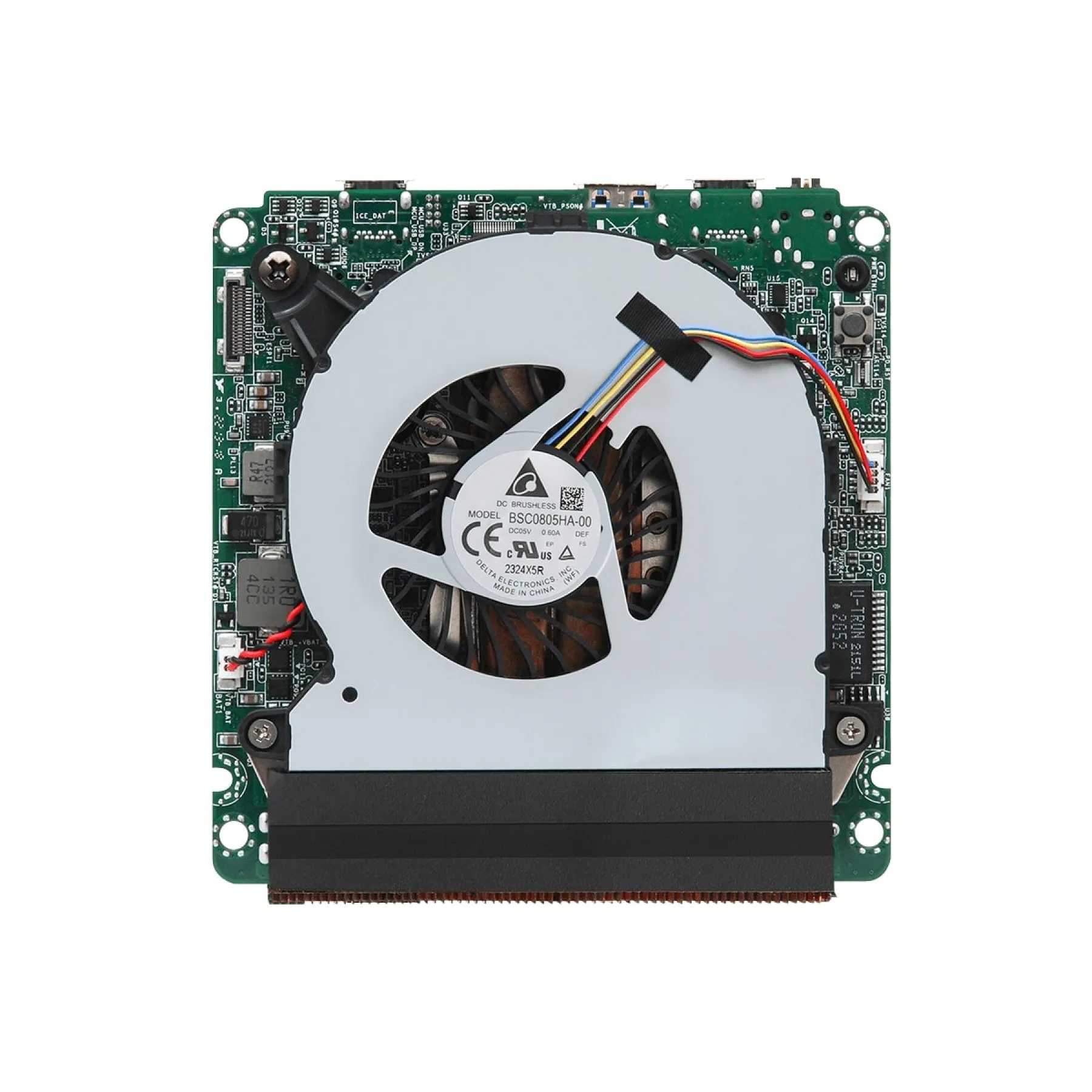

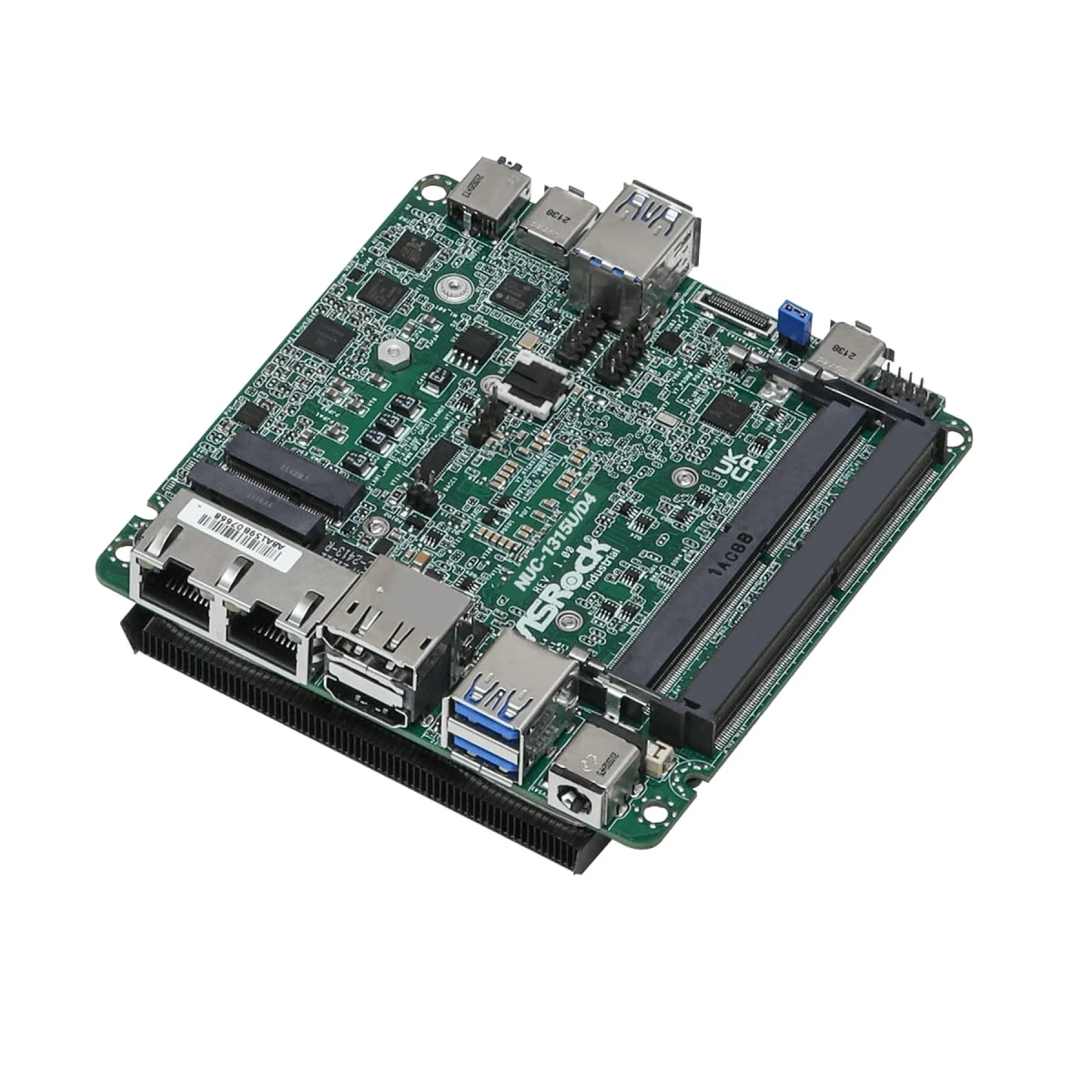

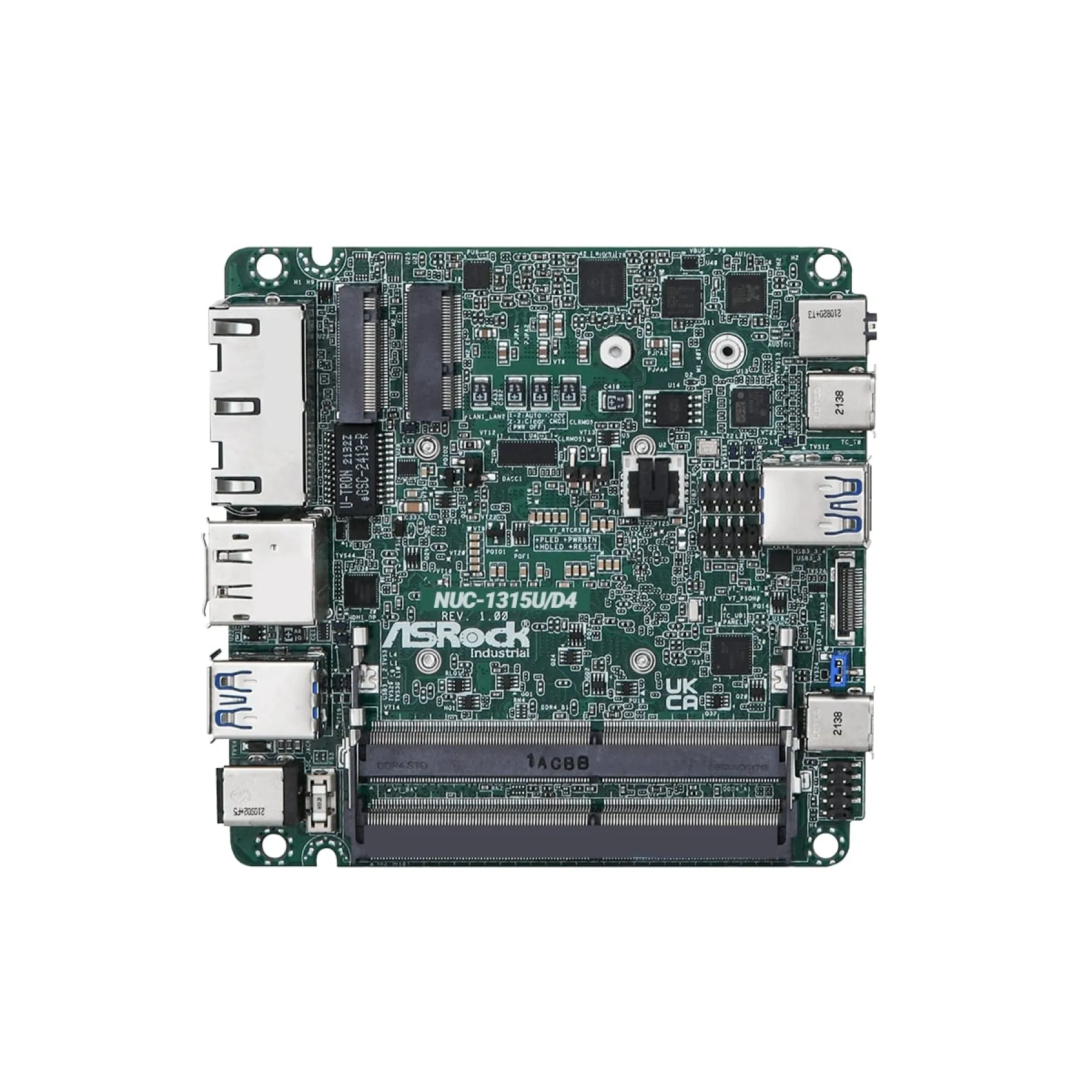

ASRock Industrial NUC-1315U/D4 13th Gen Intel Core i3-1315U NUC Motherboard

NUC-1315U/D4

  • Intel 13th Gen (Raptor Lake-P) Core Processors i3-1315U
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB

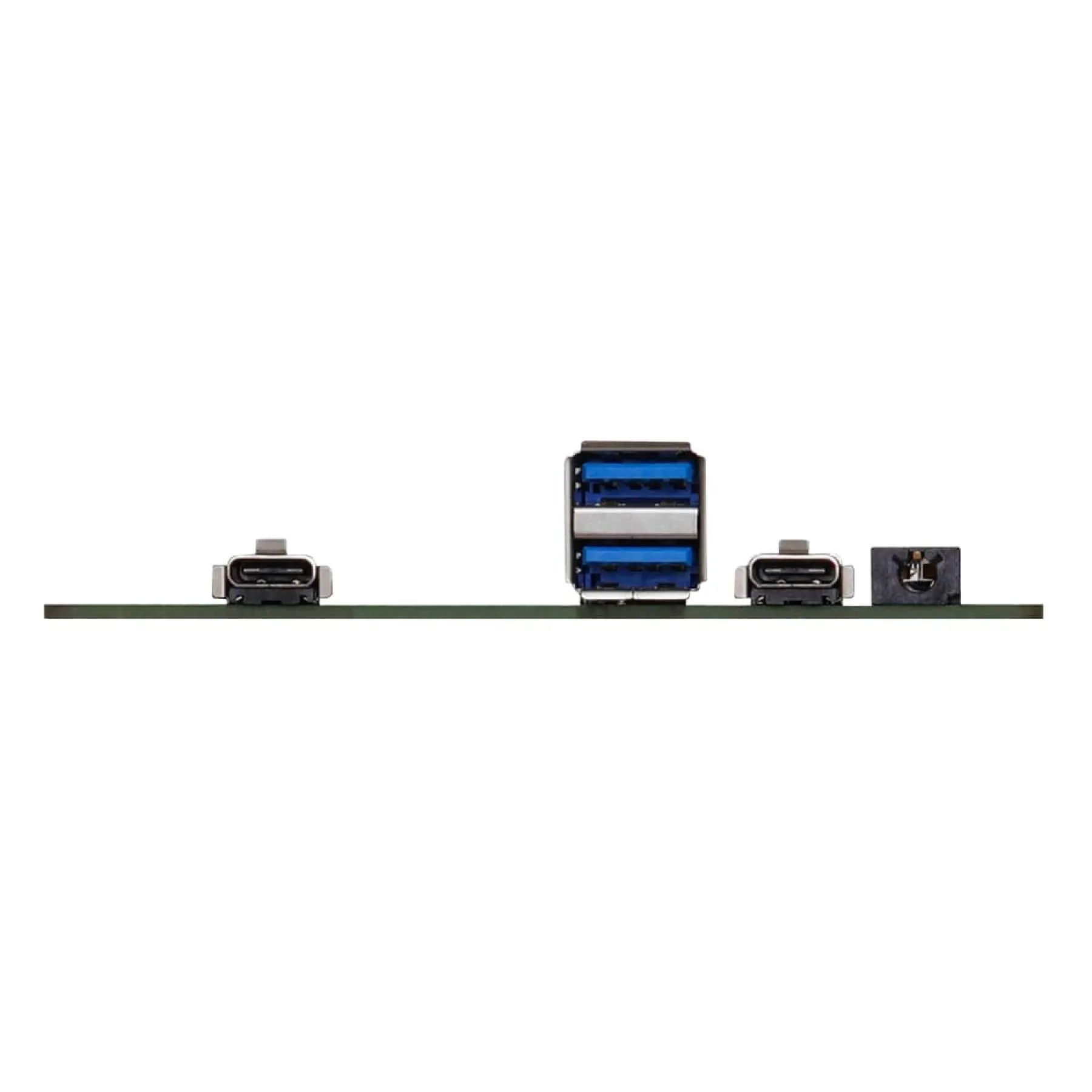

  • 1 x USB 4, 5 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3

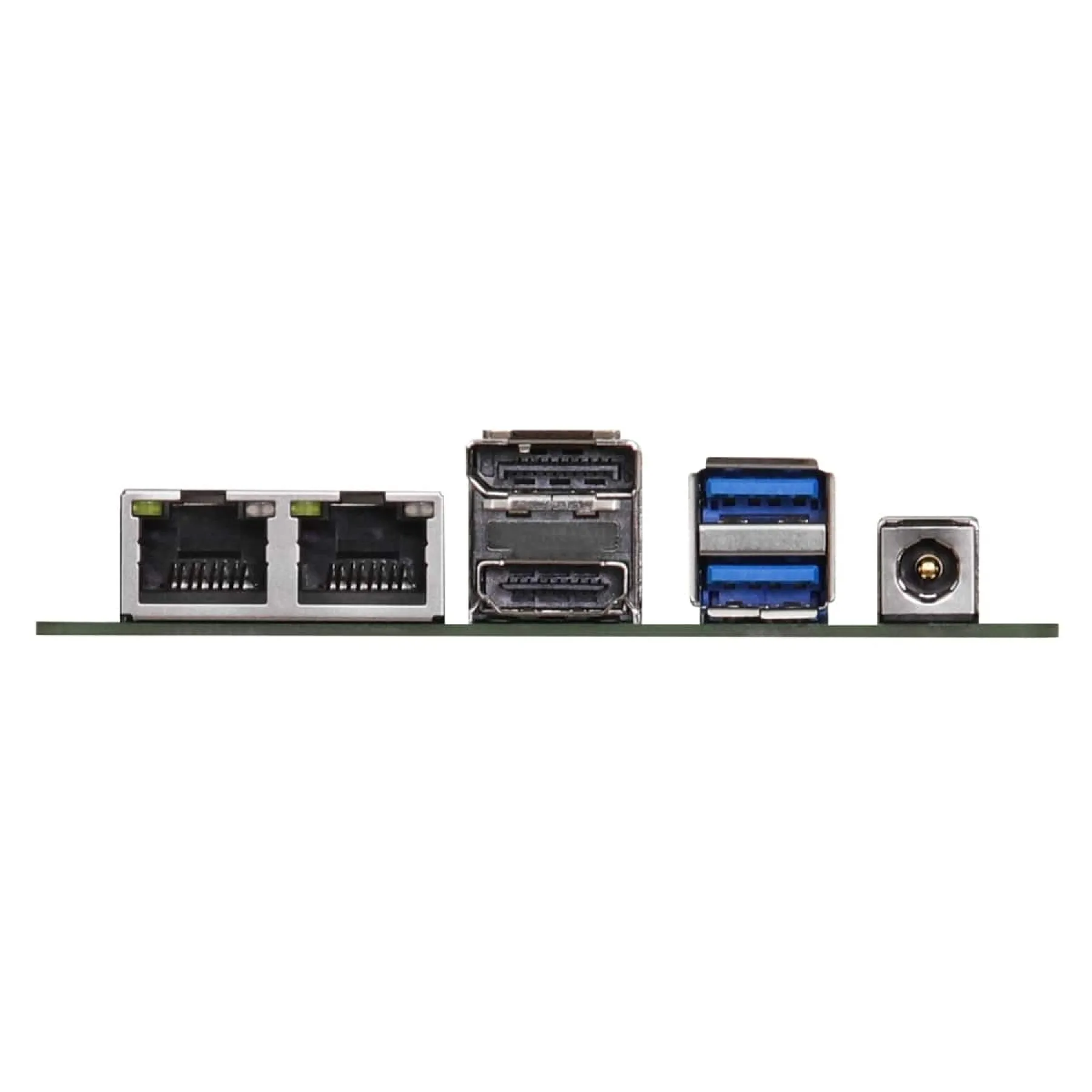

  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C)
  • TPM 2.0 onboard IC
  • 12V~19V DC-In

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial NUC-1315U/D4 is an Industrial NUC Motherboard powered by 13th Gen Intel Core i3-1315U processor supporting up to 6 Cores. The NUC-1315U/D4 contains dual channel DDR4 providing up to 64GB memory, alongside rich I/O including 8x USB, 1x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Core: Up to 6 Cores
Memory Type DDR4
COM Ports 1x RS-232/422/485
LAN Ports 2x 2.5GB
USB Ports 1x USB 4.0, 2x USB 2.0, 5x USB 3.2
Video Ports 1x HDMI, 3x DisplayPort
Storage 1x SATA, 2x M.2 PCIe
Operating Temperature -20°C to 70°C
