J3455-NUC-DL

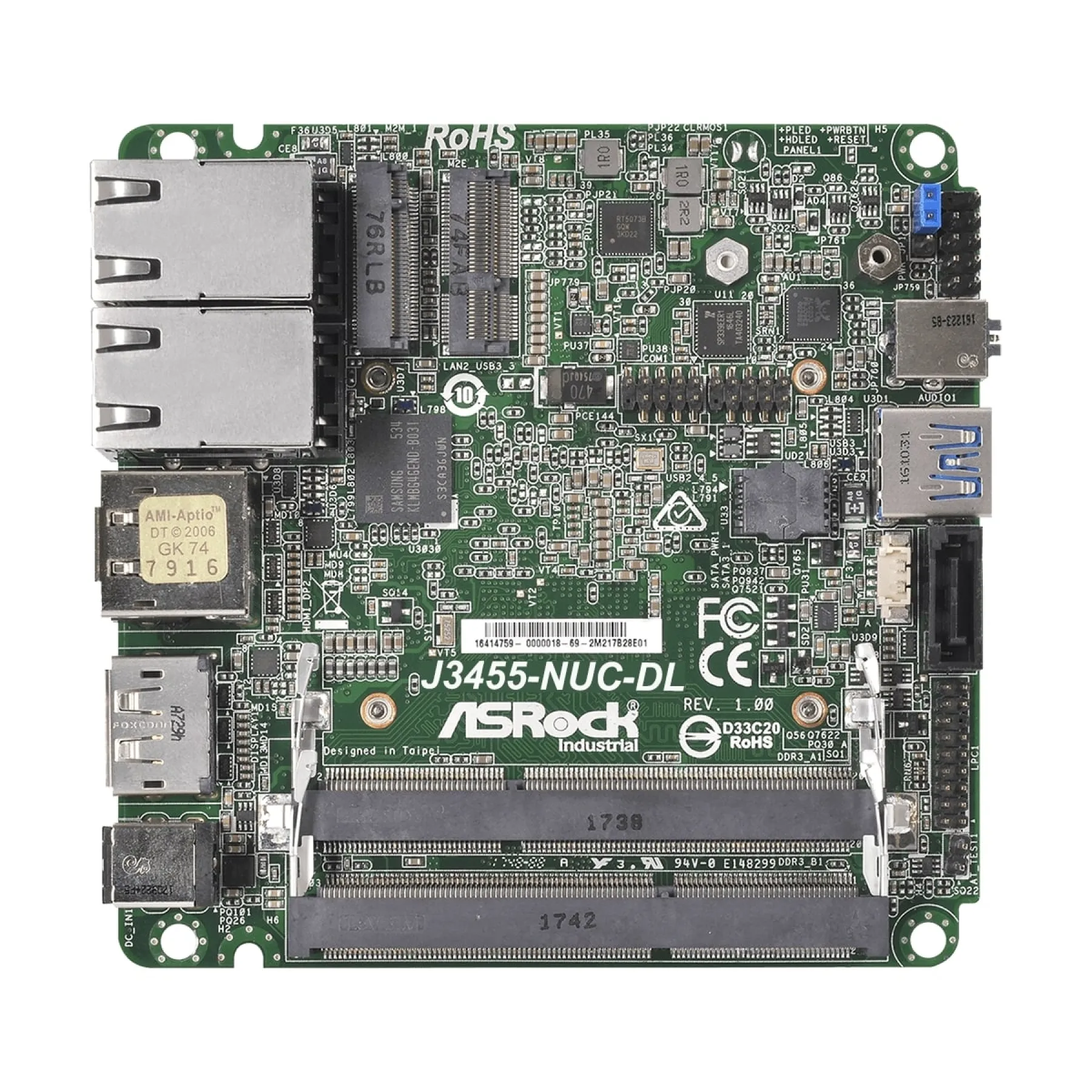

ASRock Industrial J3455-NUC-DL Intel Celeron J3455 NUC Motherboard

J3455-NUC-DL

  • Intel Apollo Lake SoC Processor J3455
  • Supports Dual Channel DDR3L SO-DIMM 1867 MT/s up to 8GB
  • 32GB EMMC (Option)

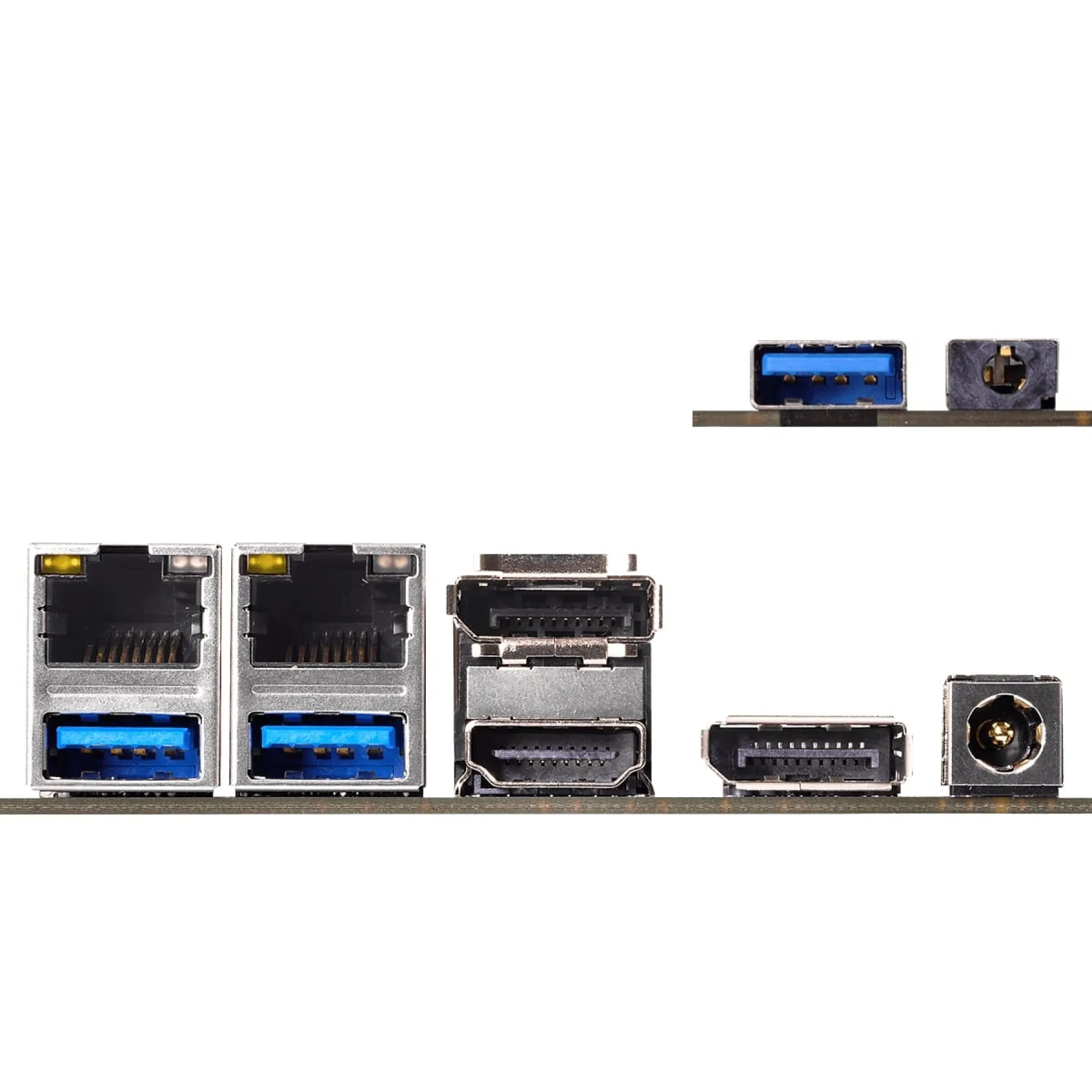

  • 1 x HDMI, 2 x Displayport,
  • 3 x USB 3.0, 2 x USB 2.0, 1 x SATA3
  • 1 x M.2 2230, Key E (PCIe x1 +USB)
  • 2 x RJ45 Realtek RTL8111G
  • 1 x TPM on board

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial J3455-NUC-DL is an Industrial NUC Motherboard powered by 13th Gen Intel Celeron J3455 processor supporting up to 4 Cores. The J3455-NUC-DL contains dual channel DDR3L providing up to 8GB memory, alongside rich I/O including 5x USB, 1x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron: Up to 4 Cores
Memory Type DDR3L
COM Ports 1x RS-232/422/485
LAN Ports 2x 1GB
USB Ports 2x USB 2.0, 3x USB 3.0
Video Ports 1x HDMI, 2x DisplayPort
Storage 1x SATA
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
