IMB-V2000P

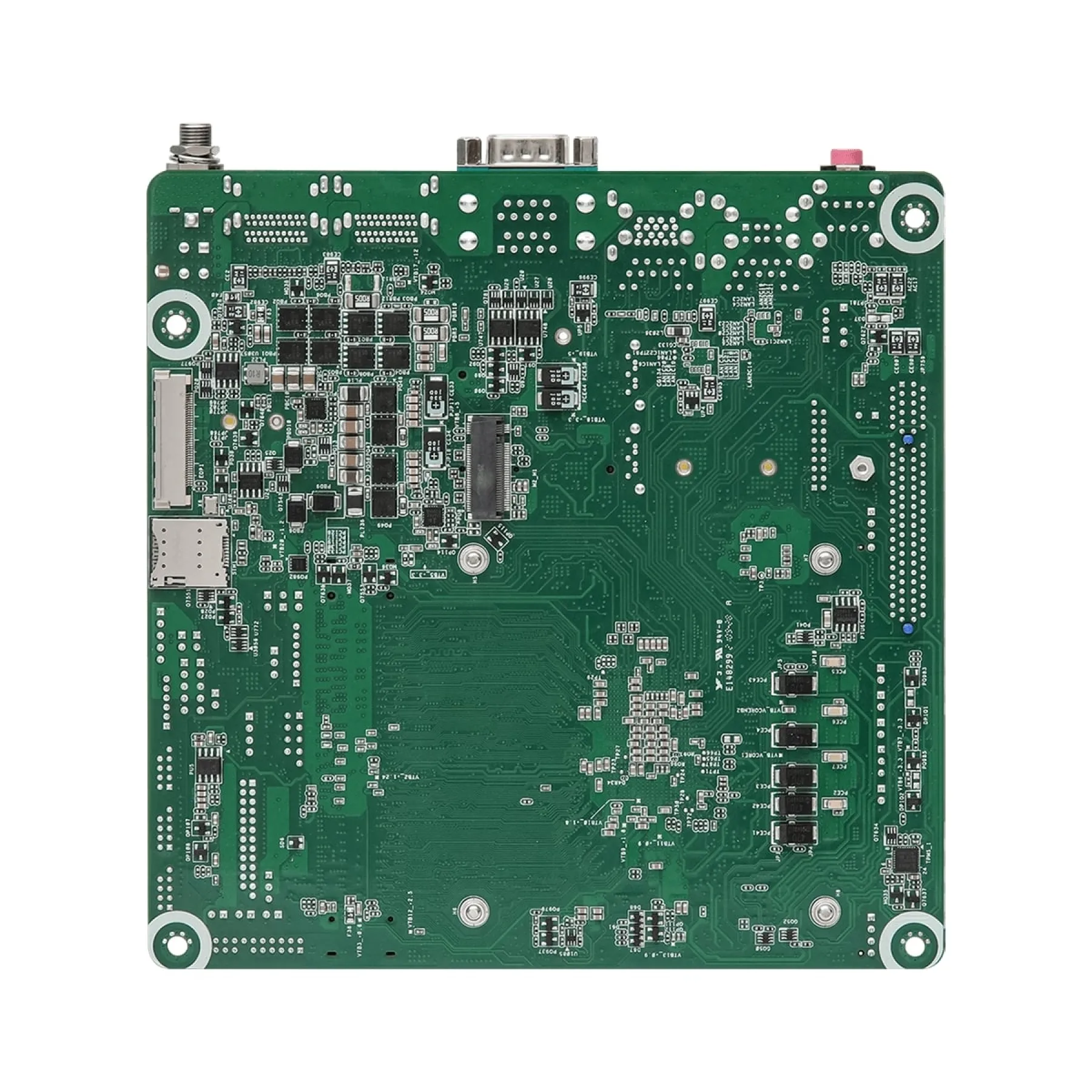

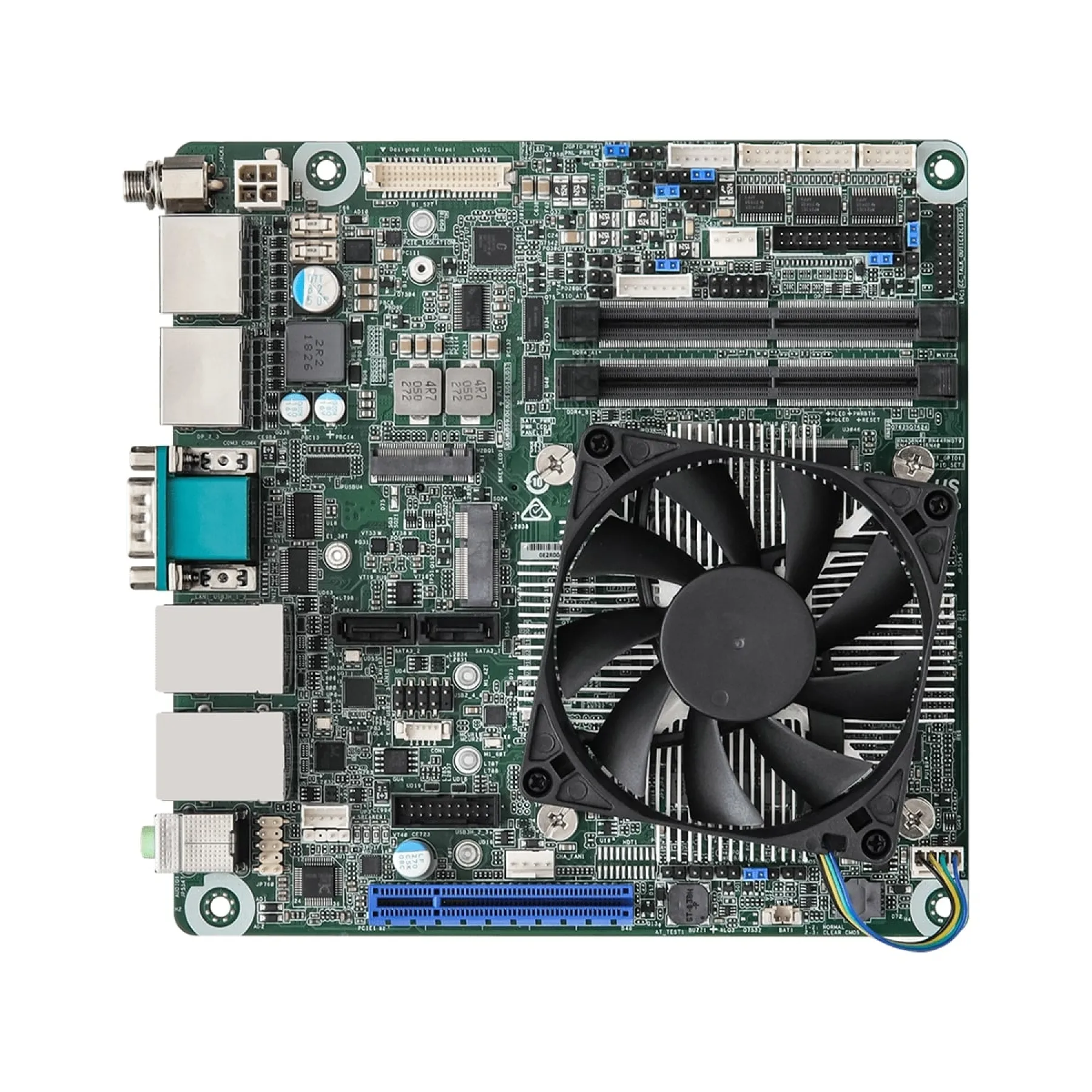

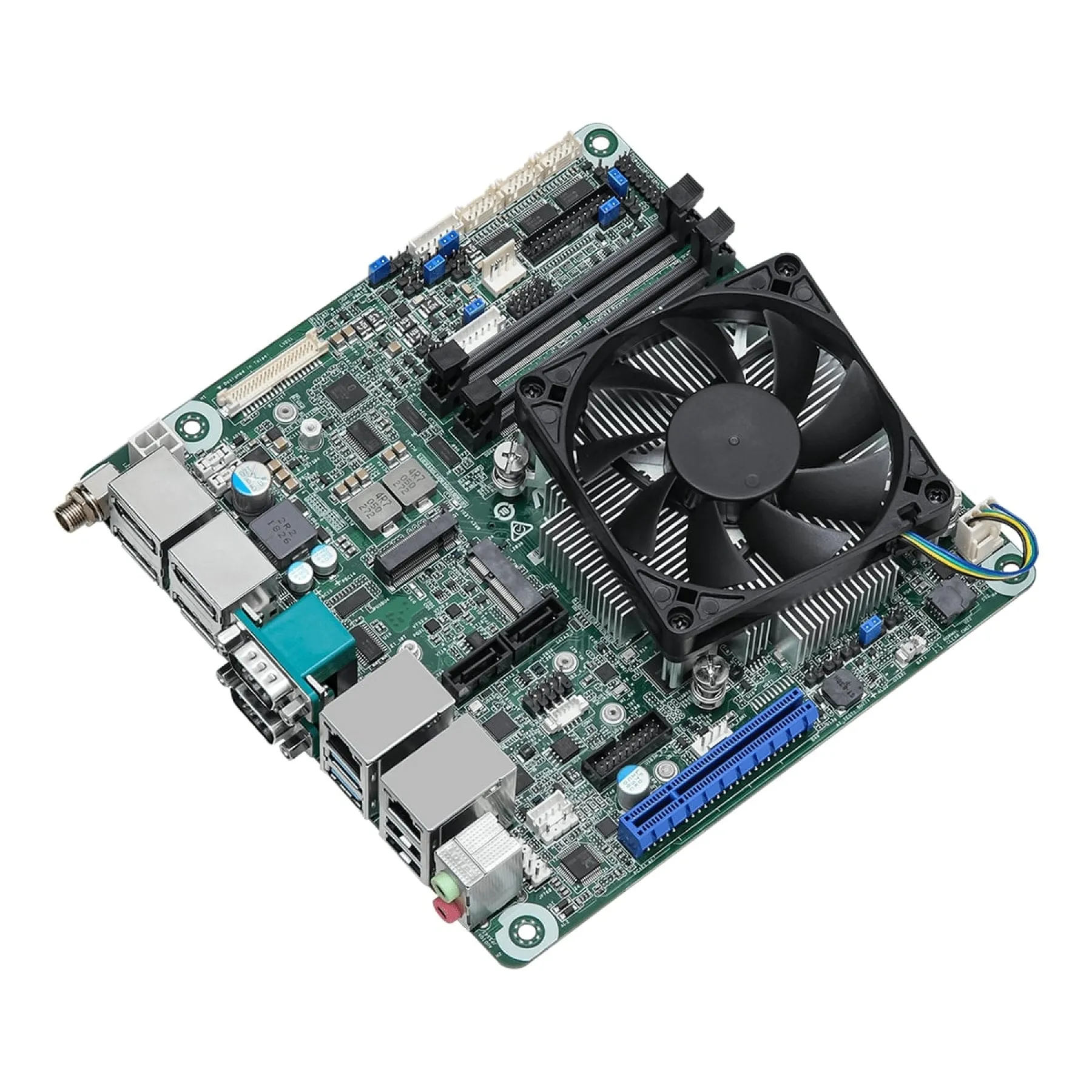

ASRock Industrial IMB-V2000P AMD Ryzen V2748 Mini-ITX Motherboard

IMB-V2000P

  • AMD Ryzen Embedded V2000 SoC processors V2748
  • 2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)
  • 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 1 x PCIe x8, 5 x COM, 2 x SATA3
  • 1 x Realtek 1 Gigabit LAN (Support DASH), 1 x Realtek 2.5 Gigabit LAN
  • Support Quad display, 1 x LVDS, 1 x eDP, 3 x DP 1.2, 1 x DP 1.4
  • TPM 2.0 onboard IC
  • Support DASH, Teaming funciton
  • 12~28V DC-In (Lockable DC Jack)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial IMB-V2000P is an Industrial Mini-ITX Motherboard powered by AMD Ryzen V2748 processor. The IMB-V2000P contains DDR4, providing up to 64GB memory, alongside rich I/O including 8x USB, 5x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type AMD Ryzen: Up to 8 Cores
Memory Type DDR4
COM Ports 1x RS-232/422/485, 4x RS-232
LAN Ports 1x 1GB, 1x 2.5GB
USB Ports 4x USB 3.2, 4x USB 2.0

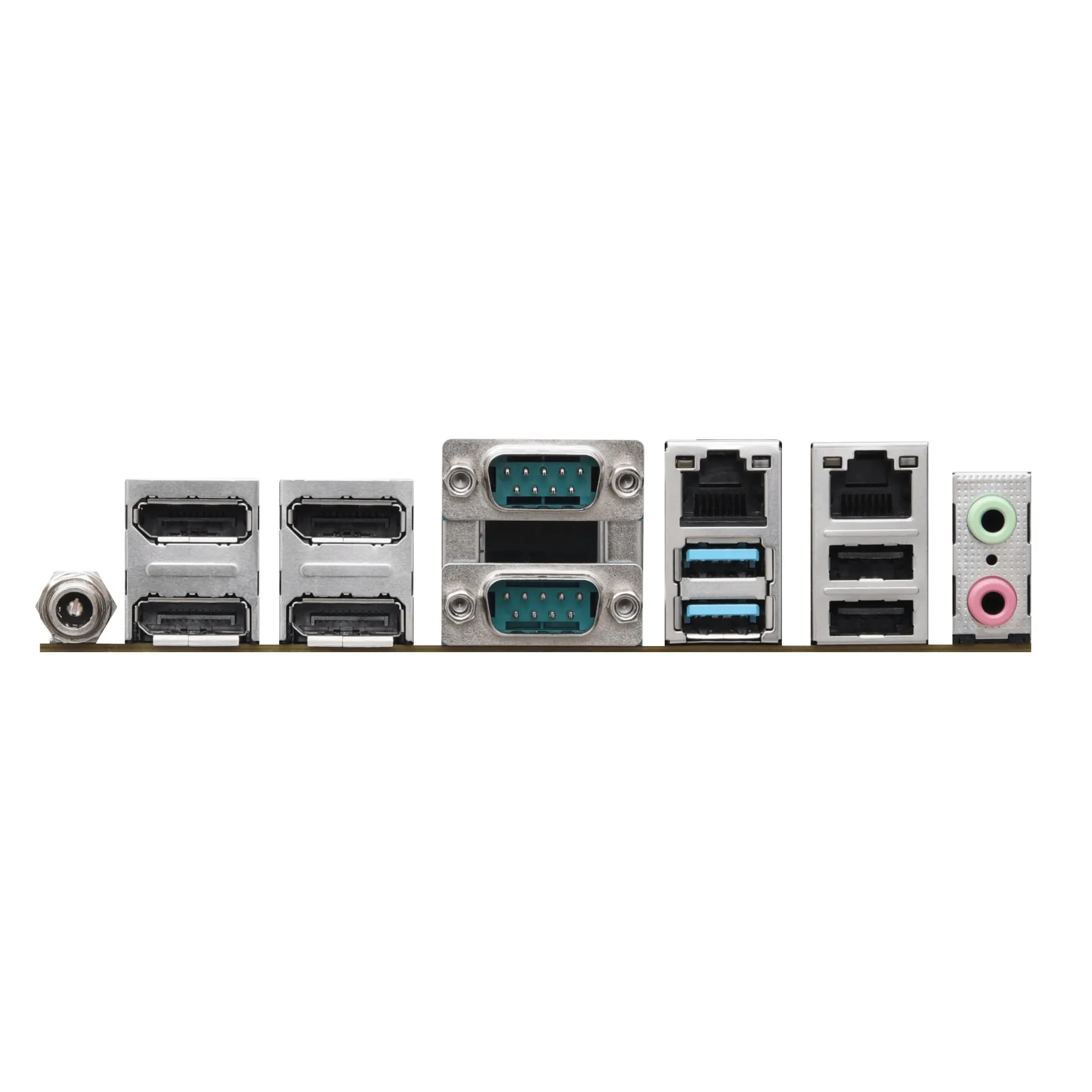

Video Ports 1x LVDS, 1x eDP, 4x DisplayPort
Storage 1x M.2 SATA, 1x M.2 PCIe, 2x SATA
Operating Temperature -20°C to 70°C
