IMB-1314

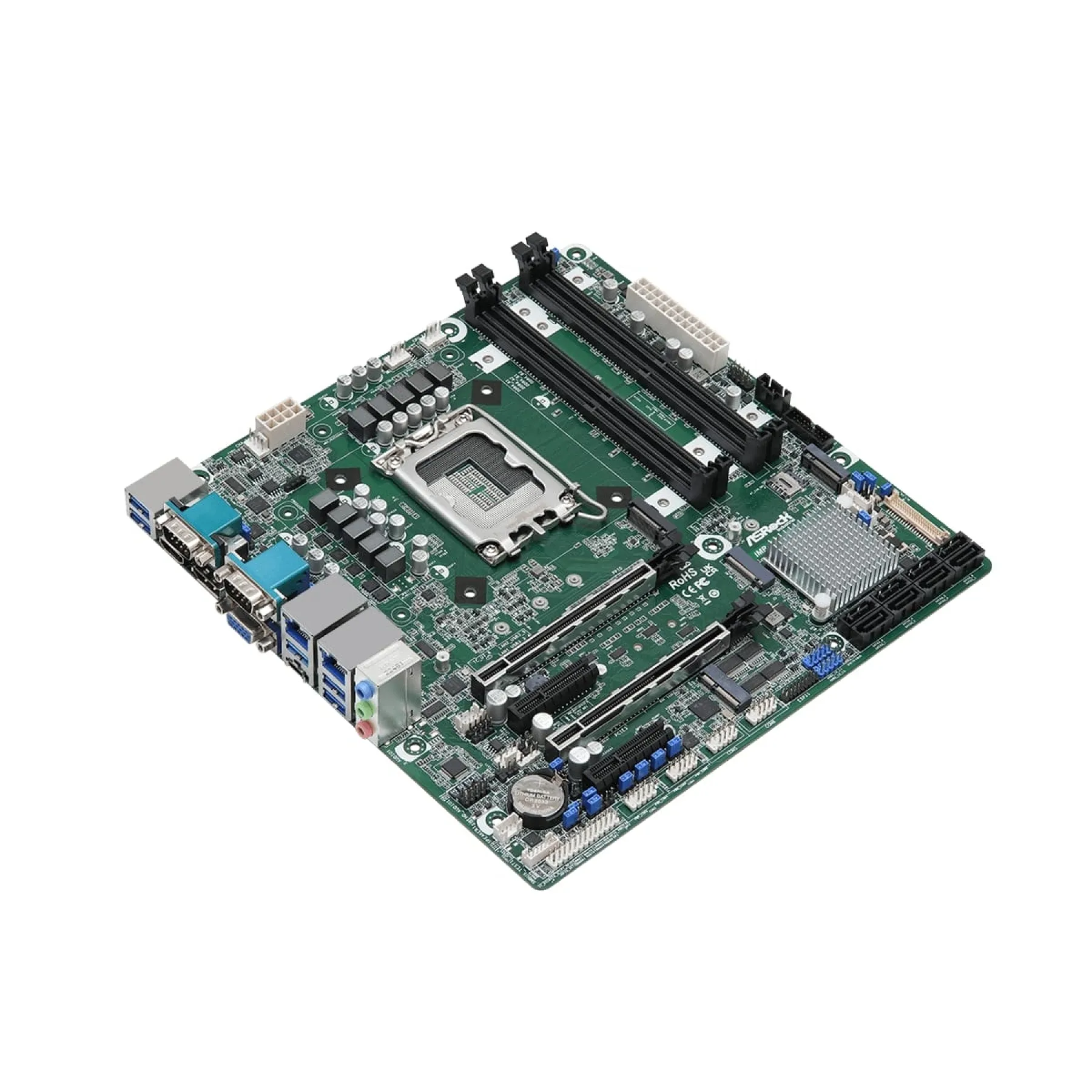

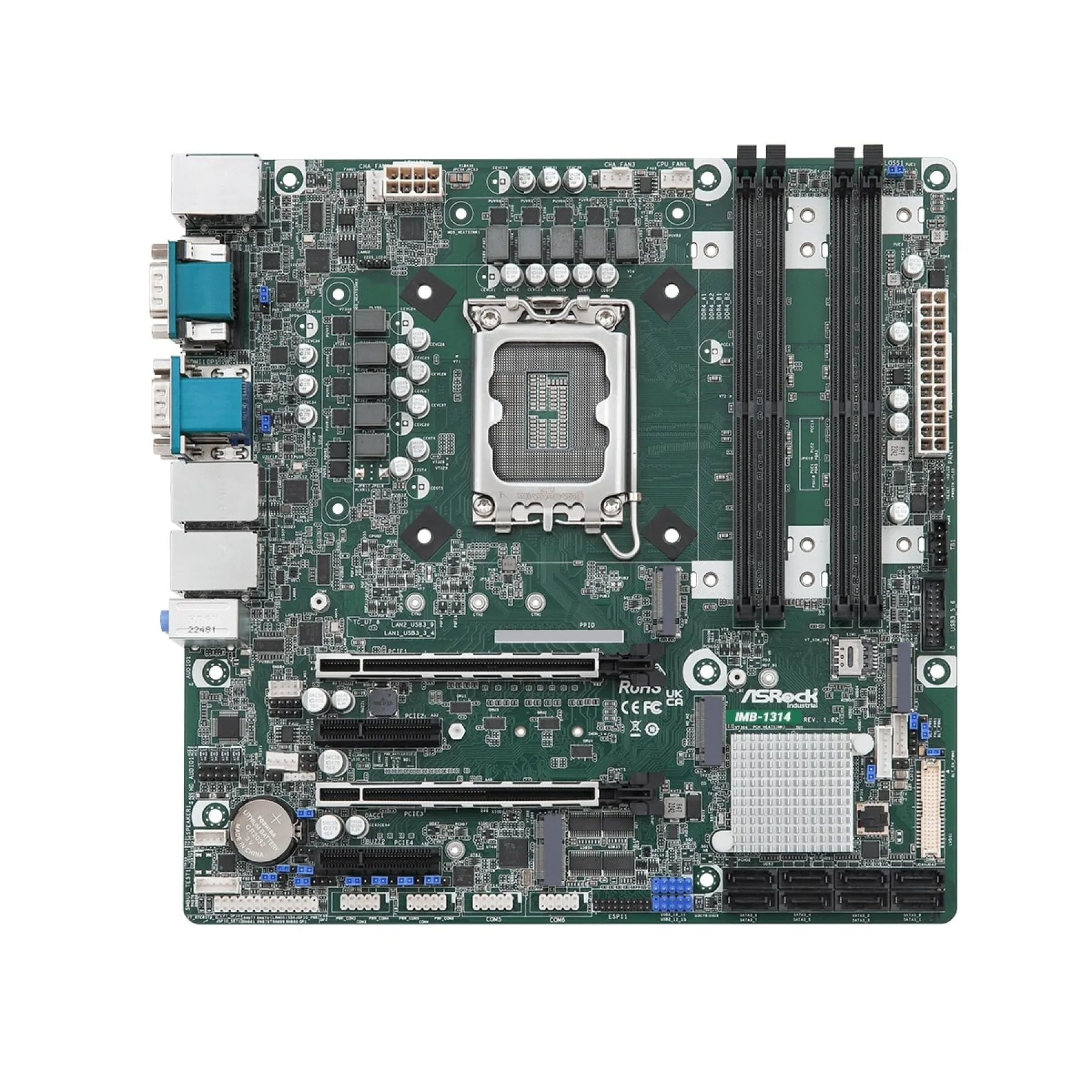

ASRock Industrial IMB-1314 13th/12th Gen Intel Core Micro ATX Motherboard

IMB-1314

  • Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core Processors with Q670 chipset
  • 4 x 288-pin Long-DIMM DDR4 3200 MHz, up to 128GB (32GB per DIMM)

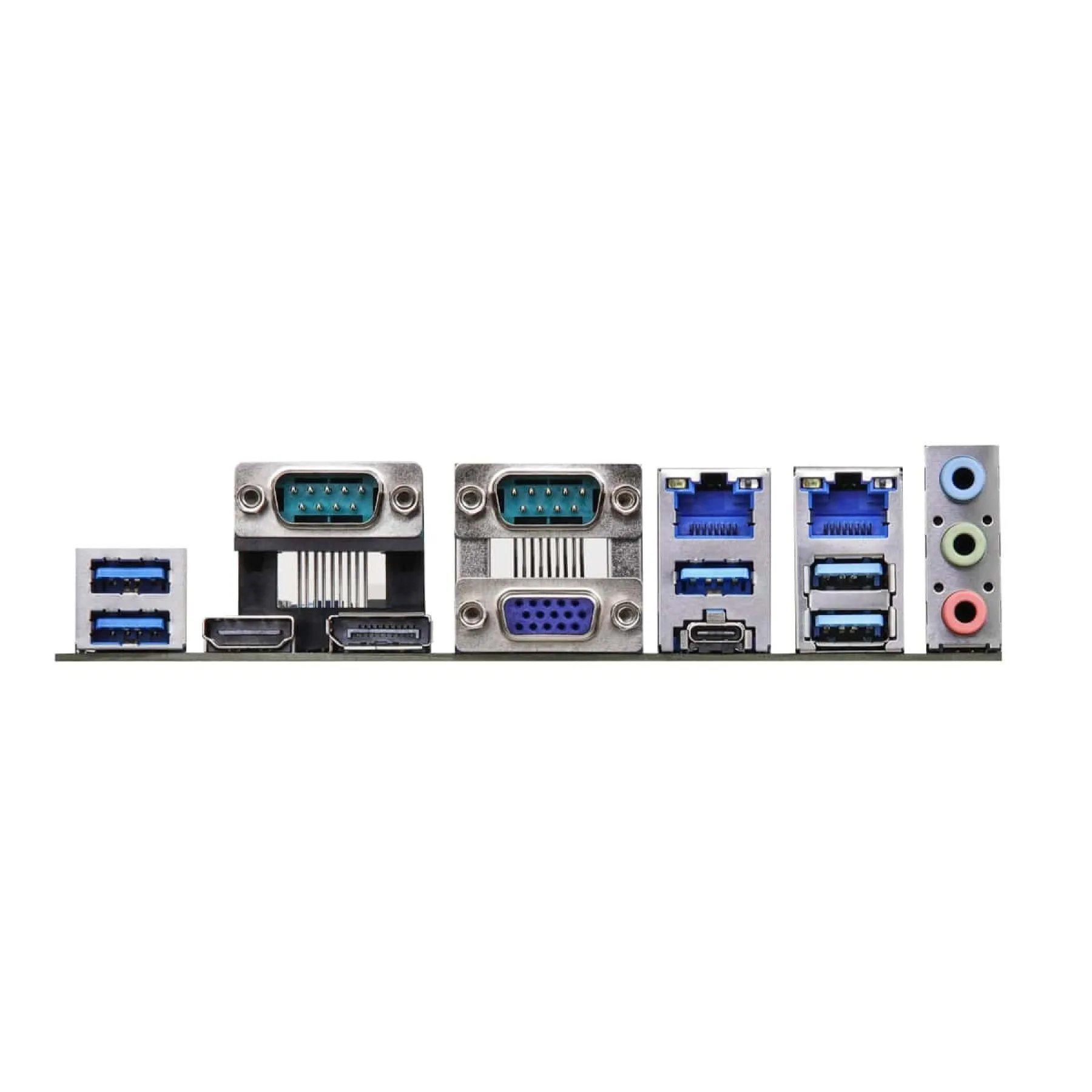

  • 1 x PCIex16 (Gen4), 1 x PCIex8 (Gen4), 2 x PCIex4 (Gen4), 1 x USB3.2 Gen2x2 Type C, 5 x USB 3.2 Gen2, 2x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Support Quad display, 1 x HDMI2.0b, 1 x DP 1.4a, 1 x VGA, 1 x LVDS
  • TPM2.0 on board IC
  • Supports Intel vPro, AMT, VMD RAID 0/1/5/10
  • ATX PWR (24+8 Pin)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial IMB-1314 is an Industrial Micro ATX Motherboard powered by 13th/12th Gen Intel Core processor. The IMB-1314 contains DDR4, providing up to 128GB memory, alongside rich I/O including 12x USB, 6x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Memory Type DDR4
COM Ports 2x RS-232/422/485, 4x RS-232
LAN Ports 2x 2.5GB
USB Ports 4x USB 2.0, 8x USB 3.2
Video Ports 1x VGA, 1x DisplayPort, 1x LVDS, 1x HDMI
Storage 2x M.2 PCIe, 8x SATA
Operating Temperature 0°C to 70°C
