IMB-1231

ASRock Industrial IMB-1231 13th/12th Gen Intel Core Mini-ITX Motherboard

IMB-1231

    • Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core Processors with Q670 chipset
    • 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
    • 1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA3
    • 2 x Intel 2.5 Gigabit LAN
    • Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA
    • TPM 2.0 onboard IC
    • Supports Intel vPro, AMT, VMD RAID 0/1/5/10
    • ATX-PWR (24+4-pin) and +12V DC-In co-design

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

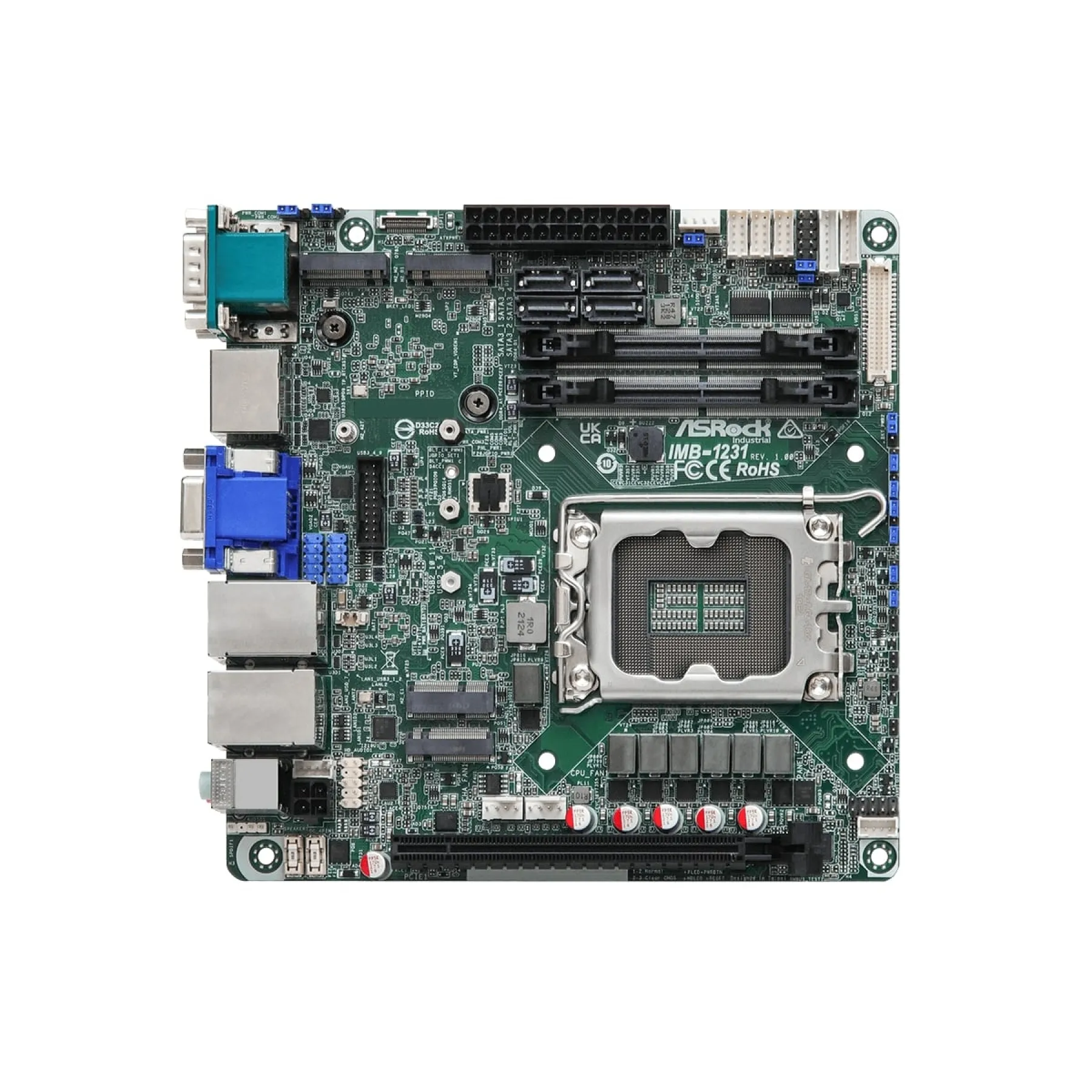

The ASRock Industrial IMB-1231 is an Industrial Mini-ITX Motherboard powered by 13th/12th Gen Intel Core processor. The IMB-1231 contains DDR4, providing up to 64GB memory, alongside rich I/O including 10x USB, 5x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Memory Type DDR4
COM Ports 2x RS-232/422/485, 3x RS-232
LAN Ports 2x 2.5GB
USB Ports 4x USB 2.0, 6x USB 3.2
Video Ports 1x eDP, 1x VGA, 1x HDMI, 1x LVDS, 2x DisplayPort
Storage 1x M.2 SATA, 1, 2x M.2 PCIe, 4x SATA, RAID
Operating Temperature 0°C to 70°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
