IMB-1220-D

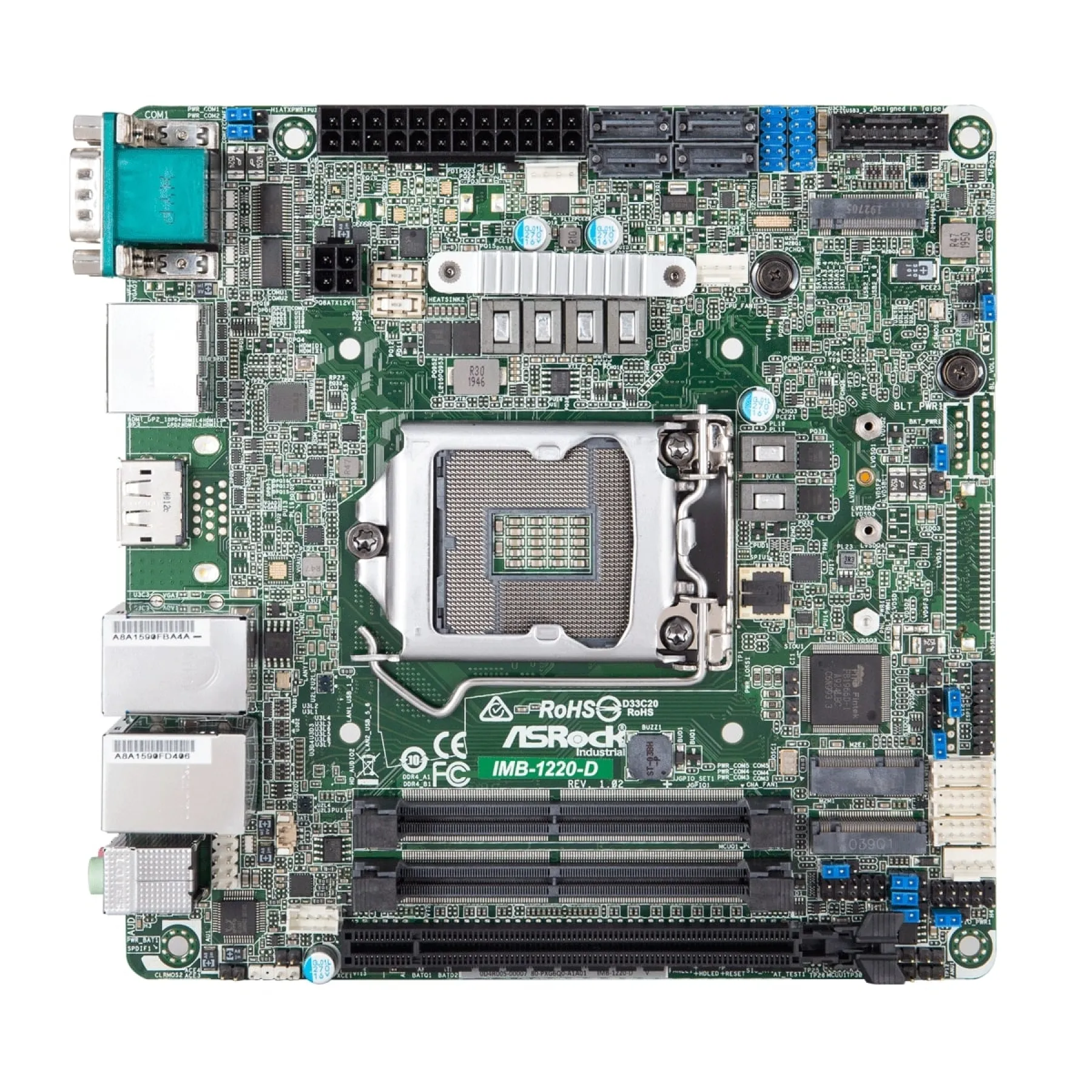

ASRock Industrial IMB-1220-D 10th Gen Intel Core Mini-ITX Motherboard

IMB-1220-D

  • Intel 10th Gen (Comet lake-S) Core Processors with Q470E chipset
  • 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
  • 1 x PCIe x 16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 5 x COM, 4 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Support Triple display, 2 x DP 1.2, 1 x eDP, 1 x HDMI 2.0a
  • TPM 2.0 onboard
  • Special Feature: Supports Intel vPro, AMT, RAID 0/1/5/10
  • ATX-PWR (24+4-pin)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial IMB-1220-D is an Industrial Mini-ITX Motherboard powered by 10th Gen Intel Core processor. The IMB-1220-D contains DDR4, providing up to 64GB memory, alongside rich I/O including 10x USB, 5x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Memory Type DDR4
COM Ports 2x RS-232/422/485, 3x RS-232
LAN Ports 1x 2.5GB, 1x 1GB
USB Ports 4x USB 2.0, 6x USB 3.2

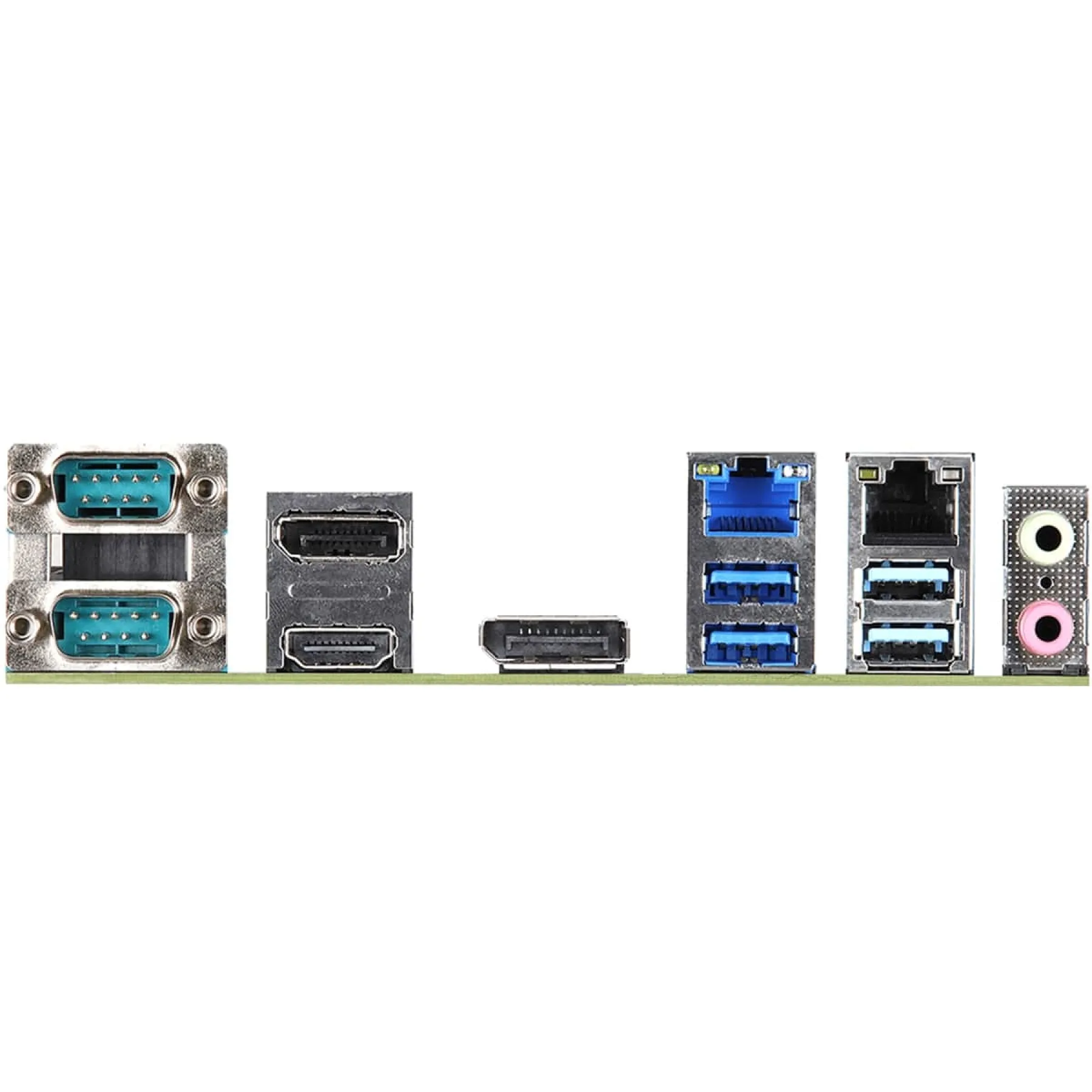

Video Ports 1x eDP, 1x HDMI, 2x DisplayPort
Storage 1x M.2 PCIe, 1, 1x M.2 SATA, 2x SATA, RAID
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Orders placed by EMEA customers will be delivered by DHL from Assured Systems UK.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Accepted payment options for EMEA customers include VISA, Mastercard or bank transfer in GBP.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, is an official EMEA and USA Partner of ASRock Industrial. For all ASRock Industrial products supplied in the EMEA (including the UK) and US regions, we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
