iEPF-9010S-EY4

ASRock Industrial iEPF-9010S-EY4 12th Gen Intel Core/Pentium/Celeron Intelligent Edge Platform

iEPF-9010S-EY4

  • Intel 12th Gen Core Processors with R680E Chipset
  • 4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
  • 1 x PCIe x16 (PCIe Gen4) or 2 x PCIe x8 (PCIe Gen4), 2 x PCIe x 4 (PCIe Gen4)
  • 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
  • 6 x USB 3.2 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO
  • 5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)
  • 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
  • Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275mm x 124 mm x 60 mm (L x H x D) max. and up to 255W graphic card

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

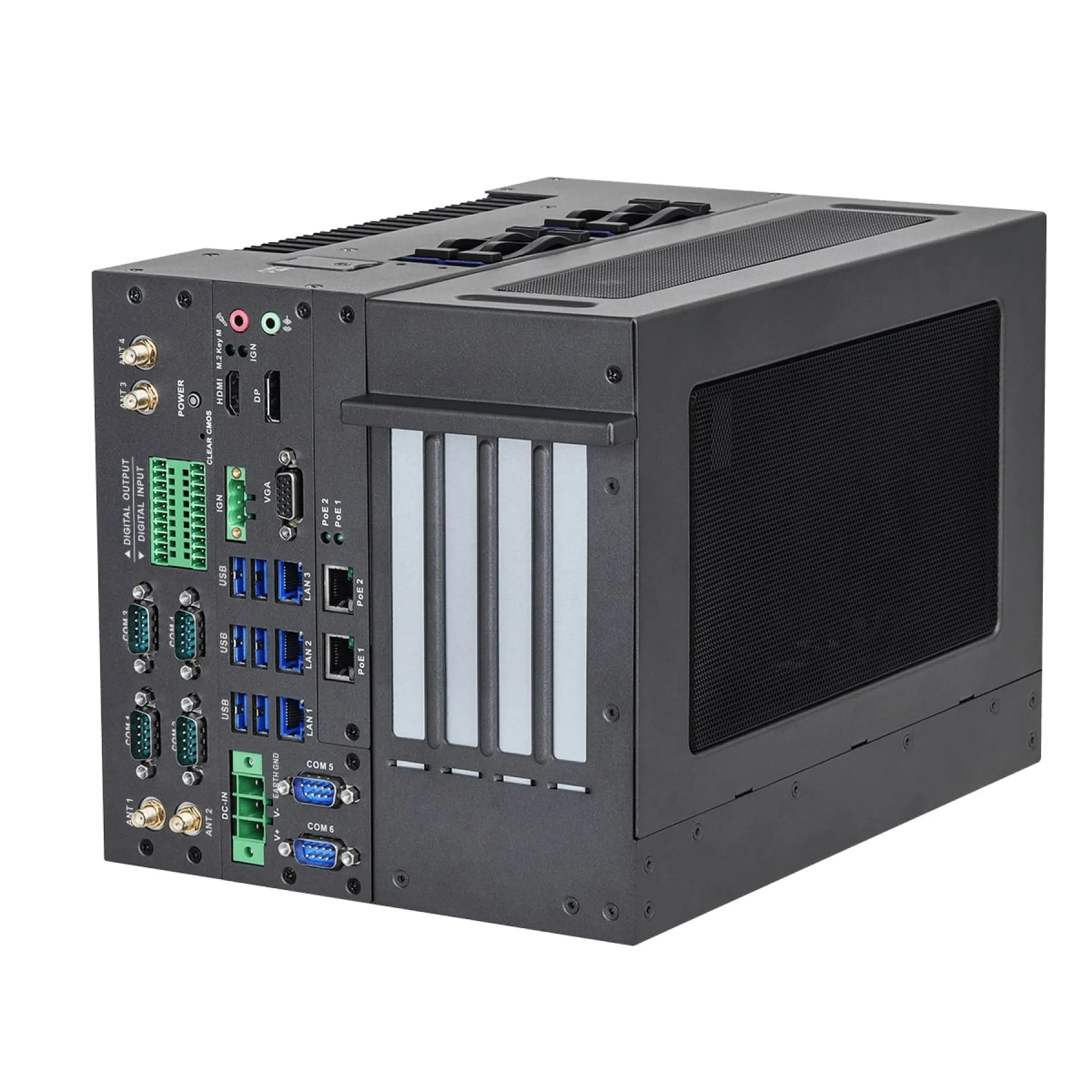

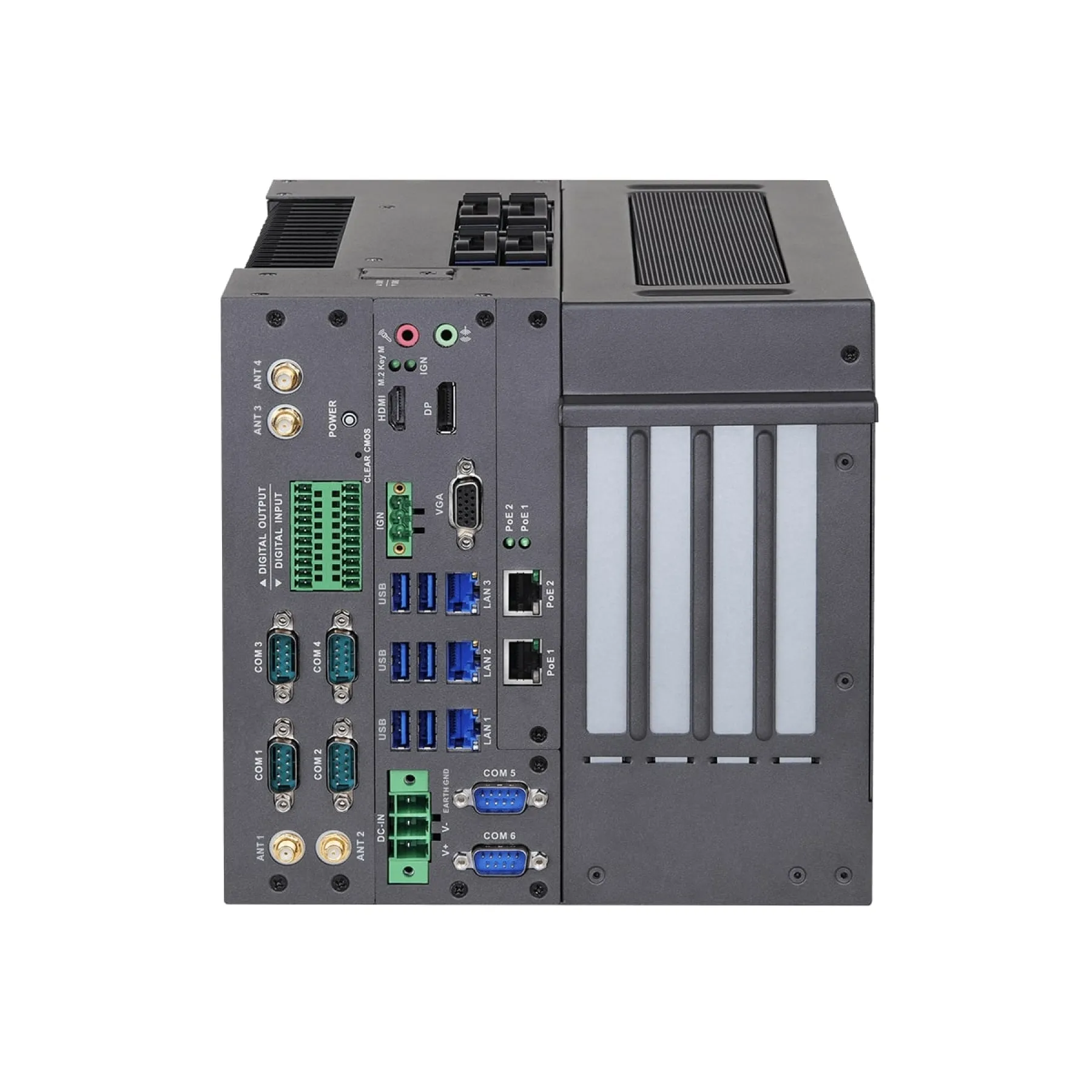

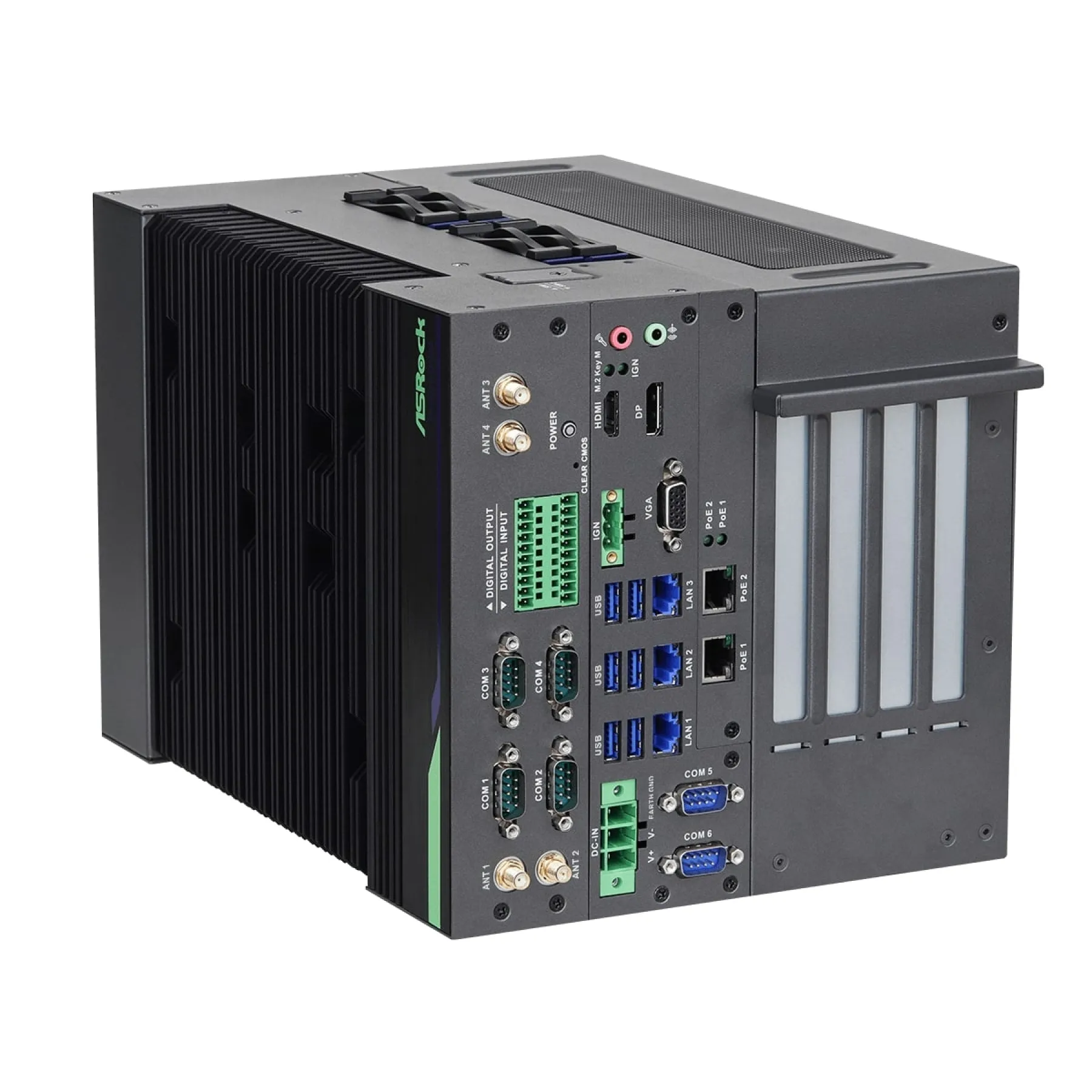

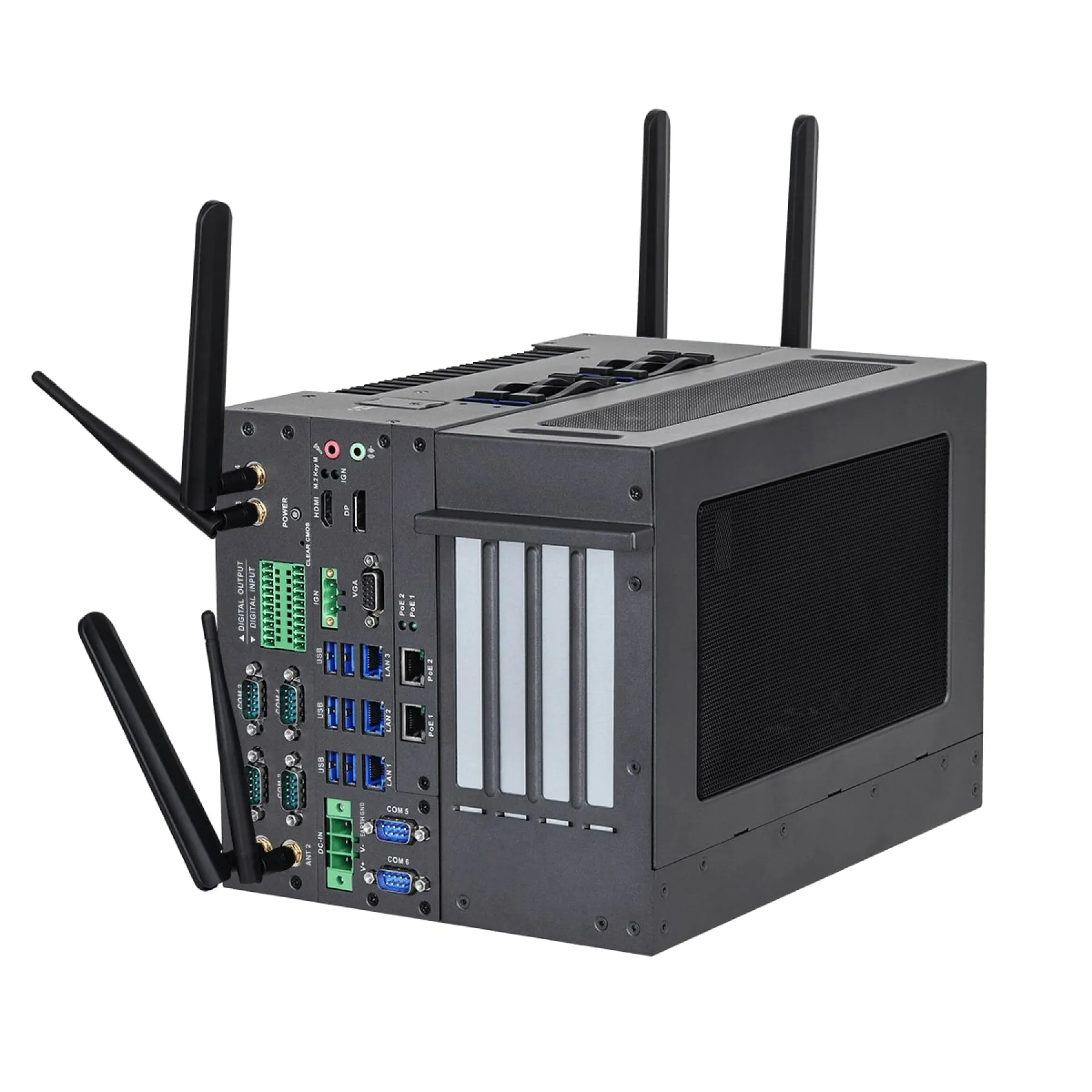

The ASRock Industrial iEPF-9010S-EY4 is an Expandable Edge AIoT Platform powered by 12th Gen Intel Core/Pentium/Celeron processor. The iEPF-9010S-EY4 contains rich I/O including: 7 x USB, 5 x LAN and 6 x COM Ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Memory Capacity Up to 128GB
Memory Channel ECC
Serial Ports (COM) 2x RS-232, 4x RS-232/422/485
USB Ports 1x USB 2.0, 6x USB 3.2
Ethernet Ports (LAN) 5x 2.5G
Wireless Cellular, Wi-Fi
Video Ports 1x DisplayPort, 1x HDMI, 1x VGA
Digital I/O 16 DIO
Audio Yes
Storage Type 1x Cfast, 1x M.2, 8x SATA
Expansion Type 2x Mini PCI Express, 2x M.2, 4x PCI Express, 8
Input Voltage 9-36 VDC
Mounting Options Desk-mount
Operating Temperature Extra-Wide OT: -40°C to 55°C, Extra-Wide OT: -40°C to 75°C
Market Certifications CE/FCC
OS Support Linux, Windows 10
