iEPF-9002S-EX4

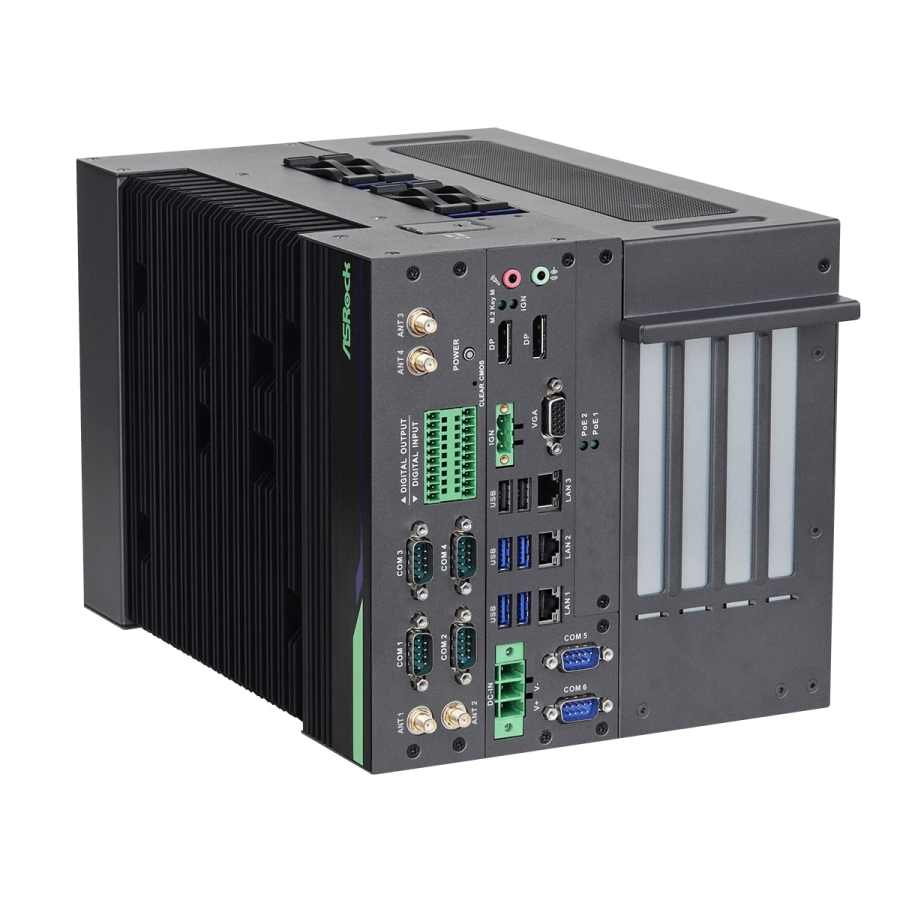

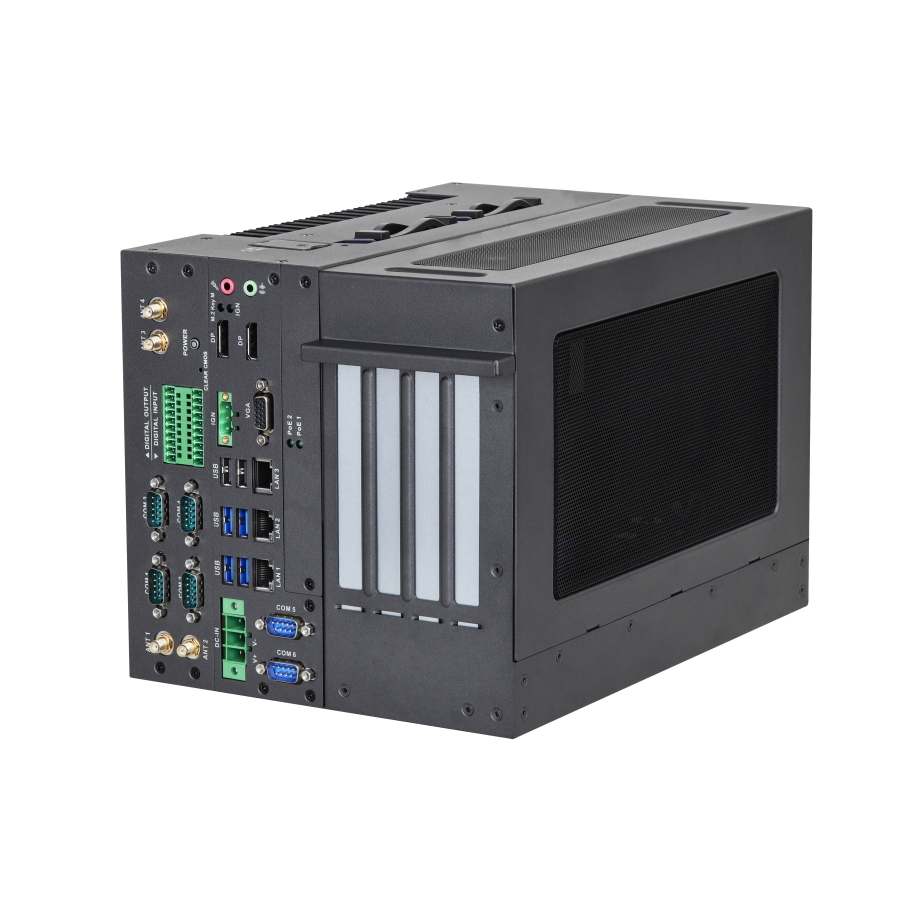

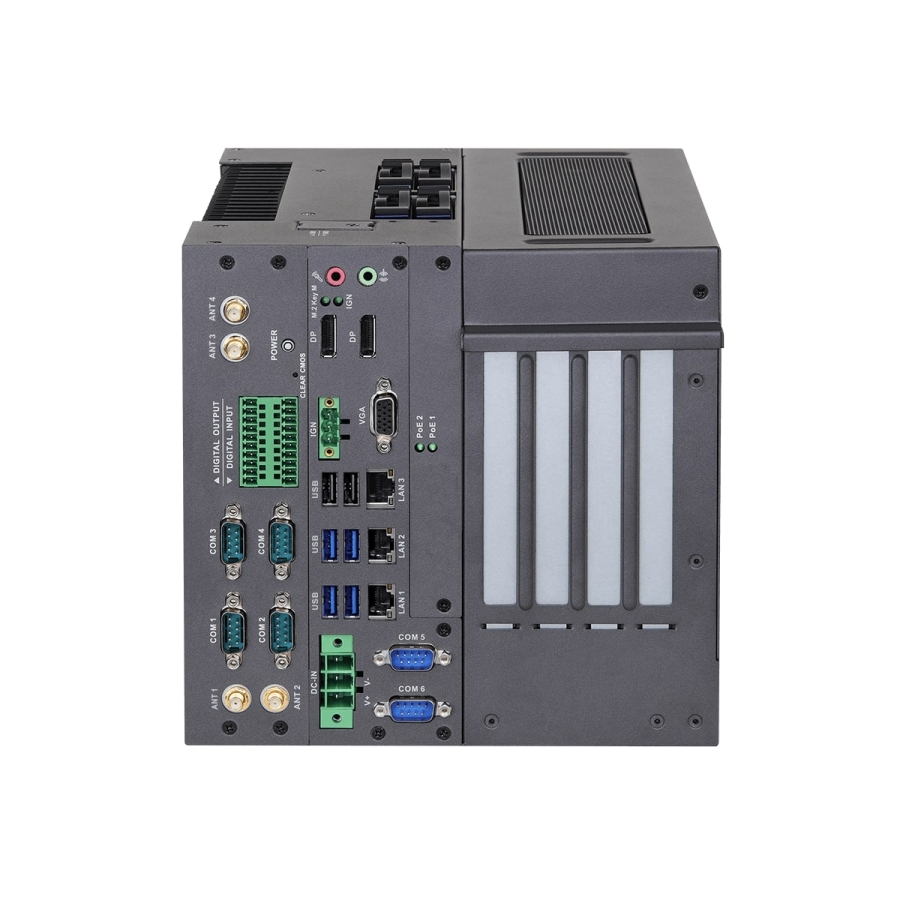

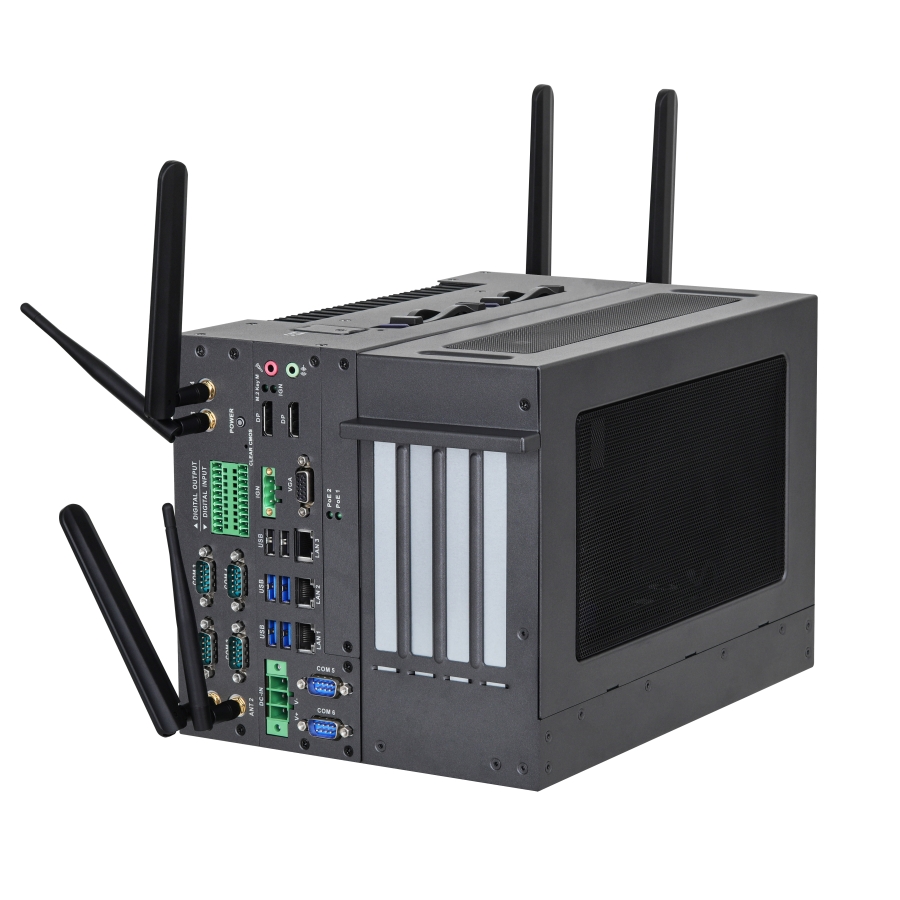

ASRock Industrial iEPF-9002S-EX4 10th Gen Intel Core Intelligent Edge Platform

iEPF-9002S-EX4

  • Intel 10th Gen Core Processors with H420E chipset
  • 2 x 260-pin DDR4 SO-DIMM up to 64GB (32GB per DIMM)
  • 1 x PCIe x16 (PCIe Gen3), 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
  • 4 x USB 3.2 Gen1x1, 2 x USB 2.0, 6 x COM, 2 x SATA3, 8 x DI, 8 x DO
  • 3 x Intel Gigabit LAN
  • Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal,and power design, with support for 275mm x 111.15 mm (L x H) max. and up to 255W graphic card

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial iEPF-9002S-EX4 is an Expandable Edge AIoT Platform powered by 10th Gen Intel Core processor. The iEPF-9002S-EX4 contains rich I/O including: 7 x USB, 3 x LAN and 6 x COM Ports.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Memory Capacity Up to 64GB
Serial Ports (COM) 2x RS-232, 4x RS-232/422/485
USB Ports 3x USB 2.0, 4x USB 3.2
Ethernet Ports (LAN) 3x 1G
Wireless Cellular, Wi-Fi
Video Ports 1x VGA, 1x DisplayPort
Digital I/O 16 DIO
Audio Yes
Storage Type 1x M.2, 4x SATA
Expansion Type 1x PCI Express, 2x M.2, 2x Mini PCI Express, 5
Input Voltage 9-36 VDC
Mounting Options Desk-mount
Operating Temperature Extra-Wide OT: -40°C to 45°C, Extra-Wide OT: -40°C to 55°C, Extra-Wide OT: -40°C to 75°C
Market Certifications CE/FCC
OS Support Linux, Windows 10

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
