iEP-7020E-014

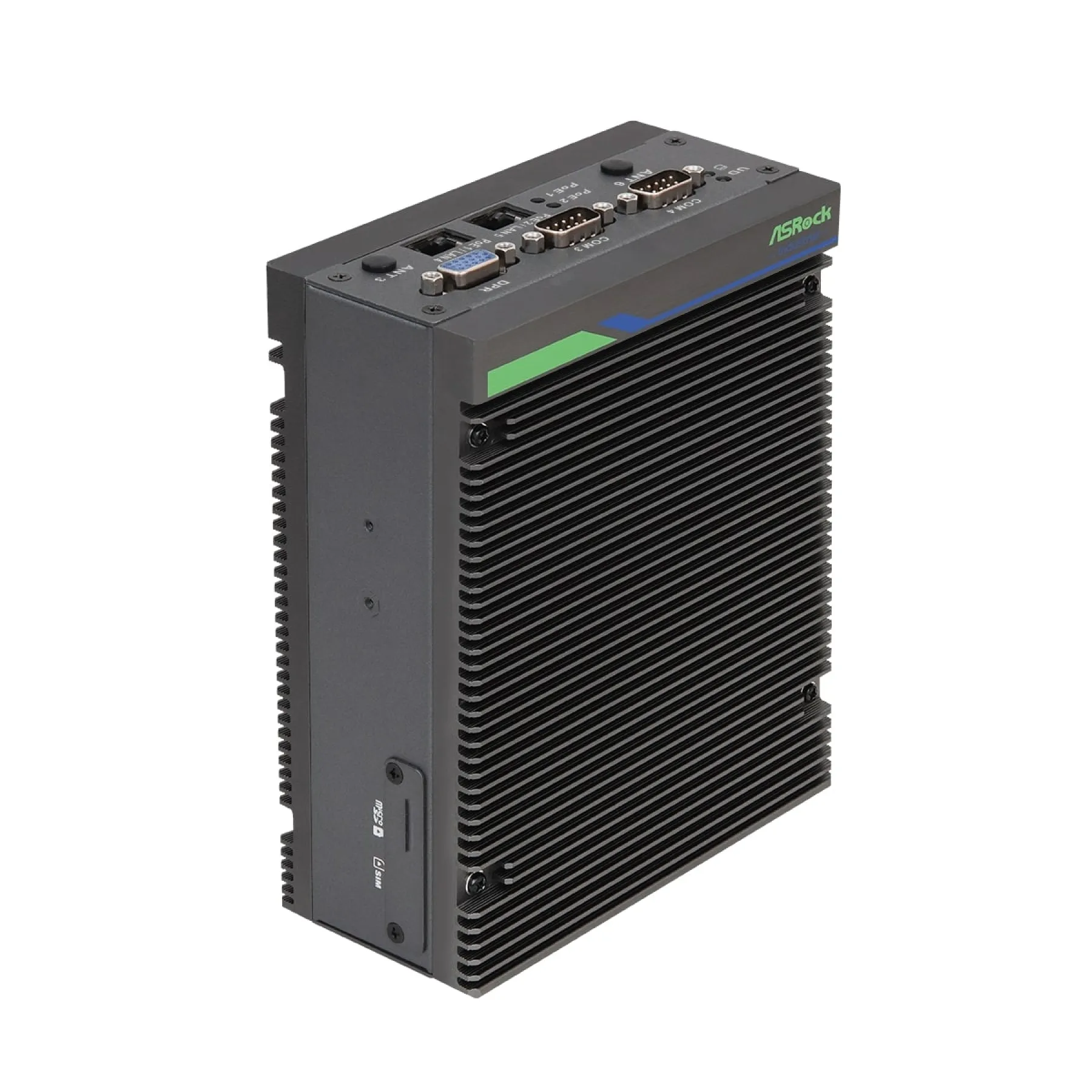

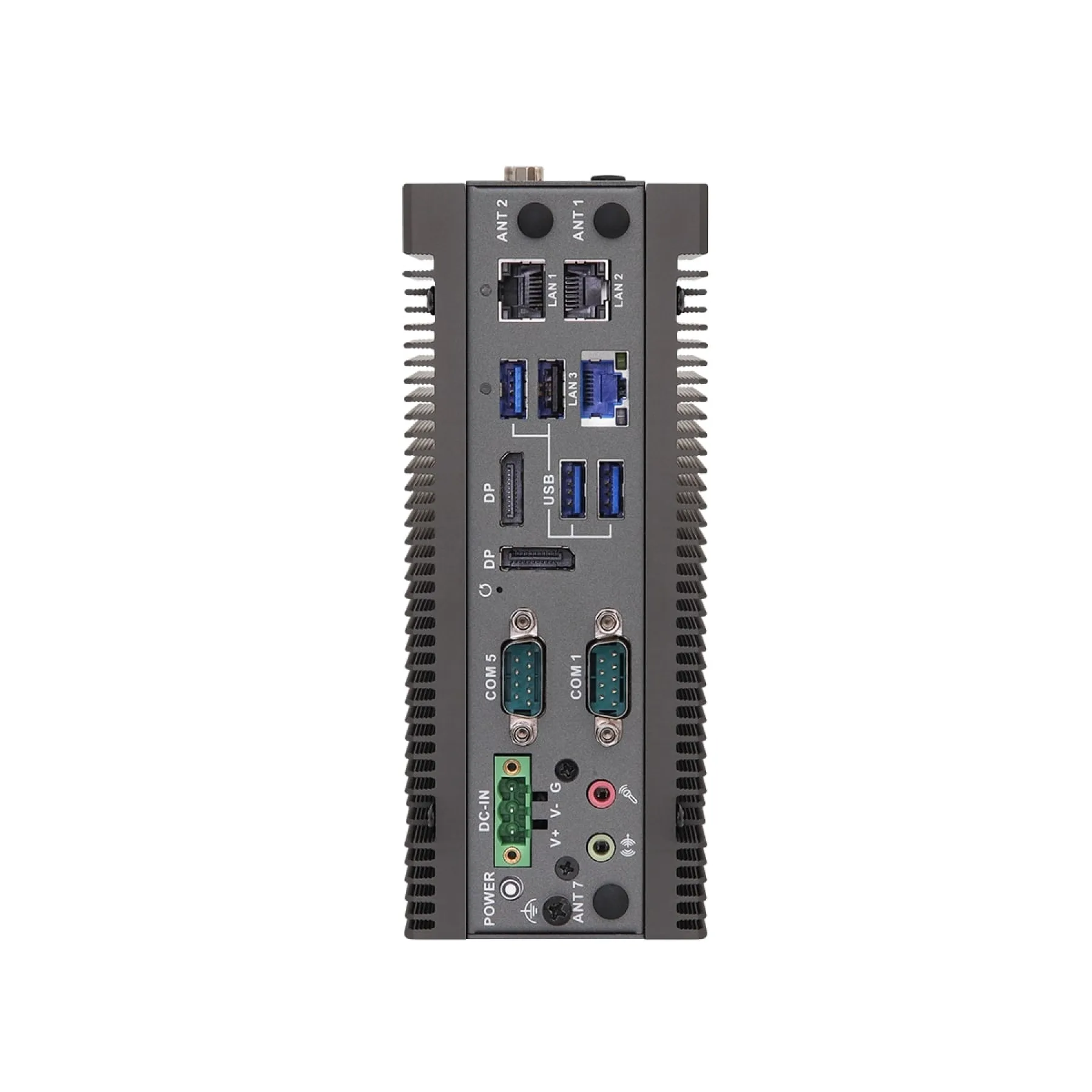

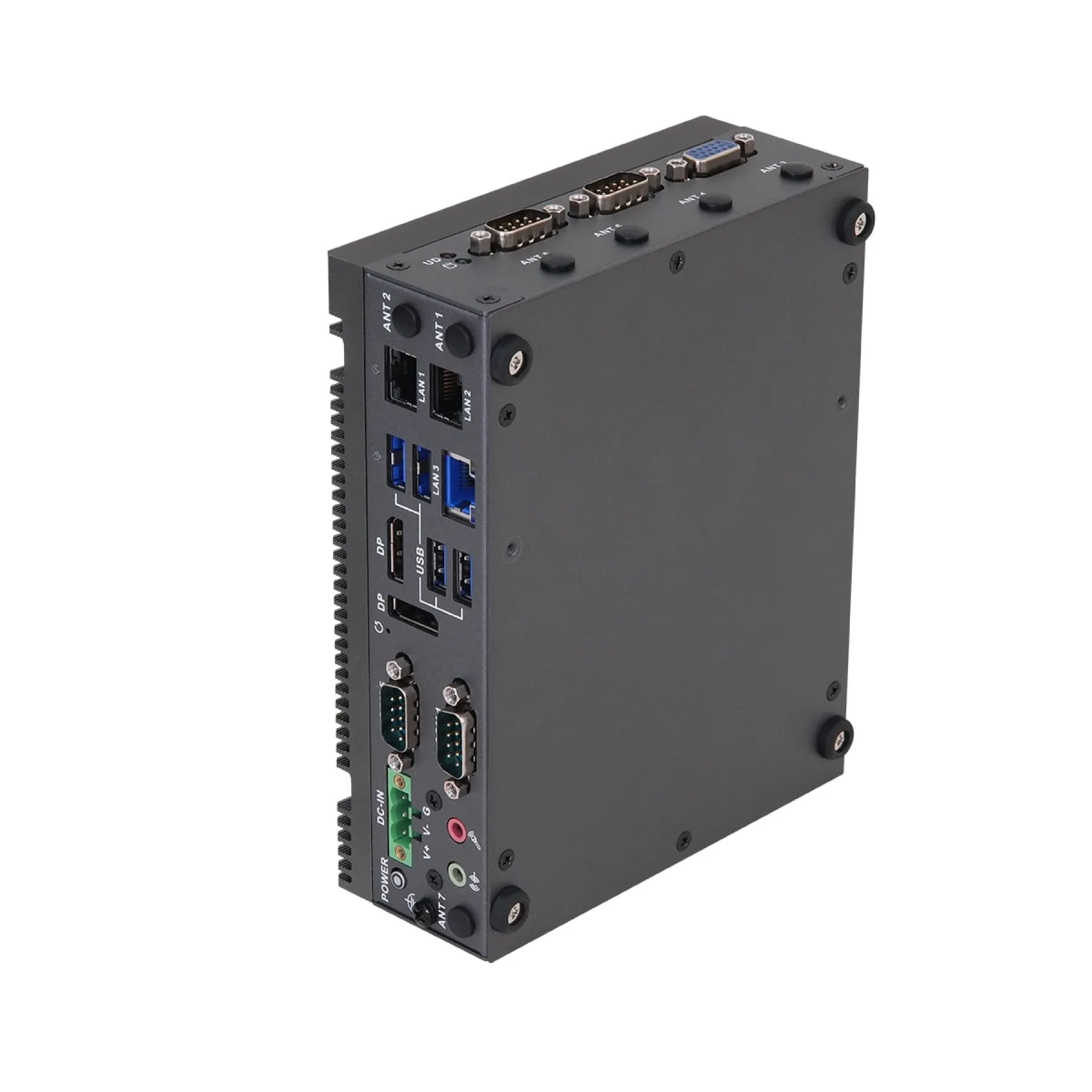

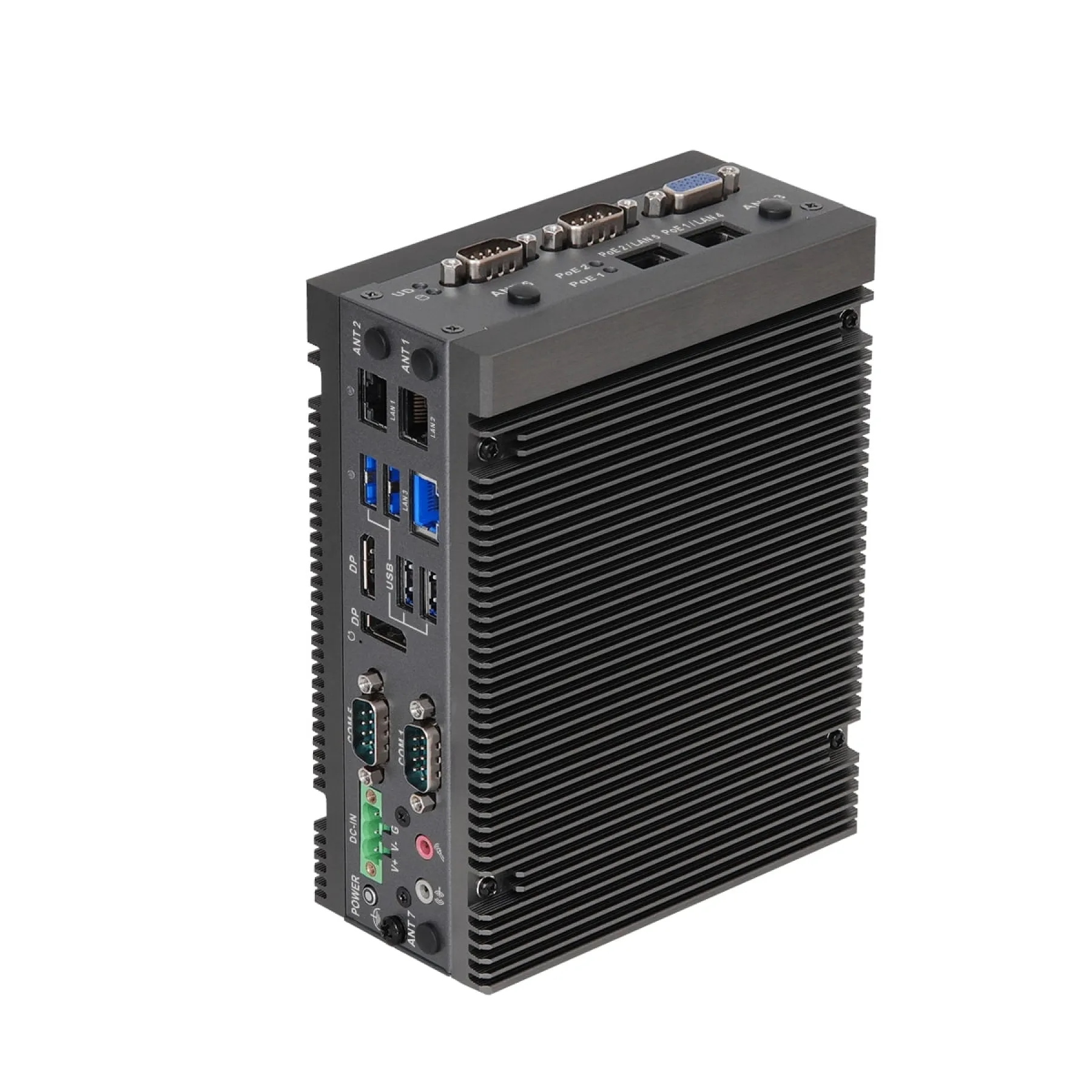

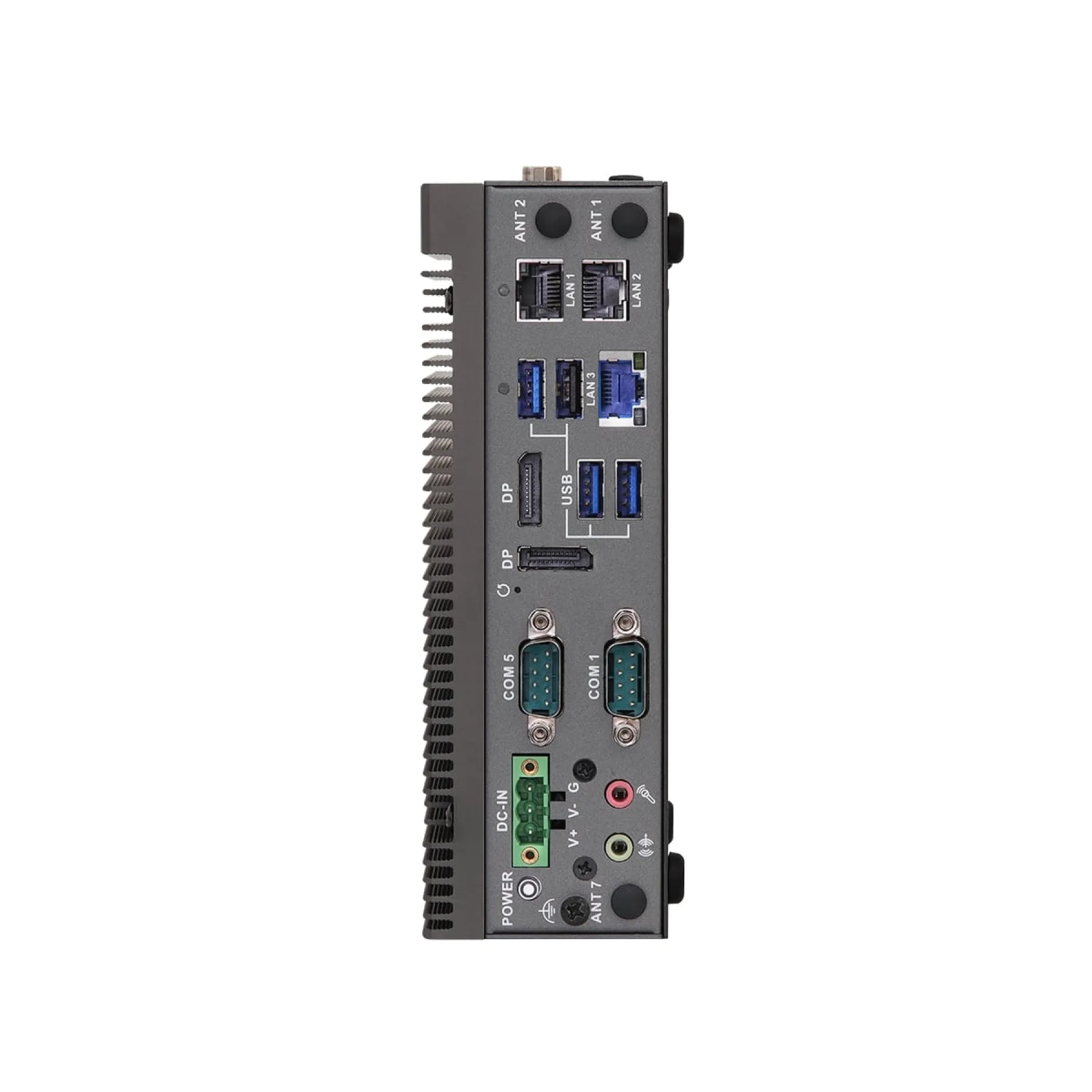

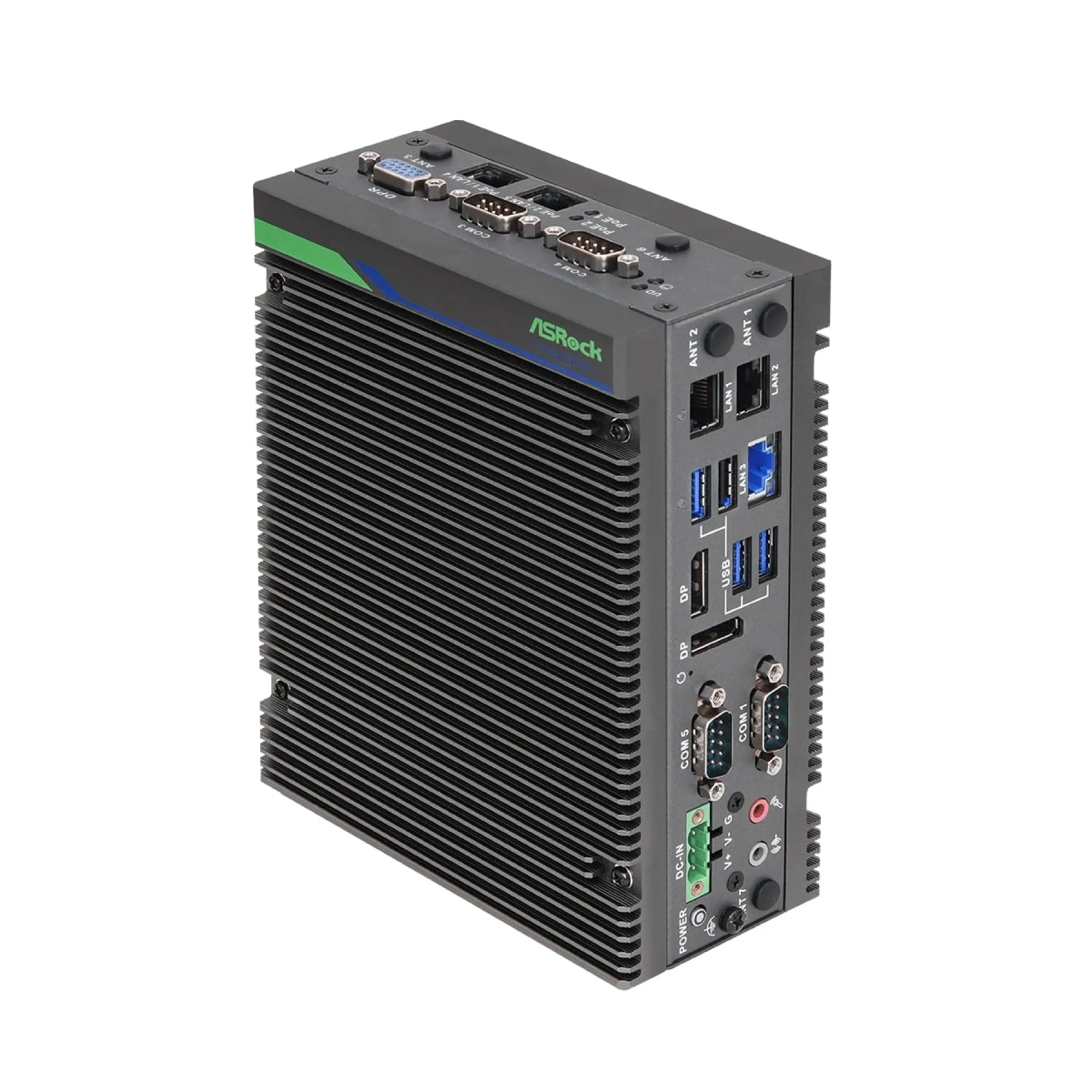

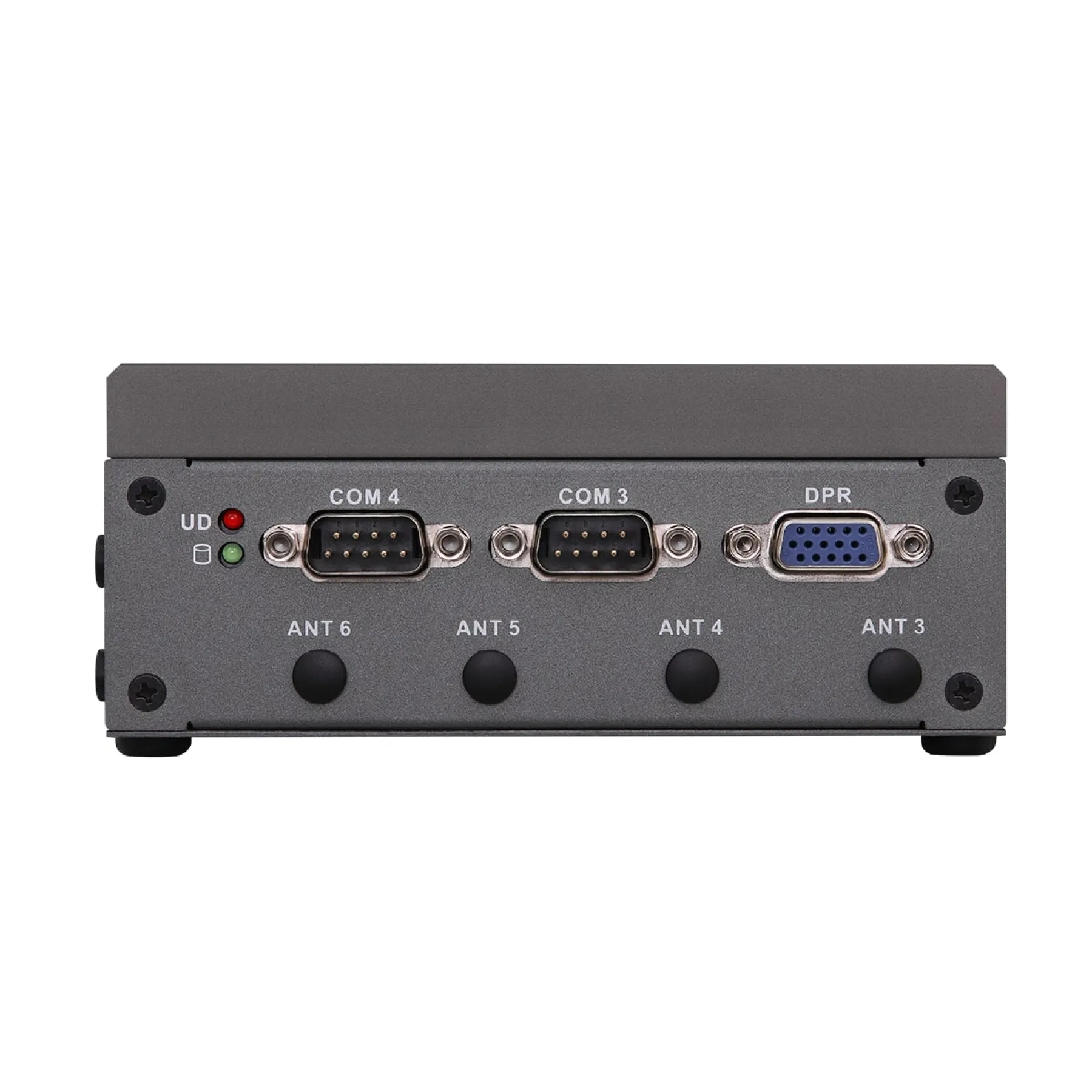

ASRock Industrial iEP-7020E-014 Series 13th Gen Intel Core Industrial IoT Controller with 3x LAN & 5G

iEP-7020E-014

  • Intel 13th Gen Core Embedded & Industrial Processors
  • Scalable power and performance in BGA for edge controller
  • High performance Intel Iris Xe Graphics architecture
  • Fan-less and Rugged Design
  • Wide Temperature Operating (-40 °C to 70 °C)
  • 9V ~ 36VDC Wide Range Power Inputs
  • Intel TCC and TSN Support for Real-Time Computing
  • 3 x Intel i226-IT LAN (Support vPro)

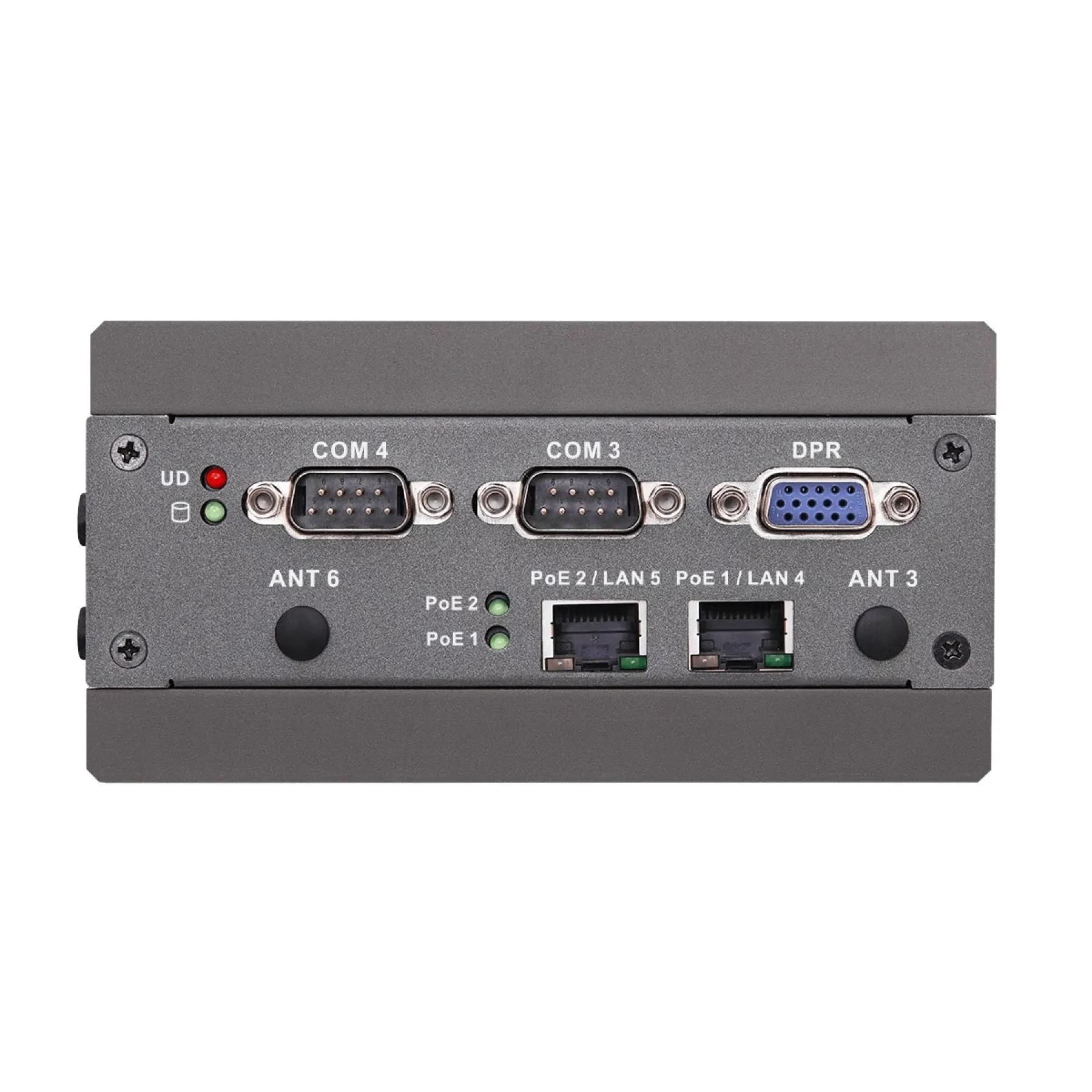

  • 2 x Intel i210-AT LAN (Support IEEE 802.3AF PoE)
  • Support Intel IN-Band ECC

Choose iEP-7020E Series Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial iEP-7020E-014 is an Industrial IoT Controller powered by 13th Gen Intel Core processor. The iEP-7020E-014 provides up to 64GB memory, alongside rich I/O including 4x USB, 3x LAN and 4x COM Ports.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Core, up to 14 Cores
Memory Capacity Up to 64GB
Memory Channel ECC
Cooling Type Fanless
Serial Ports (COM) 4x RS-232/422/485
USB Ports 1x USB 2.0, 3x USB 3.2
Ethernet Ports (LAN) 3x 2.5G
Wireless Cellular, Wi-Fi
Video Ports 2x DisplayPort
Digital I/O 8 DIO
Audio Yes
Storage Type 1x MicroSD, 1x M.2 PCIe
Expansion Type 2x M.2
Input Voltage 9-36 VDC
Mounting Options DIN-mount, Wall-mount
Operating Temperature Extra-Wide OT: -40°C to 70°C
Market Certifications CE/FCC
OS Support Linux, Windows 10
