iEP-5020G-021

Name: ASRock Industrial iEP-5020G-021 Intel Atom x7433RE Industrial IoT Controller with Wi-Fi, Cellular, 5x LAN Ports and PoE Ports
SKU: iEP-5020G-021

ASRock Industrial

ASRock Industrial iEP-5020G-021 Intel Atom x7433RE Industrial IoT Controller with Wi-Fi, Cellular, 5x LAN Ports and PoE Ports

iEP-5020G-021

Latest and Powerful Intel Atom x7433RE Processor (Amston Lake)

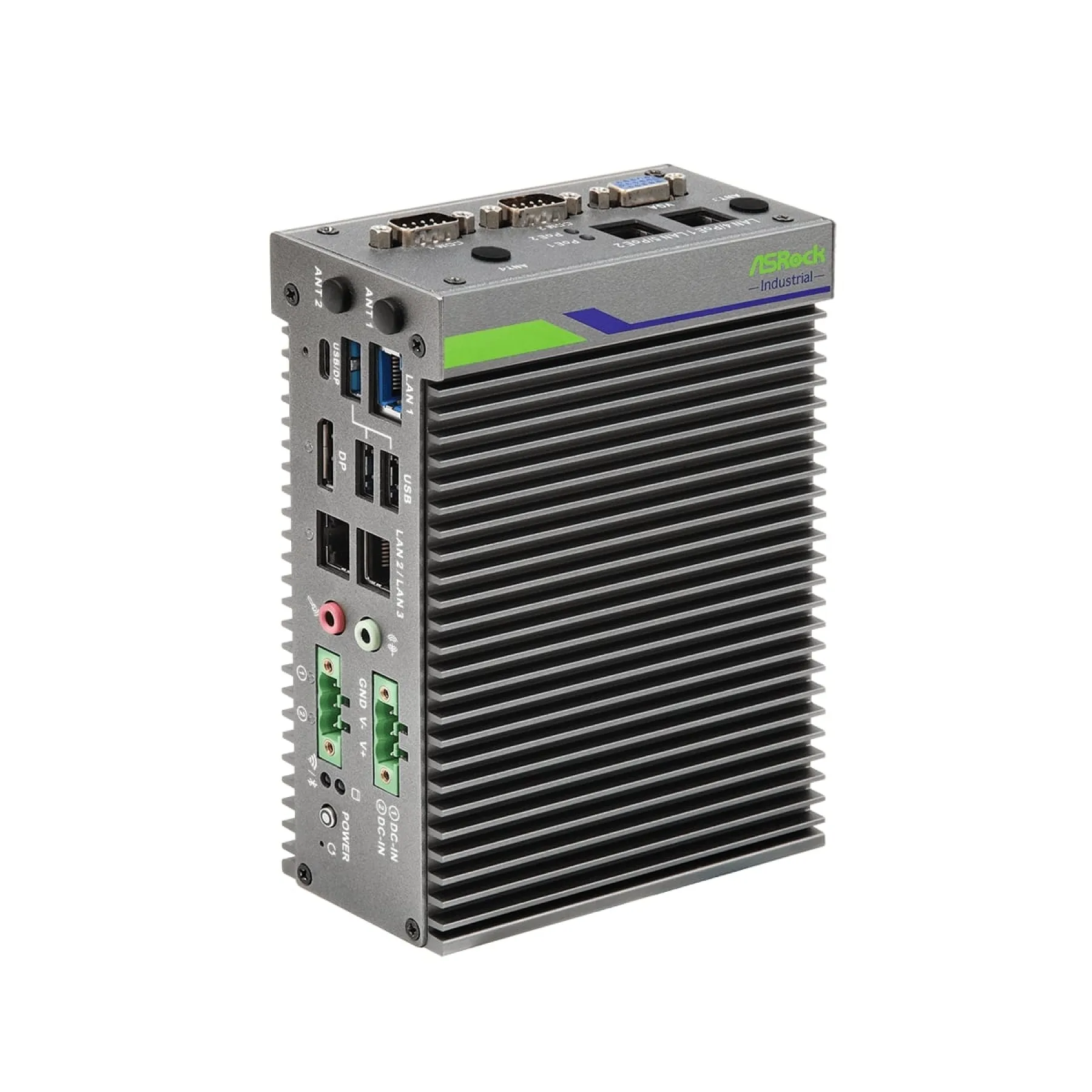

Fan-less and Rugged Design
-40°C to 70°C Wide Operating Temp. for Basic SKU
-40°C to 50°C Wide Operating Temp. for PoE SKU
6-36VDC Wide Range Power Inputs for Basic SKU
19-36VDC Wide Range Power Inputs for PoE SKU
Most Flexible IOs and Expansion for Industrial Applications
Intel TCC and TSN Support for Real-Time Computing
DIN Rail or Wall Mount Options

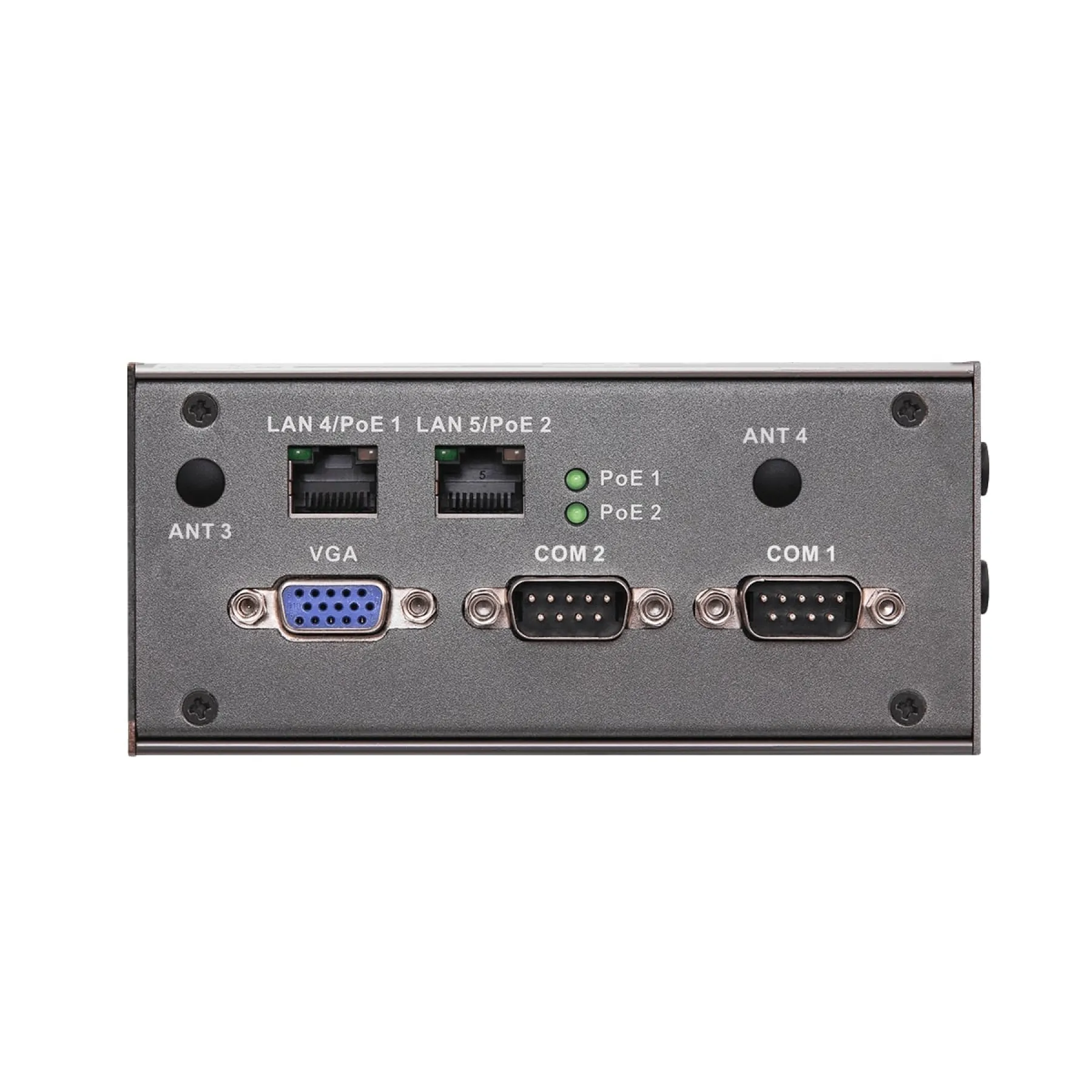

4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
1 x Intel 2.5G LAN
Support Intel IN-Band ECC

Choose iEP-5020G Model:

Product Code: iEP-5020G-021

Categories: ASRock iEP-5020G Series, ASRock Industrial, ASRock IoT Controllers, Industrial IOT Devices, IoT Gateways

Range: ASRock Industrial - ASRock iEP-5020G Series

Details

The ASRock Industrial iEP-5020G Series is an Industrial IoT Controller powered by the Intel Atom x7433RE Processor (Amston Lake). This controller boasts enhanced computing power with up to four cores, upgraded graphic/AI inference performance of up to 32 EUs, and DDR5 memory with Intel In-Band ECC support. With its fanless and rugged design, the iEP-5020G Series features a wide operating temperature range of -40 to 70 °C and broad 6-36V DC power inputs, catering to various embedded and industrial applications. It provides versatile IOs and expansion options for seamless communication, with flexible configurations available in Basic, PoE, 5LAN, and 8DIO SKUs. Featuring TSN and Intel TCC for real-time computing, it also includes rich RF capabilities like 4G LTE, 5G, Wi-Fi 6E, and BT 5.2.
