iEP-5010G-010

ASRock Industrial iEP-5010G-010 10th Gen Intel Atom x6416RE Industrial IoT Controller

iEP-5010G-010

  • Latest and Powerful Intel Atom x6000E Processor (Elkhart Lake-PU)
  • Fan-less and Rugged Design, Wide Temperature Operation (-40 °C to 70 °C)
  • 6-36VDC Wide Range Power Inputs
  • Most Flexible IOs and Expansion for Industrial Applications
  • Intel TCC and TSN Support for Real-Time Computing

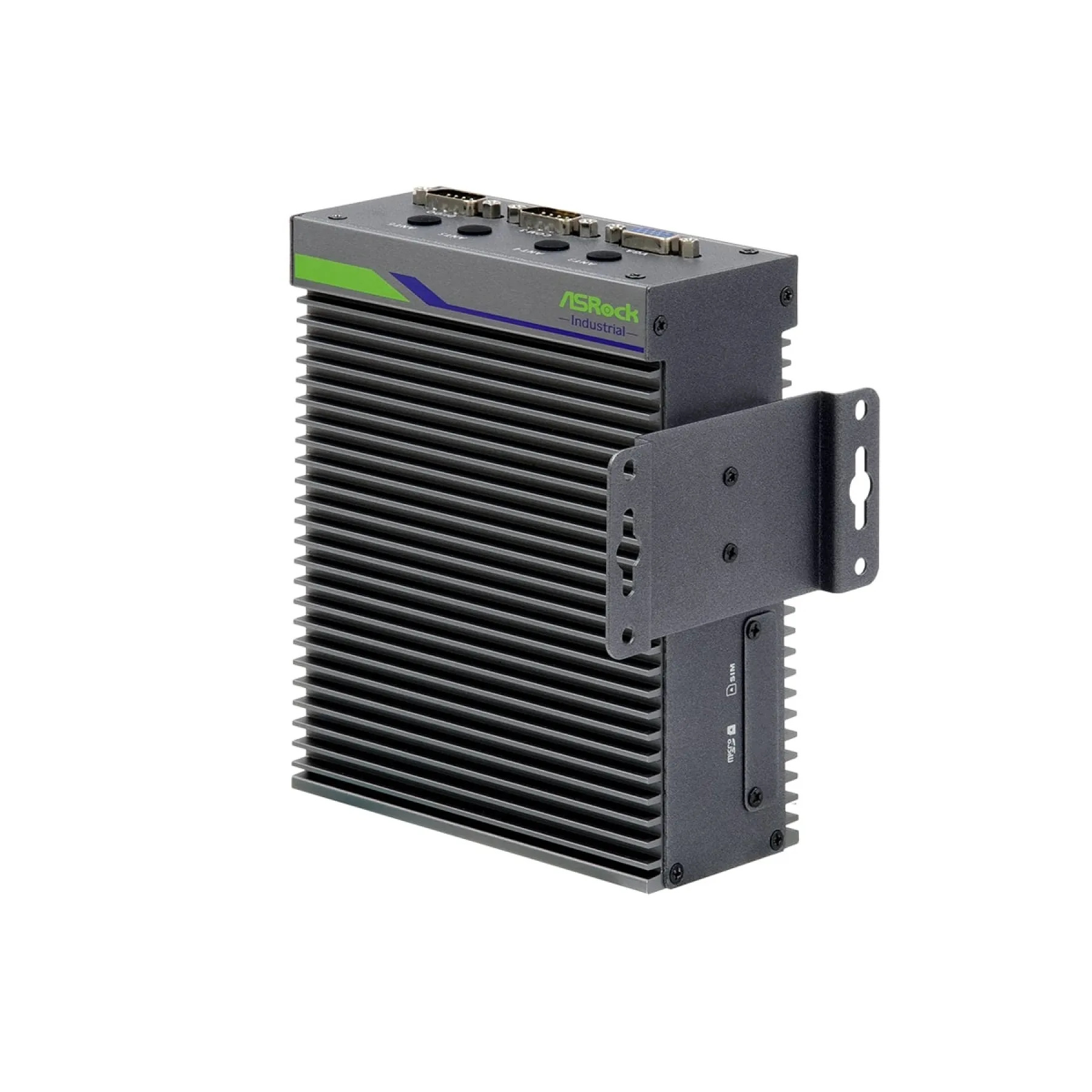

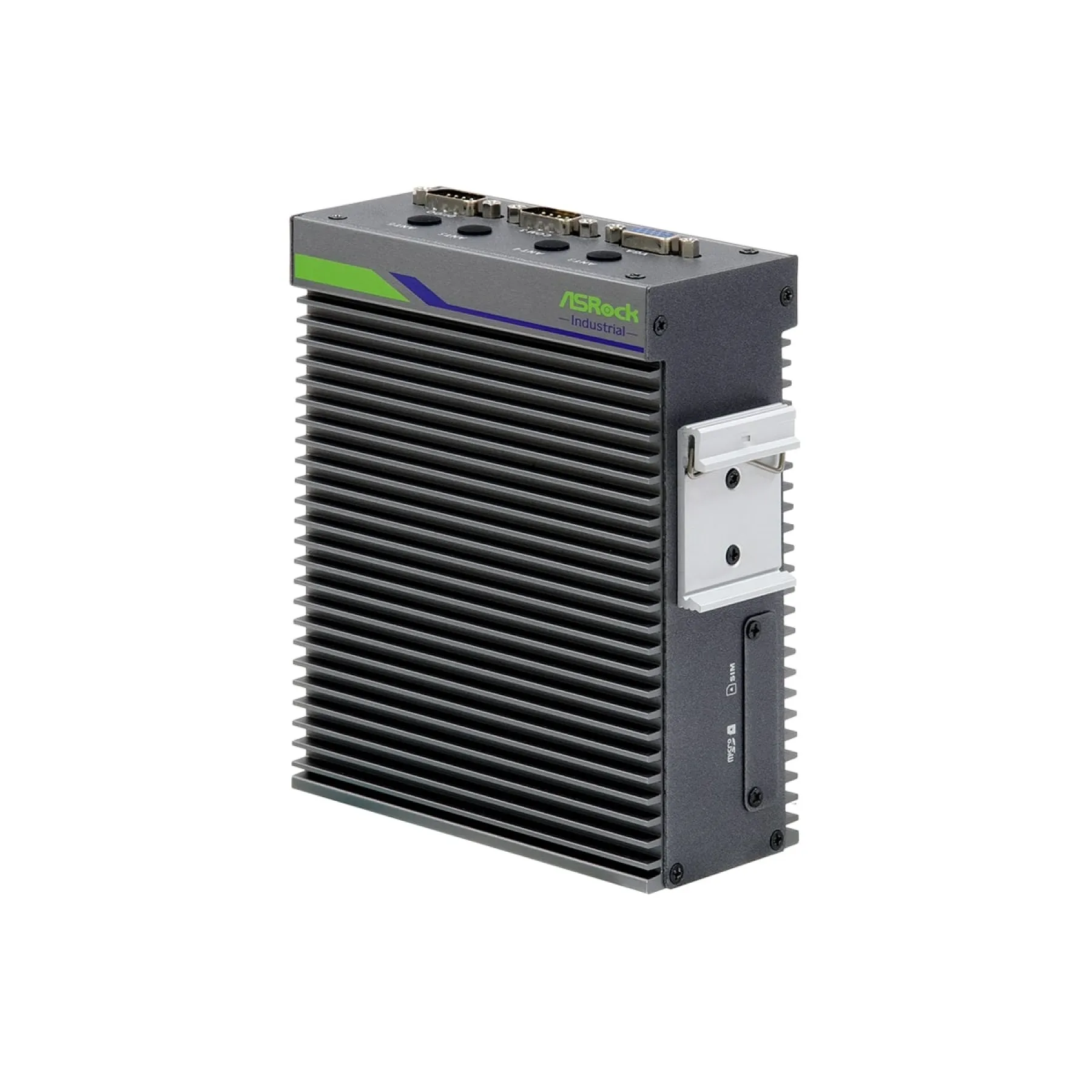

  • DIN Rail or Wall Mount Options

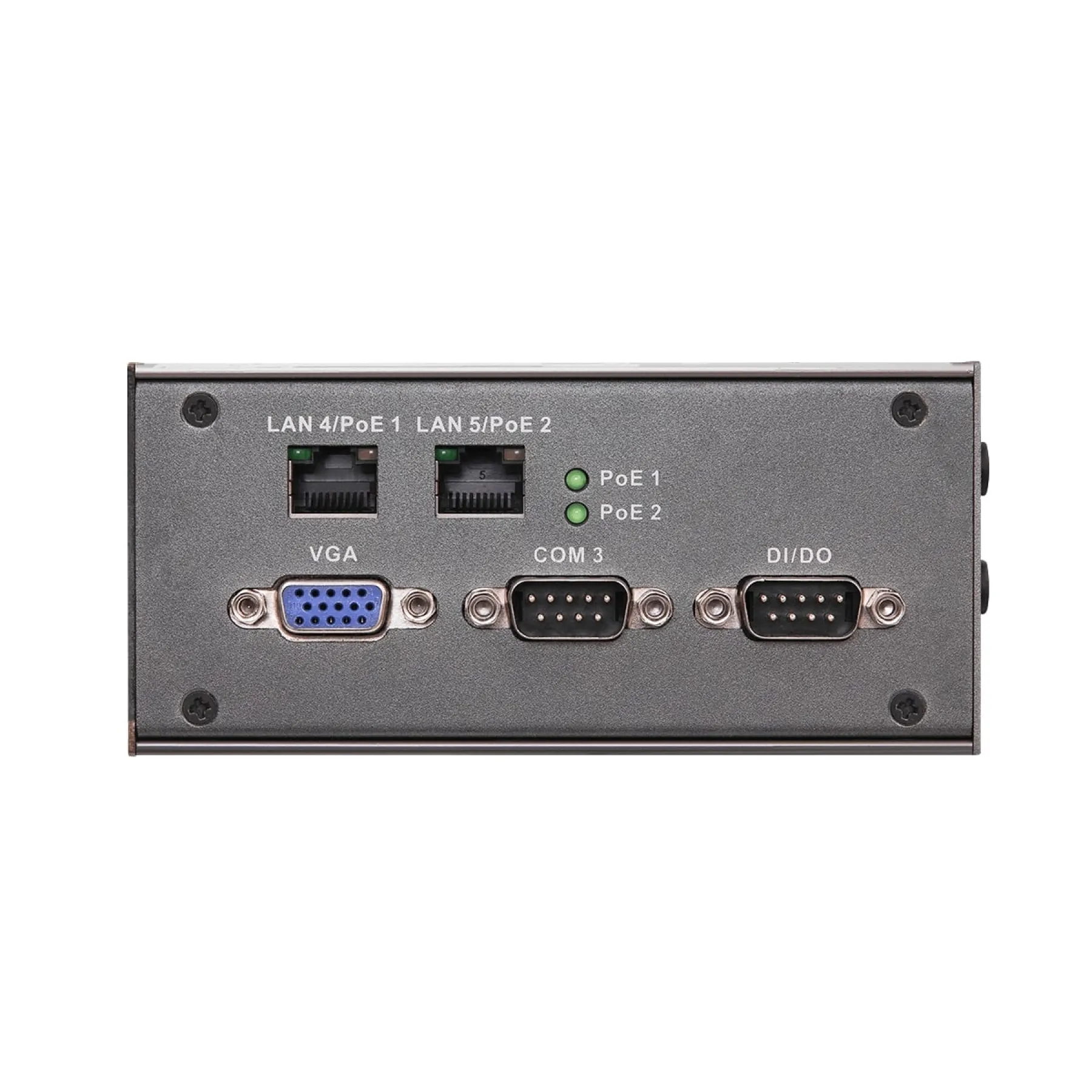

  • 4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
  • 1 x Intel 2.5G LAN
  • Support Intel IN-Band ECC

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial iEP-5010G-010 is an Industrial IoT Controller powered by 10th Gen Intel Atom x6416RE processor. The iEP-5010G-010 provides up to 32GB memory, alongside rich I/O including 4x USB, 3x LAN and 3x COM Ports.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Atom, up to 4 Cores
Memory Capacity Up to 32GB
Memory Channel ECC
Cooling Type Fanless
Serial Ports (COM) 3x RS-232/422/485
USB Ports 2x USB 3.2, 2x USB 2.0
Ethernet Ports (LAN) 1x 2.5G, 2x 1G
Wireless Cellular, Wi-Fi
Video Ports 1x VGA, 1x DisplayPort
Digital I/O 8 DIO
Audio Yes
Storage Type 1x MicroSD, 1x M.2 PCIe, 1x 2.5"
Expansion Type 2x M.2
Input Voltage 6-36 VDC
Mounting Options DIN-mount, Wall-mount
Operating Temperature Extra-Wide OT: -40°C to 70°C
Market Certifications CE/FCC
OS Support Linux, Windows 10

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
