iBOX-1335UE/D4

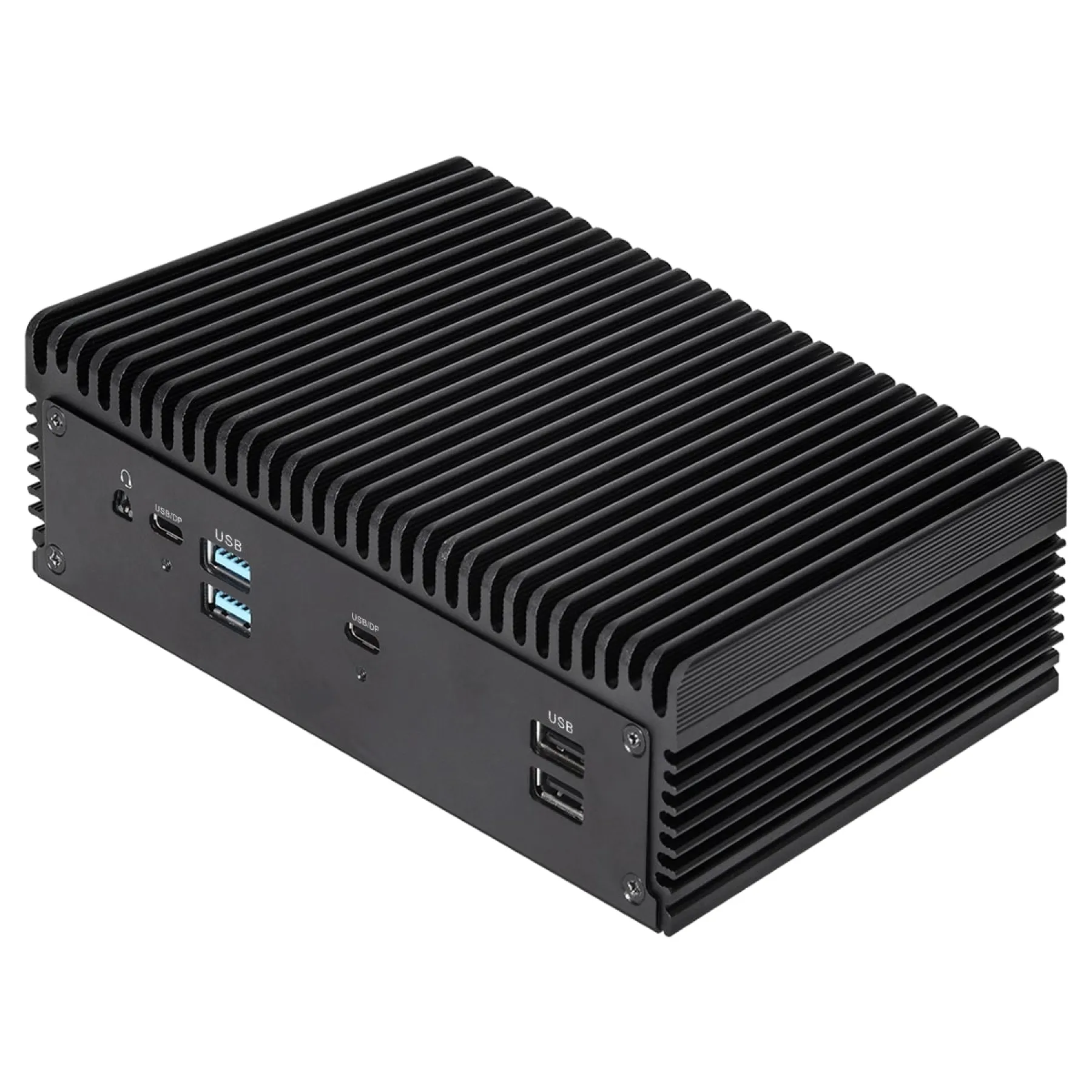

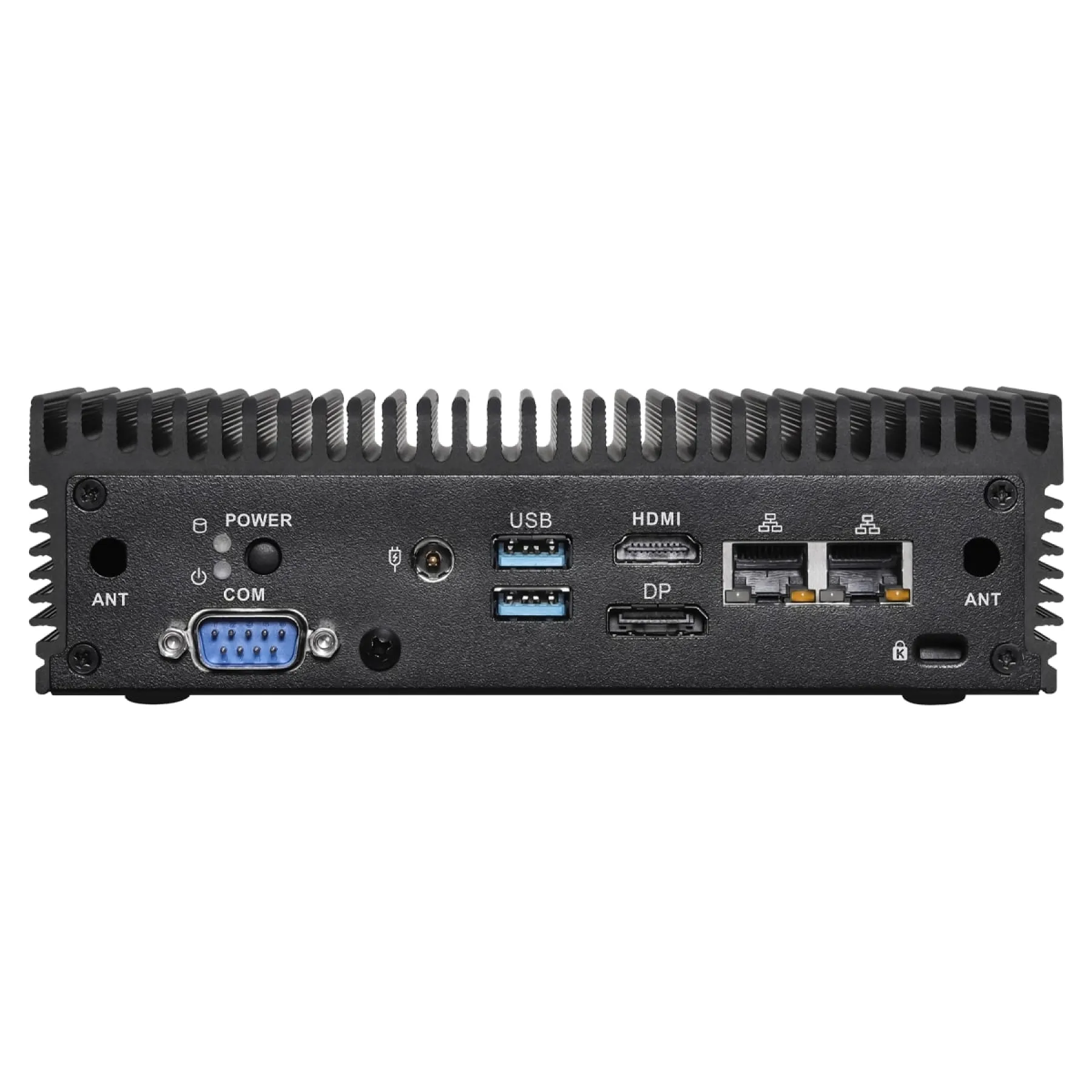

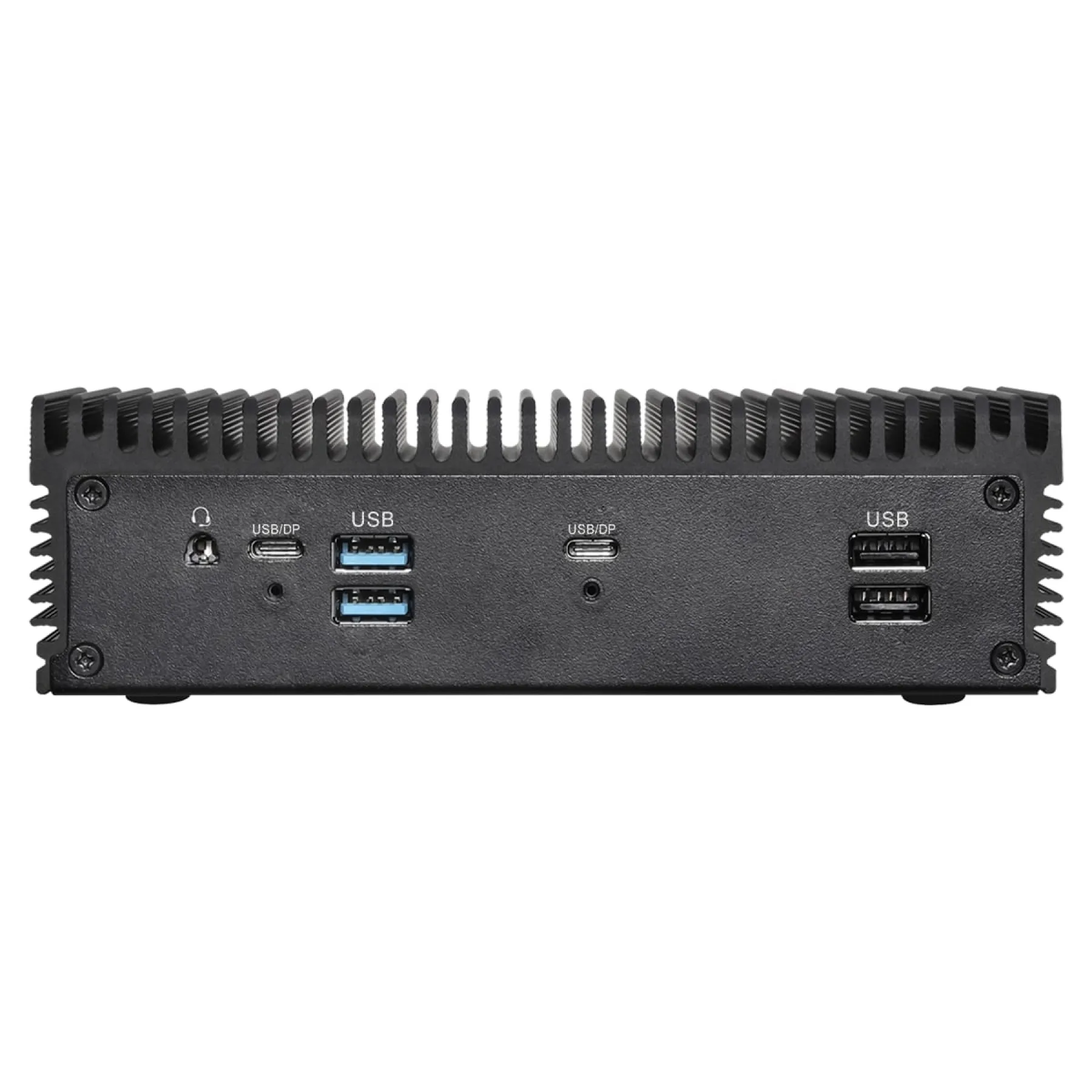

ASRock Industrial iBOX-1335UE/D4 13th Gen Intel Core i5-1335UE Fanless Embedded BOX PC

iBOX-1335UE/D4

  • Intel 13th Gen (Raptor Lake-P) Core Processors i7-1365UE
  • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
  • 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type C)
  • Supports Intel vPro
  • TPM 2.0 onboard IC
  • 19V/90W Power Adapter
  • 171.8 x 50.05 x 109.45 mm, Fanless Embedded BOX PC

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The ASRock Industrial iBOX-1335UE/D4 is a Fanless Embedded BOX PC powered by 13th Gen Intel Core i5-1335UE processor. The iBOX-1335UE/D4 provides up to 64GB memory, alongside rich I/O including 8x USB, 1x COM and 2x LAN ports.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Core, up to 10 Cores
Memory Capacity Up to 64GB
Cooling Type Fanless
Serial Ports (COM) 1x RS-232
USB Ports 1x USB 4.0, 2x USB 2.0, 5x USB 3.2
Ethernet Ports (LAN) 2x 2.5G
Video Ports 1x HDMI, 3x DisplayPort
Audio Yes
Storage Type 1x M.2 PCIe, 1x SATA
Expansion Type 1x M.2
Input Voltage 12-19 VDC
Mounting Options DIN-mount, VESA-mount, Wall-mount
Operating Temperature Wide OT: -20°C to 40°C
Market Certifications CE/FCC
OS Support Windows 10, Windows 11

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
